COURIER 2300 cc: Reassembly

Reverse disassembly procedure. When installing cam, align marks on distributor housing and gear. Align rotor metal end with clip mounting lug on side of distributor with mounting slot.

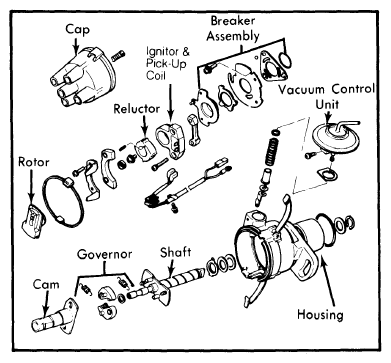

Fig 1: Exploded View of Mazda Distributor (GLC Shown, Others Similar)

Courtesy of NOT AVAILABLE

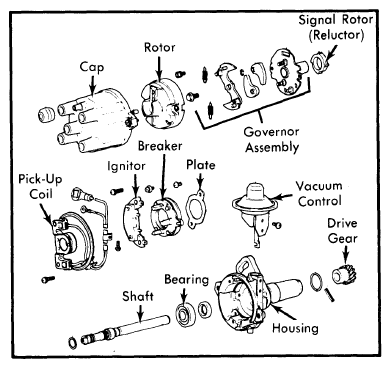

Fig 2: Exploded View of Chrysler Corp. Distributor (Courier 2000 cc Similar)

Courtesy of NOT AVAILABLE
