Choke Magnet

Disconnect electrical coupler from choke switch. Using an ohmmeter, check continuity between terminals. Continuity should exist between No. 6 and No. 8.

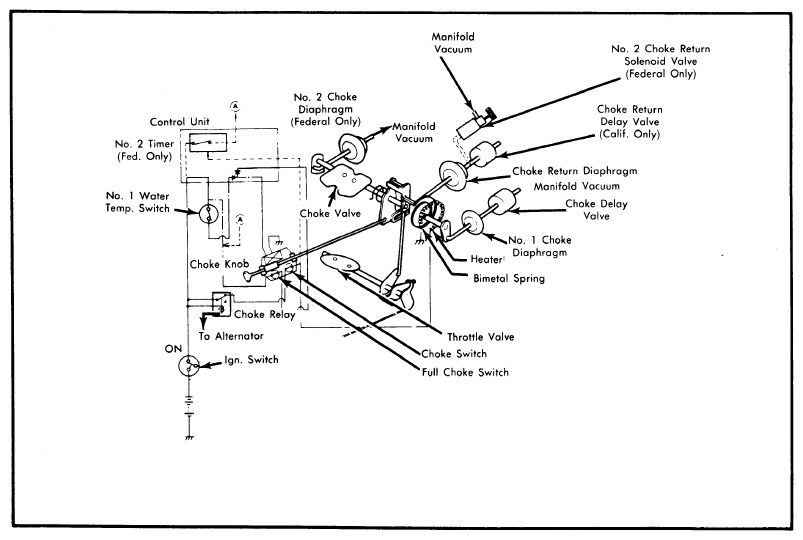

Fig 1: Schematic of Mazda RX-7 Choke Return System

Courtesy of MAZDA MOTORS CORP.

Fig 2: Choke Switch Terminal Numbering

Courtesy of MAZDA MOTORS CORP.
