Acceleration Sensor

  1. Disconnect vacuum switch coupler and connect an ohmmeter to terminals "A" and "B". Start engine and run at idle.

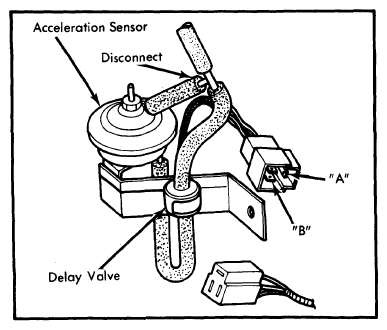

    Fig 1: Testing Acceleration Sensor (Auto. Trans. & Calif. Man. Trans.)
    G09324587Courtesy of MAZDA MOTORS CORP.
  2. There should be no continuity between terminals.
  3. Now, disconnect vacuum sensing tube from vacuum switch and make sure that continuity exists between both terminals.
