COURIER 2300 cc AND MAZDA GLC: Reassembly

Reverse disassembly procedure. When installing cam, align marks on distributor housing and gear. Align rotor metal end with clip mounting lug on side of distributor with mounting slot.

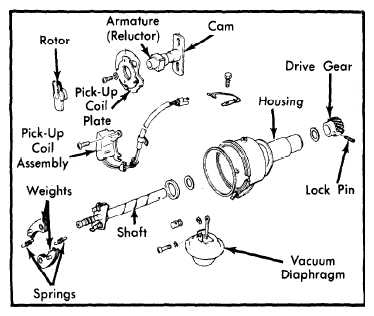

Fig 1: Disassembled View of Distributor (Mazda GLC)
