Float Level

With engine running, check fuel level in fuel bowl sight glass. If fuel level is not to mark on sight glass, remove carburetor from vehicle. Remove fuel bowl cover and sight glass.

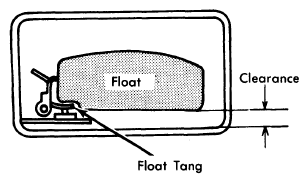

Invert carburetor on stand and allow float to lower by its own weight. Measure clearance between float and carburetor body. See Figure. Clearance should be 0.335" (8 mm). To adjust clearance, bend float tang until proper clearance is obtained.

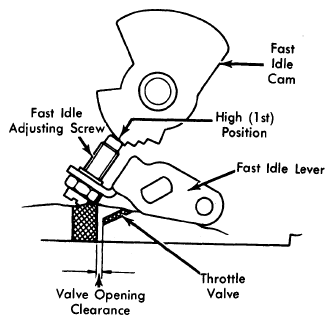

Fig 1: Throttle Valve Opening Angle Adjustment
Courtesy of NOT AVAILABLE

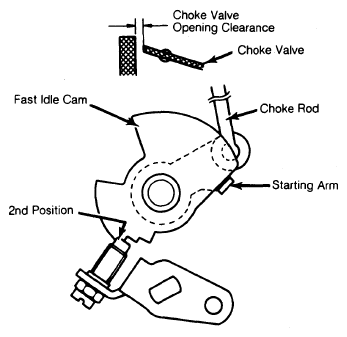

Fig 2: Choke Valve Opening Angle Adjustment
Courtesy of NOT AVAILABLE
