Float Drop

  1. Remove carburetor from engine. Turn carburetor to its normal upright position. Allow float to lower by its own weight and measure clearance between bottom of bowl and float. See Fig 2.
  2. Clearance should be 0.079" (2 mm). If not, bend float stopper until proper clearance is obtained. Install fuel bowl sight glass and install carburetor on engine. Operate engine and make sure fuel level is to specified mark in sight glass.
Fig 1: Float Level Adjustment
G09326725Courtesy of NOT AVAILABLE

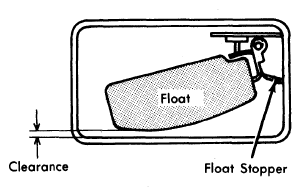

Fig 2: Float Drop Adjustment
G09326726Courtesy of NOT AVAILABLE
