Choke Unloader

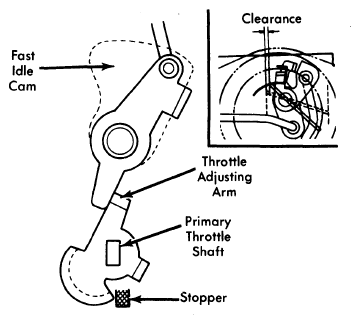

Close choke valve fully and fully open primary valve. Measure choke valve clearance between air horn and choke valve. See Figure. Clearance should be 0.079 - 0.099" (2.0 - 2.5 mm). Choke valve opening should be 23-27 degrees. To adjust clearance, bend throttle adjusting arm.
