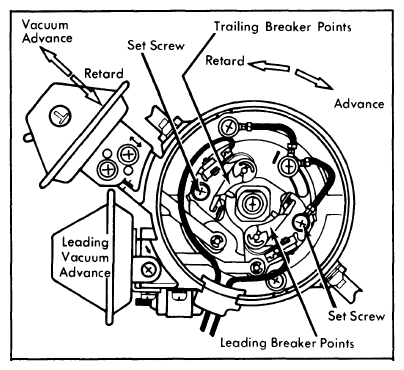

Point Gap & Cam Angle
With rubbing block on high point of cam lobe, insert feeler gauge between contacts and check reading against specifications. To correct, loosen retaining screw and move stationary contact point until correct gap is obtained, then tighten screw. Align points if necessary by bending stationary contact support only. Check cam angle and compare indicated reading with specification. Correct if necessary.
