Wiring Diagrams: Wiring Diagram

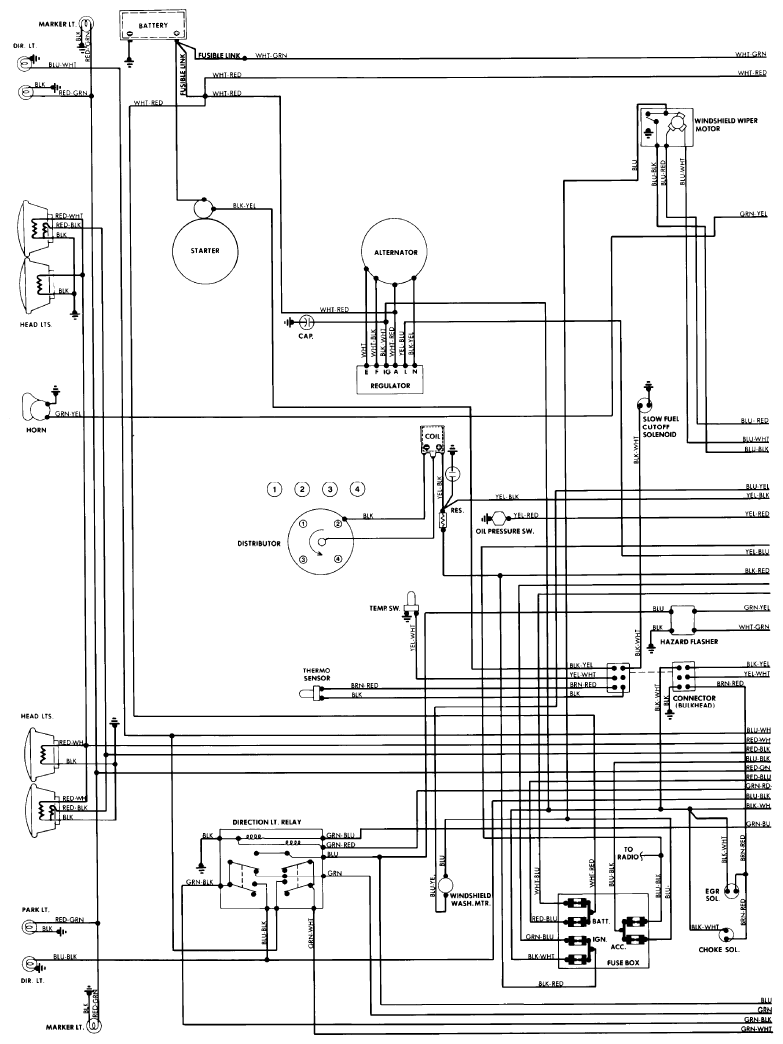

Fig 1: Wiring Diagram - Pickup (1 of 2)

G09303541

Courtesy of MAZDA MOTORS CORP.

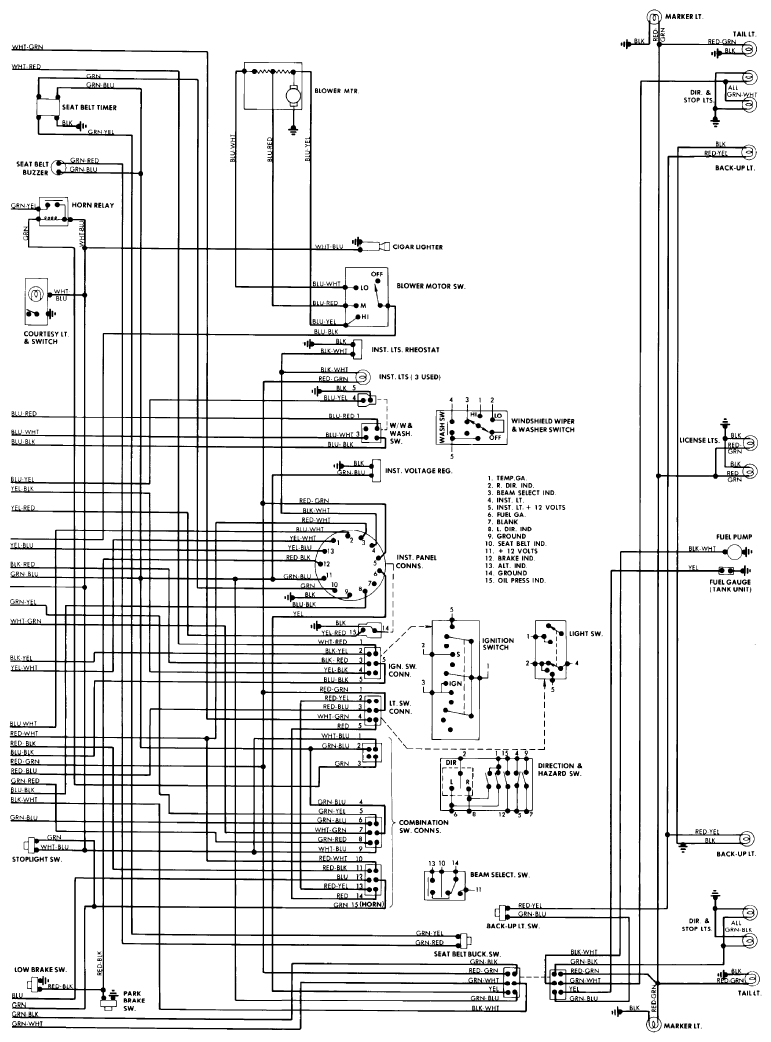

Fig 2: Wiring Diagram - Pickup (2 of 2)

G09303542

Courtesy of MAZDA MOTORS CORP.
