Wiring Diagram
Wiring Diagrams: Wiring Diagram

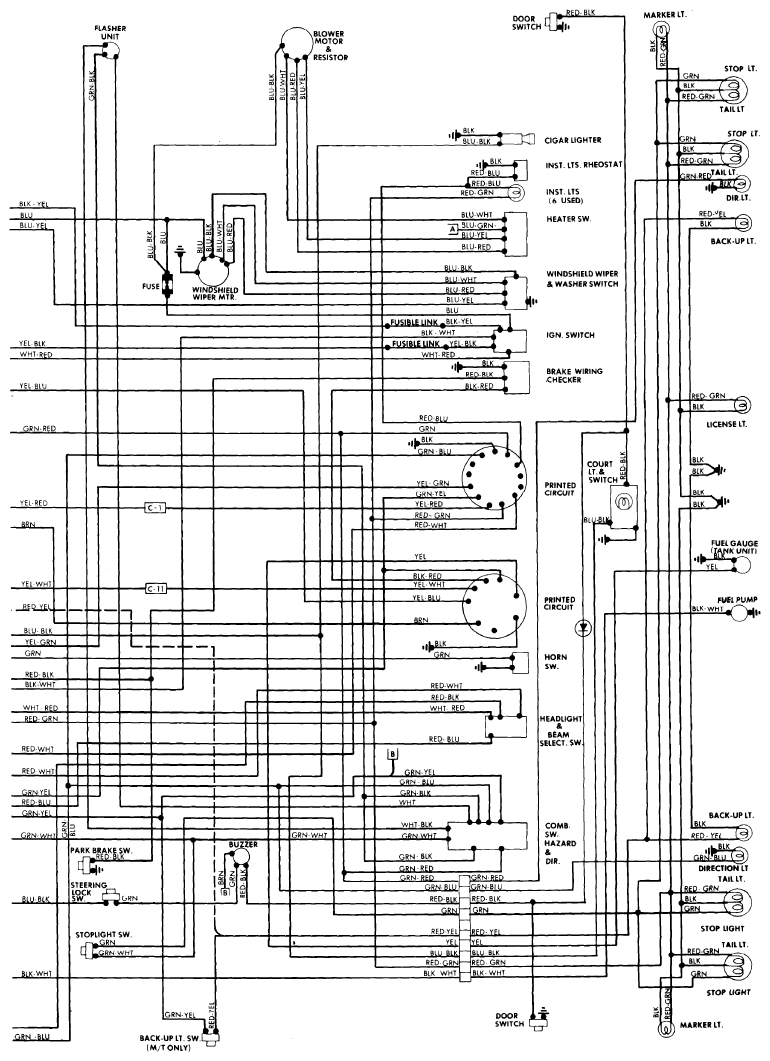

Fig 1: Wiring Diagram - RX3 (1 of 2)
Courtesy of MAZDA MOTORS CORP.

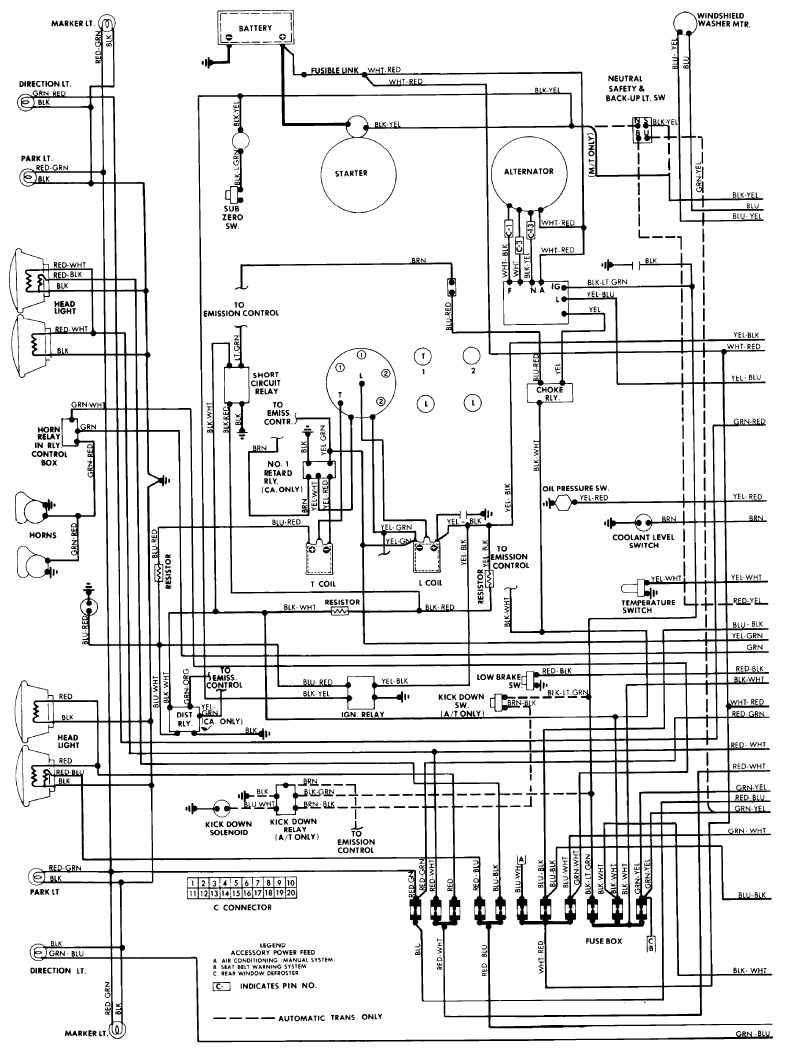

Fig 2: Wiring Diagram - RX3 (2 of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
