Mazda Vacuum Diagrams

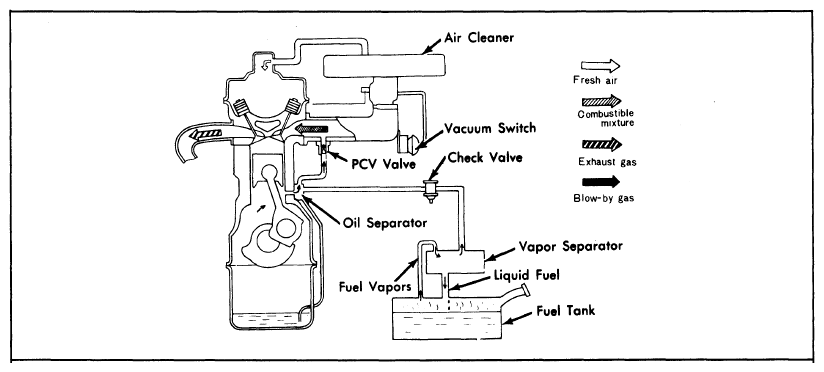

Fig 1: 1974 808 Fuel Evaporation System (California Auto. Trans.)

G09310048

Courtesy of MAZDA MOTORS CORP.

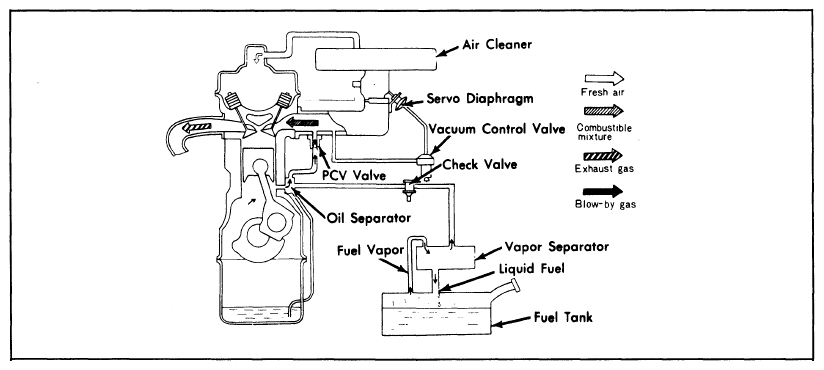

Fig 2: 1974 808 Fuel Evaporation System (California & Federal Man. Trans.)

G09310049

Courtesy of MAZDA MOTORS CORP.

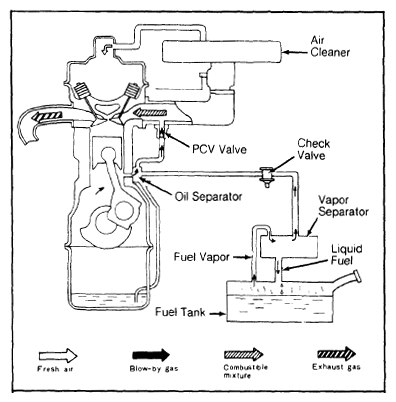

Fig 3: 1974 808 Fuel Evaporation System (Federal Auto. Trans.)

G09310050

Courtesy of MAZDA MOTORS CORP.

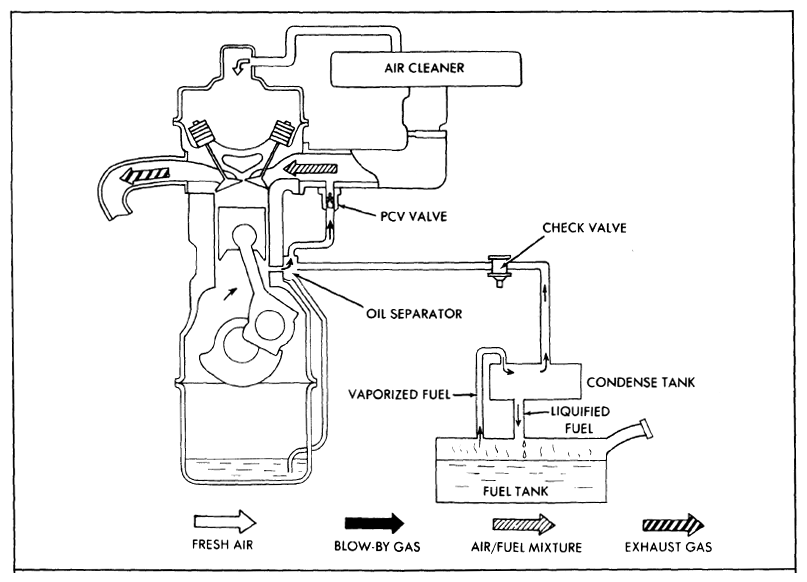

Fig 4: 1974 Fuel Evaporation System (Piston)

G09310051

Courtesy of MAZDA MOTORS CORP.

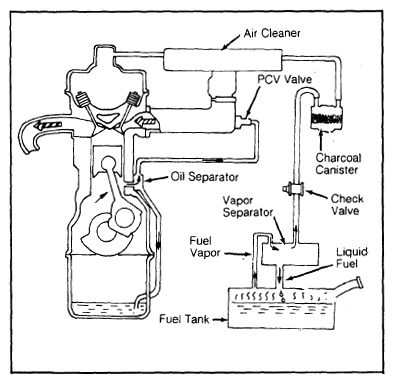

Fig 5: 1974 B1600 Fuel Evaporation System

G09310052

Courtesy of MAZDA MOTORS CORP.

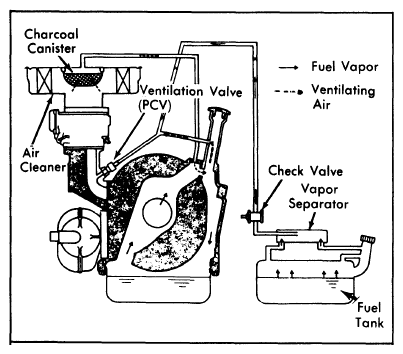

Fig 6: 1974-78 Fuel Evaporation System (Rotary)

G09310053

Courtesy of MAZDA MOTORS CORP.

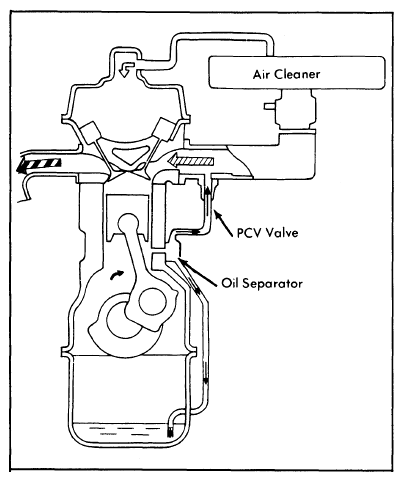

Fig 7: 1974 808 & 1800 Positive Crankcase Ventilation System

G09310054

Courtesy of MAZDA MOTORS CORP.

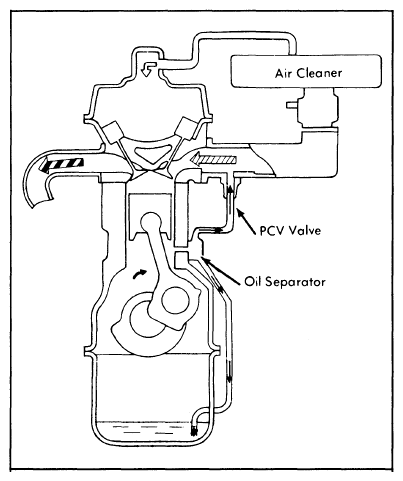

Fig 8: 1974 808 Positive Crankcase Ventilation System

G09310055

Courtesy of MAZDA MOTORS CORP.

Fig 9: 1974 B1600 Positive Crankcase Ventilation System

G09310056

Courtesy of MAZDA MOTORS CORP.

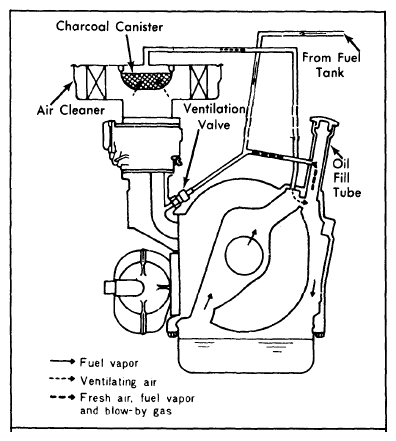

Fig 10: 1974-78 Positive Crankcase Ventilation System (Rotary)

G09310057

Courtesy of MAZDA MOTORS CORP.

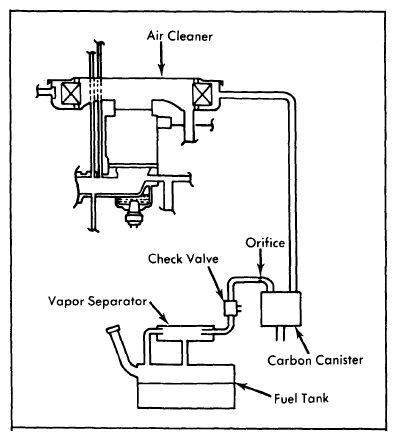

Fig 11: 1975-76 Fuel Evaporation System (Piston)

G09310058

Courtesy of MAZDA MOTORS CORP.

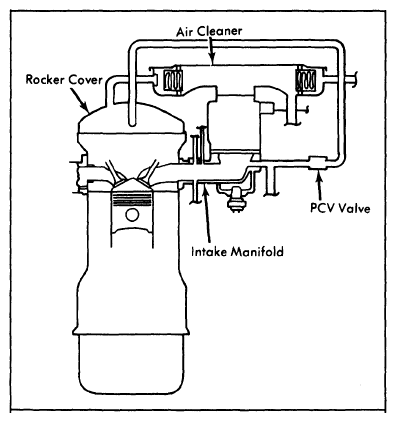

Fig 12: 1975-78 Positive Crankcase Ventilation System (Piston)

G09310059

Courtesy of MAZDA MOTORS CORP.

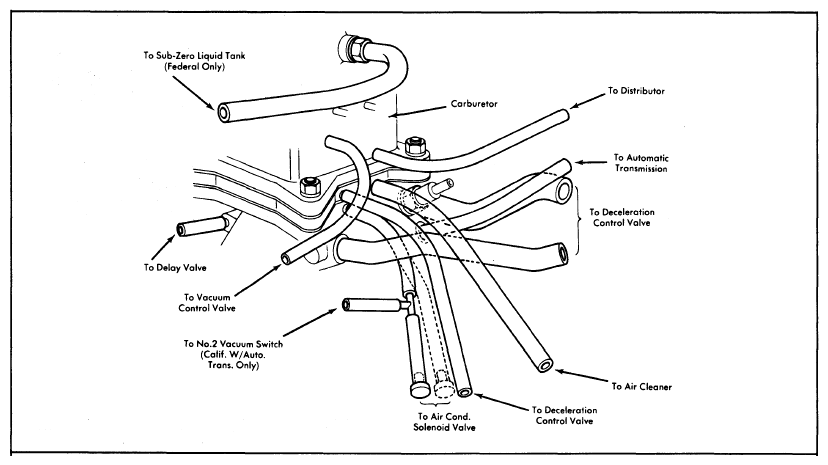

Fig 13: 1976 RX4 & Cosmo Exhaust Emission System

G09310060

Courtesy of MAZDA MOTORS CORP.

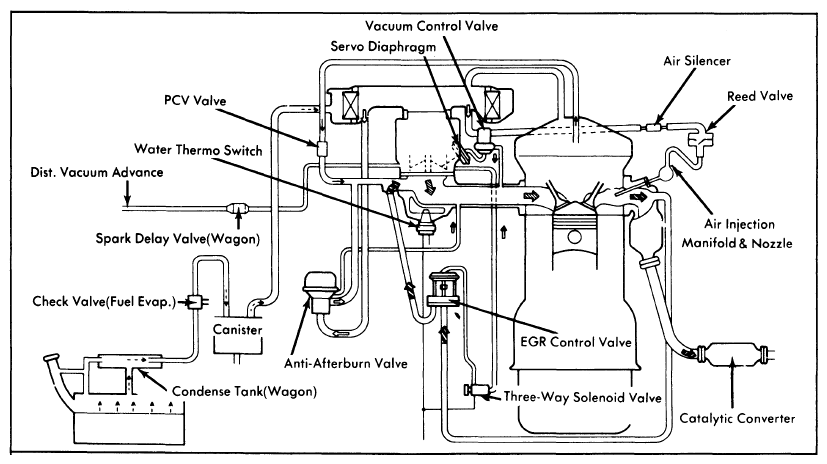

Fig 14: 1977 808 (1300) Exhaust Emission System (Federal)

G09310061

Courtesy of MAZDA MOTORS CORP.

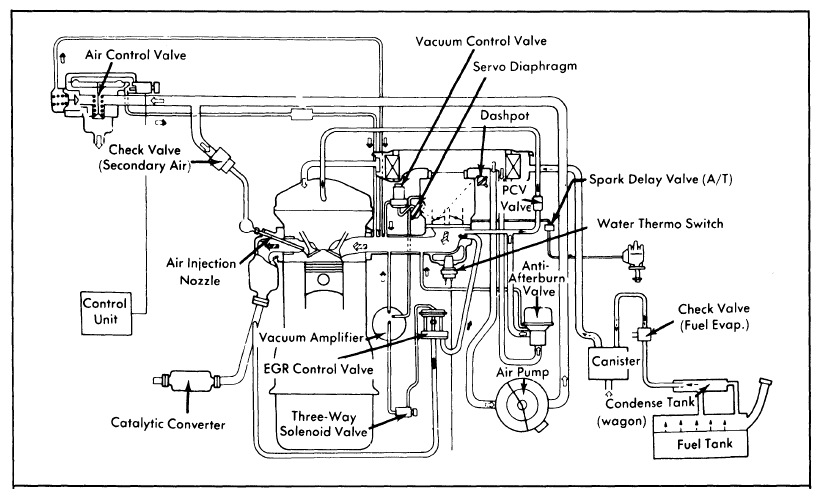

Fig 15: 1977 808 (1600) Exhaust Emission System (California)

G09310062

Courtesy of MAZDA MOTORS CORP.

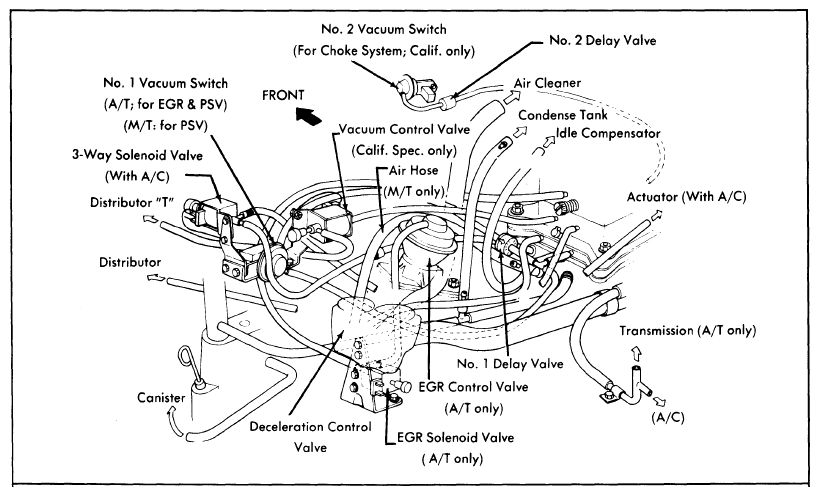

Fig 16: 1977 RX4 & Cosmo Exhaust Emission System (California & Federal Auto. Trans.)

G09310063

Courtesy of MAZDA MOTORS CORP.

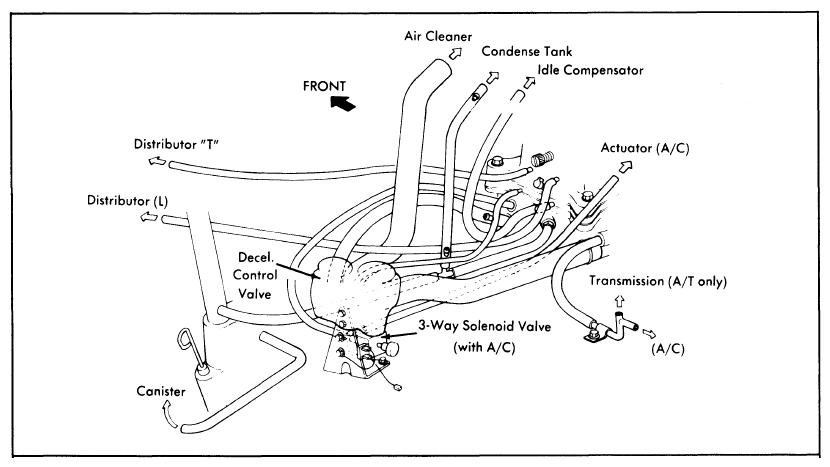

Fig 17: 1977 RX4 & Cosmo Exhaust Emission System (Federal Man. Trans.)

G09310064

Courtesy of MAZDA MOTORS CORP.

Fig 18: 1977-78 Air Vent System (Rotary)

G09310065

Courtesy of MAZDA MOTORS CORP.

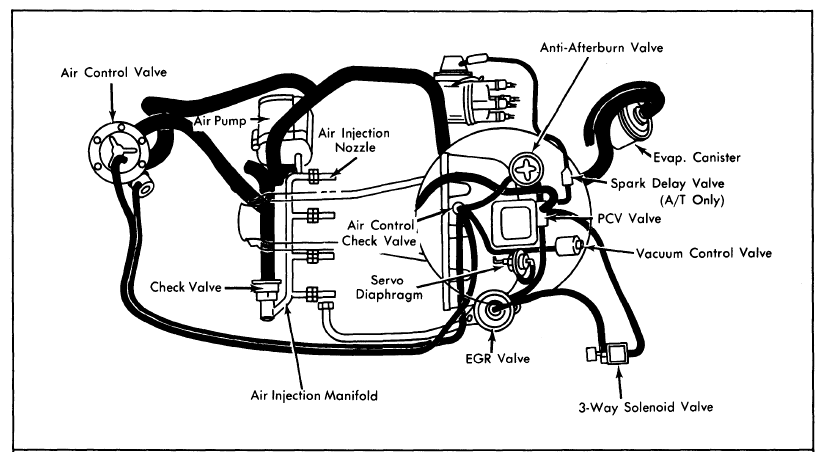

Fig 19: 1978 GLC Exhaust Emission System (California)

G09310066

Courtesy of MAZDA MOTORS CORP.

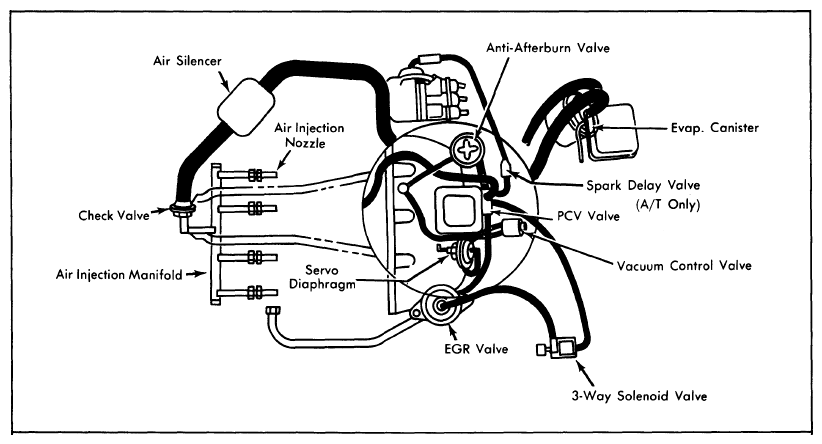

Fig 20: 1978 GLC Exhaust Emission System (Federal)

G09310067

Courtesy of MAZDA MOTORS CORP.

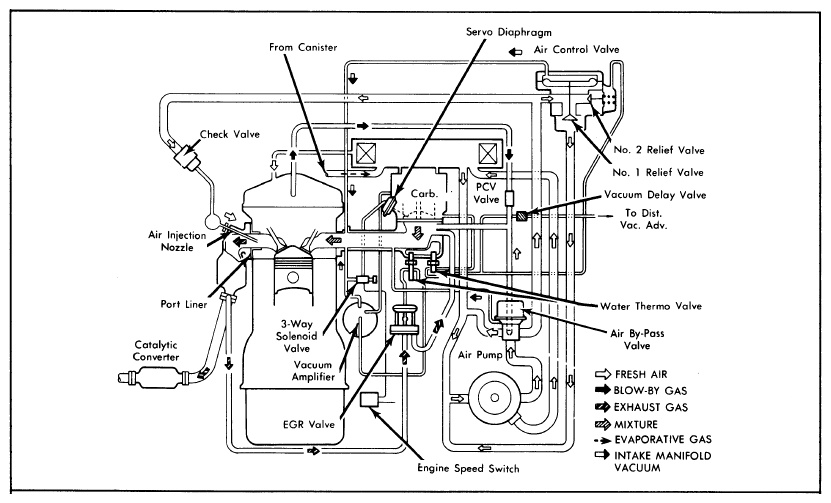

Fig 21: 1979 B2000 Exhaust Emission System (California)

G09310068

Courtesy of MAZDA MOTORS CORP.

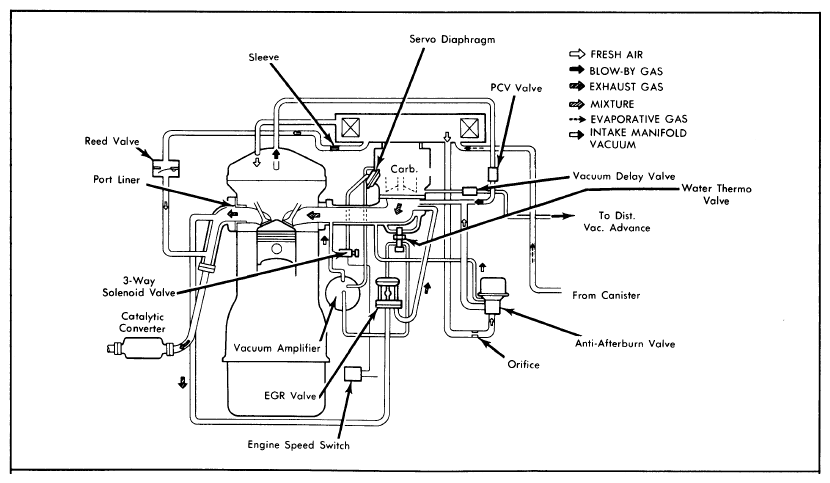

Fig 22: 1979 B2000 Exhaust Emission System (Federal)

G09310069

Courtesy of MAZDA MOTORS CORP.

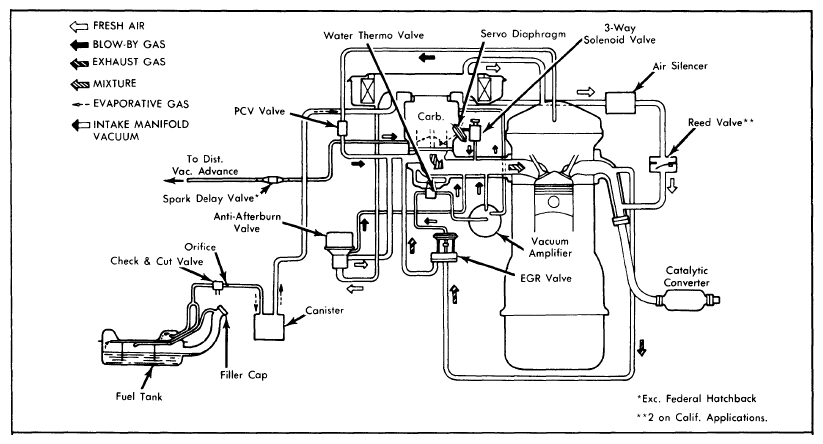

Fig 23: 1979 GLC Exhaust Emission System (All Except California With Auto. Trans.)

G09310070

Courtesy of MAZDA MOTORS CORP.

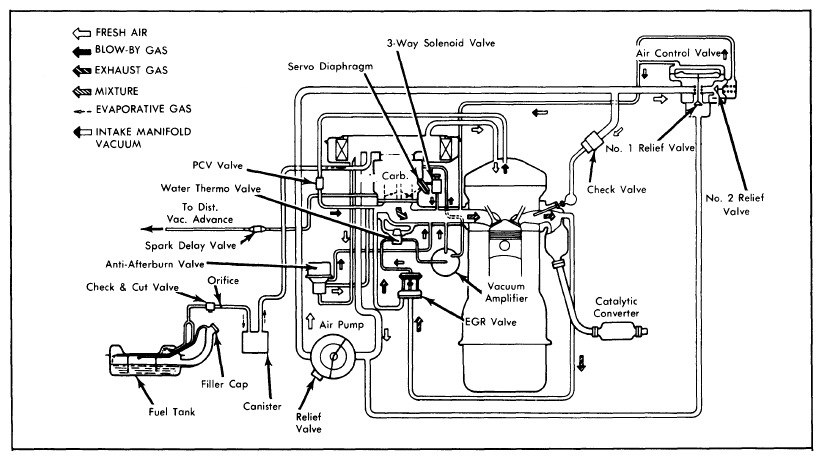

Fig 24: 1979 GLC Exhaust Emission System (California Auto. Trans.)

G09310071

Courtesy of MAZDA MOTORS CORP.

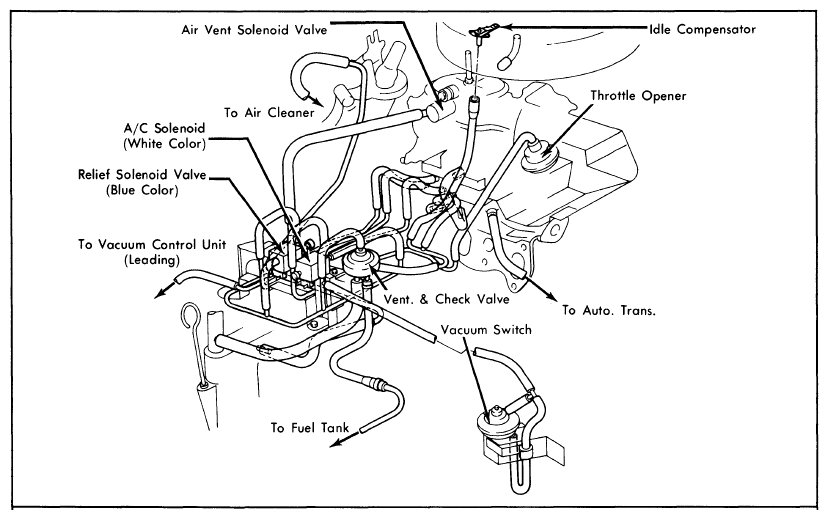

Fig 25: 1979 RX7 Exhaust Emission System (Auto. Trans.)

G09310072

Courtesy of MAZDA MOTORS CORP.

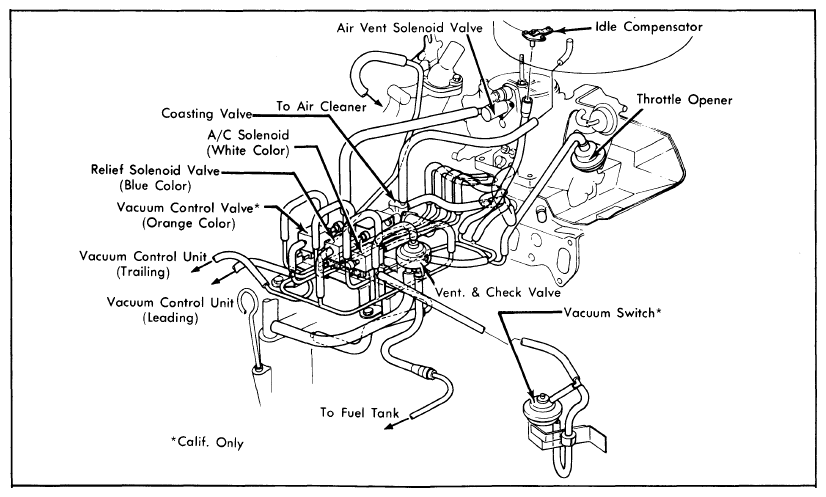

Fig 26: 1979 RX7 Exhaust Emission System (Man. Trans.)

G09310073

Courtesy of MAZDA MOTORS CORP.
