Mazda
>>
1977
>>
B1800 Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams
>>
Wiring Diagram
Wiring Diagrams: Wiring Diagram

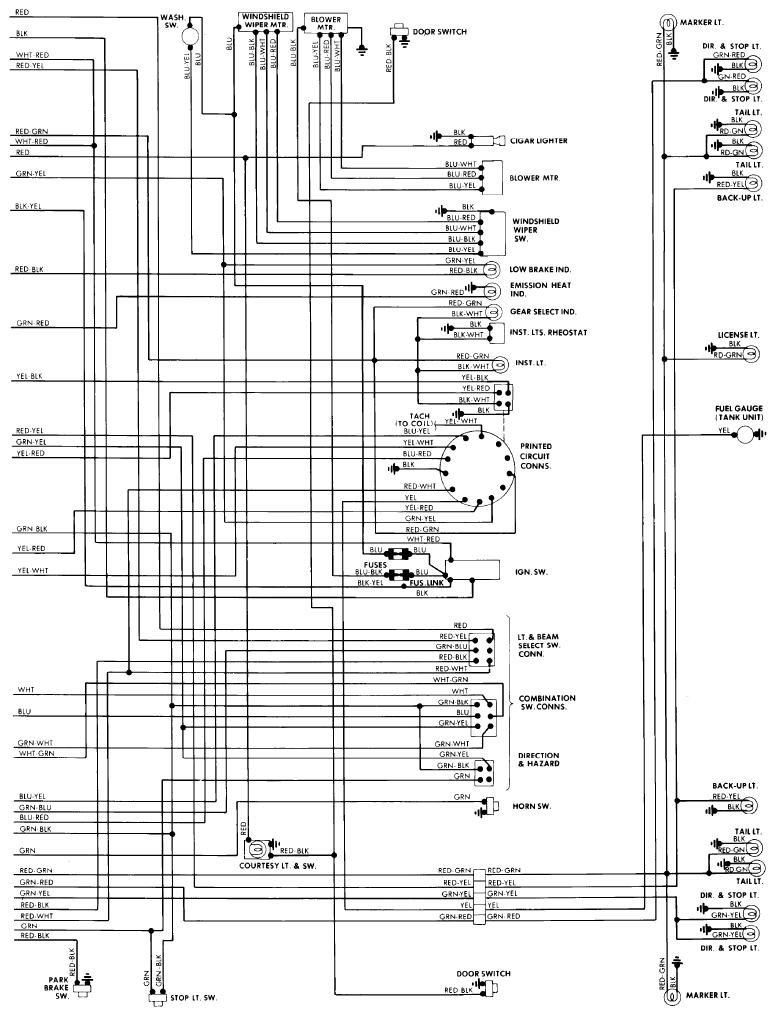

Fig 1: Wiring Diagram - Rotary Pickup (1 of 2)
Courtesy of MAZDA MOTORS CORP.

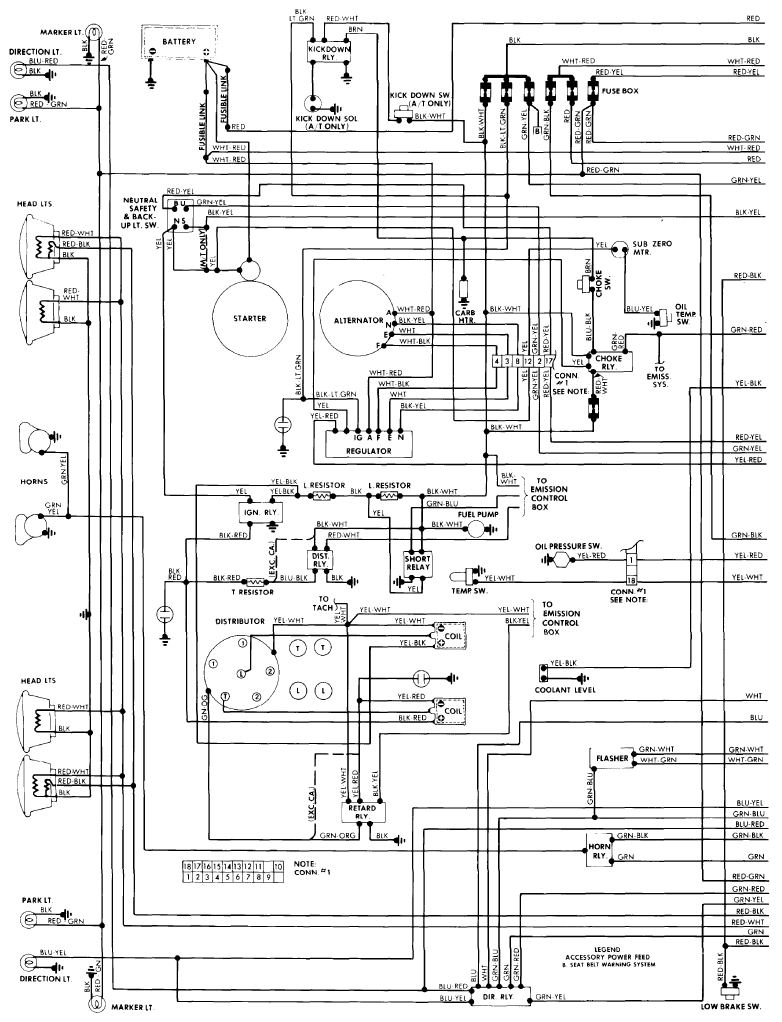

Fig 2: Wiring Diagram - Rotary Pickup (2 of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
