Repair and Diagnosis: Transmission: Clutch: Clutches: Description

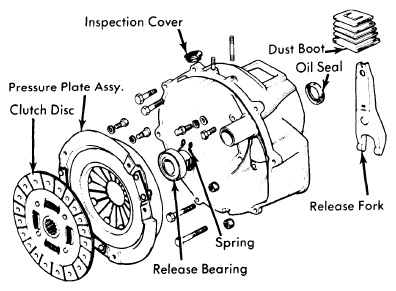

Clutch is a dry, single disc, diaphragm spring type. Clutch actuation is hydraulic, using a firewall mounted master cylinder and a transmission mounted slave cylinder. A prelubricated clutch release bearing is also used. While all clutch assemblies are similar, some models have different clutch fork configurations. Also, Mizer and B1600 models are provided with clutch fork free play adjustments.
