Float Level

With engine operating, check fuel level in float bowl sight glass. If fuel level is not within specifications, remove air horn. Invert air horn and allow float to lower by its own weight. Measure clearance from air horn gasket surface to top of float. If clearance is not to specifications, adjust by bending float level tab.

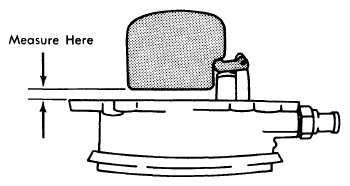

Fig 1: Float Level Adjustment
G09326833Courtesy of NOT AVAILABLE
