Float Drop

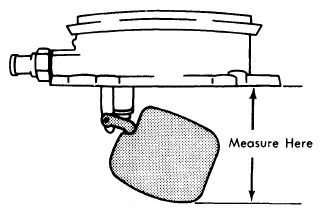

With air horn removed and held upright, measure clearance between air horn gasket surface and bottom of float. See Fig 1. If clearance is not to specifications, adjust by bending float drop tang.
With air horn removed and held upright, measure clearance between air horn gasket surface and bottom of float. See Fig 1. If clearance is not to specifications, adjust by bending float drop tang.
