Engine Identification

GENERAL SPECIFICATIONS

Engine cu. ins. cc Carburetor HP at RPM Torque (Ft. Lbs. at RPM) Compr. Ratio Rotor Housing Width
in. mm
1972-73
  RX2 & RX3 70 1146 1x4-Bbl. ...... ...... 9.4-1 2.7599 70

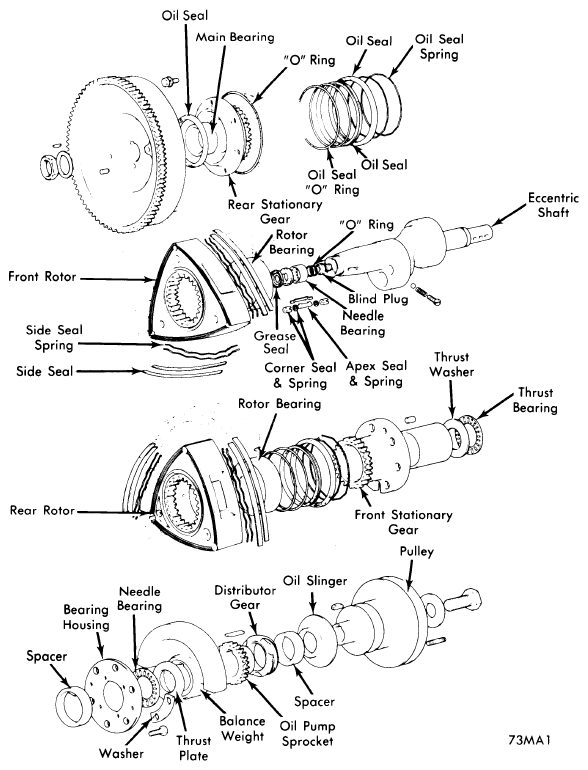

Fig 1: Rotors & Eccentric Shaft Assembly
G09325878Courtesy of MAZDA MOTORS CORP.
