No. 2 Thermosensor

Make sure that there is no terminal breakage and connect ohmmeter between terminal and ground. When ambient and water temperatures are under 86°F (before engine warm-up), reading should be over 5000 ohms. When temperature is over 156°F (warmed engine), a reading of under 2000 ohms should be achieved.

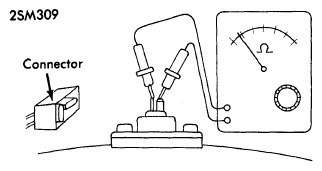

Fig 1: TESTING THERMOSENSOR
G09355132Courtesy of MAZDA MOTORS CORP.
