Air Injection System

Consists of an air pump, a check valve, an air injection nozzle, an air control valve, and a thermal reactor.

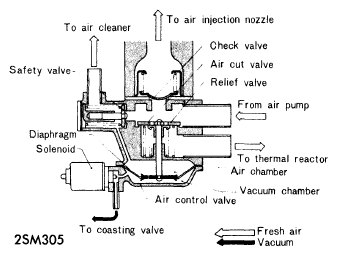

Fig 1: AIR CONTROL VALVE
G09355124Courtesy of MAZDA MOTORS CORP.
