Engine Not Running

Vapors are drawn from the condense tank through lines, into the engine crankcase. They are stored until the engine is started and the crankcase is purged by ventilating air.

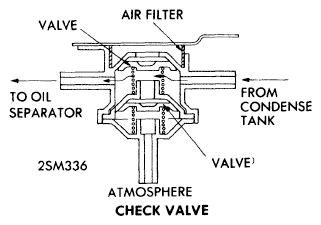

Fig 1: Check Valve
G09309598Courtesy of MAZDA MOTORS CORP.
