Air Pump

Pump is a dual vane unit which is driven from crankshaft pulley by means of a V-belt. A relief valve, installed on pump housing, relieves excess air pressure created by air pump to prevent damage to system.

Fig 1: Air Pump

Courtesy of MAZDA MOTORS CORP.

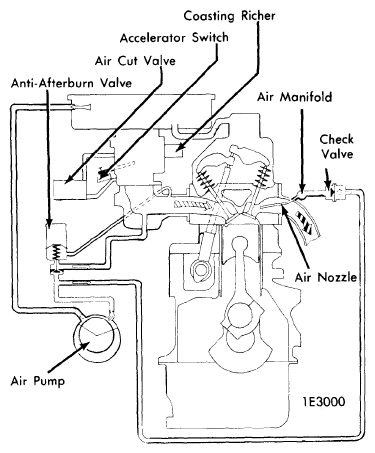

Fig 2: Mazda Air Injection System

Courtesy of MAZDA MOTORS CORP.
