Oil Pump: Reassembly

To reassemble, reverse disassembly procedure and ensure that outer rotor is installed in pump body with chamfered end at driving end of pump body.

NOTE: Oil pressure relief valve is located in front of block behind hex head plug bolt. Spring free length should be 1.53" (38.8 mm).

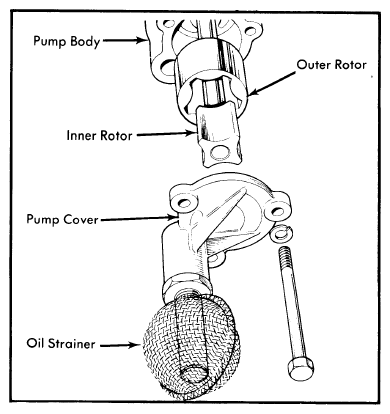

Fig 1: Engine Oil Pump Disassembled View
G09334597Courtesy of NOT AVAILABLE
