Rocker Arm Assembly: Installation

To install rocker arm assembly, reverse removal procedure. Adjust valve clearance.

PISTONS, PINS, RINGS

Engine

PISTONS

PINS

RINGS

Clearance

Piston Fit

Rod Fit

Rings

End Gap

Side Clearance

1493 cc

⁽¹⁾.002-.003 (.051-.076)

⁽³⁾

⁽⁴⁾

.012-.022 (.305-.559)

.0015-.0035 (.038-.089)

⁽²⁾.0002-.0016 (.005-.041)

.012-.022 (.305-.559)

.0015-.0035 (.038-.089)

.015-.055 (.38-.1.40)

.....

⁽¹⁾	At bottom of skirt.

⁽²⁾	At top of skirt.

⁽³⁾	Hand push fit.

⁽⁴⁾	Interference fit.

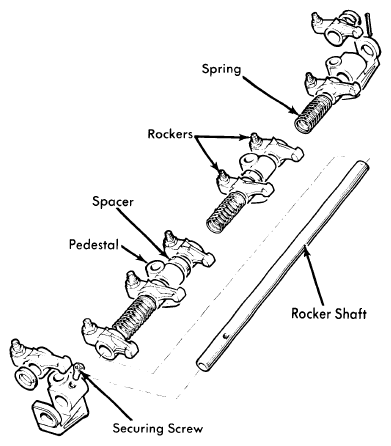

Fig 1: Disassembled View Of Rocker Arm & Shaft

Courtesy of NOT AVAILABLE
