Clutch Slave Cylinder

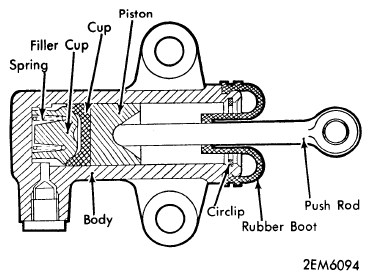

- Remove rubber seal and, using compressed air, force piston and internal seal out. Clean slave cylinder body and components in brake fluid or alcohol. Examine rubber parts and replace if distorted or split. Inspect cylinder and piston for wear or score marks and replace as necessary.
Courtesy of NOT AVAILABLE
- To reassemble, place seal into stem of piston, with back of seal against piston. Replace springs, with small end on stem. Position rubber boot, ensuring push rod enters hole in boot.
