Repair and Diagnosis: Transmission: Clutches: Description

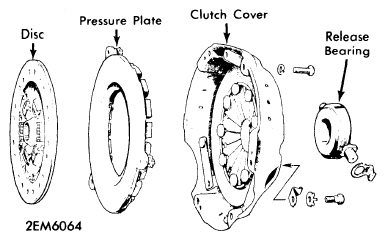

MGB clutch assembly is of the diaphragm spring type, hydraulically operated. Main components of clutch system are; disc, pressure plate assembly, release bearing, and clutch housing. Hydraulic system incorporates a firewall-mounted master cylinder and a clutch housing-mounted slave cylinder.
