Section 82 (Engine - 3.0L ECOBOOST): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-001 (T50T-100-A)Slide Hammer
Courtesy of FORD MOTOR COMPANY	204-592Separator, Lower Arm Ball Joint
Courtesy of FORD MOTOR COMPANY	205-832Remover, Halfshaft
Courtesy of FORD MOTOR COMPANY	303-1246Engine Spreader Bar
Courtesy of FORD MOTOR COMPANY	303-1634Lift Eyes (2)
Tie Rod End Remover
Adjustable Mounting Arm
Cable Ties
Powertrain Jack
Wooden Block

Materials

LHD AWD/LHD RWD

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
2. Using a holding device, hold the steering wheel.

   Courtesy of FORD MOTOR COMPANY

3. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
4. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .
5. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
6. Recover the A/C system. Refer to: AIR CONDITIONING (A C) SYSTEM RECOVERY, EVACUATION AND CHARGING - 3.0L ECOBOOST .
7. Remove the retainers and the RH engine compartment cover.

   Courtesy of FORD MOTOR COMPANY

8. Remove the retainers and the LH engine compartment cover.

   Courtesy of FORD MOTOR COMPANY

9. Remove the retainers and the upper radiator panel.

   Courtesy of FORD MOTOR COMPANY

10. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties

    Courtesy of FORD MOTOR COMPANY

11. Remove the bolts and the suspension support bar.

    Courtesy of FORD MOTOR COMPANY

12. Remove the engine oil filter and drain the engine oil. Refer to: Engine Oil Draining and Filling .
13. Remove the following items:
    1. Refer to: Cowl Panel .
    2. Refer to: Degas Bottle .
    3. Refer to: Air Cleaner .
    4. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    5. LH side. Refer to: Charge Air Cooler (CAC) Intake Pipe .

14. Release the clamp and remove the coolant hose.

    Courtesy of FORD MOTOR COMPANY

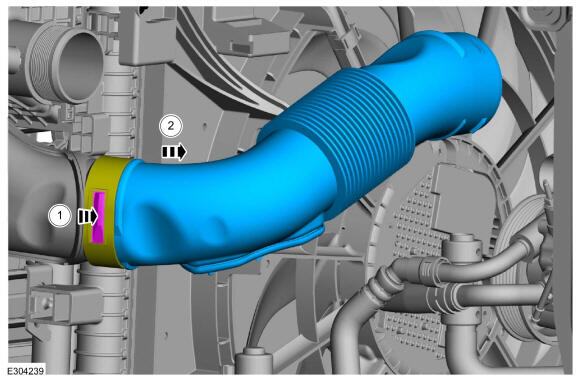

15. 1. Depress the raised area of the pipe.
    2. Remove the air cleaner inlet pipe.

    Courtesy of FORD MOTOR COMPANY

16. 1. Loosen the clamp and remove the air cleaner outlet pipe.
    2. Loosen the clamps and remove the CAC inlet pipe.

    Courtesy of FORD MOTOR COMPANY

17. Release the clamp and disconnect the lower radiator hose.
    • Loosen the clamp and disconnect the upper radiator hose.
    • Position the hoses aside.

    Courtesy of FORD MOTOR COMPANY

18. Release the clamp and disconnect the coolant hose.
    • Disconnect the coolant hose quick release coupling.
    • Position the hoses aside.

    Courtesy of FORD MOTOR COMPANY

19. Release the clamps and disconnect the oil cooler hoses.
    • Position the hoses aside.

    Courtesy of FORD MOTOR COMPANY

20. Remove the bolt and detach the wiring harness retainer.
    • Position the ground cable aside.

    Courtesy of FORD MOTOR COMPANY

21. Remove the generator. Refer to: Generator - 3.0L EcoBoost .
22. • If equipped, disconnect the block heater electrical connector.
    • Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

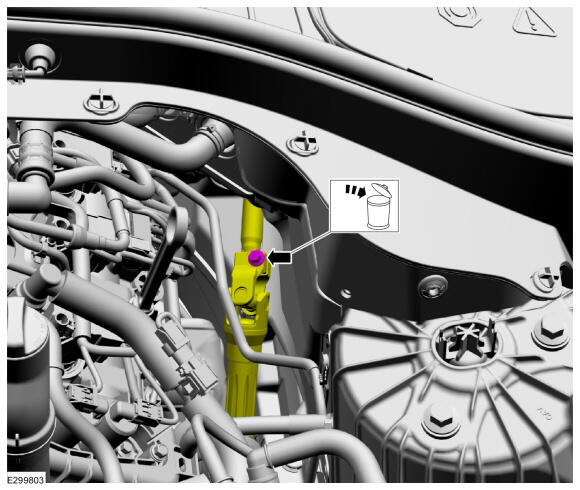

23. • Remove the bolt and disconnect the steering shaft.
    • Discard the bolt.

    Courtesy of FORD MOTOR COMPANY

24. • Disconnect the center PCM electrical connector and wiring harness retainer.
    • Disconnect the engine harness electrical connector, retainer and position the engine wiring harness on the engine.

    Courtesy of FORD MOTOR COMPANY

25. • Release the clamp and disconnect the heater hose.
    • Remove the bolts and position the heater hose brackets aside.
    • Remove the bolts and the intake manifold bracket.

    Courtesy of FORD MOTOR COMPANY

26. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.
    1. Disconnect the coolant hoses.
    2. Detach the coolant hose retainers.
    3. Remove the fuel injection pump noise insulator.

    Courtesy of FORD MOTOR COMPANY

27. 1. Remove the bolt.
    2. Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

28. Remove the nuts, the bolt and position the high-pressure fuel pump shield aside.

    Courtesy of FORD MOTOR COMPANY

29. 1. Disconnect the high-pressure fuel pump fuel feed spring lock coupling. Refer to: Spring Lock Couplings .
    2. Remove the high-pressure fuel pump shield.

    Courtesy of FORD MOTOR COMPANY

30. Remove the bolt and position the ground cable aside.

    Courtesy of FORD MOTOR COMPANY

31. Remove the wiring harness bracket bolt.

    Courtesy of FORD MOTOR COMPANY

32. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

33. • Disconnect the fuel supply tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
    • Disconnect the EVAP supply tube quick release coupling. Refer to: QUICK RELEASE COUPLING .

    Courtesy of FORD MOTOR COMPANY

34. If equipped, remove the front suspension height sensors. Refer to: Front Suspension Height Sensor .
35. • Disconnect the A/C wiring harness electrical connectors.
    • Detach the wiring harness retainer.
    • Remove the nuts and disconnect the A/C lines from A/C compressor.
    • Discard the O-ring seal.
    • Make sure that all openings are sealed.

    Courtesy of FORD MOTOR COMPANY

36. Remove the pin-type retainers and the steering shield from the LH subframe.

    Courtesy of FORD MOTOR COMPANY

37. Remove the splash shield pin-type retainer from the LH subframe and position aside.

    Courtesy of FORD MOTOR COMPANY

38. NOTE: If equipped with AWD.
    • Disconnect the vent hose.
    • Disconnect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

39. Loosen the clamps and disconnect the coolant hoses.

    Courtesy of FORD MOTOR COMPANY

40. Remove the coolant tube bracket bolt.

    Courtesy of FORD MOTOR COMPANY

41. NOTE: Be prepared to collect escaping fluid.

    Remove the bolt, the nuts and the transmission fluid cooler.

    Courtesy of FORD MOTOR COMPANY

42. If equipped, detach the air suspension tube retainers.

    Courtesy of FORD MOTOR COMPANY

43. Remove the steering shield pin-type retainers from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

44. Remove the pin-type retainers and the steering shield from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

45. Remove the splash shield pin-type retainer from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

46. NOTE: If equipped with AWD.

    Disconnect the wiring harness electrical connector from the RH transfer case.

    Courtesy of FORD MOTOR COMPANY

47. Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

48. • If equipped, disconnect the RH transfer case vent hose.
    • Disconnect the steering gear wiring harness electrical connectors, wiring harness retainers and position the harness to the RH side of vehicle.

    Courtesy of FORD MOTOR COMPANY

49. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.
    NOTE: On both sides.

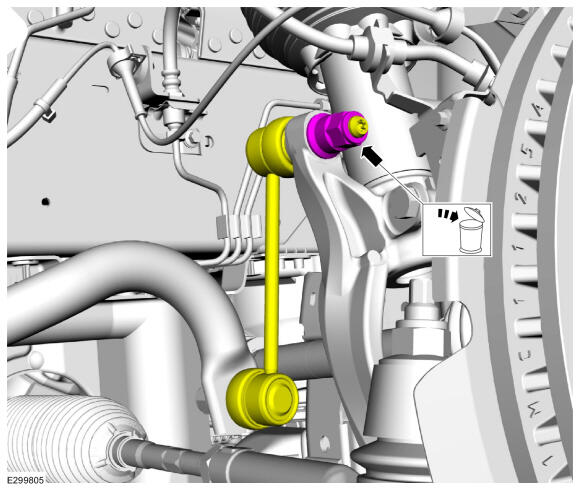

    Remove and discard the nut and position the sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

    LHD RWD

50. NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.
    NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.
    NOTE: On both sides.

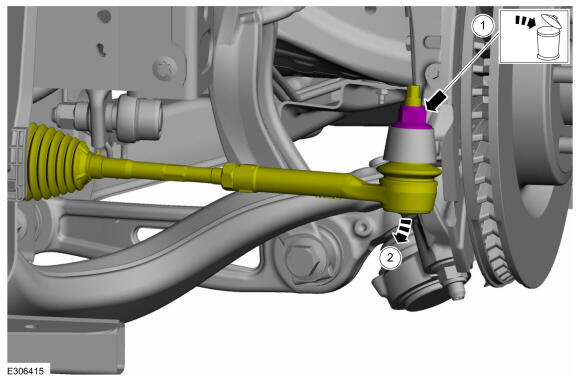

    1. Remove and discard the tie rod end nut.
    2. Separate the tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover

    Courtesy of FORD MOTOR COMPANY

51. NOTE: On both sides.
    1. Remove the retainer bracket bolt.
    2. Remove the bolt and the front wheel speed sensor.

    Courtesy of FORD MOTOR COMPANY

52. NOTE: Do not use power tools to remove or install the lower arm outboard nut. Damage to the ball joint or ball joint seal may occur.
    NOTE: Use the TORX PLUS® holding feature to prevent the ball stud from turning while removing or installing the lower arm outboard nut. Torx® and TORX PLUS® is a reg. tm of Acument Intellectual Properties, LLC.
    NOTE: On both sides.

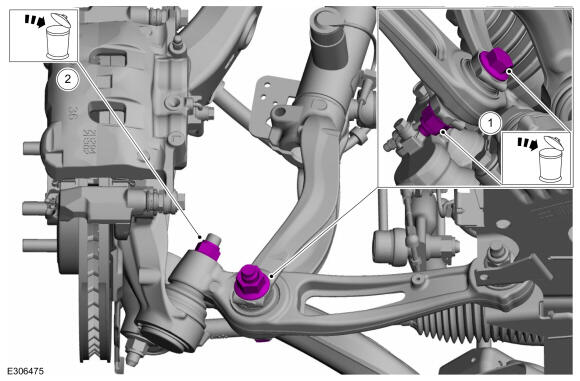

    Remove and discard the front lower arm outboard nut.

    Courtesy of FORD MOTOR COMPANY

53. NOTE: Do not use a hammer, prying device, or separator fork to separate the ball joint from the wheel knuckle. Damage to the ball joint or ball joint seal may occur.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position. Damage to the ball joint or ball joint seal may occur.
    NOTE: On both sides.

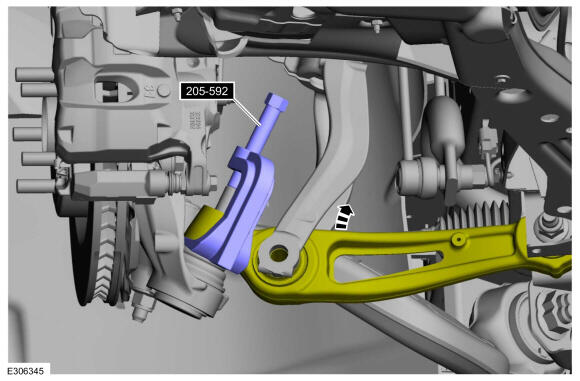

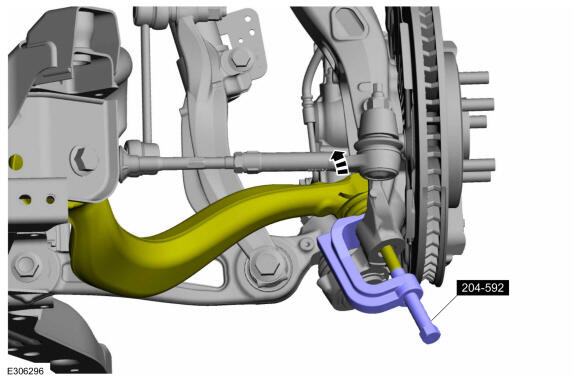

    Separate the front lower arm from the wheel Knuckle. Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.

    Courtesy of FORD MOTOR COMPANY

54. NOTE: On both sides.
    1. Remove and discard the lower arm bracket bolt and nut.
    2. NOTE: Do not use power tools to remove or install the lower arm outboard nut. Damage to the ball joint or ball joint seal may occur.
       NOTE: Use the TORX PLUS® holding feature to prevent the ball stud from turning while removing or installing the lower arm outboard nut. Torx® and TORX PLUS® is a reg. tm of Acument Intellectual Properties, LLC.

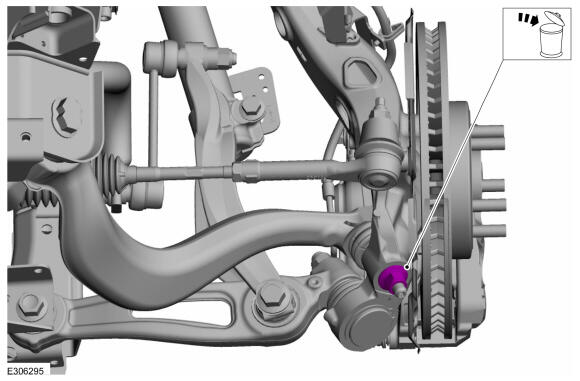

       Remove and discard the rear lower arm outboard nut.

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Do not use a hammer, prying device, or separator fork to separate the lower arm from the ball joint. Damage to the ball joint or ball joint seal may occur.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position. Damage to the ball joint or ball joint seal may occur.
    NOTE: On both sides.

    Separate the rear lower arm from the wheel Knuckle. Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

56. Remove the RH and LH halfshafts. Refer to: Halfshaft .

    LHD AWD/LHD RWD

57. Remove the following items:
    1. Refer to: Transmission - 3.0L EcoBoost .
    2. RH side. Refer to: Exhaust Flexible Pipe .

58. Detach the retainer and remove the vent hose(s).

    Courtesy of FORD MOTOR COMPANY

59. NOTE: AWD shown, RWD similar.

    Detach the HO2S wiring harness retainers from the LH subframe.

    Courtesy of FORD MOTOR COMPANY

60. NOTE: AWD shown, RWD similar.
    • Disconnect the HO2S and catalyst monitor sensor electrical connectors.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

61. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.
    • Remove the LH engine mount nut.
    • Discard the engine mount nut.

    Courtesy of FORD MOTOR COMPANY

62. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.
    • Remove the RH engine mount nut.
    • Discard the engine mount nut.

    Courtesy of FORD MOTOR COMPANY

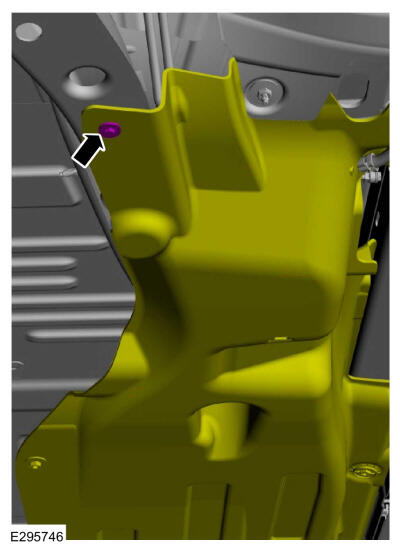

63. Remove the bolt and position the RH underbody shield aside.

    Courtesy of FORD MOTOR COMPANY

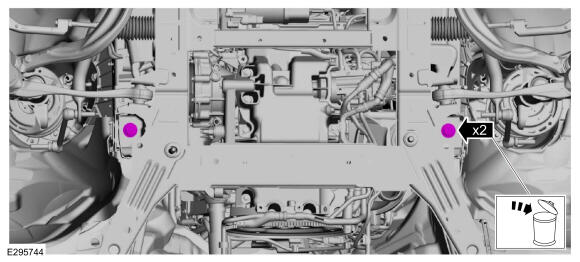

64. • Remove the middle subframe bolts.

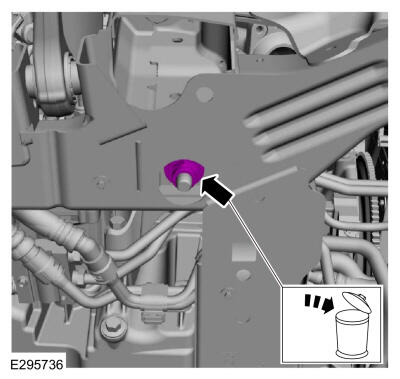

    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

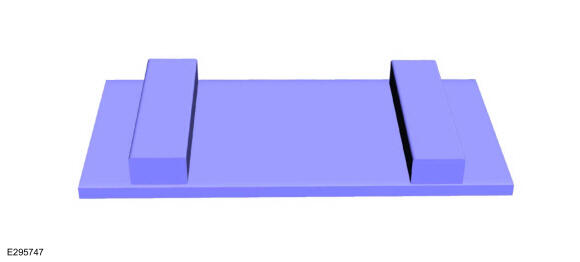

65. Position two boards onto the powertrain jack as shown.

    Courtesy of FORD MOTOR COMPANY

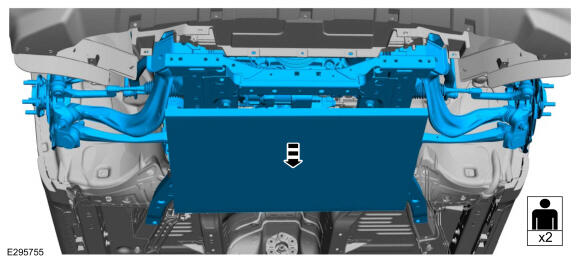

66. Position the powertrain jack and blocks of wood under the powertrain and subframe. Use the General Equipment: Powertrain JackUse the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

67. Install, adjust and tighten the adjustable mounting arm. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

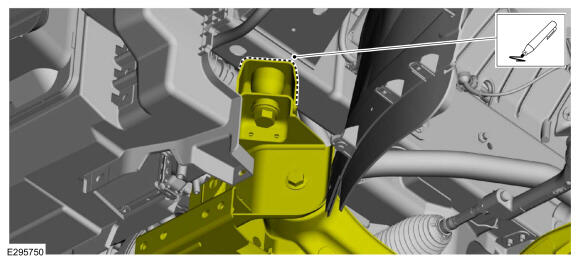

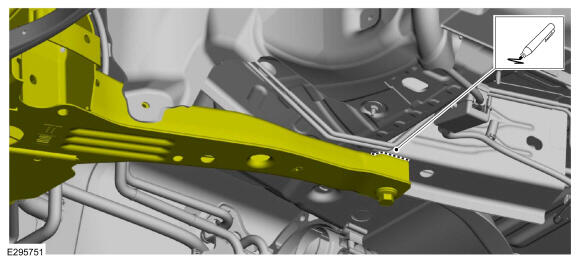

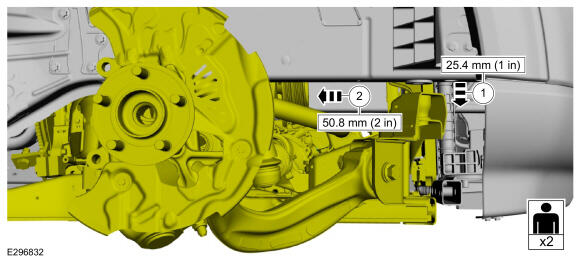

68. Mark the front subframe location.

    Courtesy of FORD MOTOR COMPANY

69. Mark the rear subframe location.

    Courtesy of FORD MOTOR COMPANY

70. Remove the front radiator support bar bolts.

    Courtesy of FORD MOTOR COMPANY

71. • Remove the front subframe bolts.

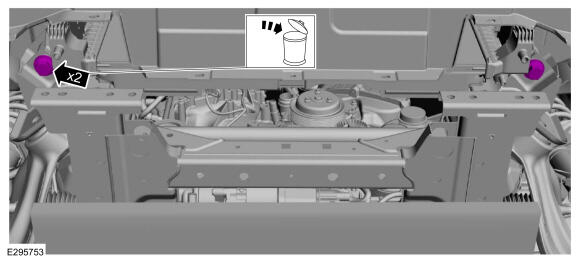

    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

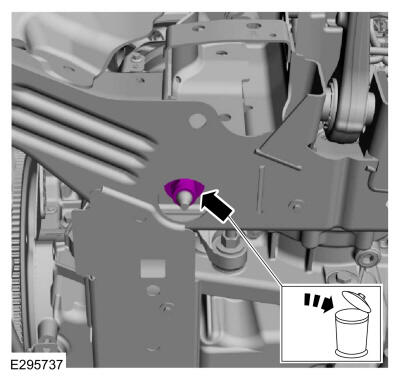

72. • Remove the rear subframe bolts.

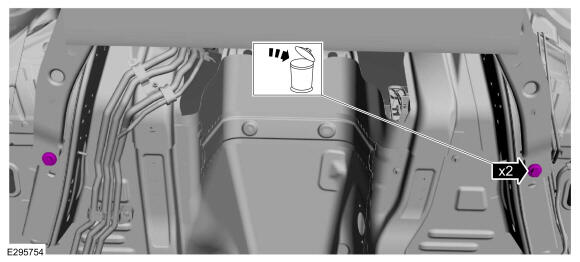

    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

73. 1. With the aid of an assistant and using the powertrain jack, lower the powertrain and subframe 25.4 mm (1 in).
    2. With the aid of an assistant and using the powertrain jack, position the powertrain and subframe rearwards 50.8 mm (2 in).

    Courtesy of FORD MOTOR COMPANY

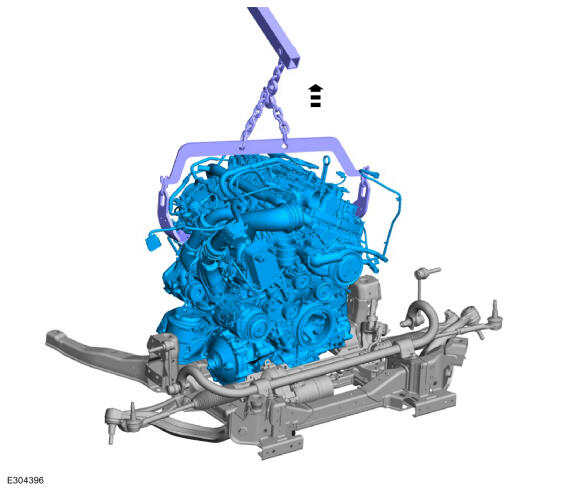

74. With the aid of an assistant and using the powertrain jack, lower the powertrain and subframe as an assembly.

    Courtesy of FORD MOTOR COMPANY

75. NOTE: AWD shown, RWD similar.

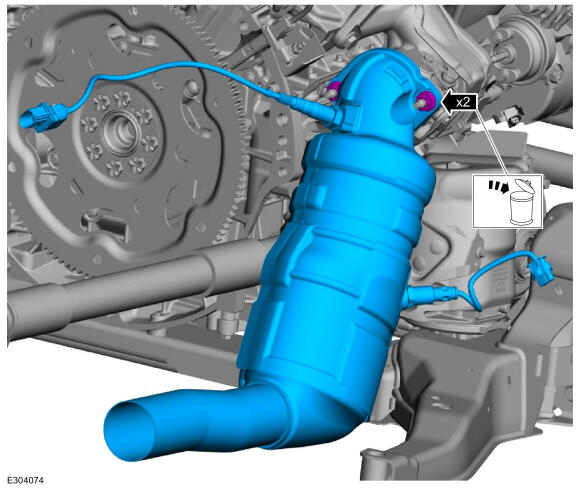

    • Remove the nuts and the RH catalytic converter.
    • Discard the nuts.

    Courtesy of FORD MOTOR COMPANY

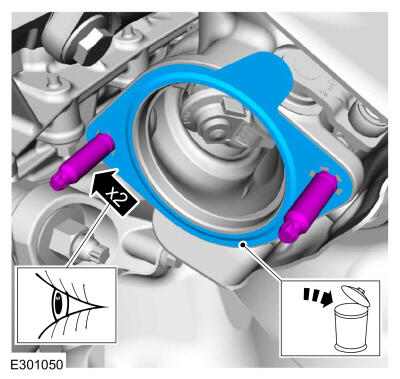

76. • Remove and discard the gasket.
    • If damaged, remove and discard the studs.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

77. Remove the fasteners and the heat shield.

    Courtesy of FORD MOTOR COMPANY

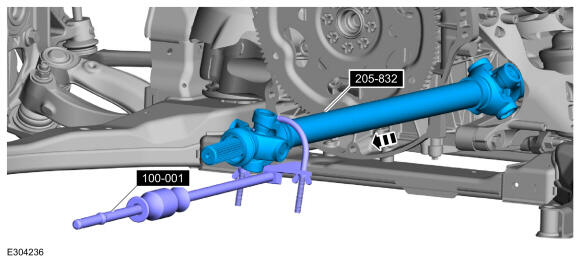

78. Using the special tools, remove the front drive shaft. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 205-832 Remover, Halfshaft.

    Courtesy of FORD MOTOR COMPANY

79. Remove and discard the front axle pinion stem circlip.

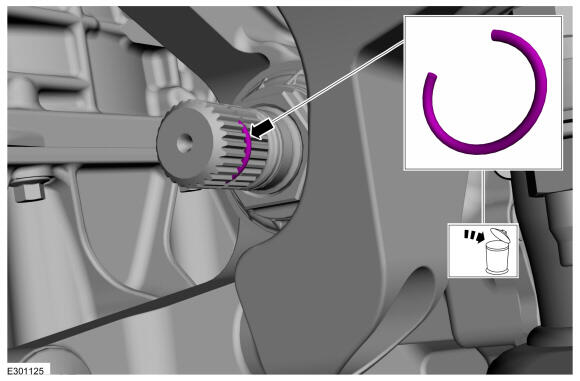

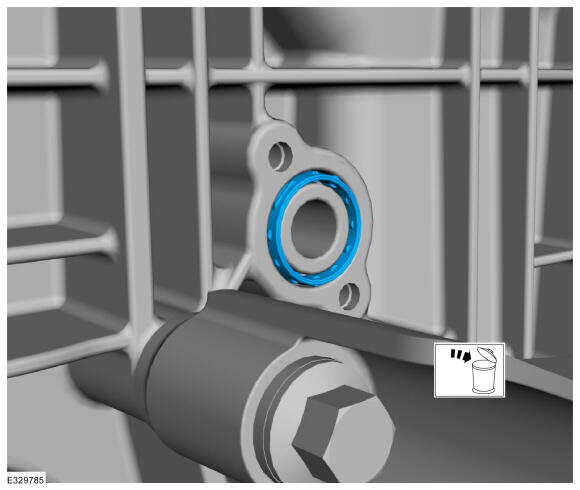

    Courtesy of FORD MOTOR COMPANY

80. Remove and discard the front axle pinion stem O-ring.

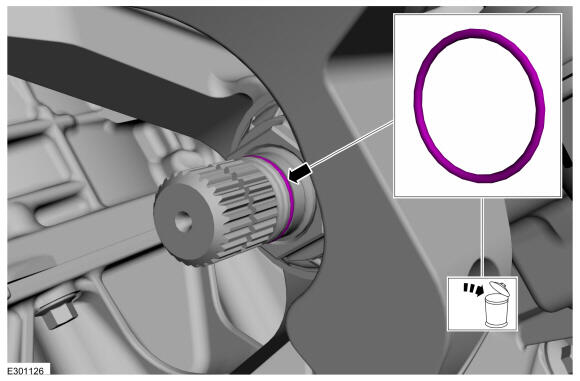

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD RWD

81. Remove the bolt and the bracket.

    Courtesy of FORD MOTOR COMPANY

82. Remove the fasteners.

    Courtesy of FORD MOTOR COMPANY

83. Remove the bolts and the heat shield.

    Courtesy of FORD MOTOR COMPANY

84. • Remove the TC coolant supply tube bolt.
    • Release the clamp and disconnect the TC coolant return hose.

    Courtesy of FORD MOTOR COMPANY

85. • Remove the TC oil supply tube bolt.
    • Release the clamp and disconnect the vacuum hose.

    Courtesy of FORD MOTOR COMPANY

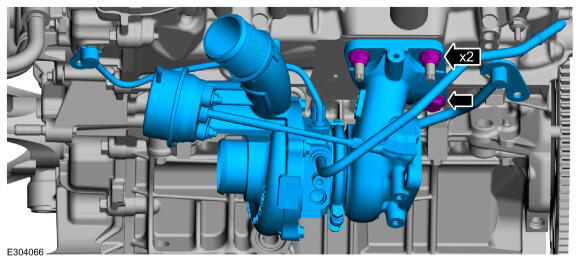

86. Remove the fasteners and the TC.

    Courtesy of FORD MOTOR COMPANY

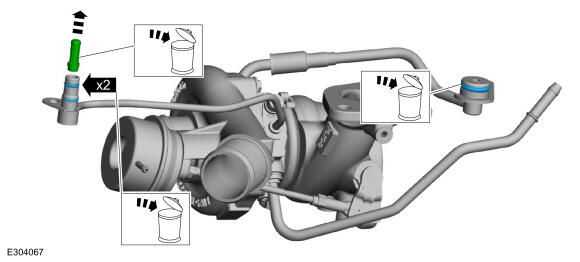

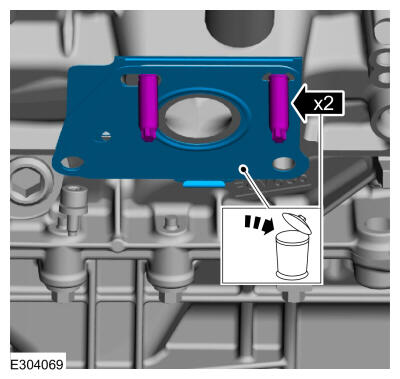

87. Remove and discard the TC oil return tube tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

88. • Remove and discard the TC oil supply tube filter and O-ring seals.
    • Remove and discard the TC coolant supply tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

89. NOTE: Inspect the turbocharger tubes and the sealing surfaces. Ensure that the retaining brackets are not bent, check for square-ness of the retaining brackets to the O-ring areas. Use brake cleaner and a NYLON brush to clean. DO NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    • Clean and inspect the TC oil supply tube.

      Material: Brake Cleaner

    • Clean and inspect the TC oil return tube.

      Material: Brake Cleaner

    • Clean and inspect the TC coolant supply tube.

      Material: Brake Cleaner

    Courtesy of FORD MOTOR COMPANY

90. • Remove and discard the TC gasket.
    • If damaged, remove and discard the TC stud(s).

    Courtesy of FORD MOTOR COMPANY

91. Install Special Service Tool: 303-1634 Lift Eyes (2).

    Courtesy of FORD MOTOR COMPANY

92. Install Special Service Tool: 303-1634 Lift Eyes (2).

    Courtesy of FORD MOTOR COMPANY

93. Install commercially available quick links to the spreader bar and lift eyes.Install Special Service Tool: 303-1246 Engine Spreader Bar.

    Courtesy of FORD MOTOR COMPANY

94. Install the floor crane and chain.

    Courtesy of FORD MOTOR COMPANY

95. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

96. NOTE: AWD shown, RWD similar.

    Using the floor crane, remove the engine from subframe.

Courtesy of FORD MOTOR COMPANY
