Head Up Display (HUD) Module: Removal

WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new head up display (HUD) module, it is necessary to upload the head up display (HUD) module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Carry out the PMI procedure for the HUD. Refer to: MODULE CONFIGURATION .
Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .

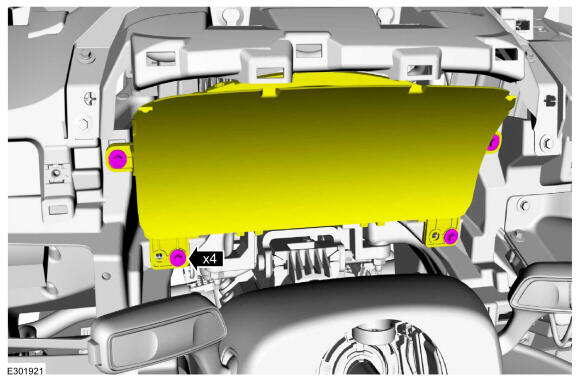

Remove the bolts and position out the IPC.

Courtesy of FORD MOTOR COMPANY

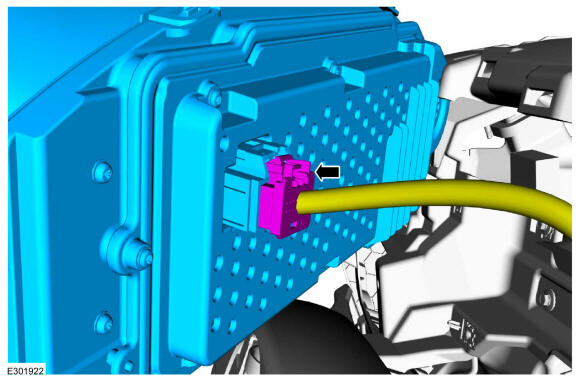

Disconnect the electrical connector and remove the IPC.

Courtesy of FORD MOTOR COMPANY

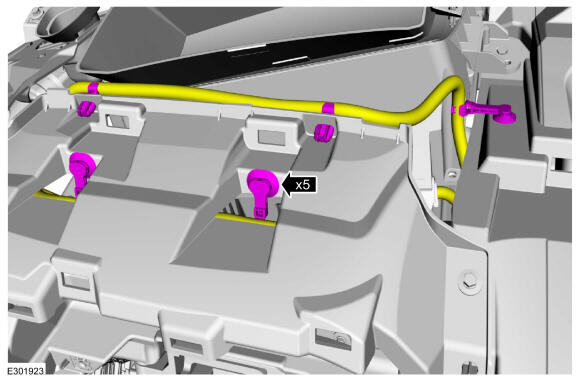

Detach the instrument panel wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

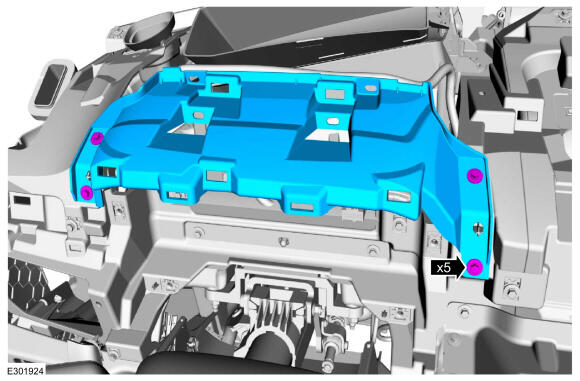

Remove the bolts and the IPC support bracket.

Courtesy of FORD MOTOR COMPANY

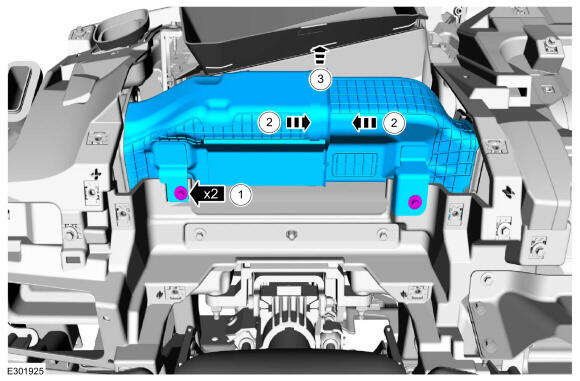

Remove the air duct.
1. Remove the air duct bolts.
2. Gently collapse the air duct.
3. Remove the air duct.
Courtesy of FORD MOTOR COMPANY

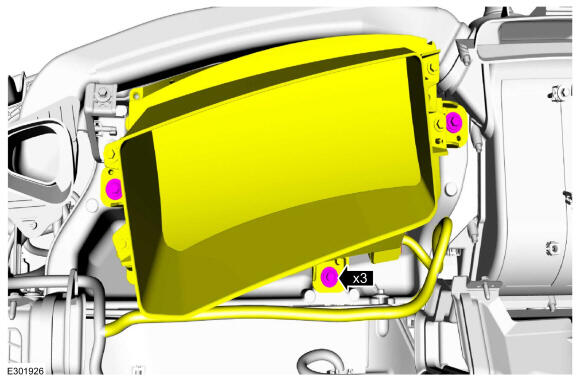

Remove the bolts and position aside the HUD module.
Torque: 9 Nm

Courtesy of FORD MOTOR COMPANY

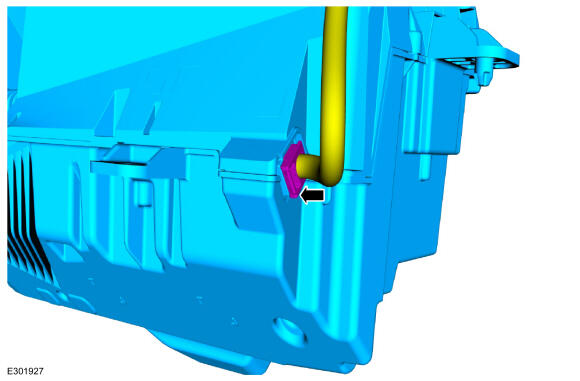

Disconnect the electrical connector and remove the HUD module.

Courtesy of FORD MOTOR COMPANY
