Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. If installing a new BCM, connect a battery charger to the battery to make sure it is charged to maintain proper battery voltage. Refer to: Battery Charging .
  2. NOTE: Before replacing the BCM (body control module), ensure that two correct keys are present as they will be needed to complete the PMI (programmable module installation) with the FDRS scan tool. The vehicle will not start unless two keys are present.
    NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced.

    Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions. Refer to: MODULE CONFIGURATION - SYSTEM OPERATION AND COMPONENT DESCRIPTION .

  3. NOTE: The PAM is integral to the BCM. This step is only necessary if the BCM is being replaced.

    Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions. Refer to: MODULE CONFIGURATION - SYSTEM OPERATION AND COMPONENT DESCRIPTION .

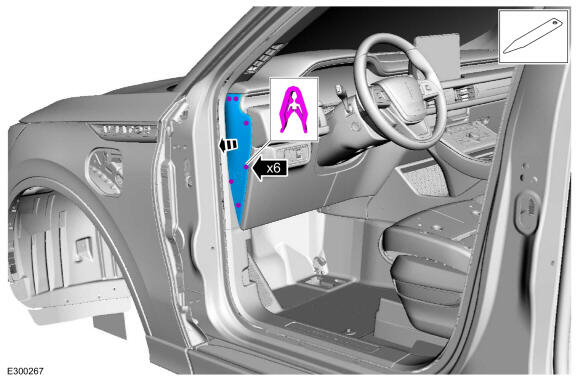

  4. Release the clips and remove the instrument panel side trim panel.Use the General Equipment: Interior Trim Remover
    GFD880760Courtesy of FORD MOTOR COMPANY

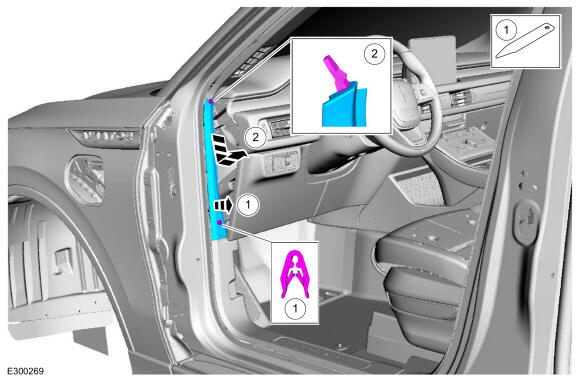

  5. Remove the cowl side trim panel.

    1. Release the cowl side trim panel lower clip.Use the General Equipment: Interior Trim Remover
    2. Slide the cowl side trim panel downward and out to release the upper tab.

    GFD880761Courtesy of FORD MOTOR COMPANY
  6. Remove the hood latch release handle. Refer to: Hood Latch Release Handle .

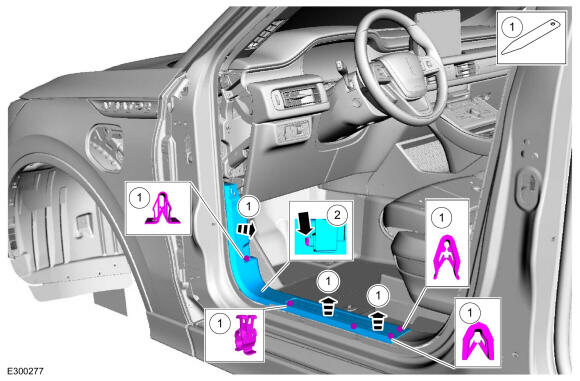

  7. Remove the front scuff plate trim panel.

    1. Release the clips. Use the General Equipment: Interior Trim Remover
    2. If equipped. Disconnect the front scuff plate trim panel electrical connector.

    GFD880762Courtesy of FORD MOTOR COMPANY

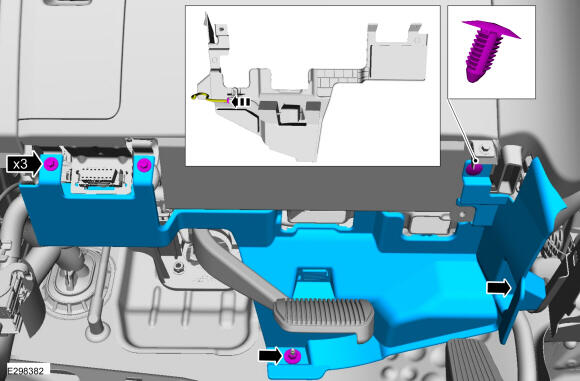

  8. Release the pushpin and remove the drivers side insulation panel.

    • Remove the bolts.

    • Remove the nut.

    • Disconnect the electrical connector.

    GFD880655Courtesy of FORD MOTOR COMPANY

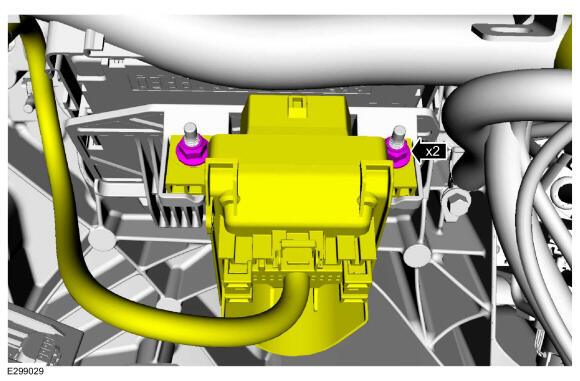

  9. NOTE: The gateway module is mounted to the bottom back side of the BCM.

    Remove the nuts and position aside the gateway module.

    GFD880763Courtesy of FORD MOTOR COMPANY

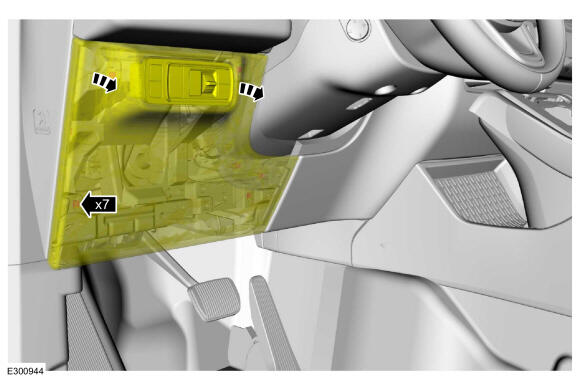

  10. Detach the clips and lower the LH lower steering column trim panel.
    GFD879722Courtesy of FORD MOTOR COMPANY

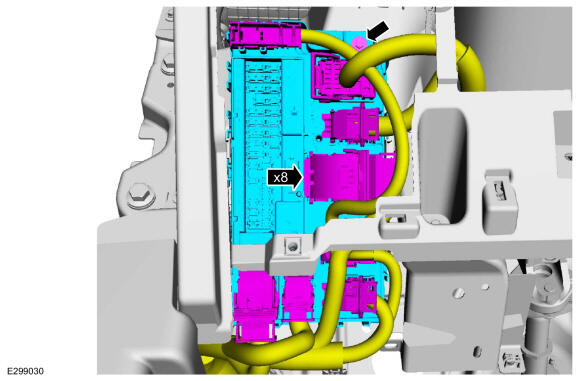

  11. Disconnect the electrical connectors.

    • Remove the screw and the BCM.

GFD880764Courtesy of FORD MOTOR COMPANY
