Component Testing

WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

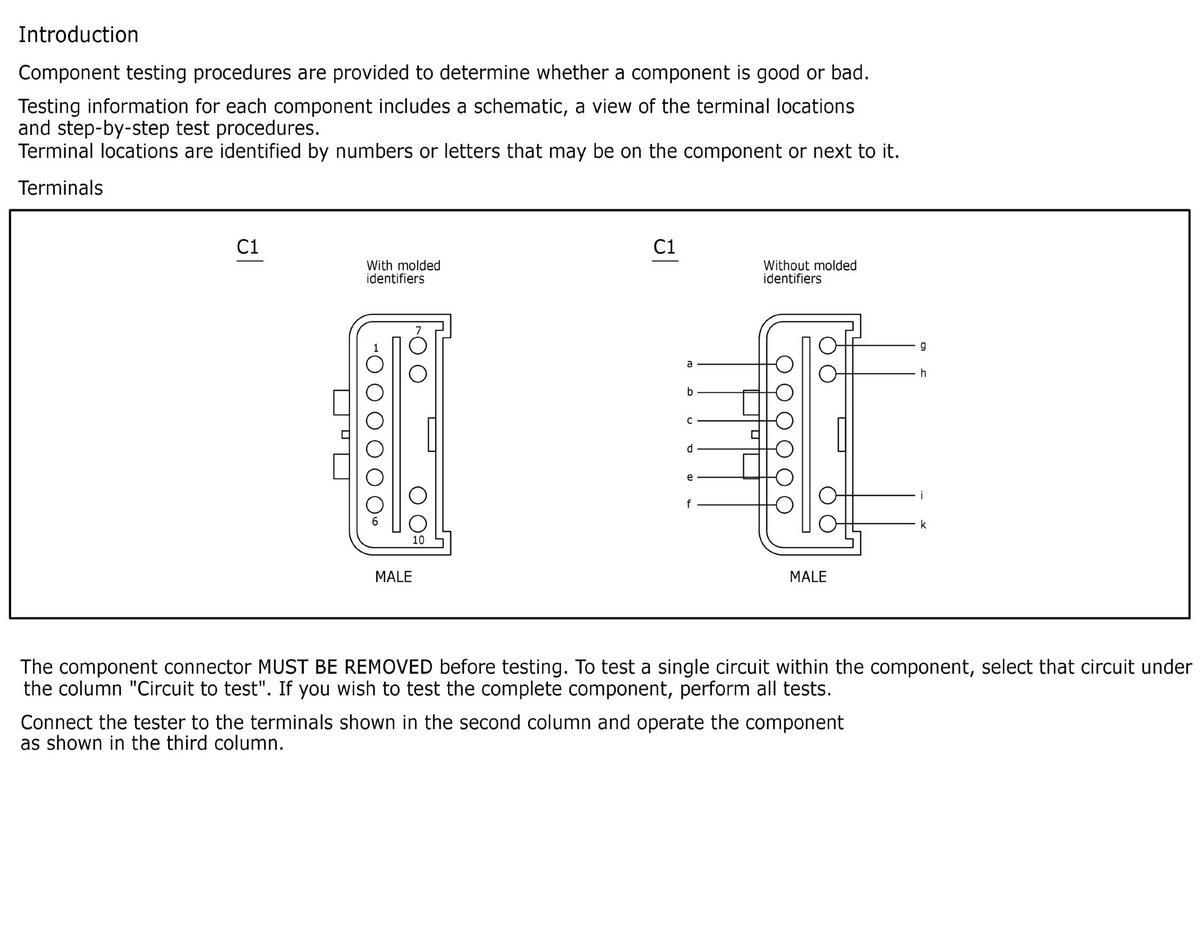

Fig 1: Introduction

Courtesy of FORD MOTOR COMPANY

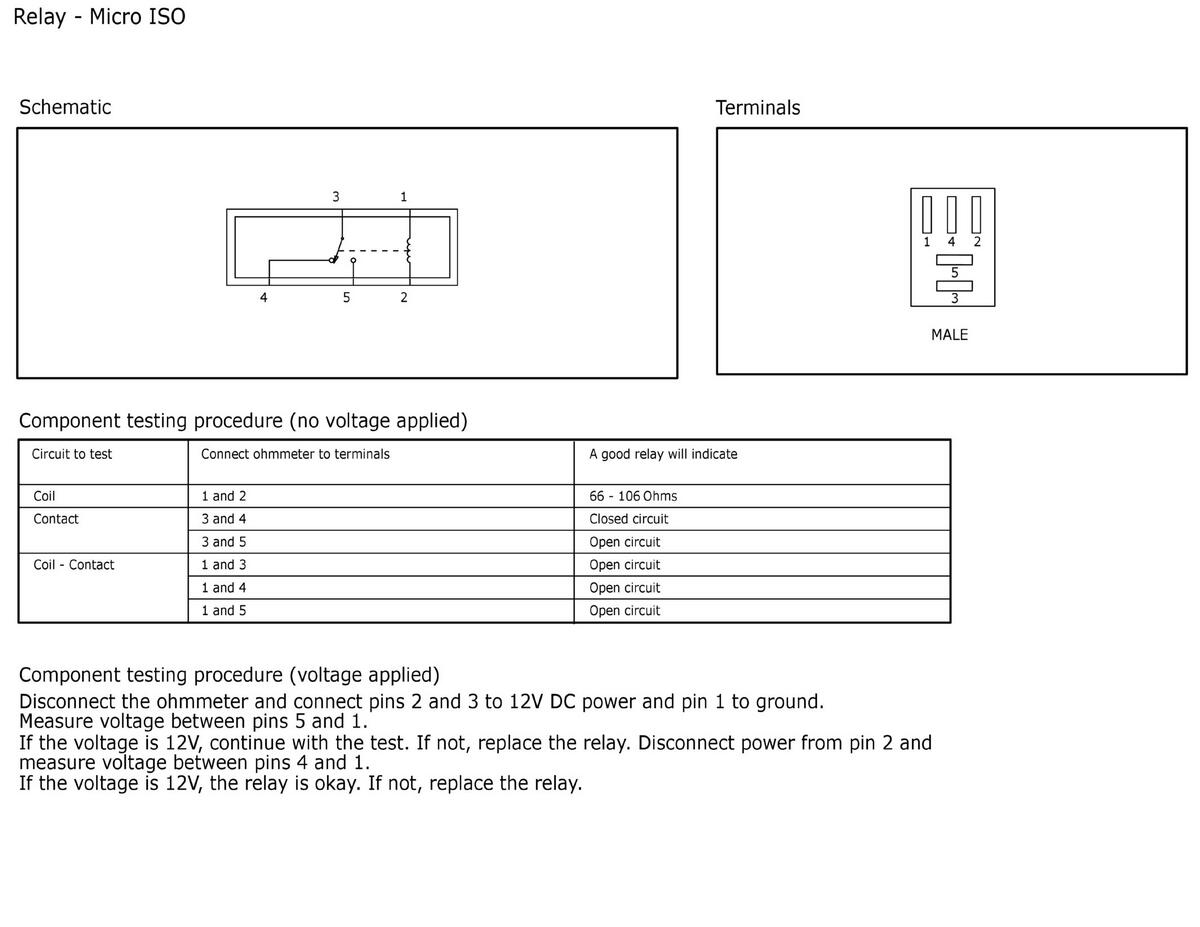

Fig 2: Relay - Micro ISO

Courtesy of FORD MOTOR COMPANY

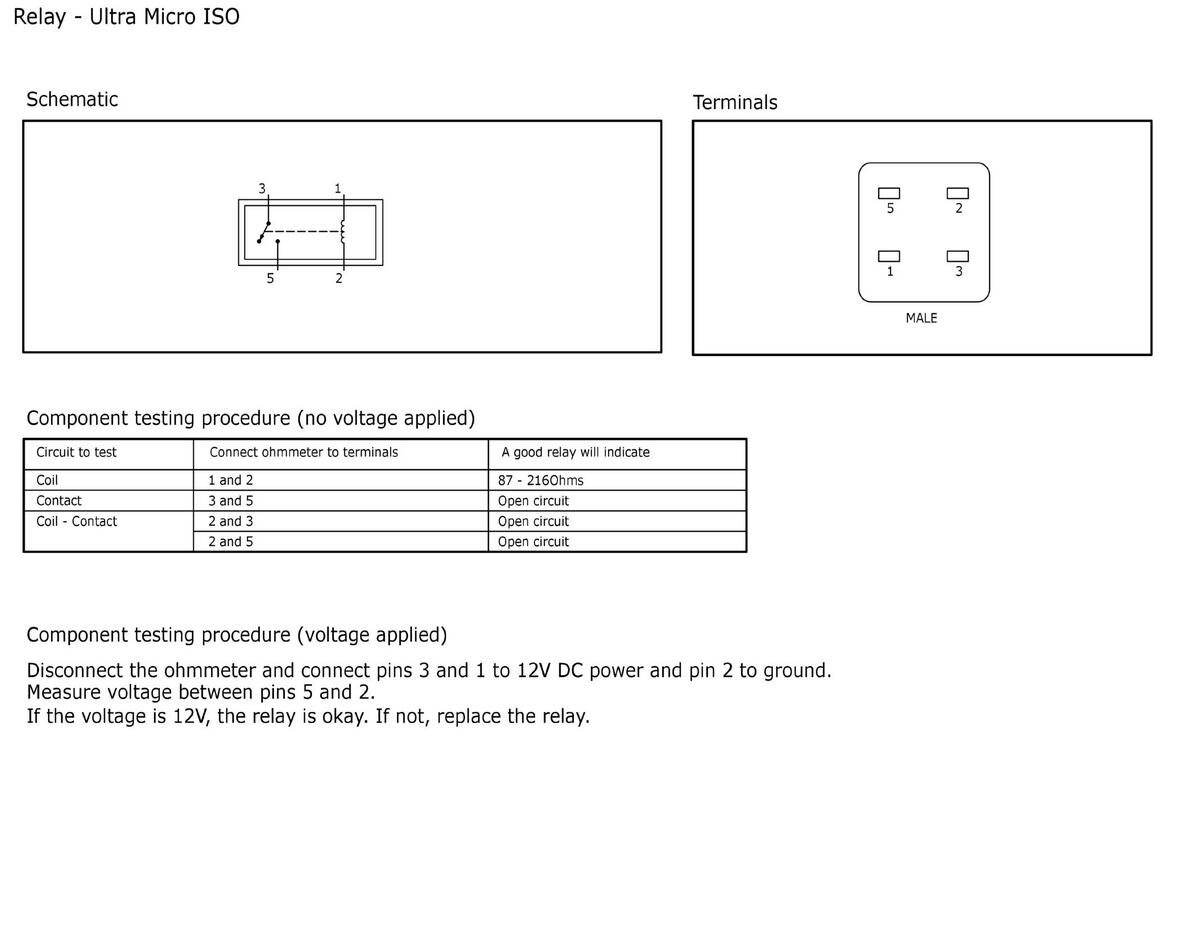

Fig 3: Relay - Ultra Micro ISO

Courtesy of FORD MOTOR COMPANY

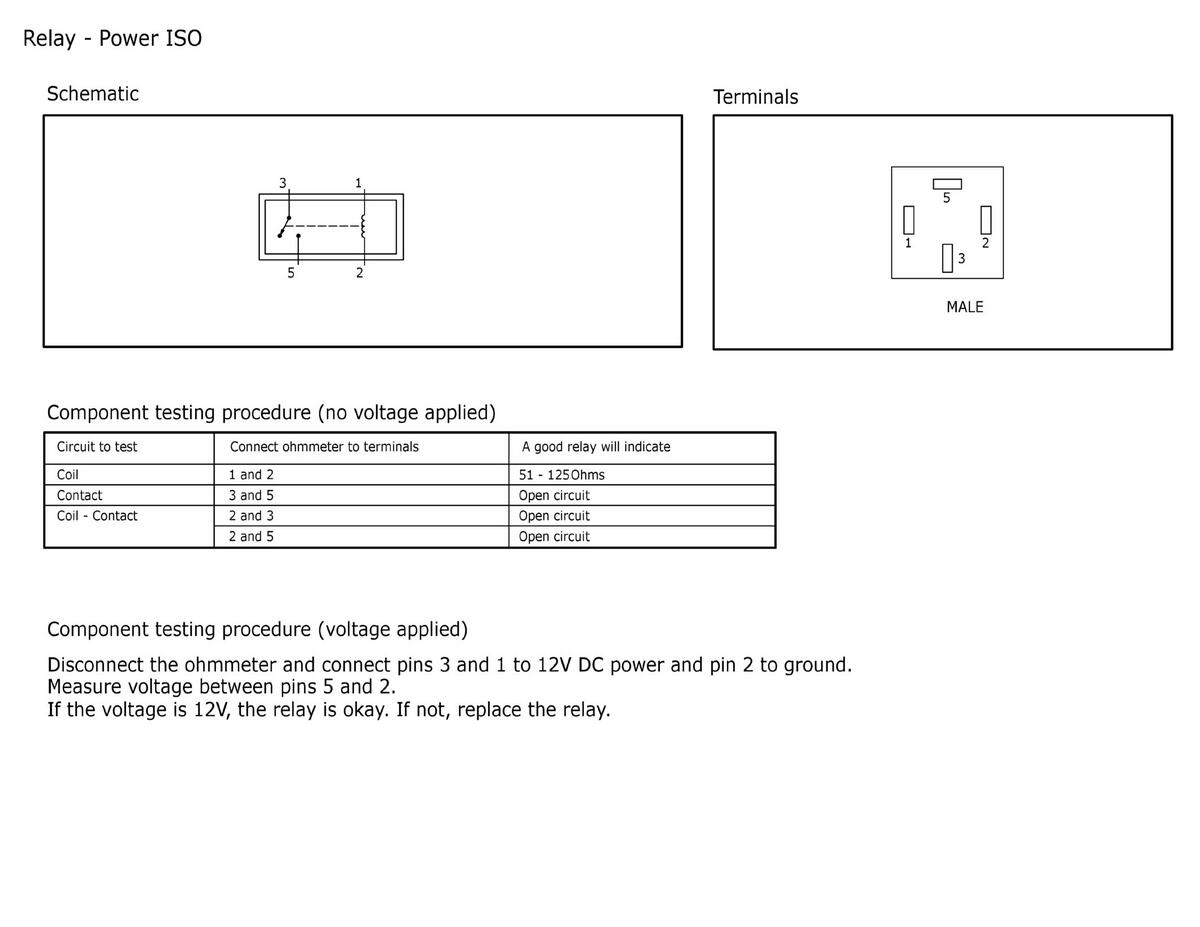

Fig 4: Relay - Power ISO

Courtesy of FORD MOTOR COMPANY
