Rear Gate Trunk Module (RGTM): Removal

WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current RGTM installed. If the current RGTM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair. Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions.

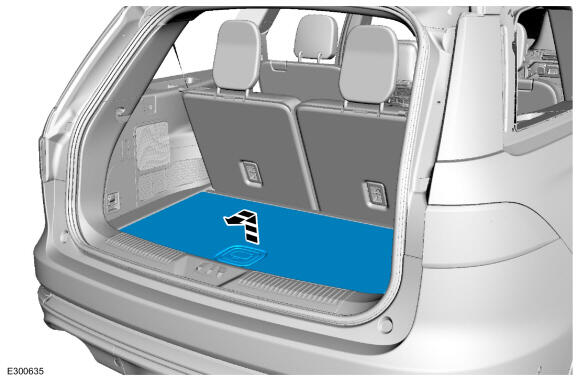

Remove the luggage compartment floor covering.

Courtesy of FORD MOTOR COMPANY

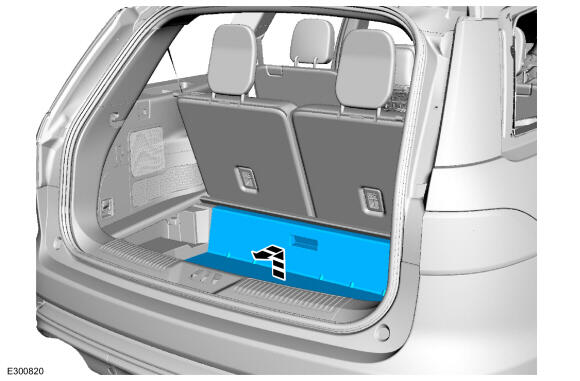

Remove the luggage compartment spare tire cover.

Courtesy of FORD MOTOR COMPANY

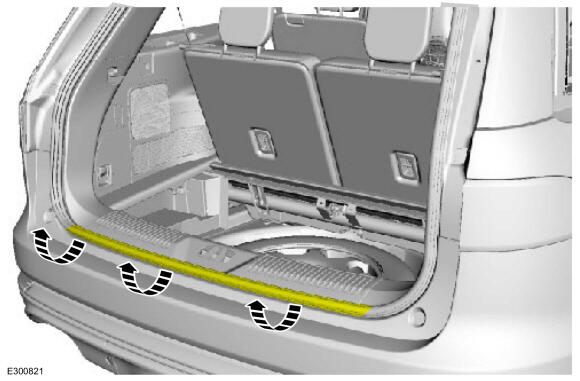

Position the liftgate opening weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

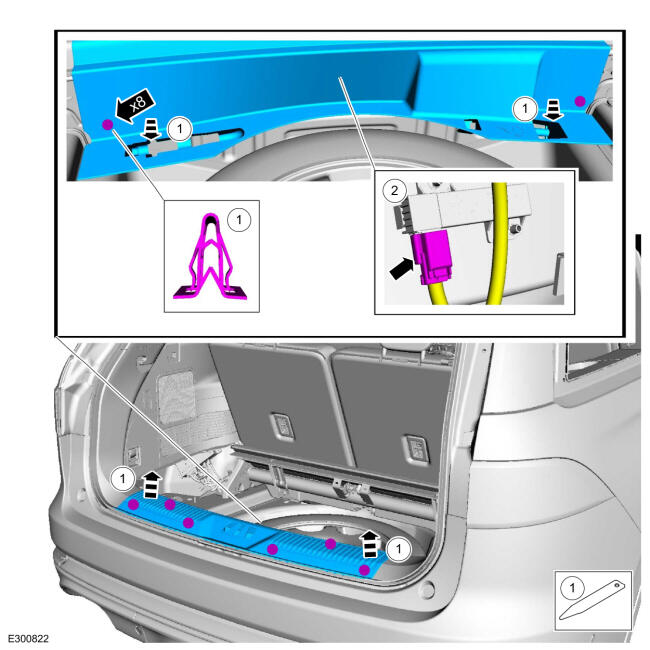

Remove the liftgate scuff plate trim panel.
1. Release the liftgate scuff plate trim panel clips.Use the General Equipment: Interior Trim Remover
2. Disconnect the keyless entry rear antenna electrical connector.
Courtesy of FORD MOTOR COMPANY

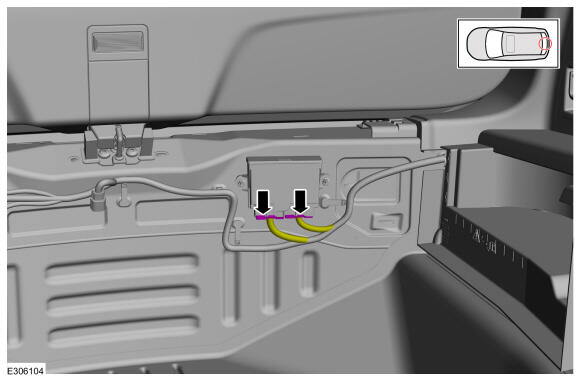

Disconnect the electrical connectors and position aside the electrical harness.

Courtesy of FORD MOTOR COMPANY

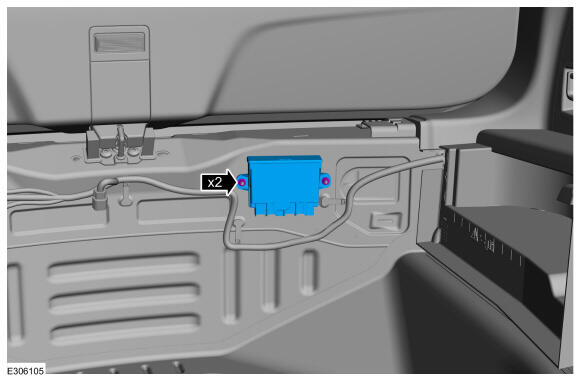

Remove the nuts and remove the RGTM.

Courtesy of FORD MOTOR COMPANY
