Rear Door Alignment
WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Adjustment
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown below, RH side similar.

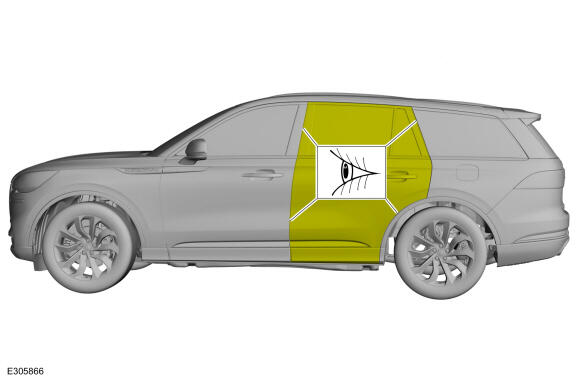

All alignments

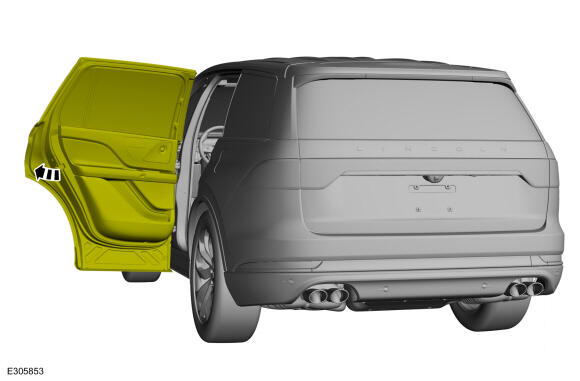

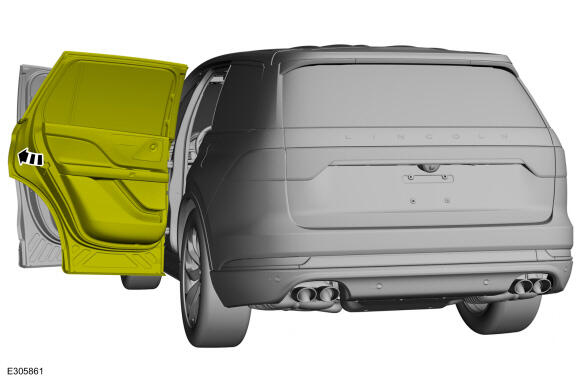

- Open the rear door.

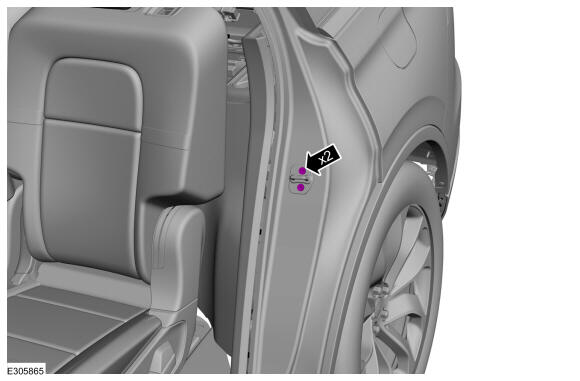

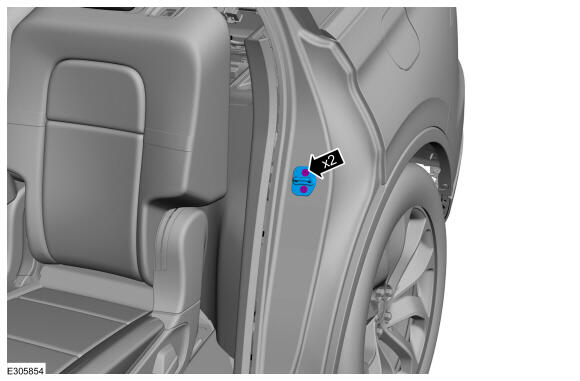

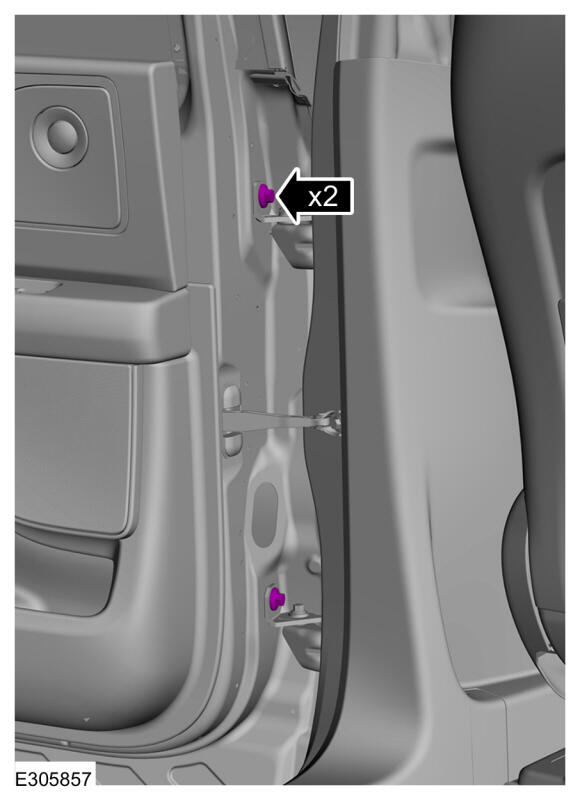

- Remove the bolts and the striker assembly.
Torque: 25 Nm

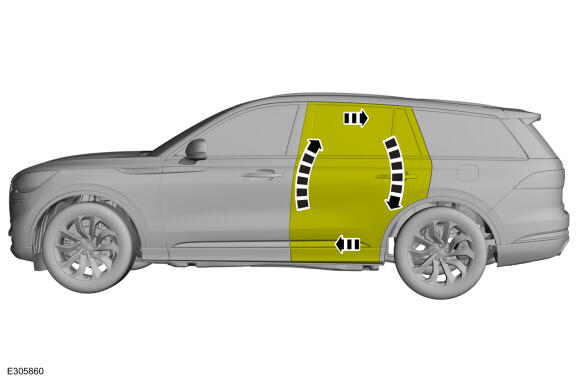

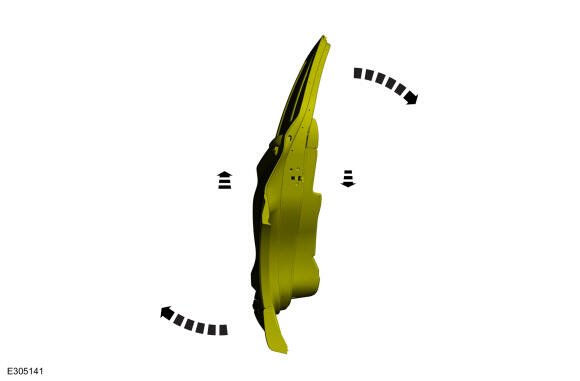

Rear door in and out, up and down alignment

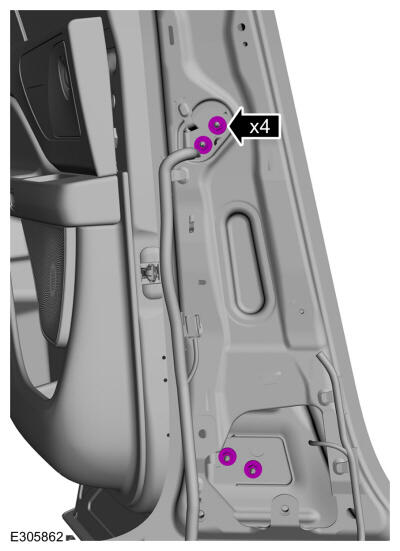

- Loosen the bolts to permit movement of the door.Loosen: : 2 turn(s)
- Adjust the door as required.
- Tighten the bolts.
Torque: 48 Nm
Rear door fore, aft and tilt alignment
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Remove the front seatbelt retractor and pretensioner. Refer to: Front Seatbelt Retractor and Pretensioner .

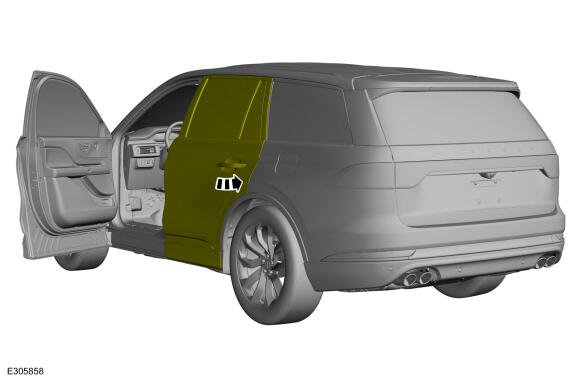

- Open the front door.

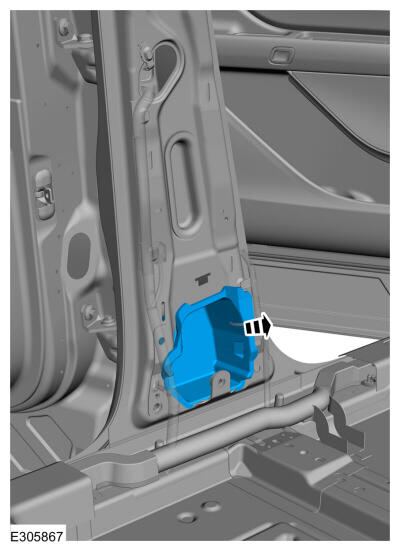

- Pull and remove the foam.

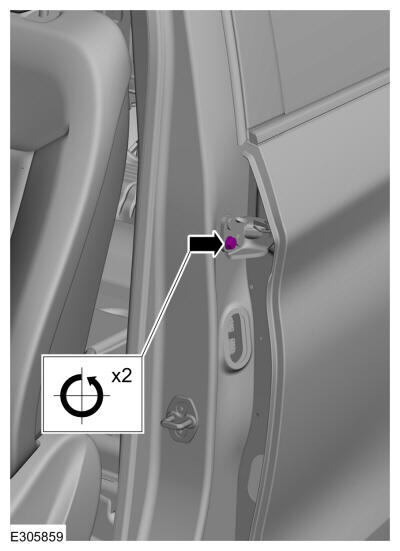

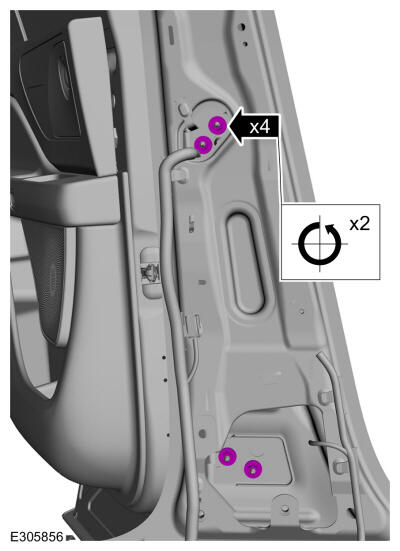

- Loosen the nuts to permit movement of the door.Loosen: : 2 turn(s)
- Carefully close the rear door.

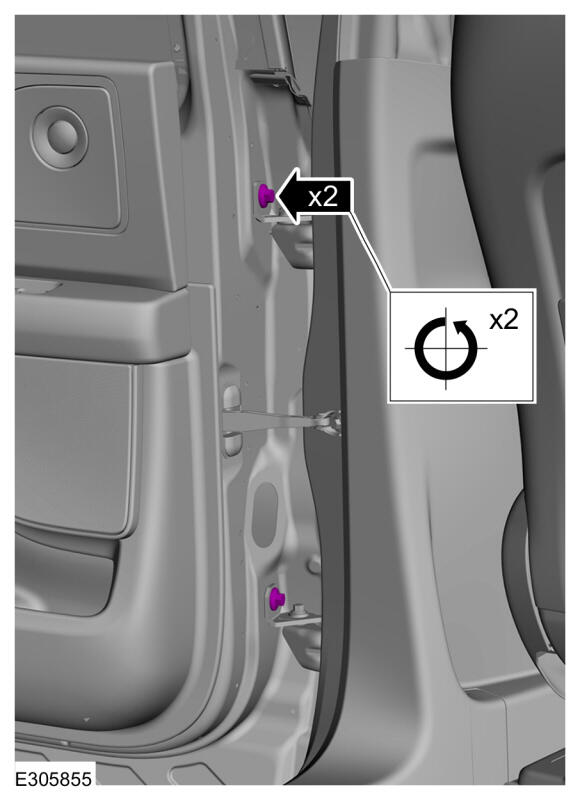

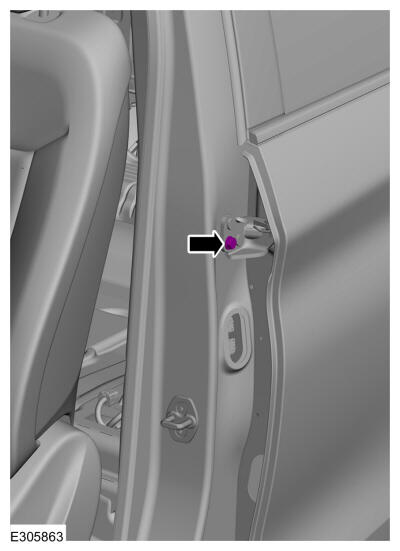

- Loosen the bolt to permit movement of the door.Loosen: : 2 turn(s)
- Carefully close the front door.
- Adjust the door as required.
- Carefully open the front door.
- Carefully open the rear door.
- Tighten the nuts.
Torque: 35 Nm

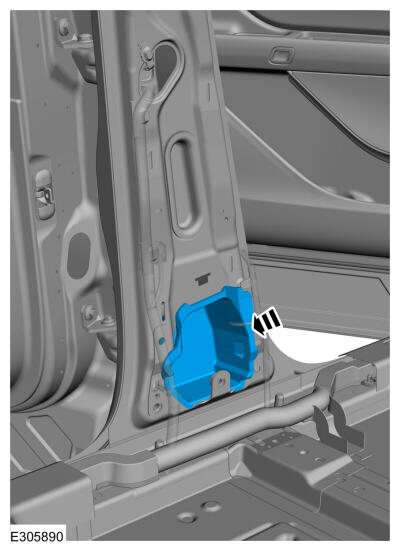

- Install the foam.
- Tighten the bolt.
Torque: 10 Nm
- Install the front seatbelt retractor and pretensioner. Refer to: Front Seatbelt Retractor and Pretensioner .
- Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
- Check the active restraint system for correct operation. Refer to: Seatbelt Systems
.
All alignments
- Install the striker assembly.
Torque: 25 Nm

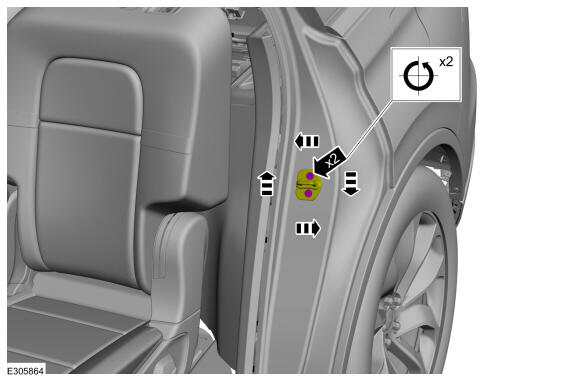

- Loosen the bolts to permit movement of the striker assembly.Loosen: : 2 turn(s)
- Tighten the bolts.
Torque: 25 Nm
- Inspect the body-to-rear door alignment.
