Liftgate Alignment
WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Interior Trim Remover |
|---|
Materials
| Name | Specification |
|---|---|
| - | |
Adjustment
NOTE:
Removal steps in this procedure may contain installation details.
All alignments

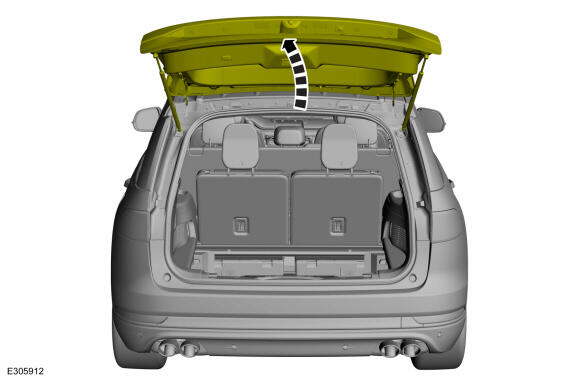

- Open the liftgate.
- Remove the luggage compartment floor covering.
- Remove the luggage compartment spare tire cover.
- Position the liftgate opening weatherstrip aside.

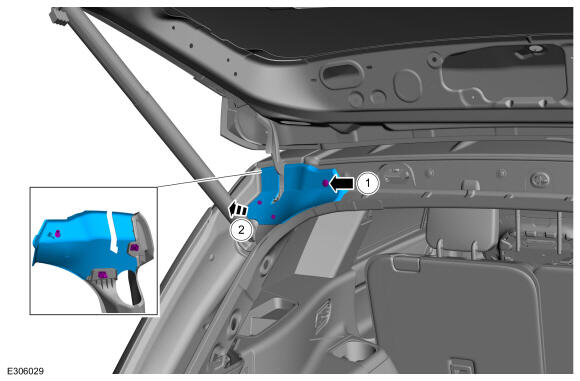

- Remove the liftgate scuff plate trim panel.
- Release the liftgate scuff plate trim panel clips.Use the General Equipment: Interior Trim Remover
- If equippedDisconnect the keyless entry rear antenna electrical connector.

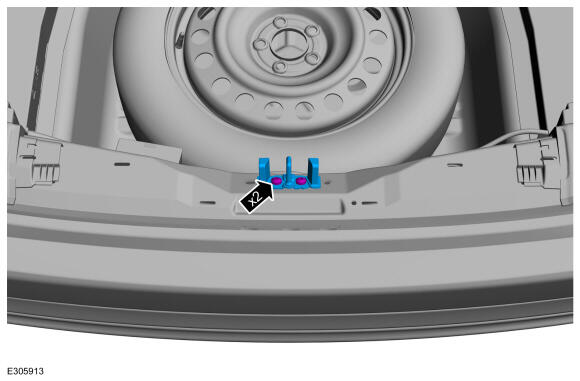

- Remove the liftgate striker.
Torque: 25 Nm
Liftgate left and right, up and down alignment

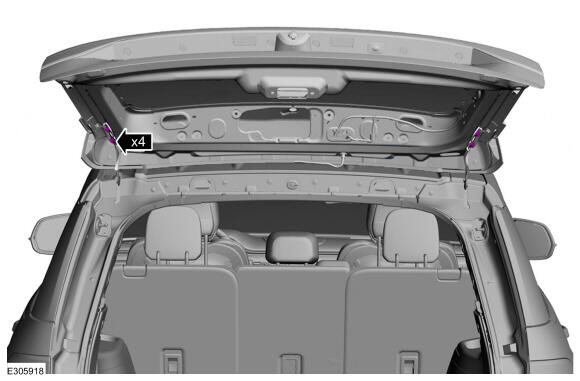

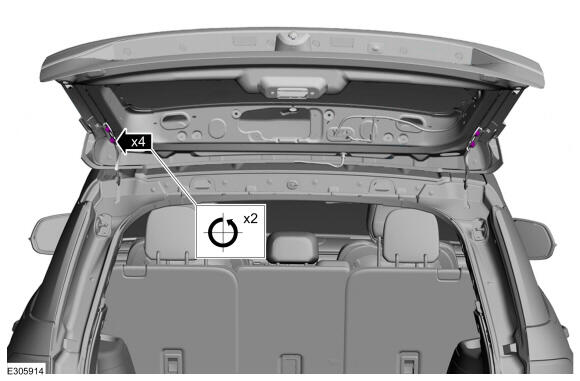

- Loosen the bolts.Loosen: : 2 turn(s)
- Carefully close the liftgate.

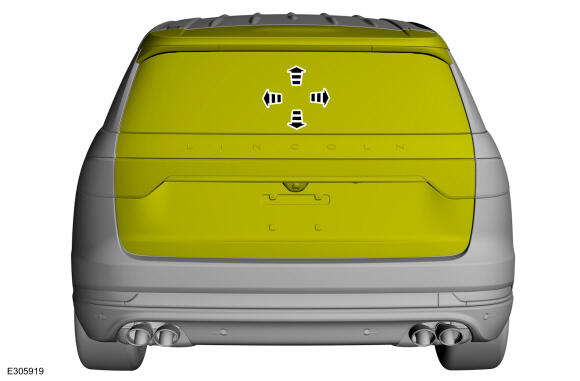

- Adjust the liftgate as required.
- Carefully open the liftgate.
- Tighten the bolts.
Torque: 30 Nm
Liftgate in and out alignment

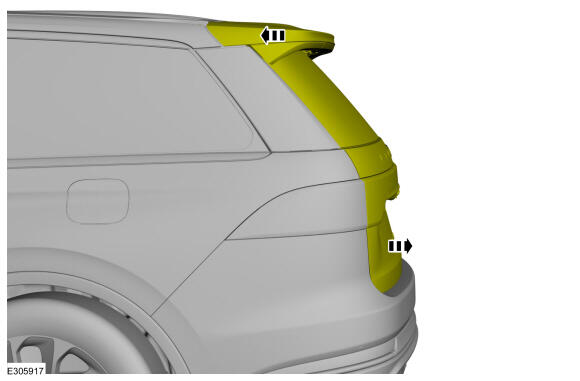

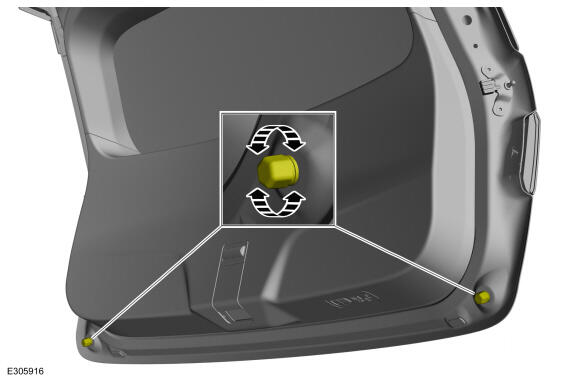

- Adjust the stops.
- On both sides
- Remove the retainer.
- Gently pull and remove the drip moulding cover.

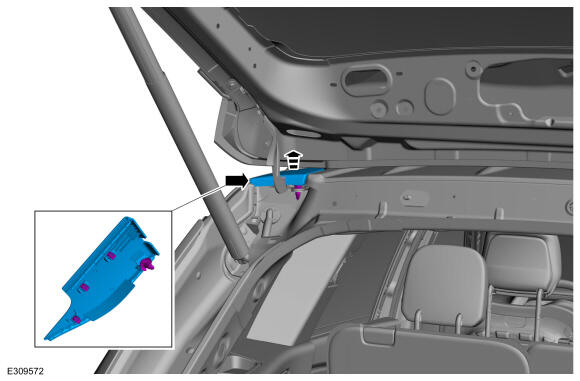

- On both sidesRemove the hinge cover.
- Carefully close the liftgate.

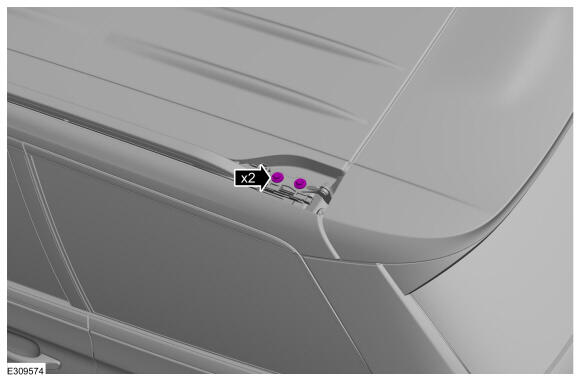

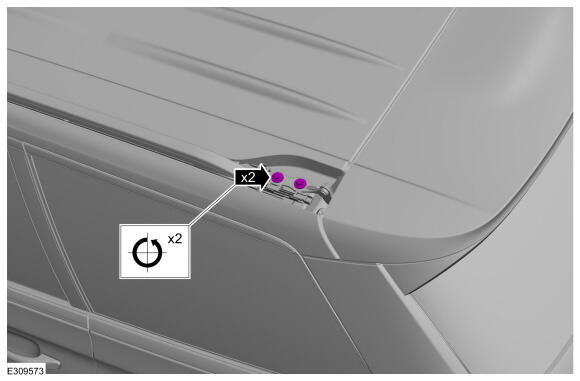

- On both sidesLoosen the bolts.Loosen: : 2 turn(s)
- Adjust the liftgate as required.
- On both sidesTighten the bolts.
Torque: 35 Nm

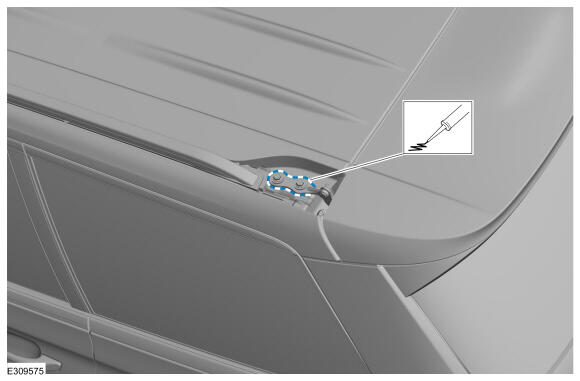

- On both sidesApply seam sealer.
Material:
All alignments

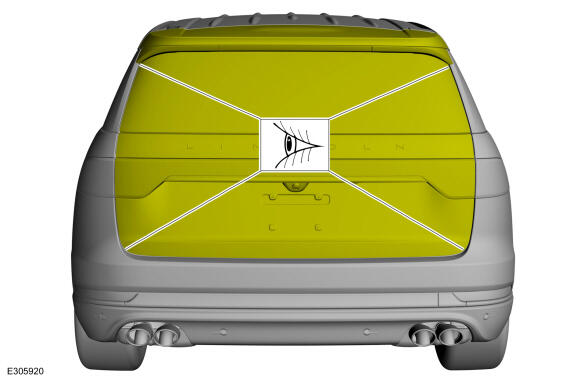

- Inspect the body-to-liftgate door alignment.
- Install the position aside and removed components.
- If equipped with power liftgate, carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
