Hood Alignment

WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

NOTE: Removal steps in this procedure may contain installation details.

All alignments

Remove the hood latch. Refer to: Hood Latch .

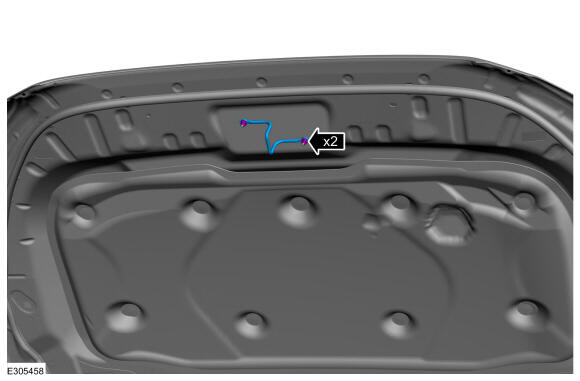

Remove the nuts and the striker assembly.
Torque: 9 Nm

Courtesy of FORD MOTOR COMPANY

Hood fore and aft, left and right alignments

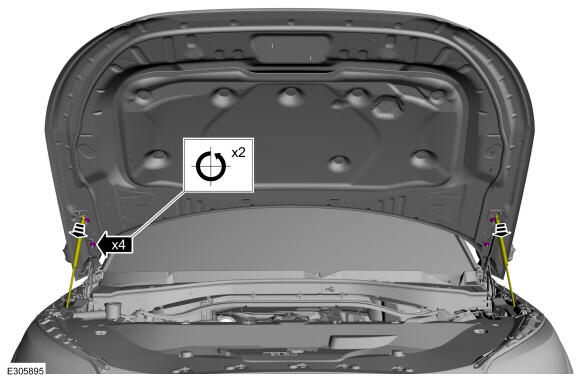

Detach the struts and loosen the nuts to permit movement of the hood.Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

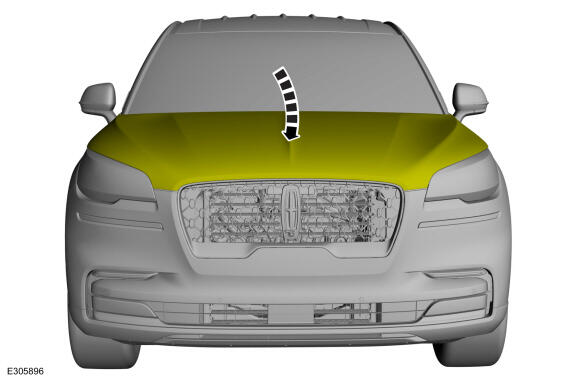

Carefully close the hood.

Courtesy of FORD MOTOR COMPANY
Adjust the hood as required.

Courtesy of FORD MOTOR COMPANY

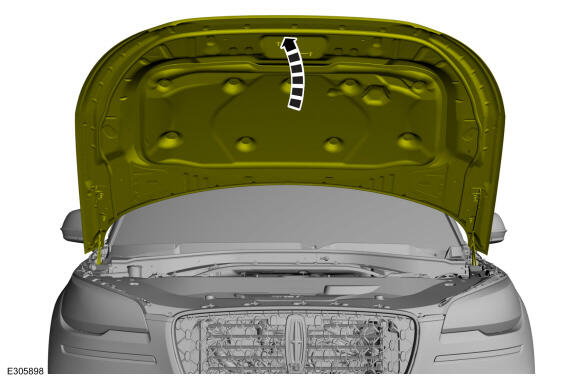

Carefully open the hood.

Courtesy of FORD MOTOR COMPANY

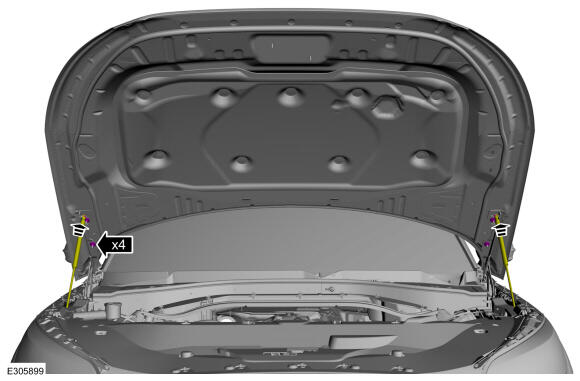

Tighten the nuts install the Hood struts.
Torque: 18 Nm

Courtesy of FORD MOTOR COMPANY

Hood front up and down alignments

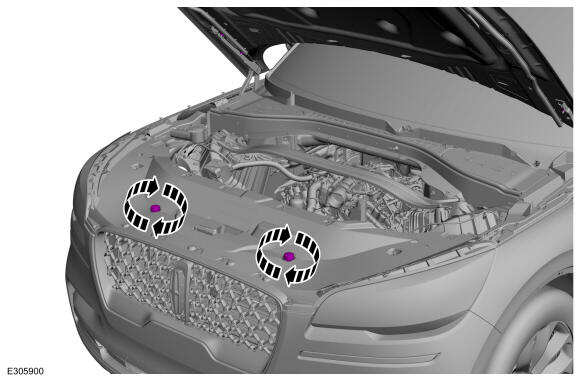

Adjust the bump stop rubbers.

Courtesy of FORD MOTOR COMPANY

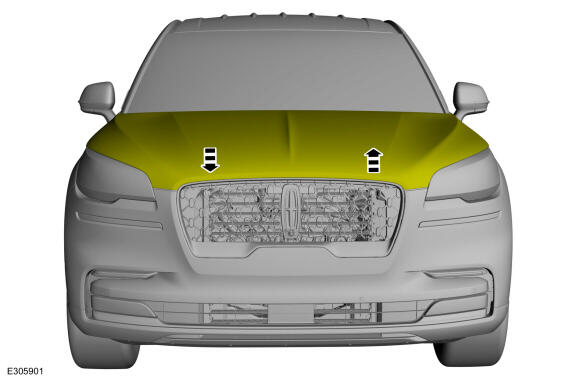

Adjust the hood as required.

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque: 9 Nm

Courtesy of FORD MOTOR COMPANY

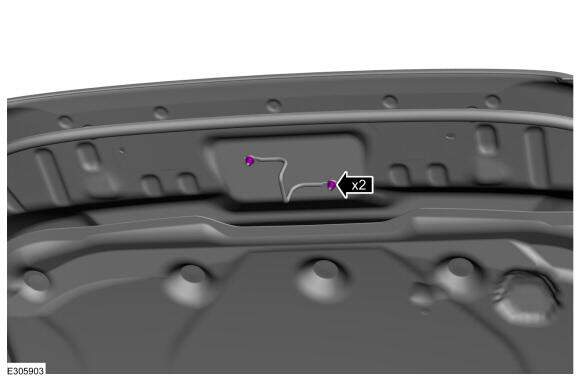

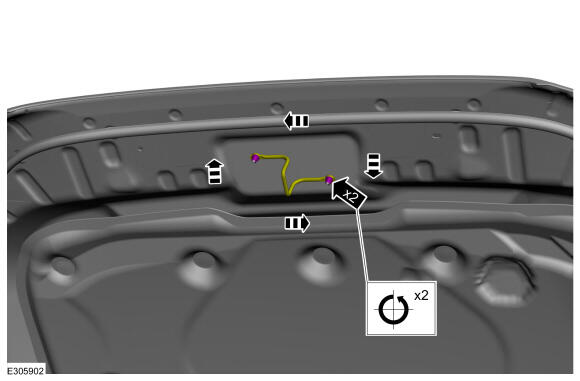

Loosen the nuts to permit movement of the striker assembly.Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Tighten the nuts.
Torque: 9 Nm

Courtesy of FORD MOTOR COMPANY

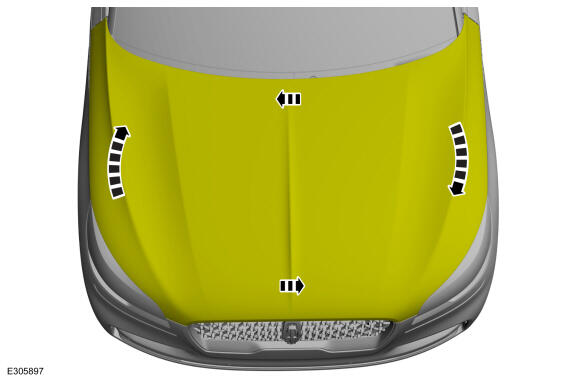

Inspect the body-to-hood alignment.

Courtesy of FORD MOTOR COMPANY
Install the removed components.
