Throttle Body: Installation

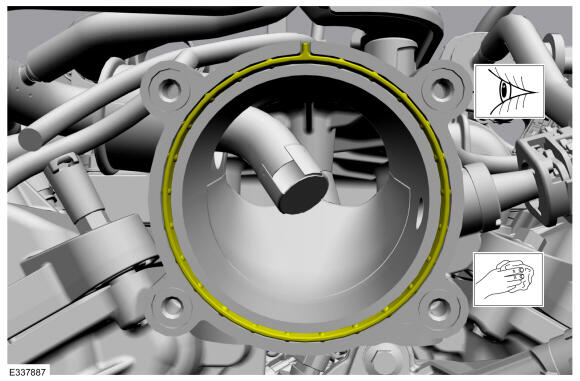

NOTE: Make sure that the mating faces are clean and free of foreign material.
Inspect the throttle body gasket, clean and replace the throttle body gasket as needed.

Courtesy of FORD MOTOR COMPANY

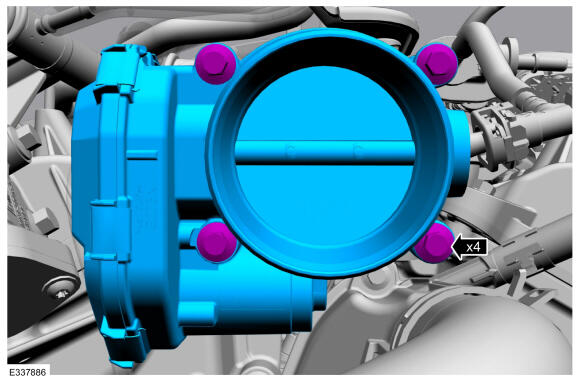

Install the throttle body, then install and tighten the throttle body bolts in the following 2 stages.
Torque: Stage 1: 10 Nm Stage 2: 90deg.

Courtesy of FORD MOTOR COMPANY

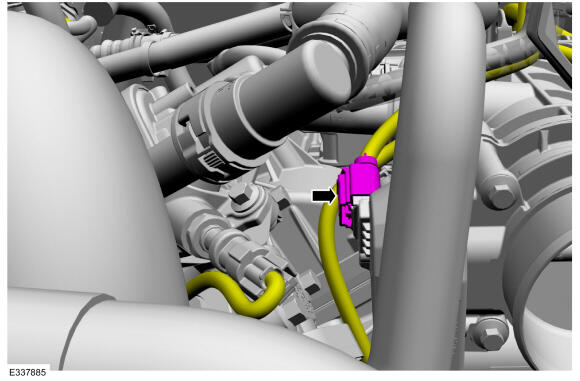

NOTE: When connecting the throttle body electrical connector engage the red connector locking tab after fully installing the throttle body electrical connector. The red tab will not slide forward unless the throttle body electrical connector is fully installed.

Connect the throttle body electrical connector.

Courtesy of FORD MOTOR COMPANY

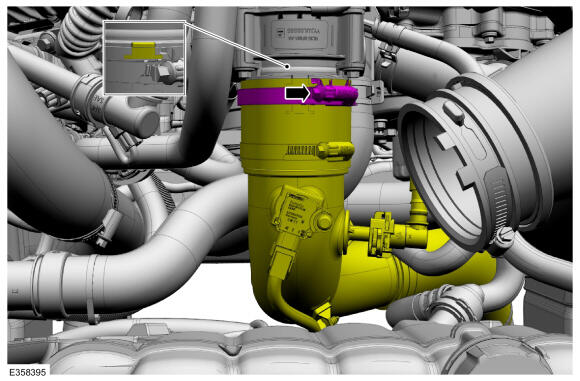

NOTE: The hose end must contact the hose stop.

NOTE: When installing the pipe, line up the alignment marks on the pipe and on the throttle body.

Install the charge air cooler outlet pipe, then tighten the charge air cooler outlet pipe clamp.

Torque: 5.0 Nm

Courtesy of FORD MOTOR COMPANY
Install the charge air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .

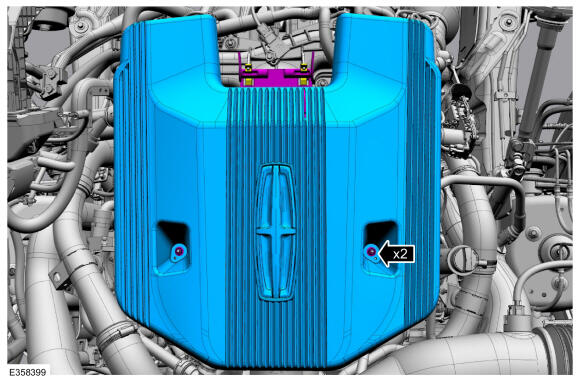

Install the engine appearance cover into the rear retain tabs on the intake manifold, then install and tighten the engine appearance cover retainers.
Torque: 11 Nm

Courtesy of FORD MOTOR COMPANY
Road test the vehicle.
