Engine Mount LH: Installation

4x2/4x4

  1. Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
  2. NOTE: If necessary, the following 4 steps are to install the LH engine mount insulator-to-cylinder block bracket.

    Install the LH engine mount-to-cylinder block bracket and install the new bolts in the sequence shown below.

    Torque: 77 Nm

    Fig 1: Engine Mount LH to Cylinder Block Tightening Sequence
    GFD882899Courtesy of FORD MOTOR COMPANY

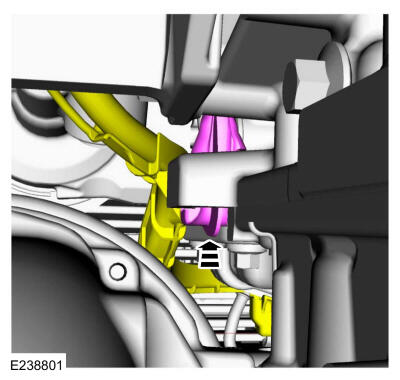

  3. Attach the generator wiring harness retainer to the engine block.
    GFD882900Courtesy of FORD MOTOR COMPANY

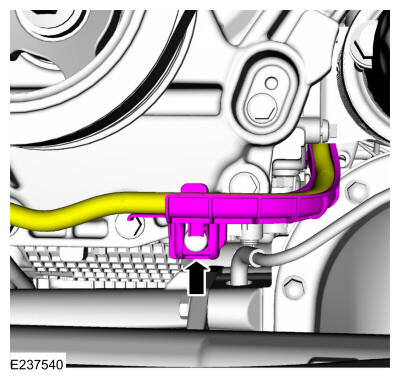

  4. Attach the generator wiring harness to the engine front cover.
    GFD882896Courtesy of FORD MOTOR COMPANY

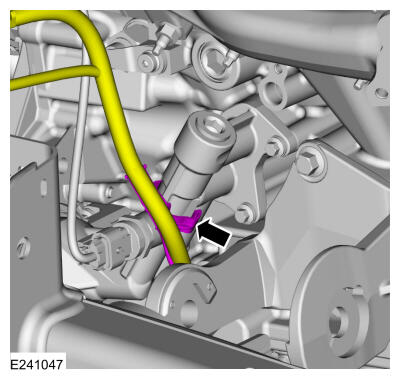

  5. Attach the generator wiring harness to the oil filter adapter.
    GFD882895Courtesy of FORD MOTOR COMPANY
  6. NOTE: Replace the nut plate with part number W716699-S439.

    If removed, install a new engine mount-to-frame nut plate.

    GFD882901Courtesy of FORD MOTOR COMPANY
  7. Position the LH engine mount and hand tighten the new engine mount-to-frame bolts.
    GFD882902Courtesy of FORD MOTOR COMPANY

    4x4

  8. NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

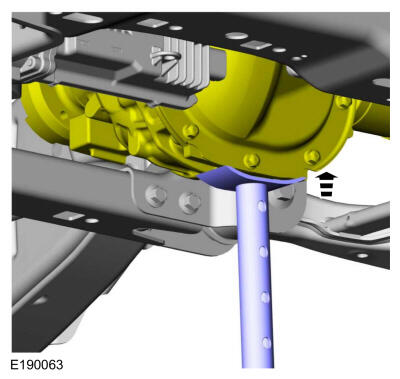

    Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

    GFD882903Courtesy of FORD MOTOR COMPANY
  9. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    GFD882904Courtesy of FORD MOTOR COMPANY
  10. Install the new axle shaft housing carrier bushing nut and the bolt finger tight.
    GFD882905Courtesy of FORD MOTOR COMPANY
  11. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 175 Nm

    GFD882906Courtesy of FORD MOTOR COMPANY
  12. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 175 Nm

    GFD882907Courtesy of FORD MOTOR COMPANY
  13. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 175 Nm

    GFD882908Courtesy of FORD MOTOR COMPANY
  14. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands
    GFD882888Courtesy of FORD MOTOR COMPANY
  15. Install the steering gear boot.
    GFD882887Courtesy of FORD MOTOR COMPANY
    1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Install a new steering column shaft bolt.

      Torque: 30 Nm

    GFD882909Courtesy of FORD MOTOR COMPANY
  16. Remove the holding device from the steering wheel.
    GFD881919Courtesy of FORD MOTOR COMPANY

    4x2/4x4

  17. NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

    Torque the LH engine mount-to-frame bolts in the sequence shown below.

    Torque: 175 Nm

    Fig 2: Engine Mount LH to Frame Tightening Sequence
    GFD882910Courtesy of FORD MOTOR COMPANY
  18. Lower the engine to the installed position.
    GFD882911Courtesy of FORD MOTOR COMPANY
  19. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 350 Nm

    GFD882912Courtesy of FORD MOTOR COMPANY
  20. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

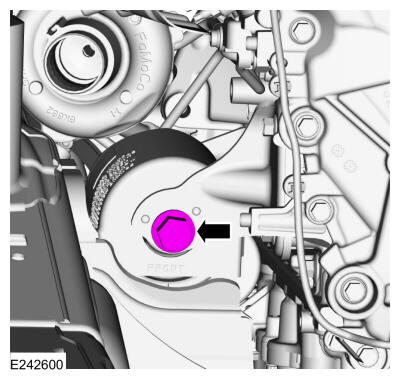

    Install the new RH engine mount through bolt.

    Torque: 350 Nm

    GFD882913Courtesy of FORD MOTOR COMPANY
  21. NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque: 115 Nm

    GFD882881Courtesy of FORD MOTOR COMPANY

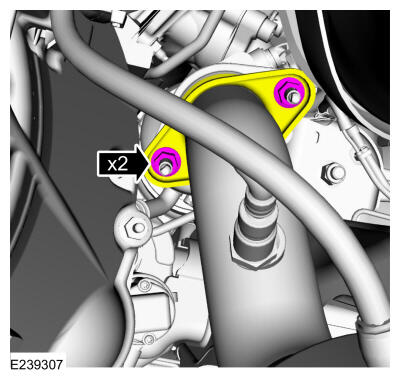

  22. Install the new RH catalytic converter-to-turbocharger nuts.

    Torque: 40 Nm

    GFD882914Courtesy of FORD MOTOR COMPANY
  23. Install the new LH catalytic converter-to-turbocharger nuts.

    Torque: 40 Nm

    GFD882915Courtesy of FORD MOTOR COMPANY
  24. If equipped. Install the front driveshaft. Refer to: Front Driveshaft .

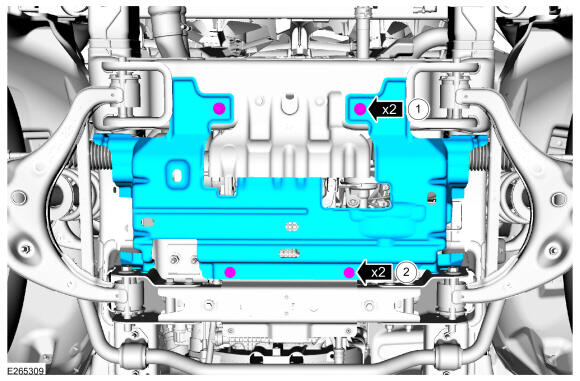

    • Install the underbody shield and the bolts.

      Torque: 40 Nm

    • Install the underbody shield and the bolts

      Torque: 8 Nm

    GFD882916Courtesy of FORD MOTOR COMPANY

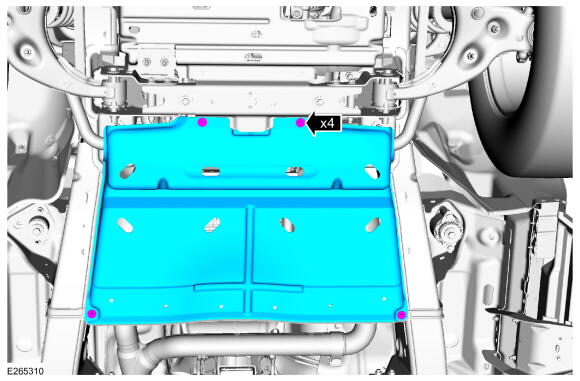

    • Install the transmission housing cover and attach the bolts.

      Torque: 8 Nm

    GFD882877Courtesy of FORD MOTOR COMPANY
  25. Remove the special tools. Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes.
    GFD882876Courtesy of FORD MOTOR COMPANY
  26. Install the air deflector and pin-type retainers.
    GFD882873Courtesy of FORD MOTOR COMPANY
  27. Install the air cleaner inlet tube, pin-type retainers and bolt.
    GFD882872Courtesy of FORD MOTOR COMPANY
  28. NOTE: Align the index marks made during hinge removal.

    On Both sides.

    • Install the hood hinge and bolts.

      Torque: 30 Nm

    • Install the fender to hood hinge bolts.

      Torque: 9 Nm

    GFD882917Courtesy of FORD MOTOR COMPANY

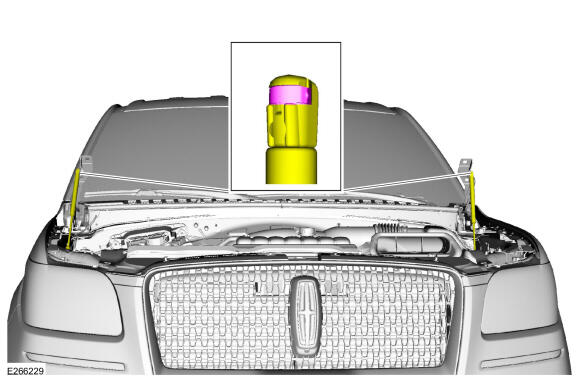

  29. Install the struts.
    GFD882870Courtesy of FORD MOTOR COMPANY
  30. NOTE: Align the index marks made during hood removal.

    Position the hood and install the nuts.

    Torque: 25 Nm

    GFD882869Courtesy of FORD MOTOR COMPANY
  31. Install the right rear ignition coil. Refer to: Ignition Coil-On-Plug .
  32. Install the intake manifold. Refer to: Intake Manifold .
  33. Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
  34. Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  35. Install the cowl panel. Refer to: Cowl Panel .
  36. Slide the engine appearance cover into the retaining bracket and install the retainers.

    Torque: 11 Nm

    GFD882871Courtesy of FORD MOTOR COMPANY
  37. Start and check the exhaust system for leaks.
