Brake Shift Interlock Override Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

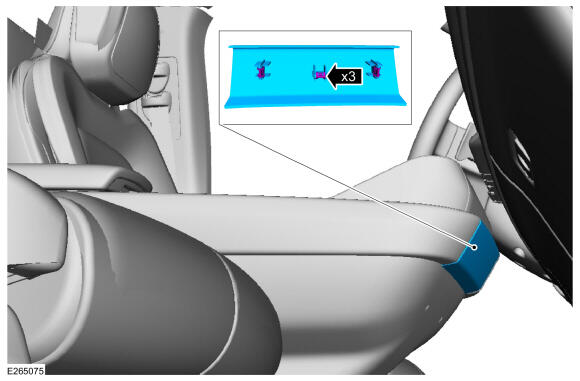

1. Remove the console front trim panel.

   Courtesy of FORD MOTOR COMPANY

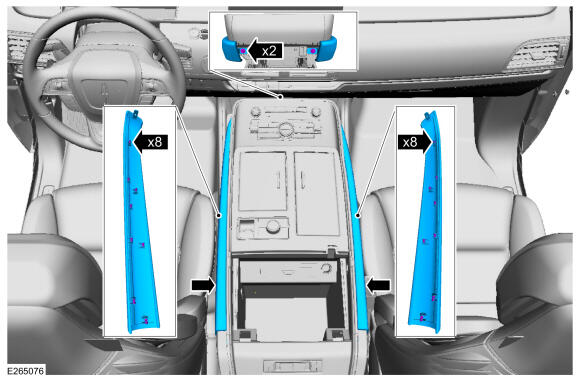

2. Remove the screws and the console side trim panels.

   Courtesy of FORD MOTOR COMPANY

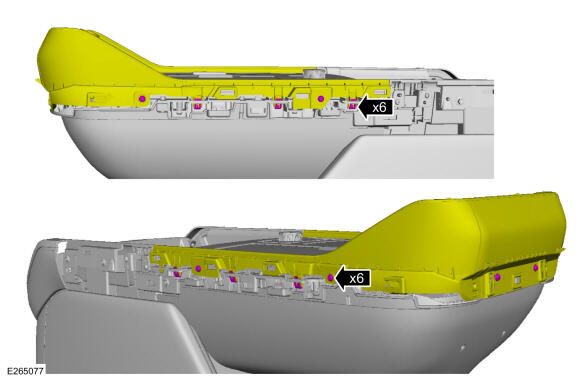

3. Remove the screws and position the HVAC controls and trim panel aside.

   Courtesy of FORD MOTOR COMPANY

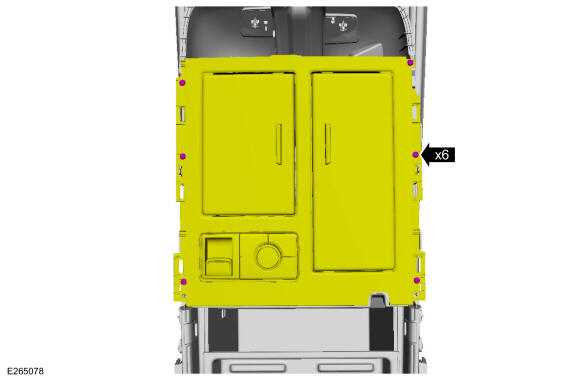

4. Remove the screws and position the console center panel aside.

   Courtesy of FORD MOTOR COMPANY

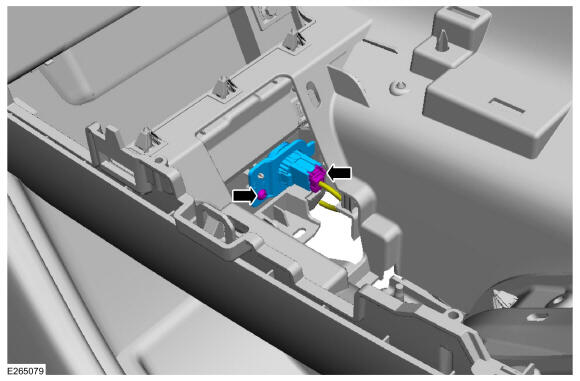

5. Disconnect the electrical connector and remove the screw and the brake shift interlock override switch.

Courtesy of FORD MOTOR COMPANY
