Module Communications Network

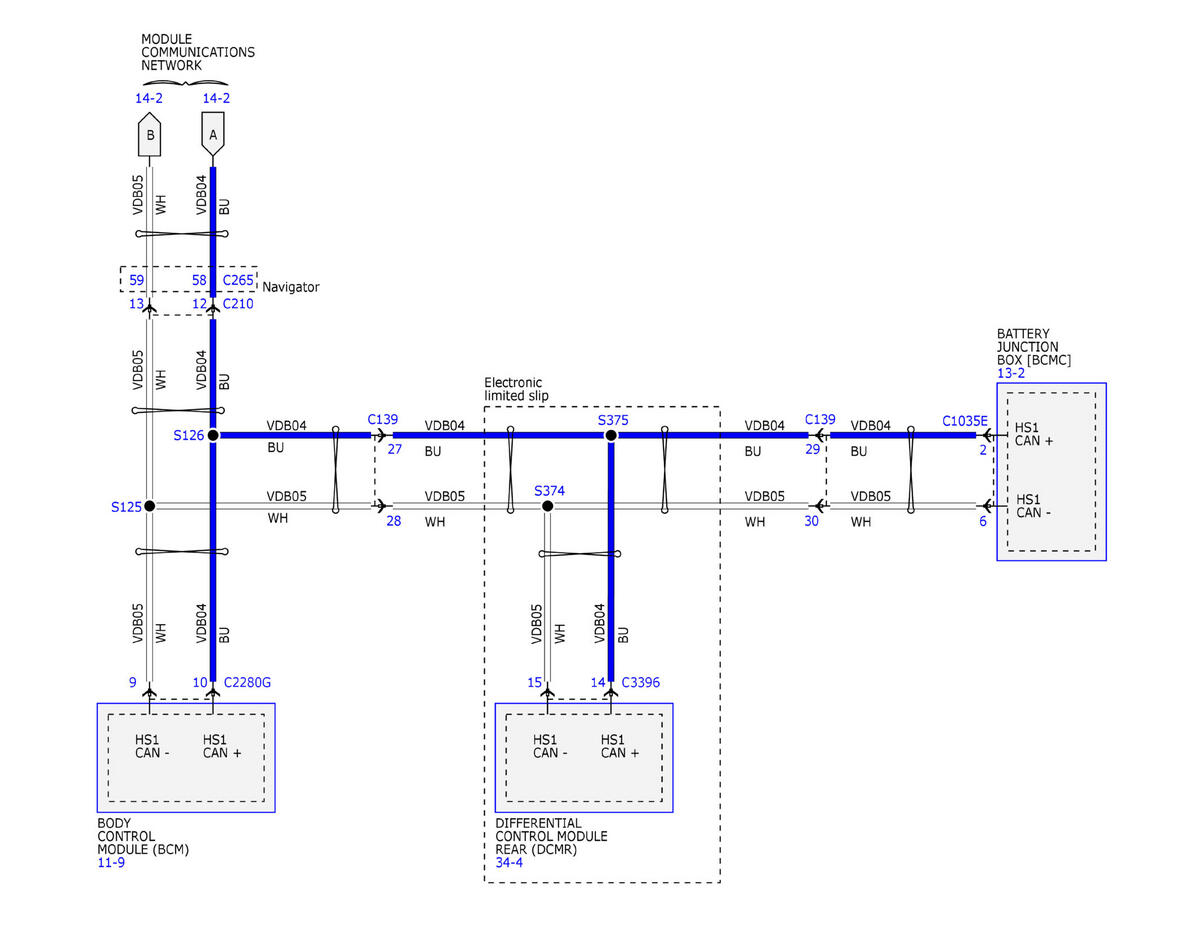

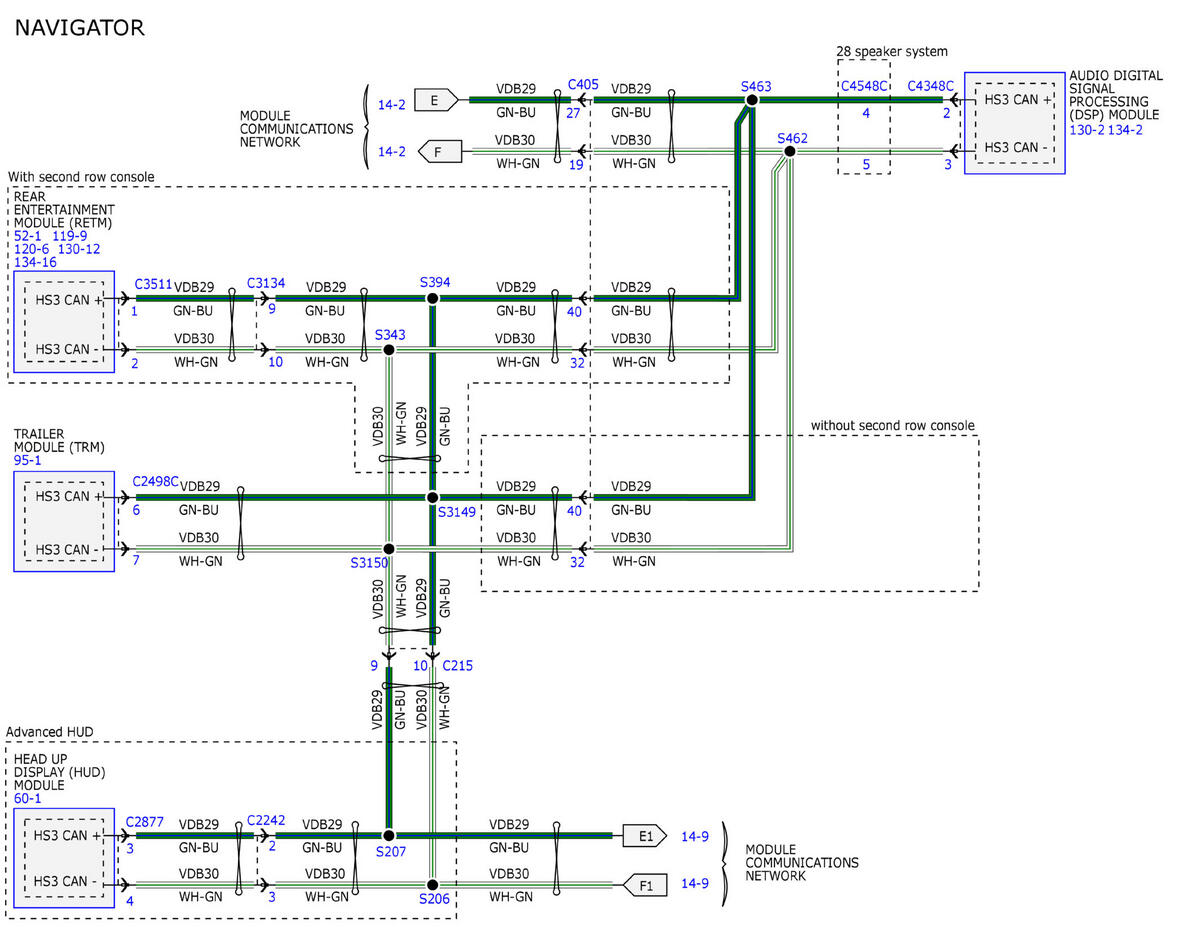

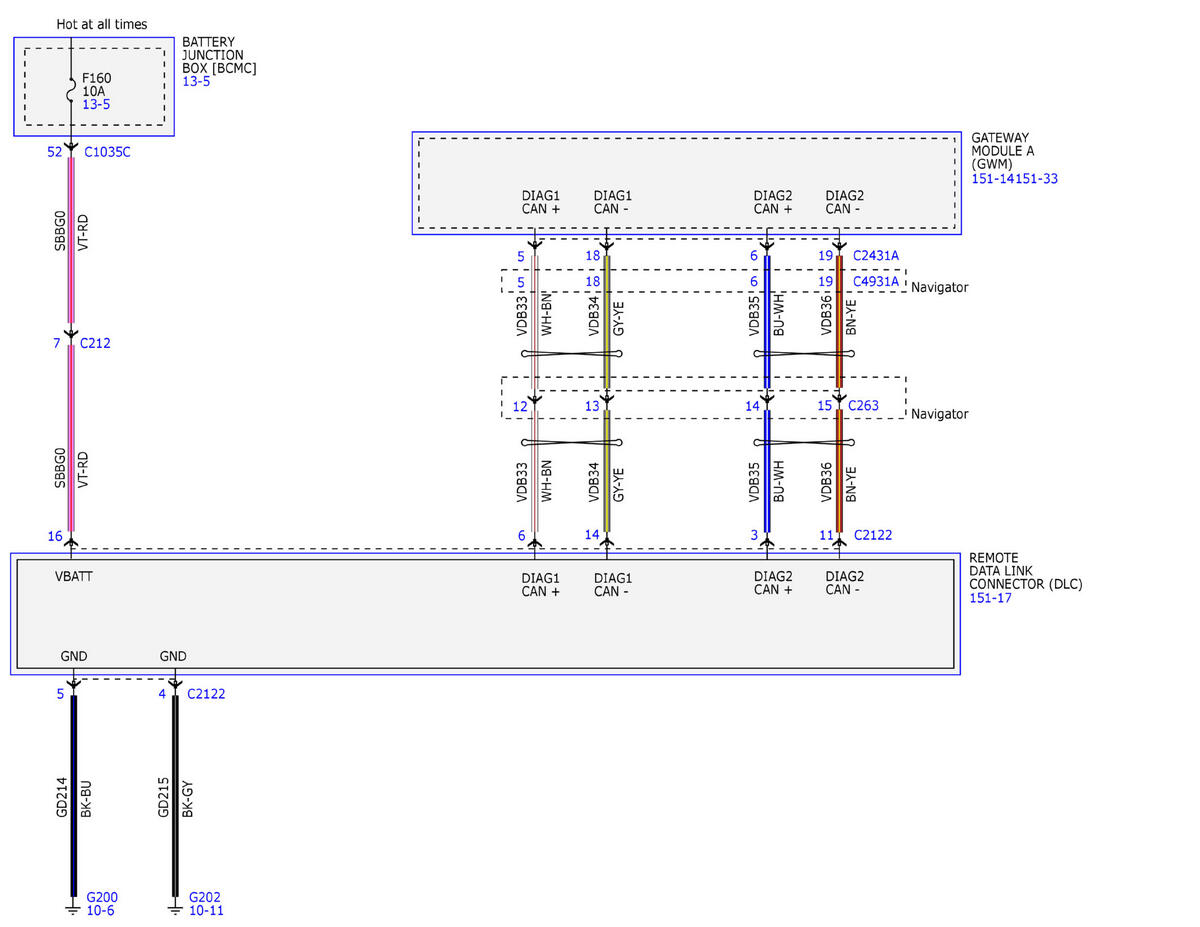

Fig 1: Module Communications Network - Wiring Diagram (1 of 19)

Courtesy of FORD MOTOR COMPANY

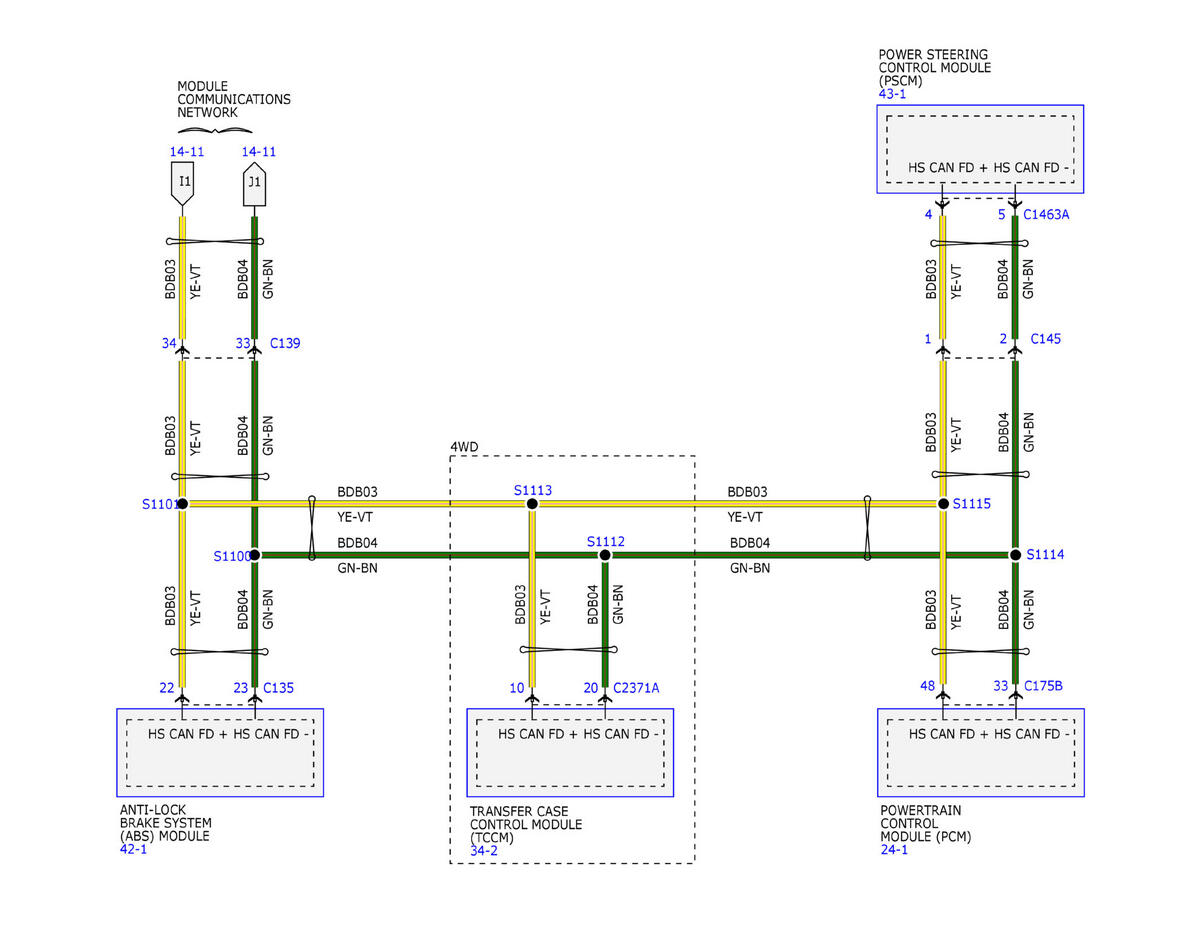

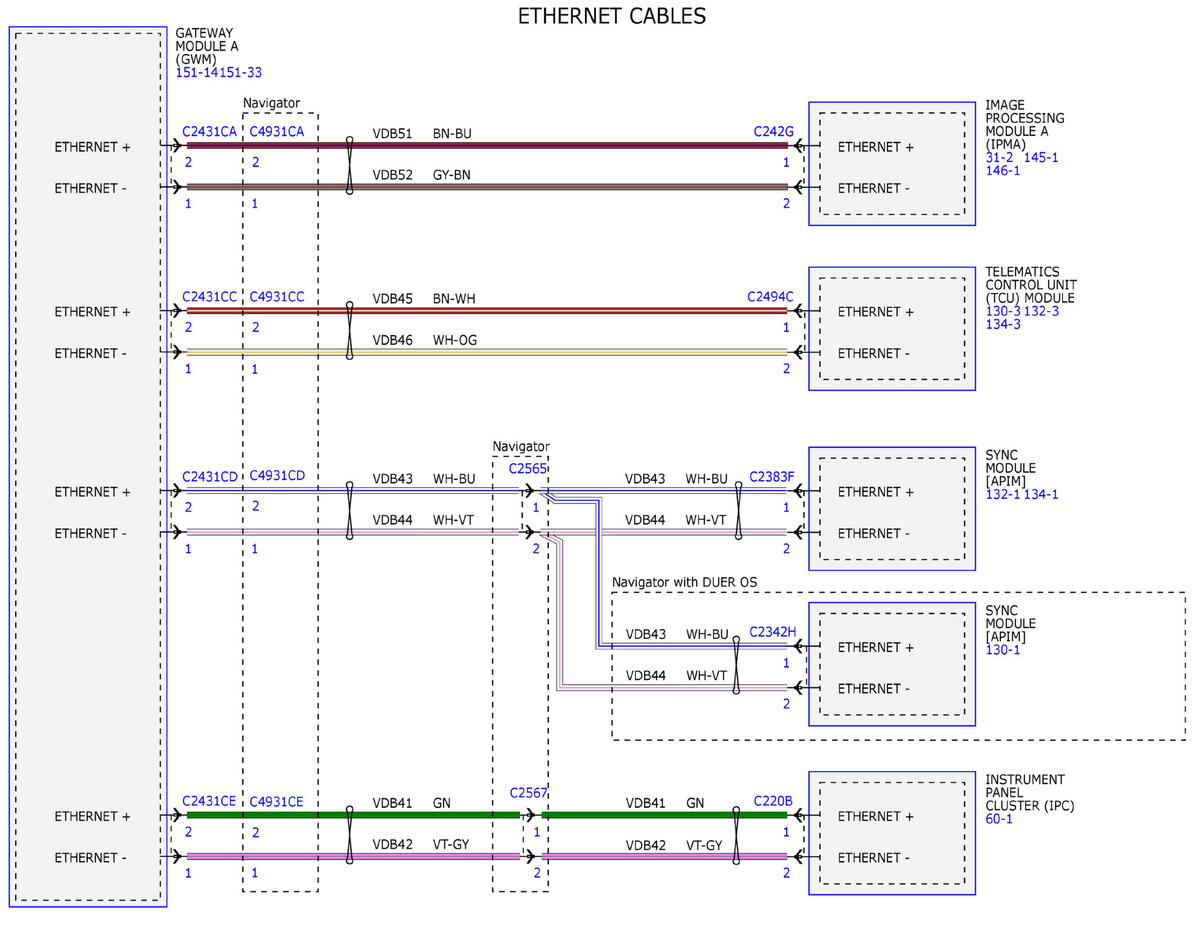

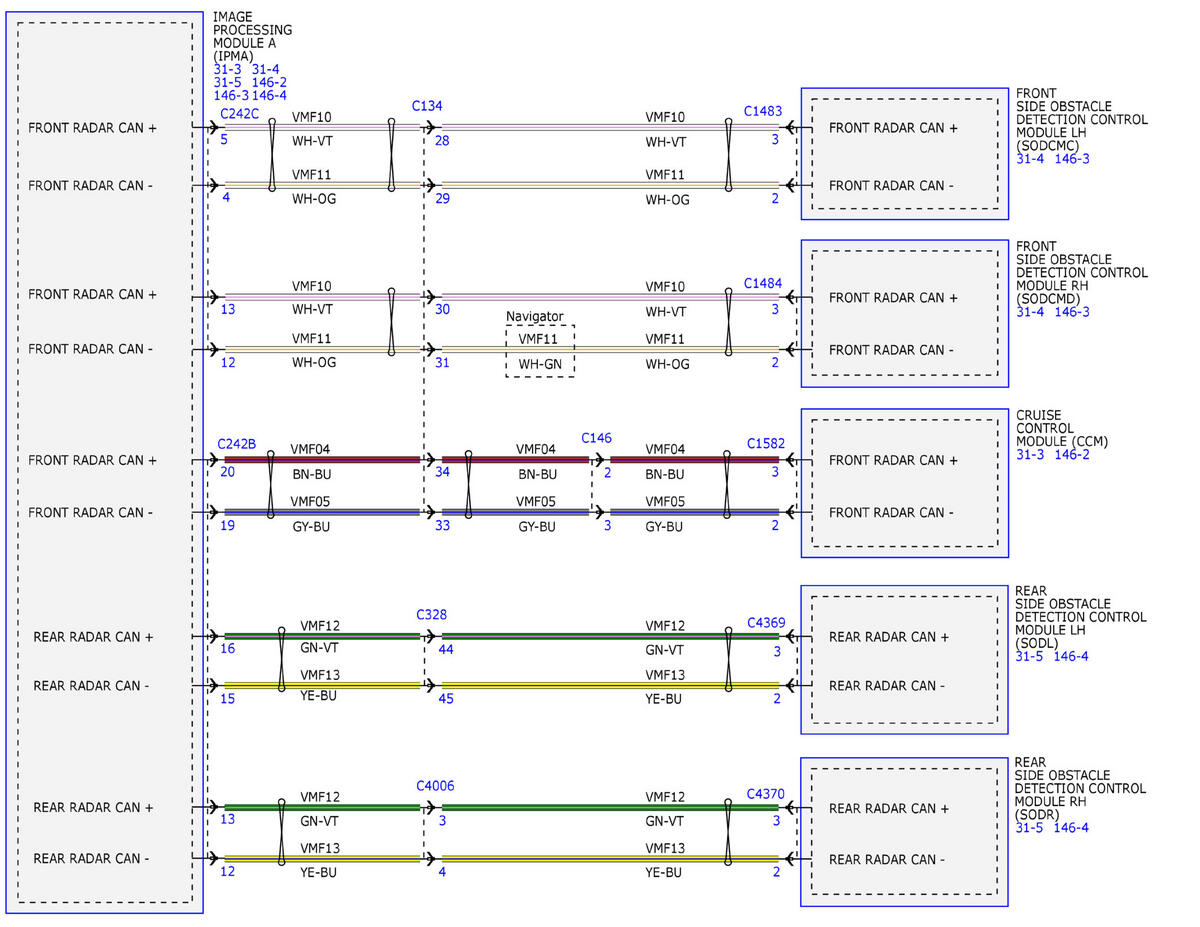

Fig 2: Module Communications Network - Wiring Diagram (2 of 19)

Courtesy of FORD MOTOR COMPANY

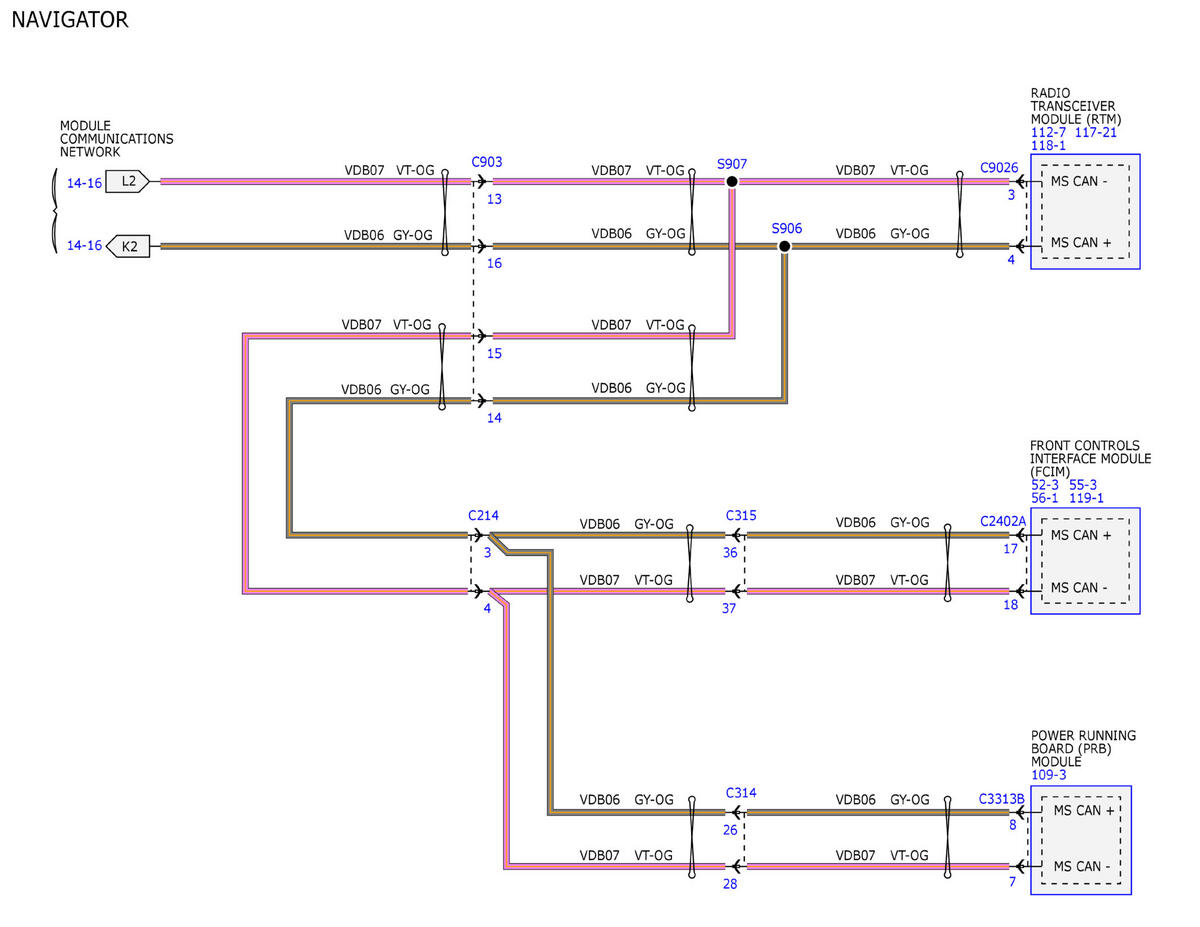

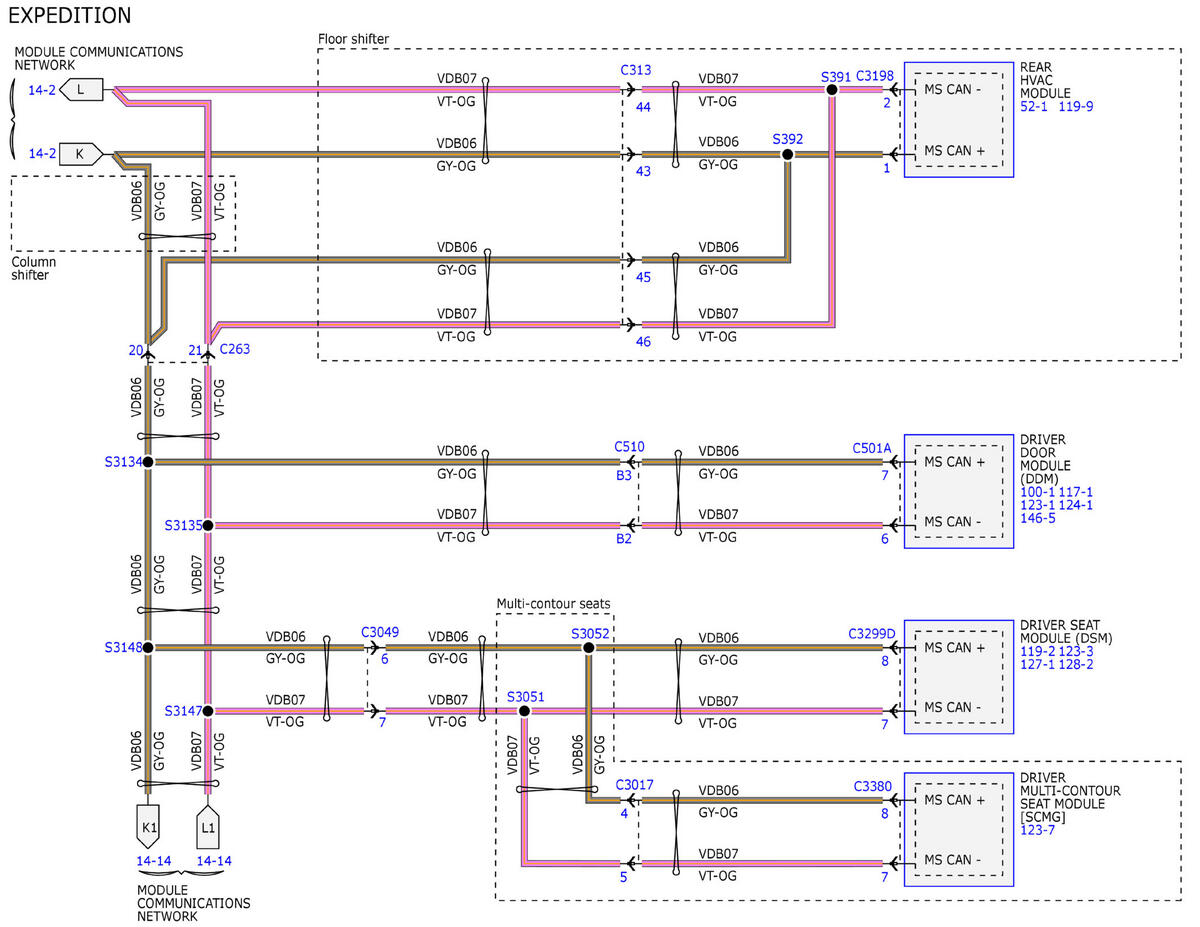

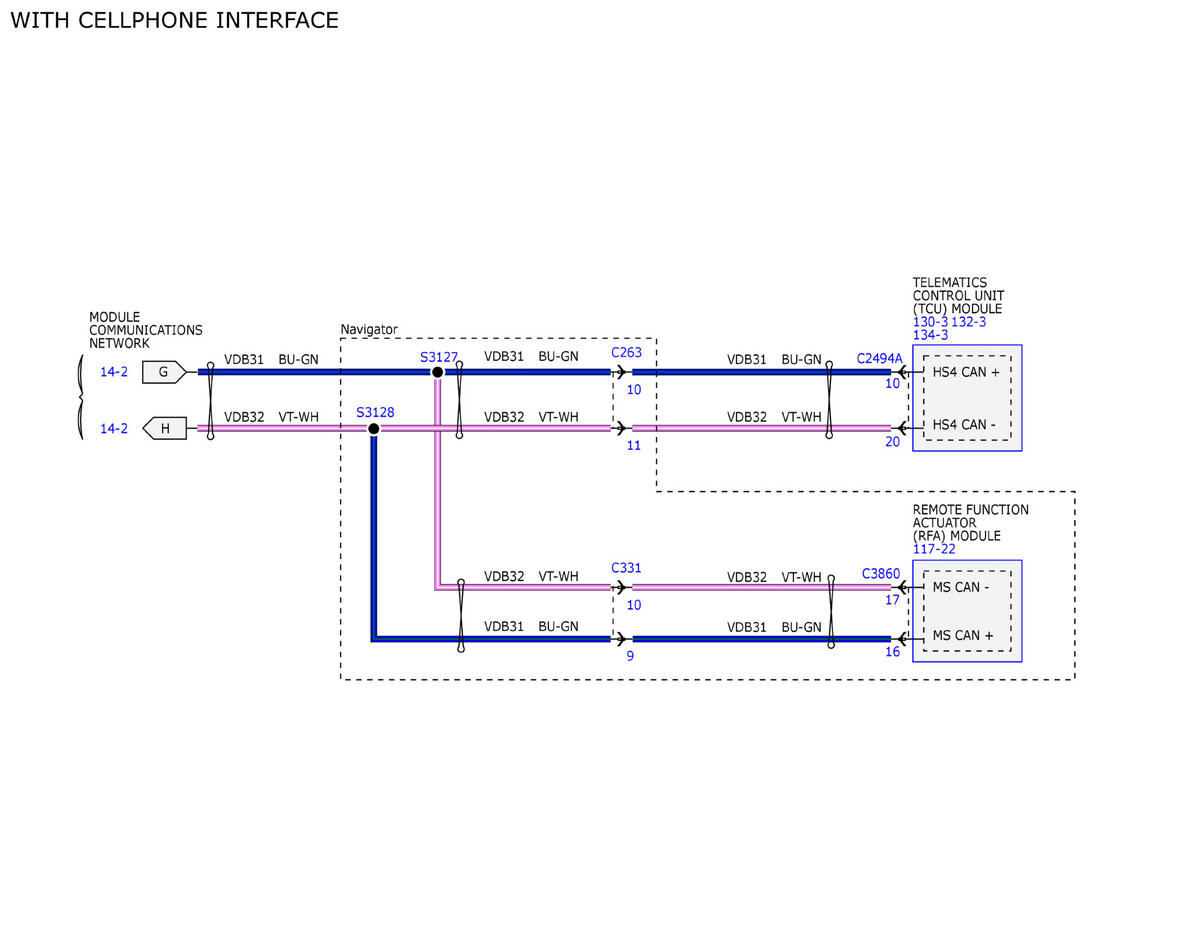

Fig 3: Module Communications Network - Wiring Diagram (3 of 19)

Courtesy of FORD MOTOR COMPANY

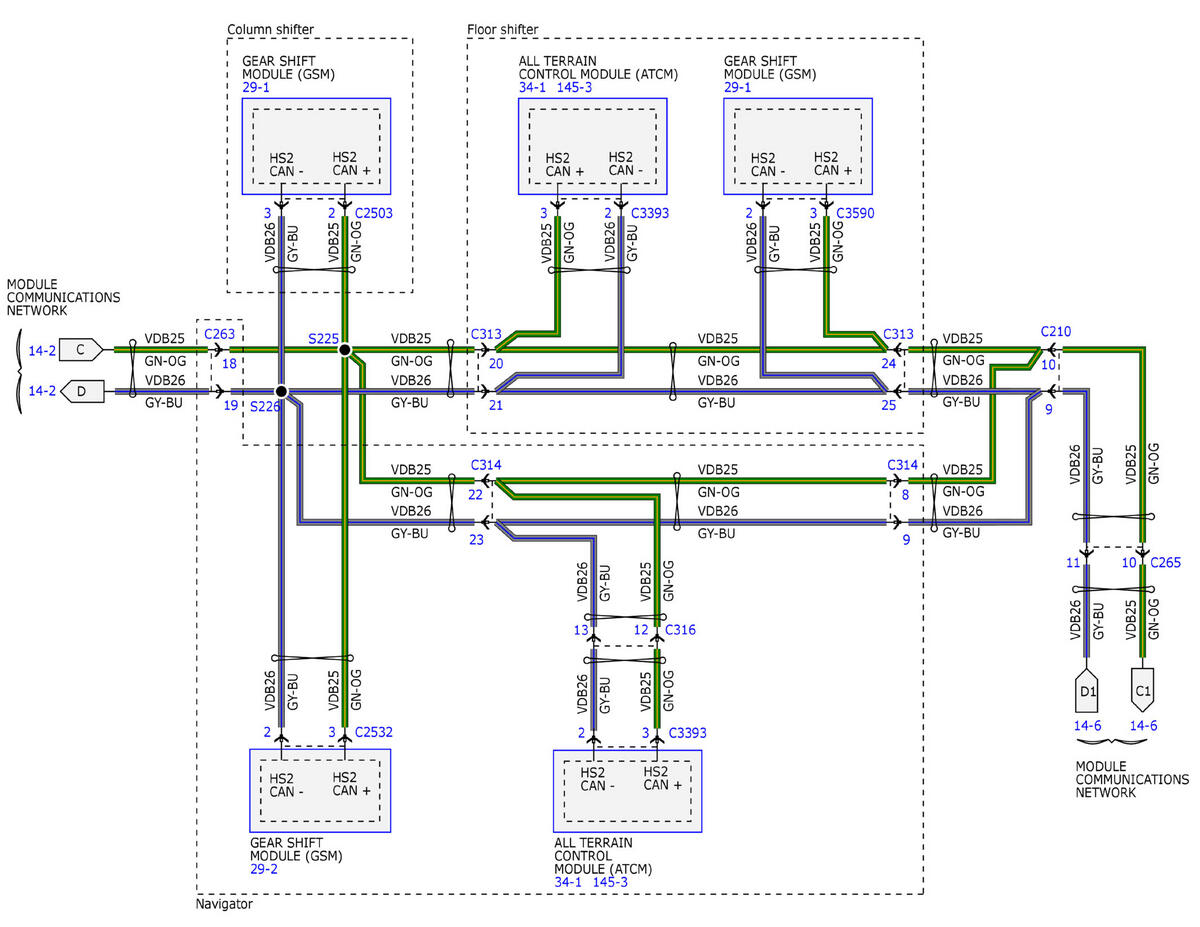

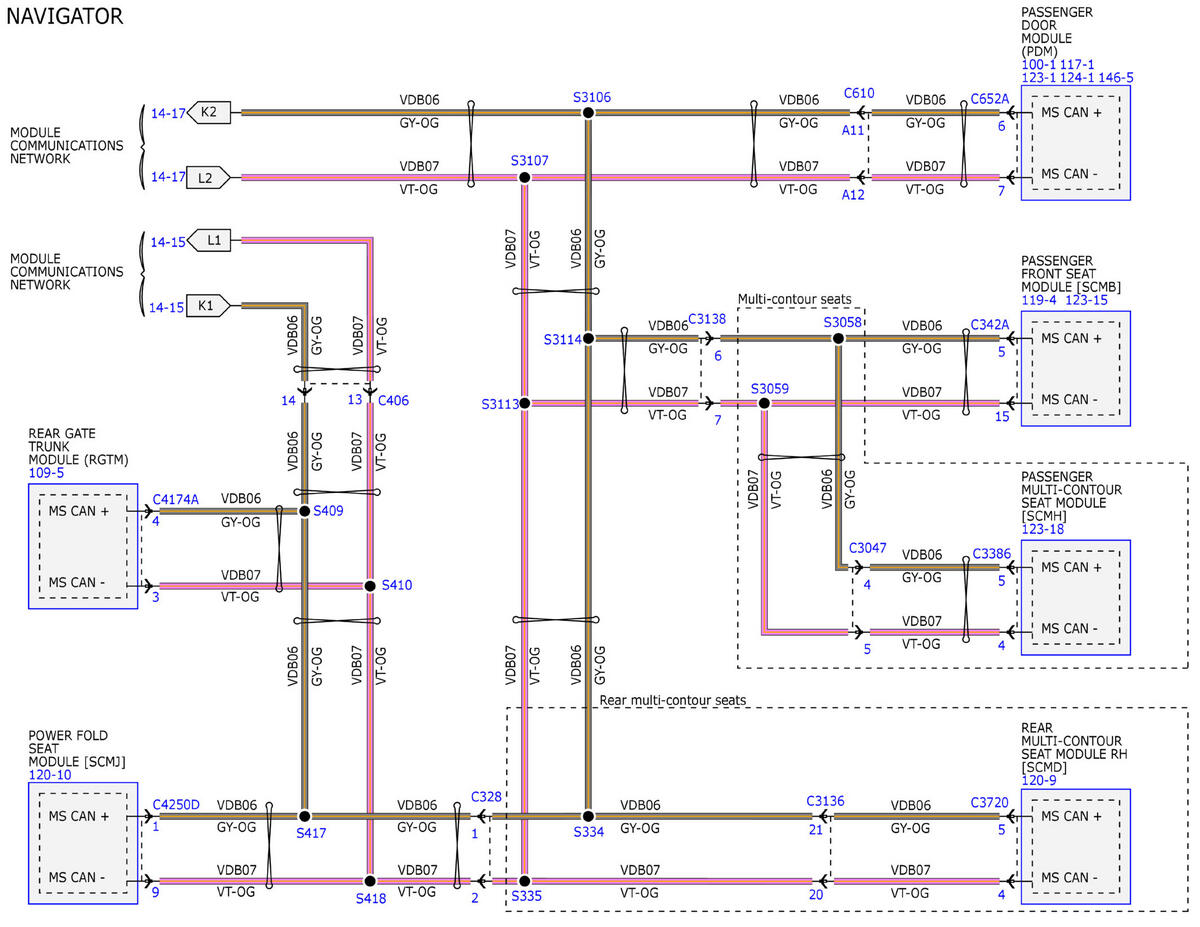

Fig 4: Module Communications Network - Wiring Diagram (4 of 19)

Courtesy of FORD MOTOR COMPANY

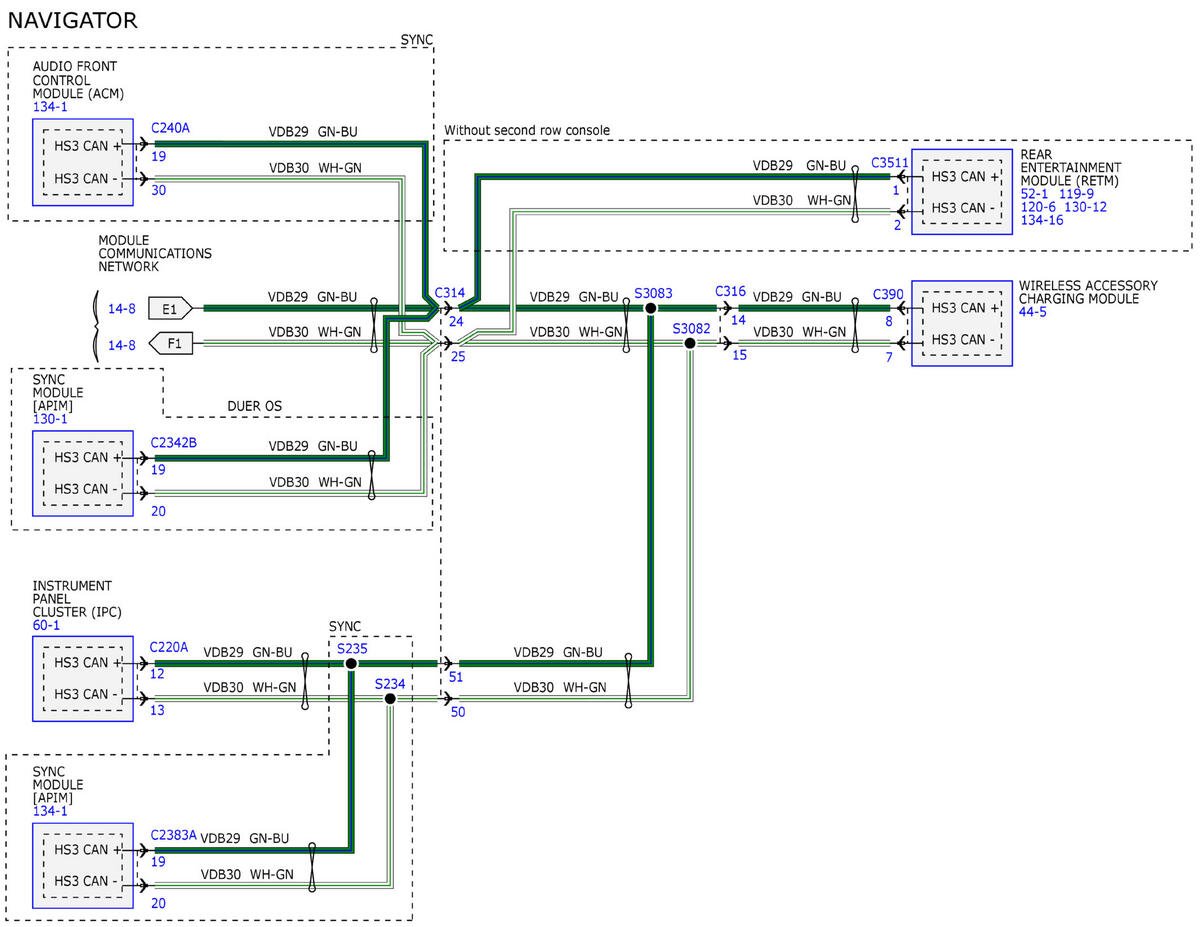

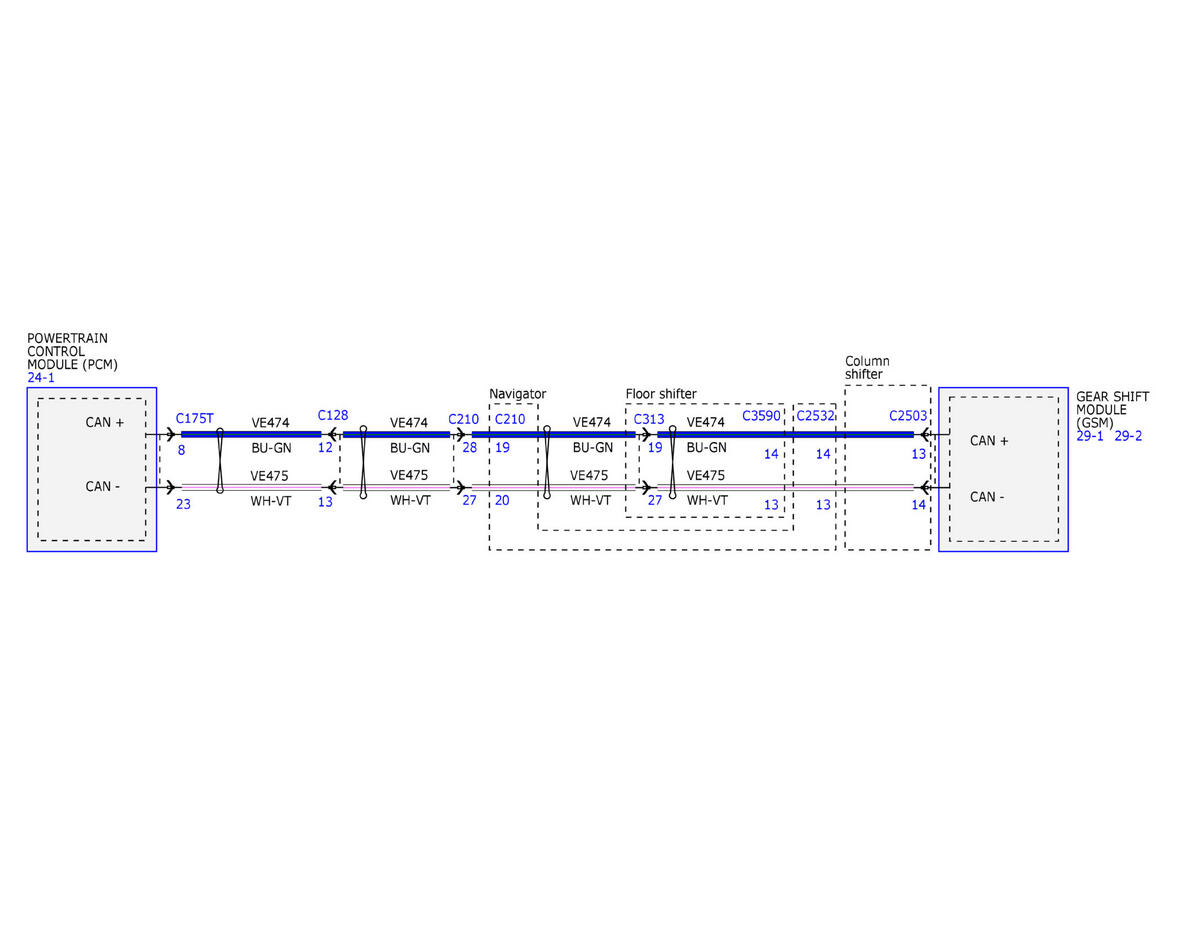

Fig 5: Module Communications Network - Wiring Diagram (5 of 19)

Courtesy of FORD MOTOR COMPANY

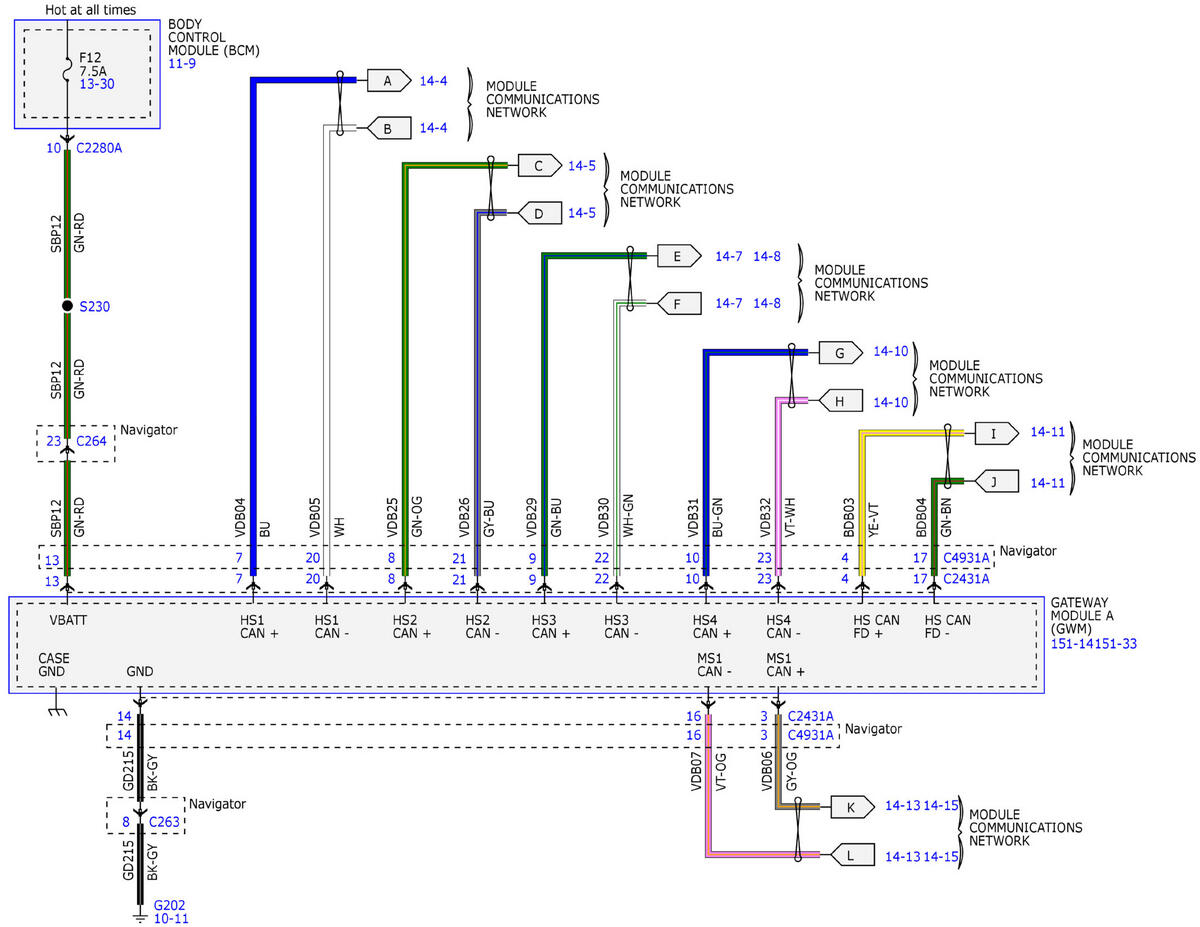

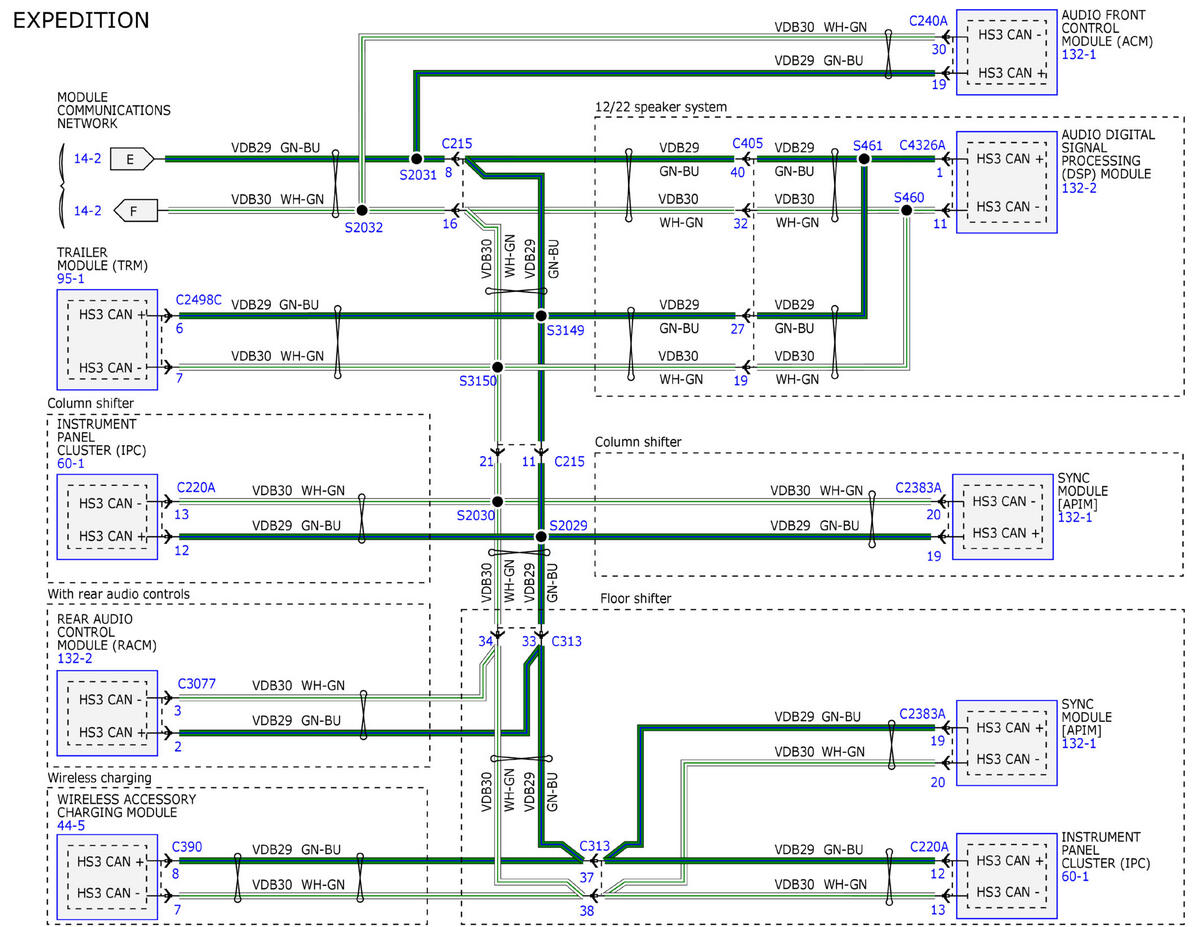

Fig 6: Module Communications Network - Wiring Diagram (6 of 19)

Courtesy of FORD MOTOR COMPANY

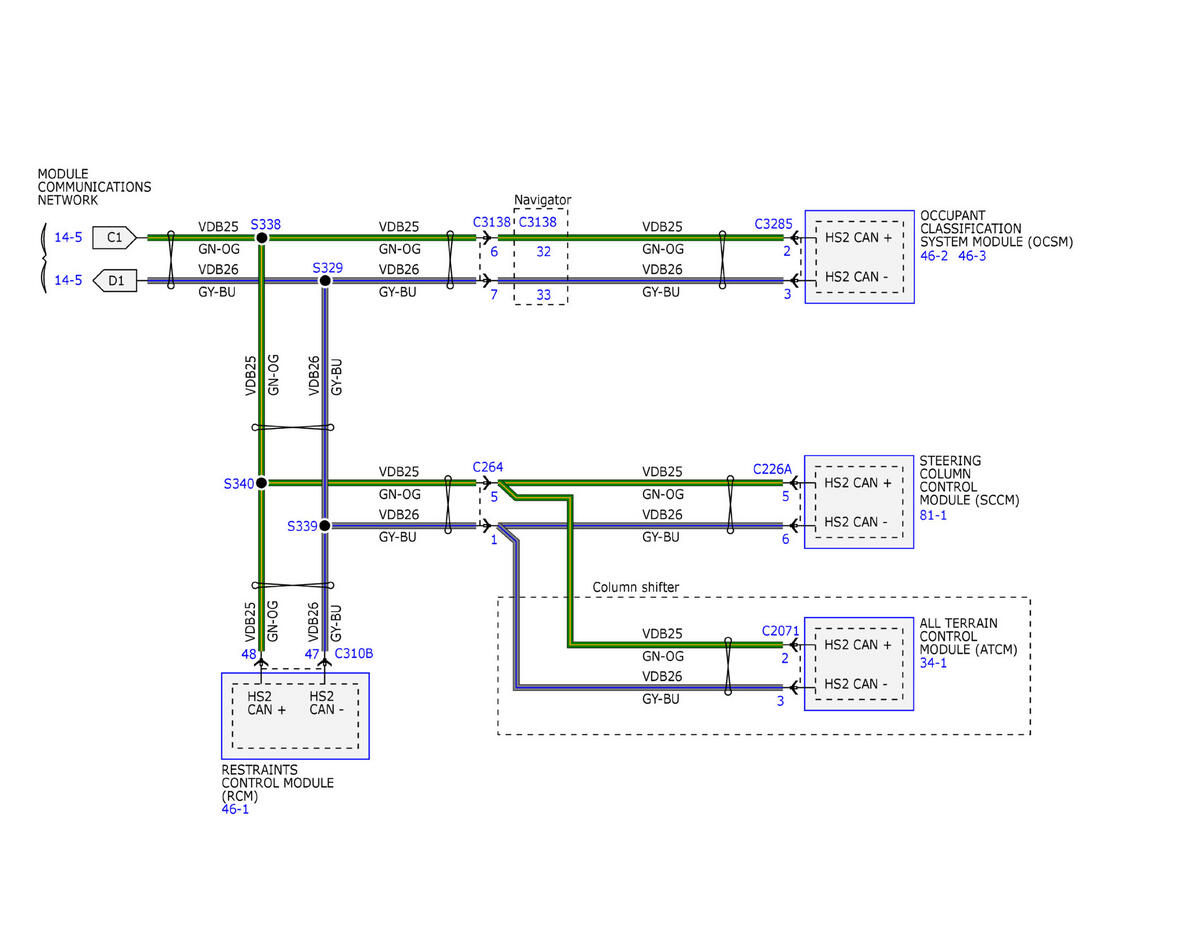

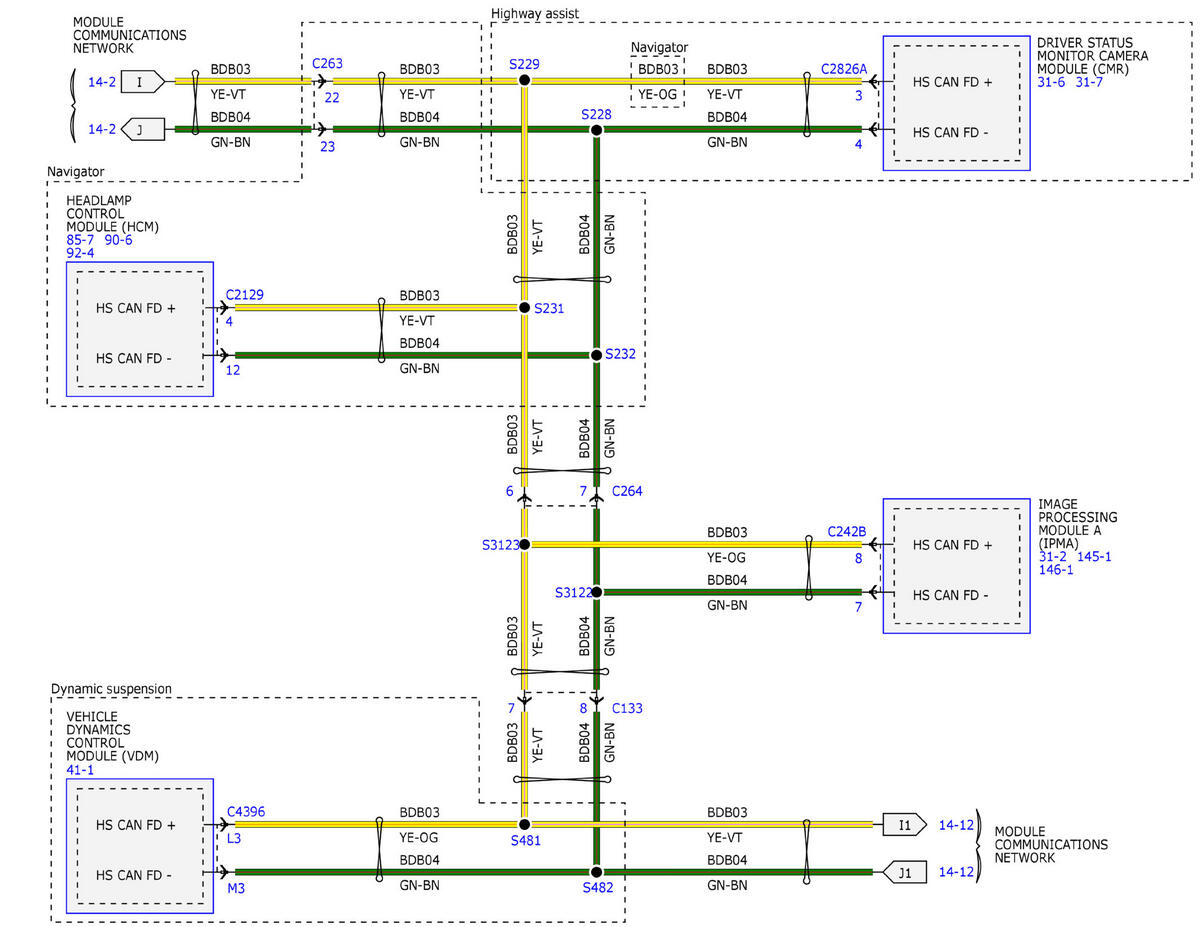

Fig 7: Module Communications Network - Wiring Diagram (7 of 19)

Courtesy of FORD MOTOR COMPANY

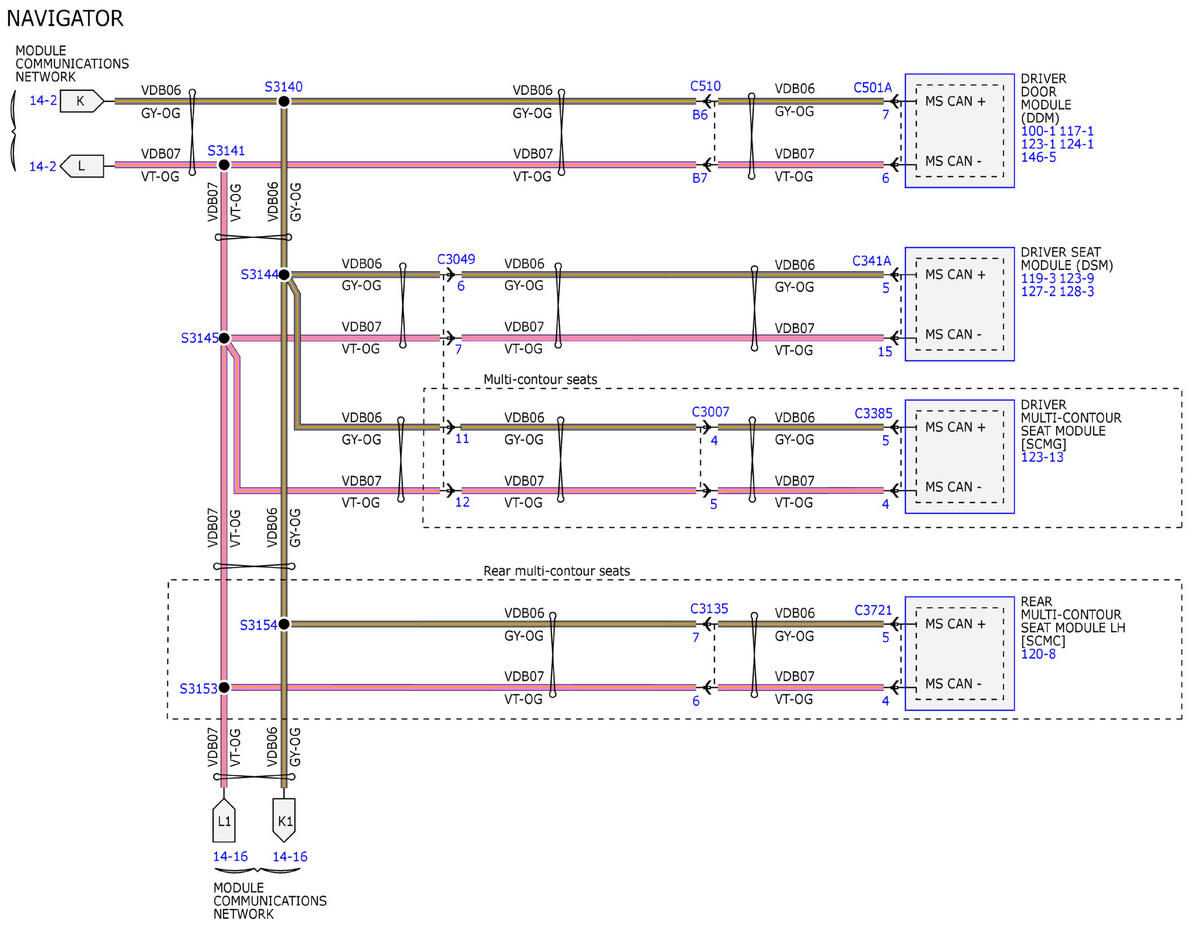

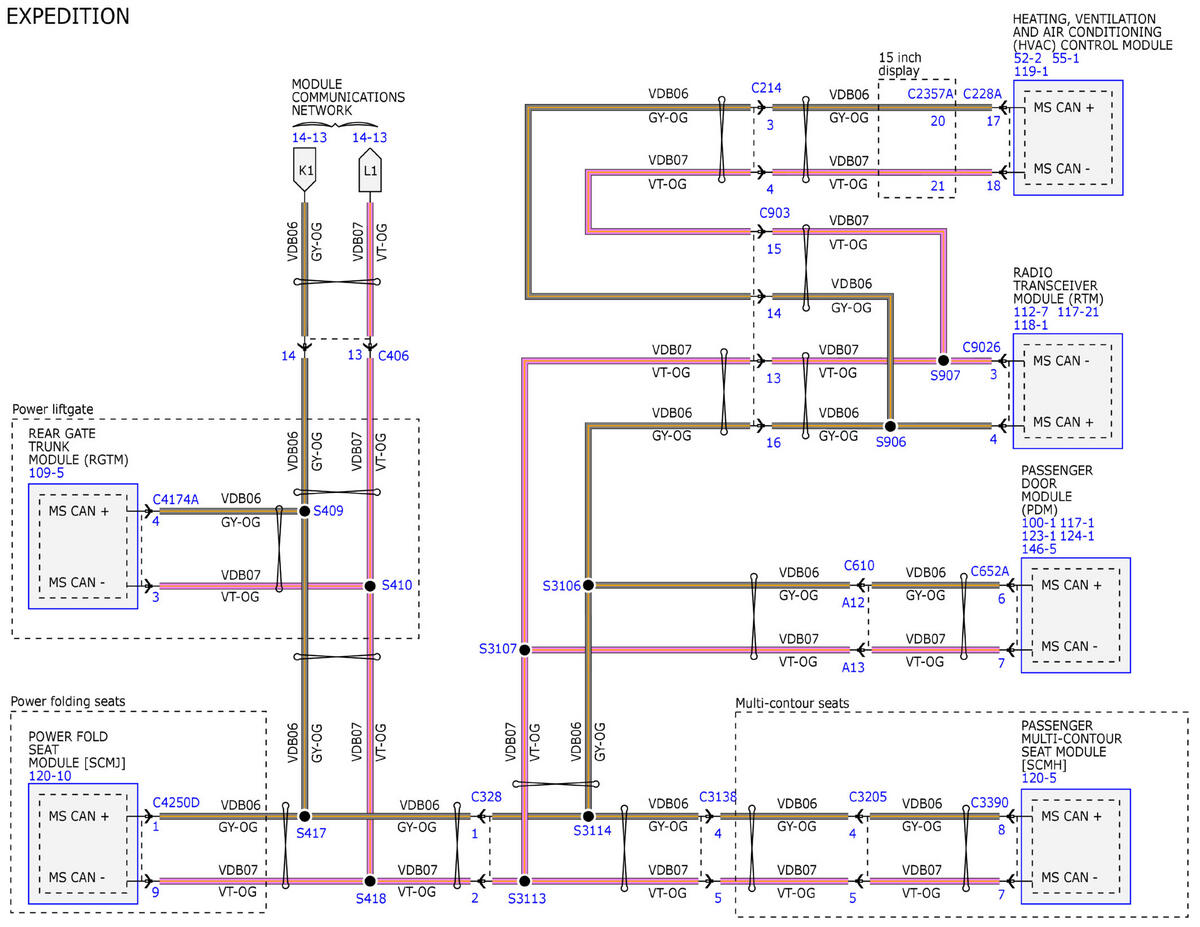

Fig 8: Module Communications Network - Wiring Diagram (8 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 9: Module Communications Network - Wiring Diagram (9 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 10: Module Communications Network - Wiring Diagram (10 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 11: Module Communications Network - Wiring Diagram (11 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 12: Module Communications Network - Wiring Diagram (12 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 13: Module Communications Network - Wiring Diagram (13 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 14: Module Communications Network - Wiring Diagram (14 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 15: Module Communications Network - Wiring Diagram (15 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 16: Module Communications Network - Wiring Diagram (16 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 17: Module Communications Network - Wiring Diagram (17 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 18: Module Communications Network - Wiring Diagram (18 of 19)

Courtesy of FORD MOTOR COMPANY

Fig 19: Module Communications Network - Wiring Diagram (19 of 19)

Courtesy of FORD MOTOR COMPANY
