Intake Manifold: Removal
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- Loosen the clamp and position the RH air cleaner outlet pipe aside.
- Disconnect the EGR outlet tube coolant sensor.
- Remove the bolts and position out the EGR outlet tube.

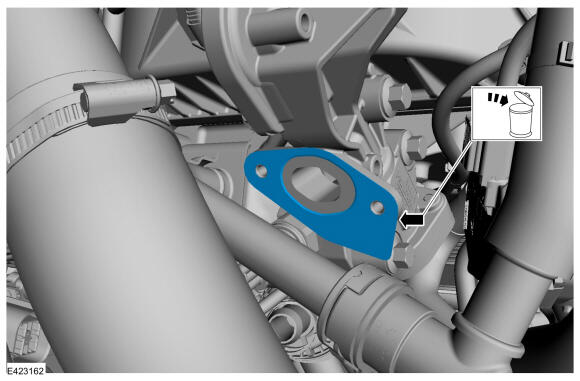

- Discard the EGR outlet tube gasket.
- Detach the heater hose clamps from the intake manifold and position the heater hose aside.
- Disconnect the differential pressure feedback EGR sensor electrical connector, remove the bolt and position aside.
-
- Detach the pin-type retainer.
- Disconnect the electrical connector.

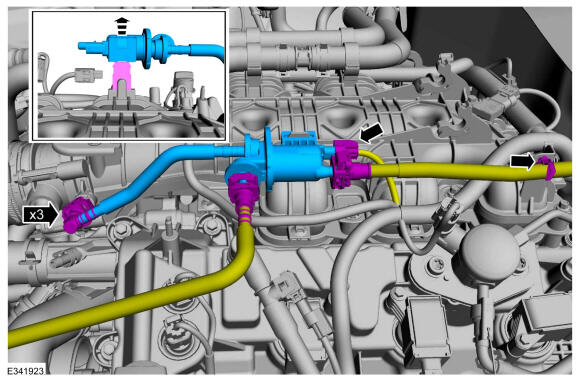

- Follow directions to release the quick release coupling type 5. Refer to: Quick Release Coupling .
- Remove the fuel vapor purge valve.
- Disconnect the throttle body electrical connector and wiring harness retainers.

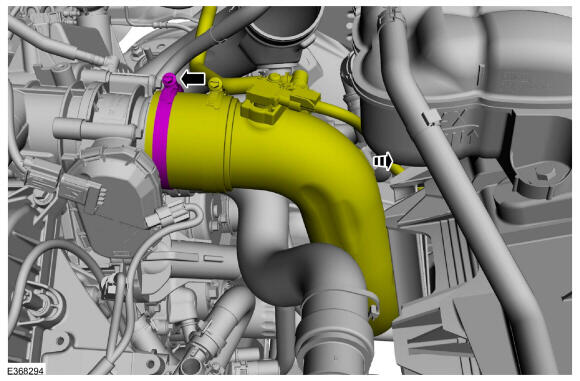

- Loosen the clamp and position the throttle body intake pipe aside.
- Follow directions to release the quick release coupling type 3. Remove the PCV tube. Refer to: Quick Release Coupling
.
- Disconnect the wire harness retainers.
- Disconnect the wire harness retainers from the intake manifold.
- Disconnect the electrical connects and remove the wire harness retainers from the intake manifold.

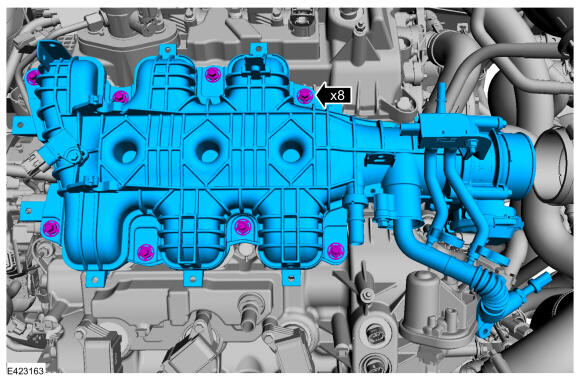

- Remove the bolts and the intake manifold.
- This step only necessary if installing a new intake manifold. Remove the bolt, the EGR outlet tube and differential pressure feedback EGR sensor.

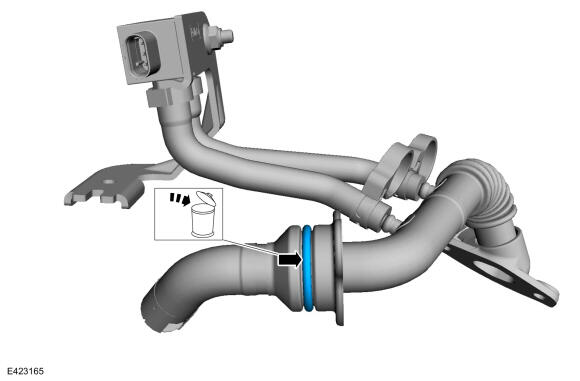

- This step only necessary if installing a new intake manifold. Remove and discard the EGR outlet tube o-ring.

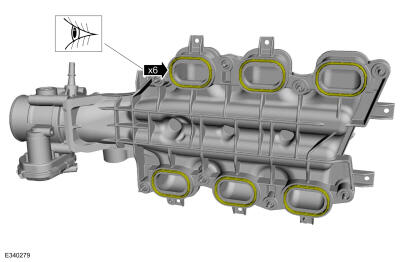

- Inspect the gaskets for nicks, cuts and abrasions. If these conditions are not present, the gasket may be re-used.
-
NOTE: This step only necessary if there are any nicks, cuts or abrasions present.

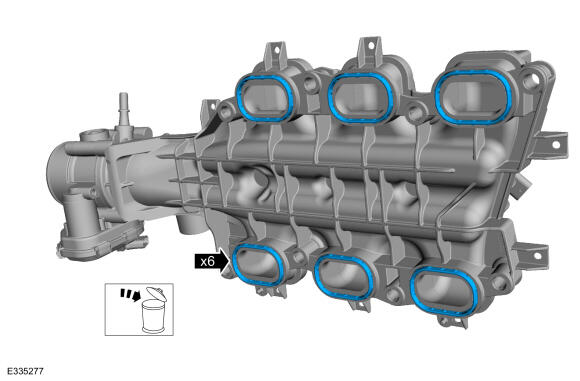

- Discard the gaskets.
- Clean and inspect all of the sealing surfaces of the cylinder heads and the intake manifold.
