Image Processing Module A (IPMA): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

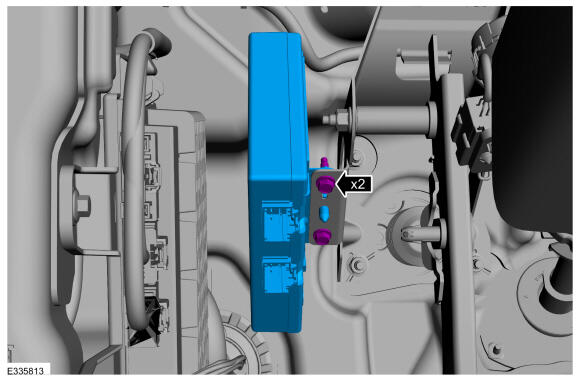

1. Disconnect the trailer tow lighting module electrical connectors.

   Courtesy of FORD MOTOR COMPANY

2. Remove the bolts and trailer tow lighting module.

   Torque: 7 Nm

   Courtesy of FORD MOTOR COMPANY

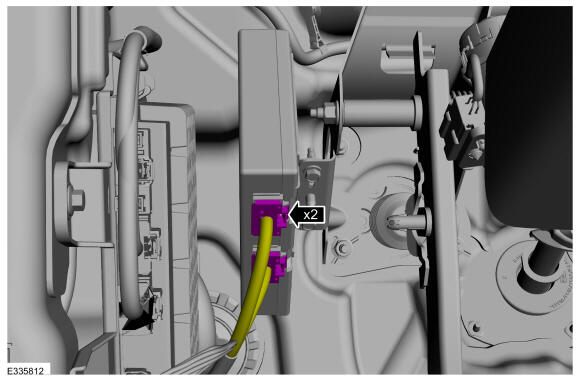

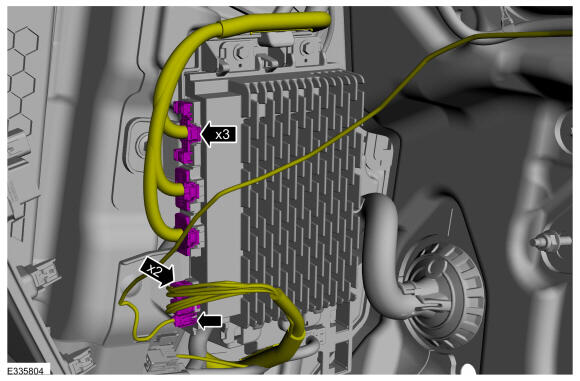

3. Disconnect the IPMA electrical connectors.

   Courtesy of FORD MOTOR COMPANY

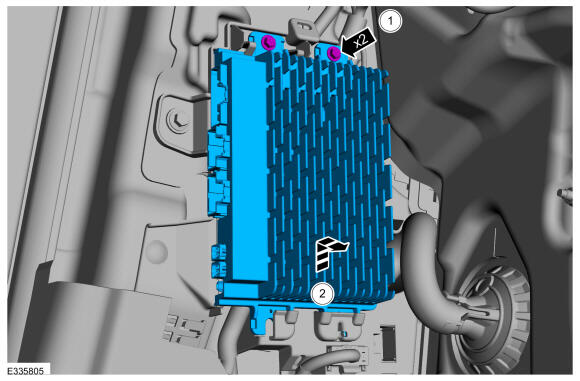

4. Remove the bolts and IPMA

   Torque: 4.1 Nm

Courtesy of FORD MOTOR COMPANY
