Connector Repair Procedures

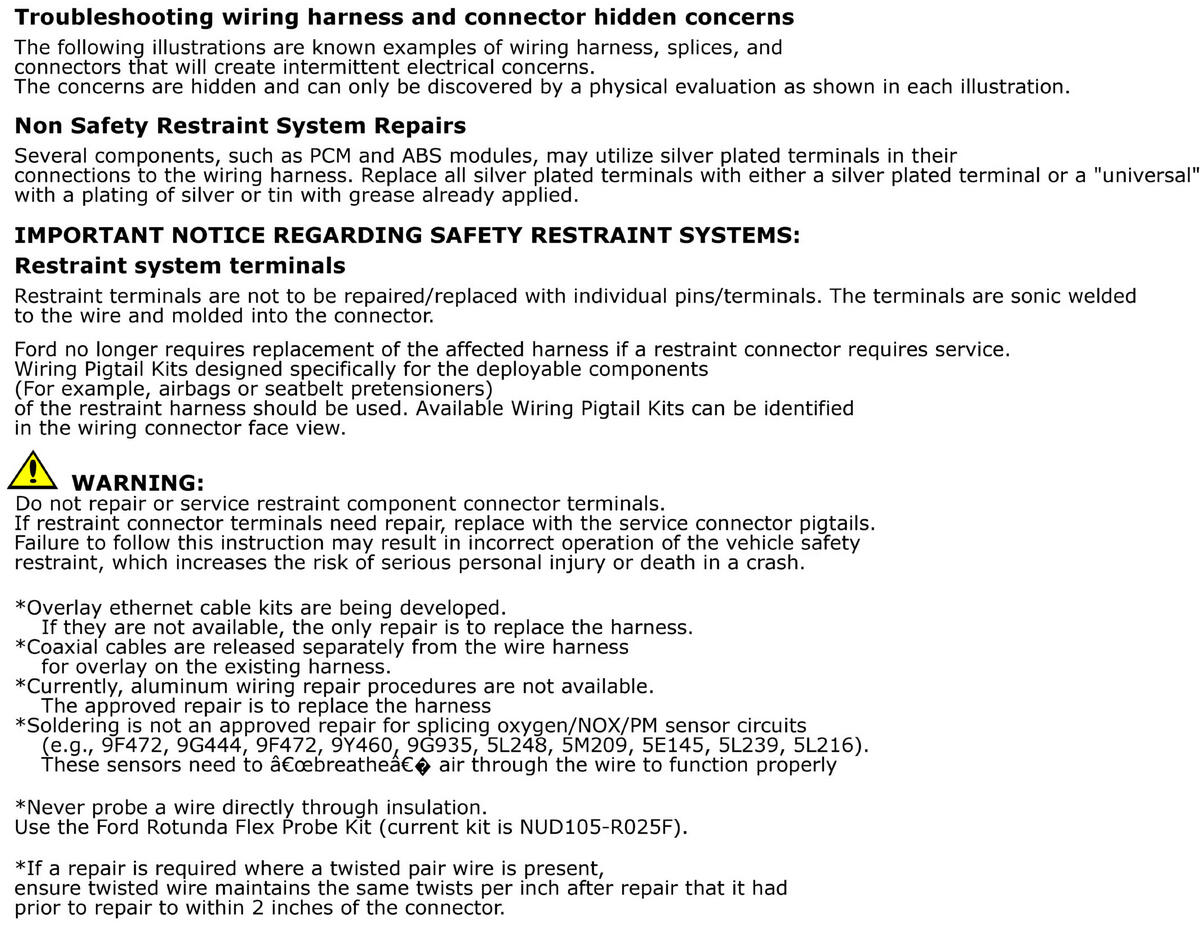

GFDWR260218Courtesy of FORD MOTOR COMPANY

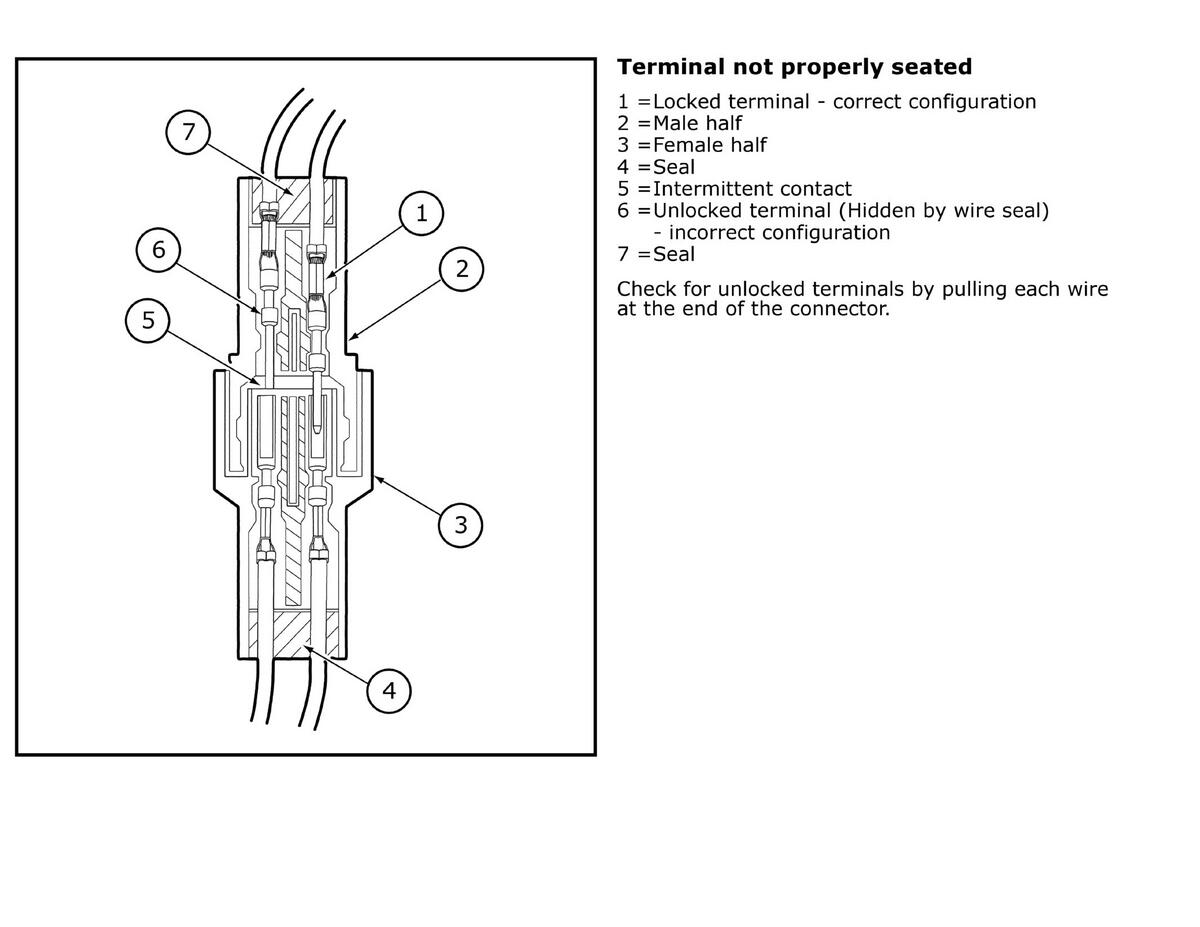

GFDWR260225Courtesy of FORD MOTOR COMPANY

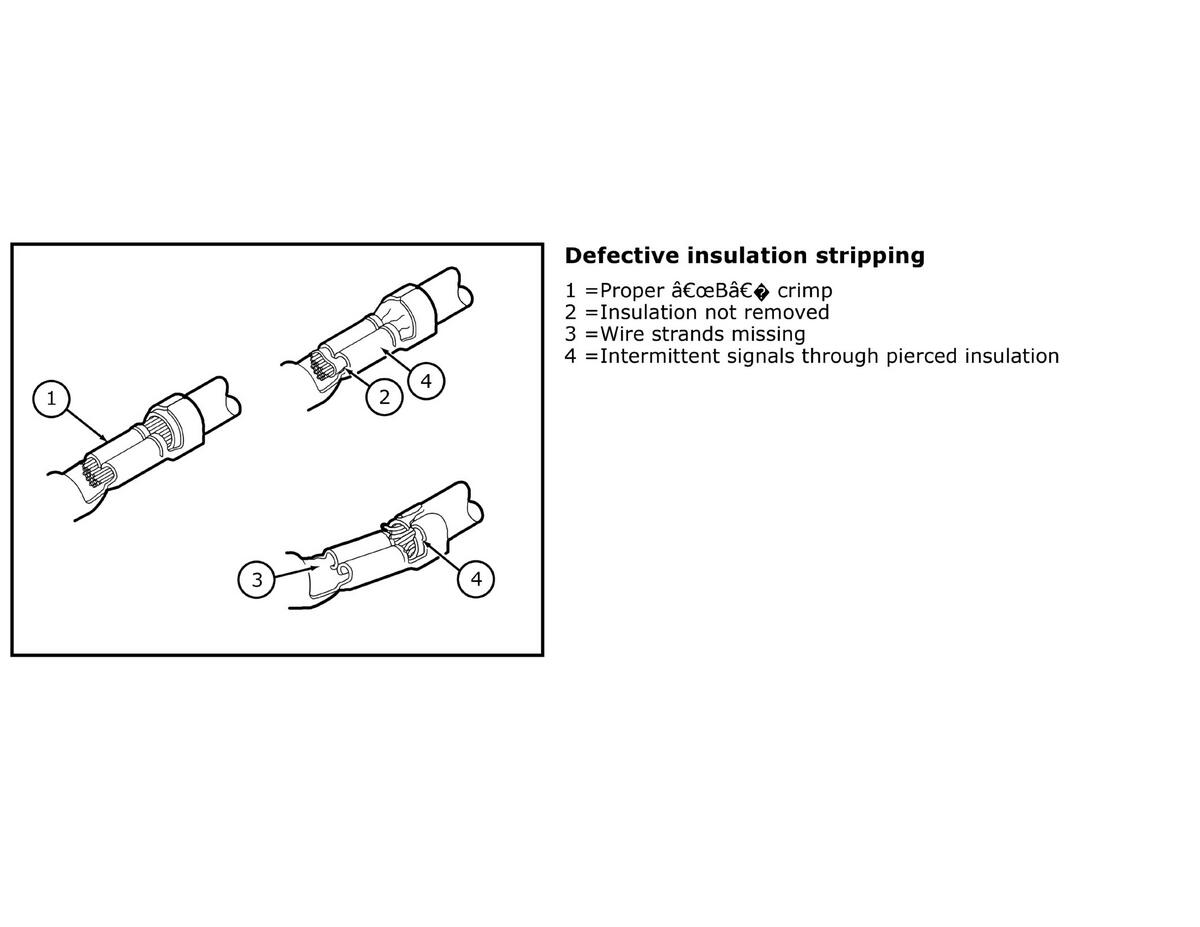

GFDWR260226Courtesy of FORD MOTOR COMPANY

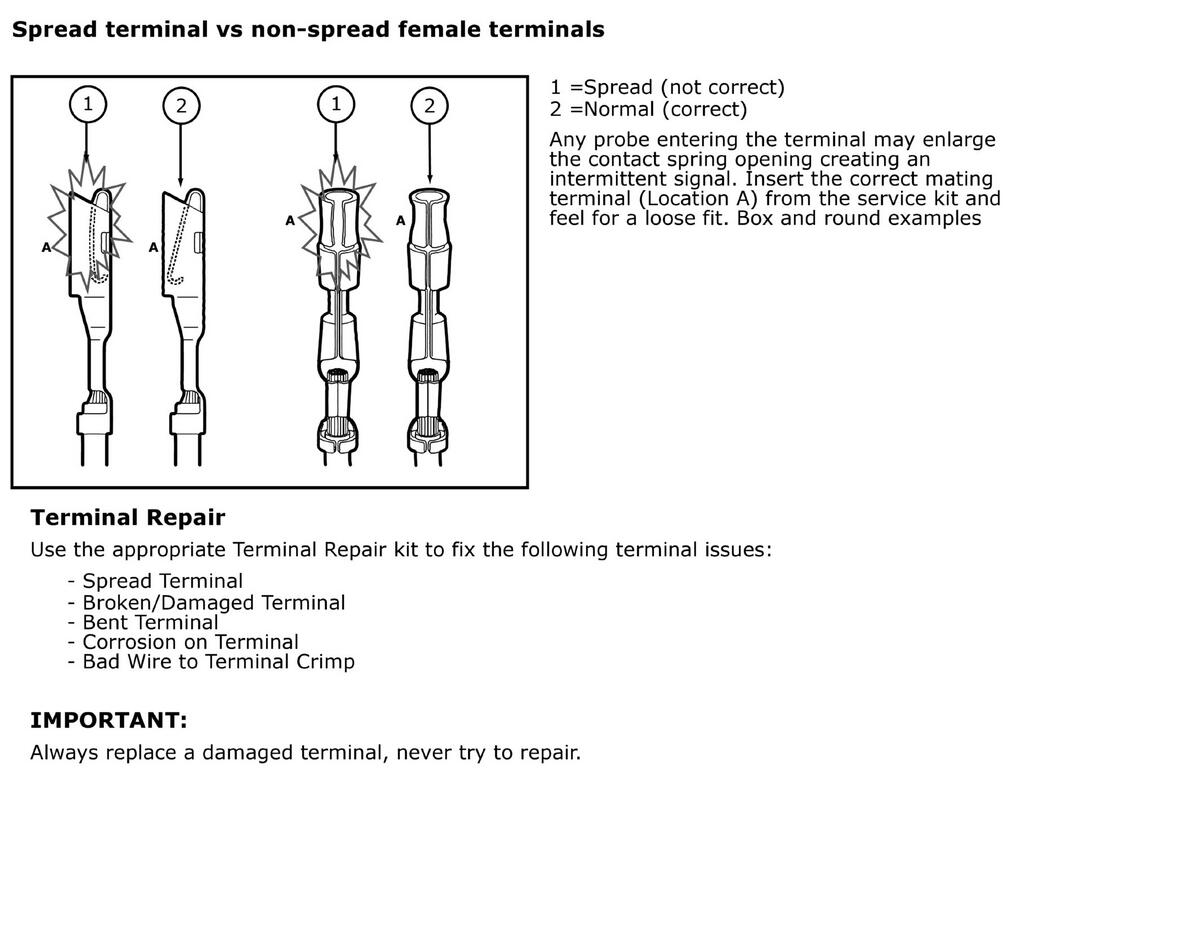

GFDWR260227Courtesy of FORD MOTOR COMPANY

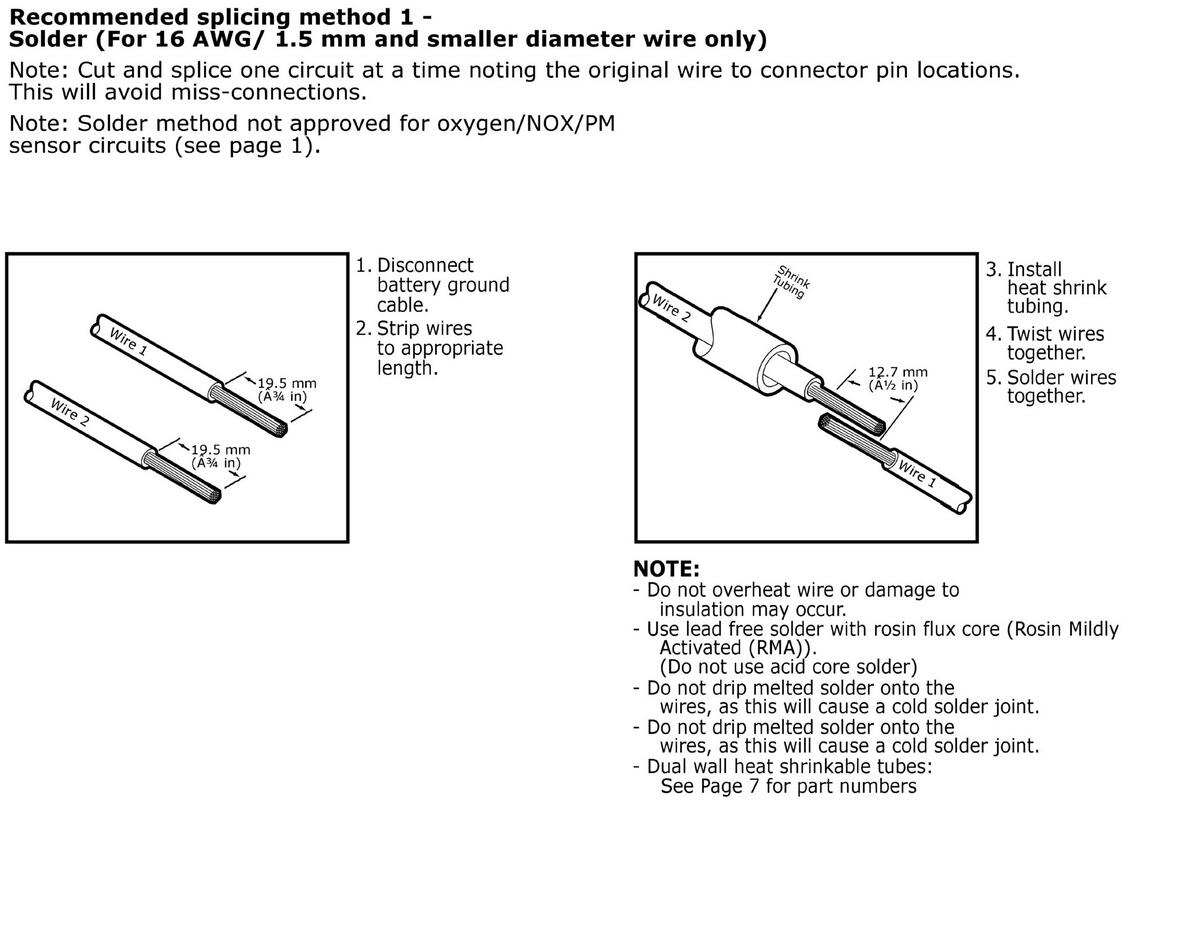

GFDWR260228Courtesy of FORD MOTOR COMPANY

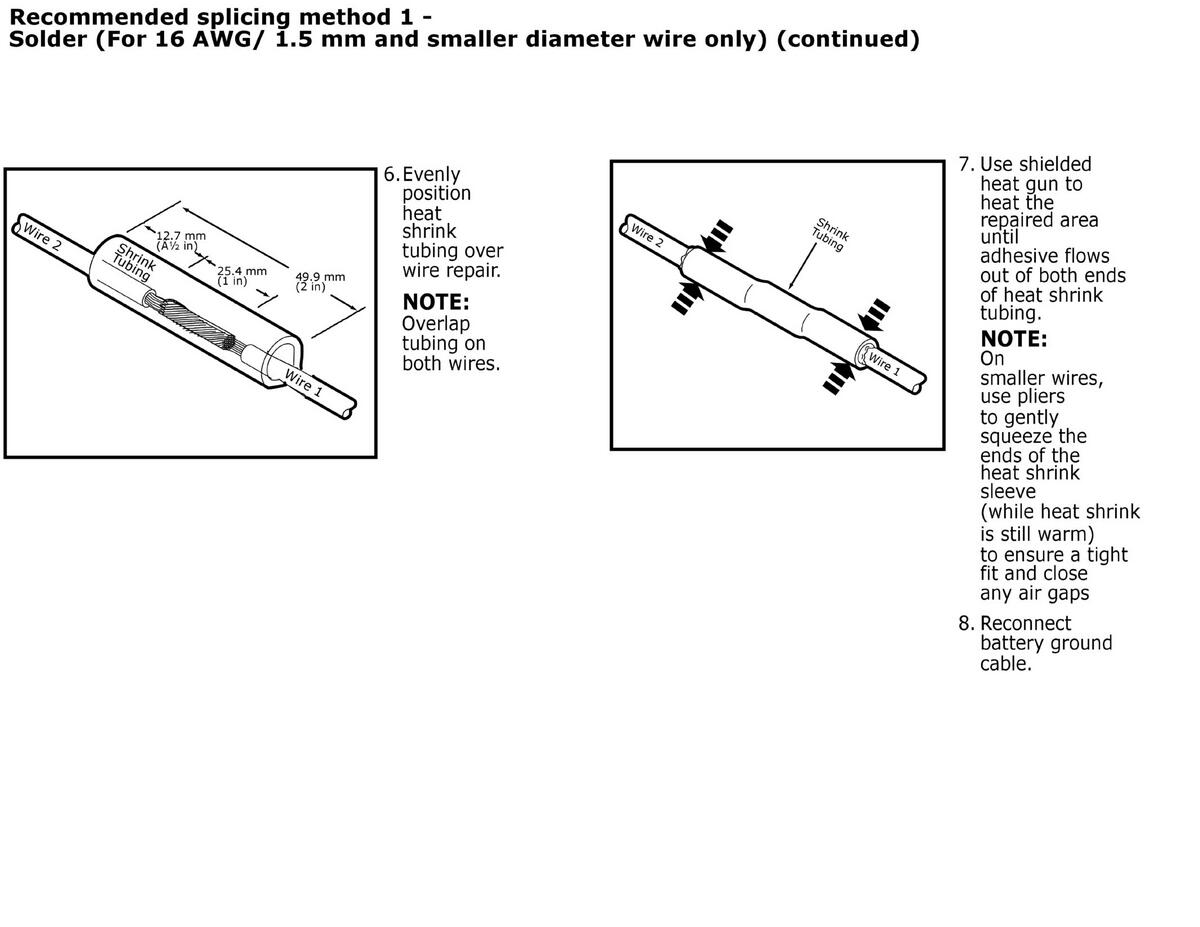

GFDWR260229Courtesy of FORD MOTOR COMPANY

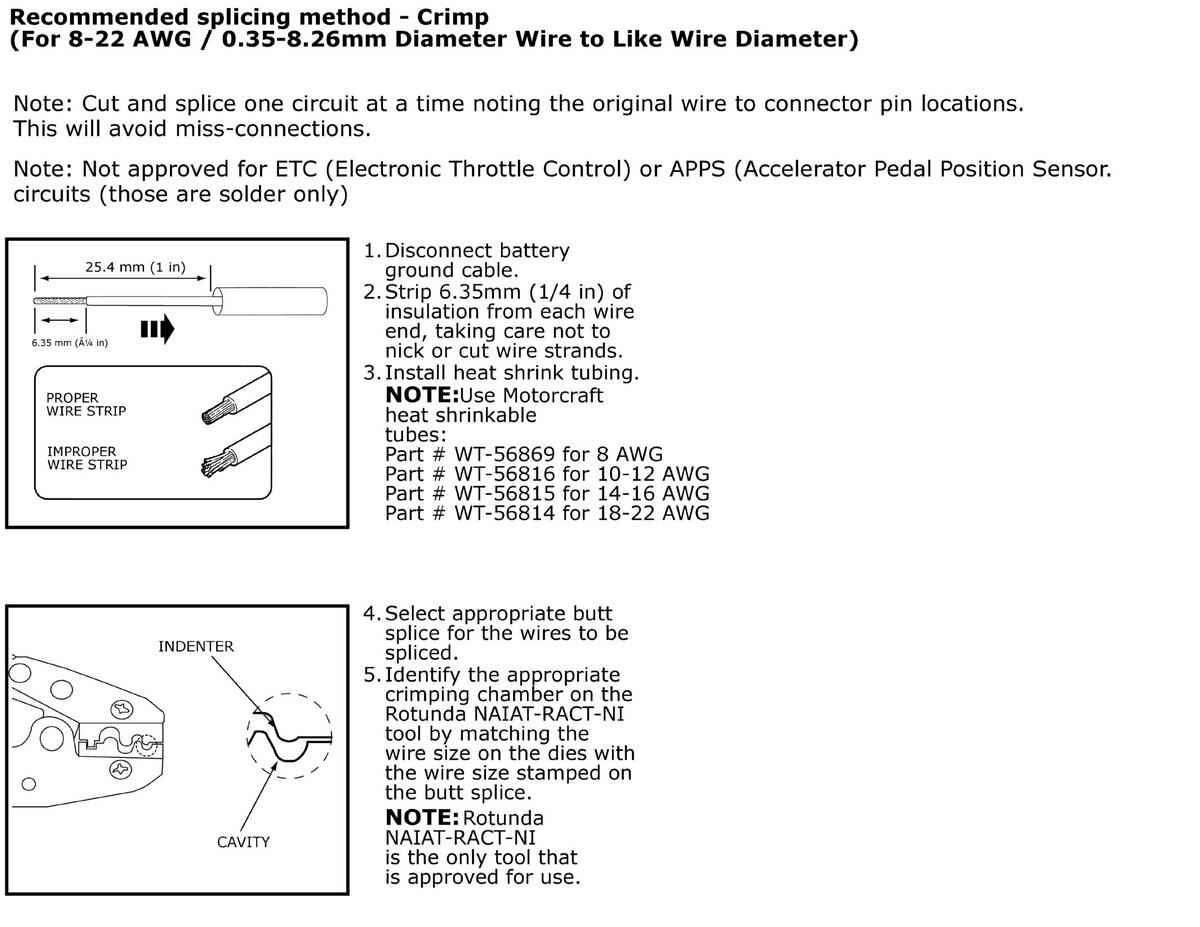

GFDWR260230Courtesy of FORD MOTOR COMPANY

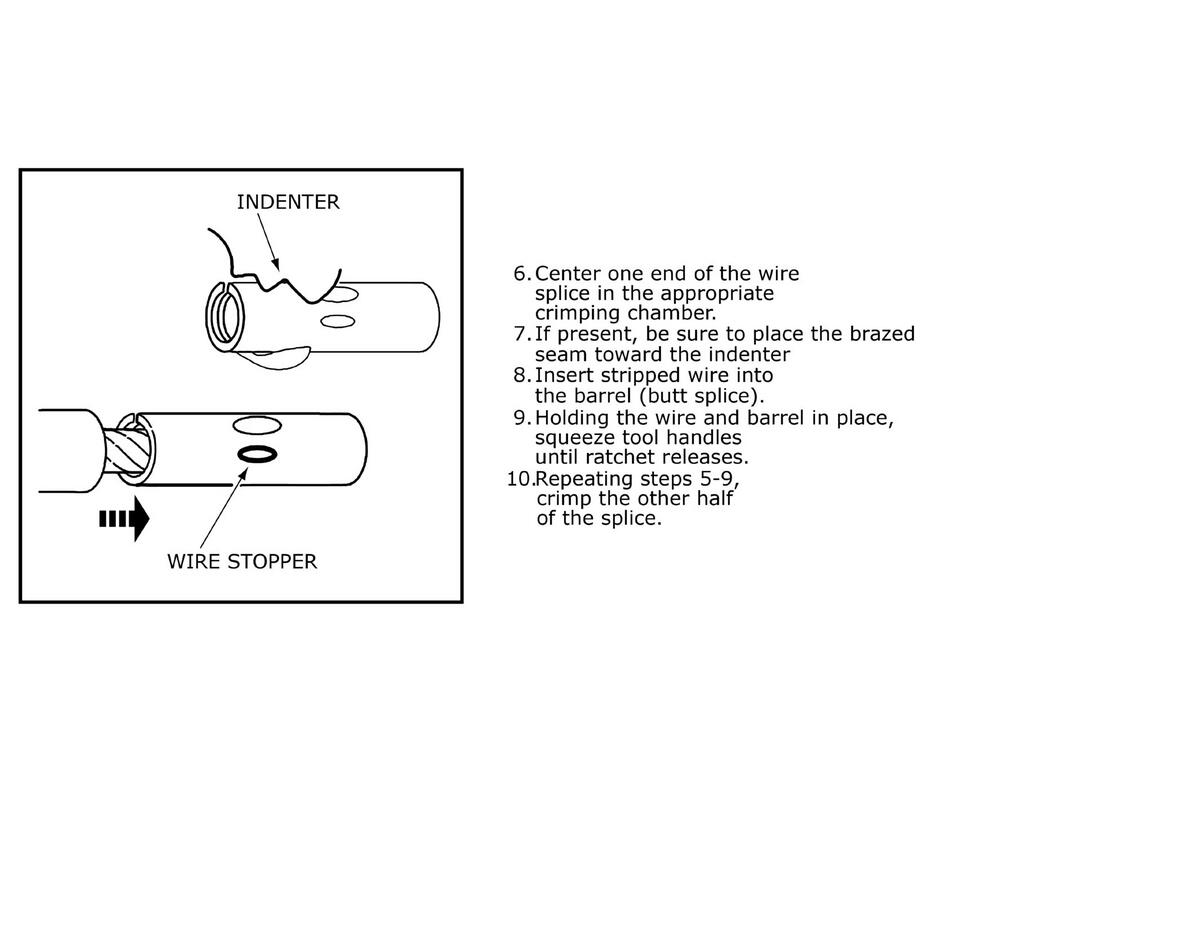

GFDWR260231Courtesy of FORD MOTOR COMPANY

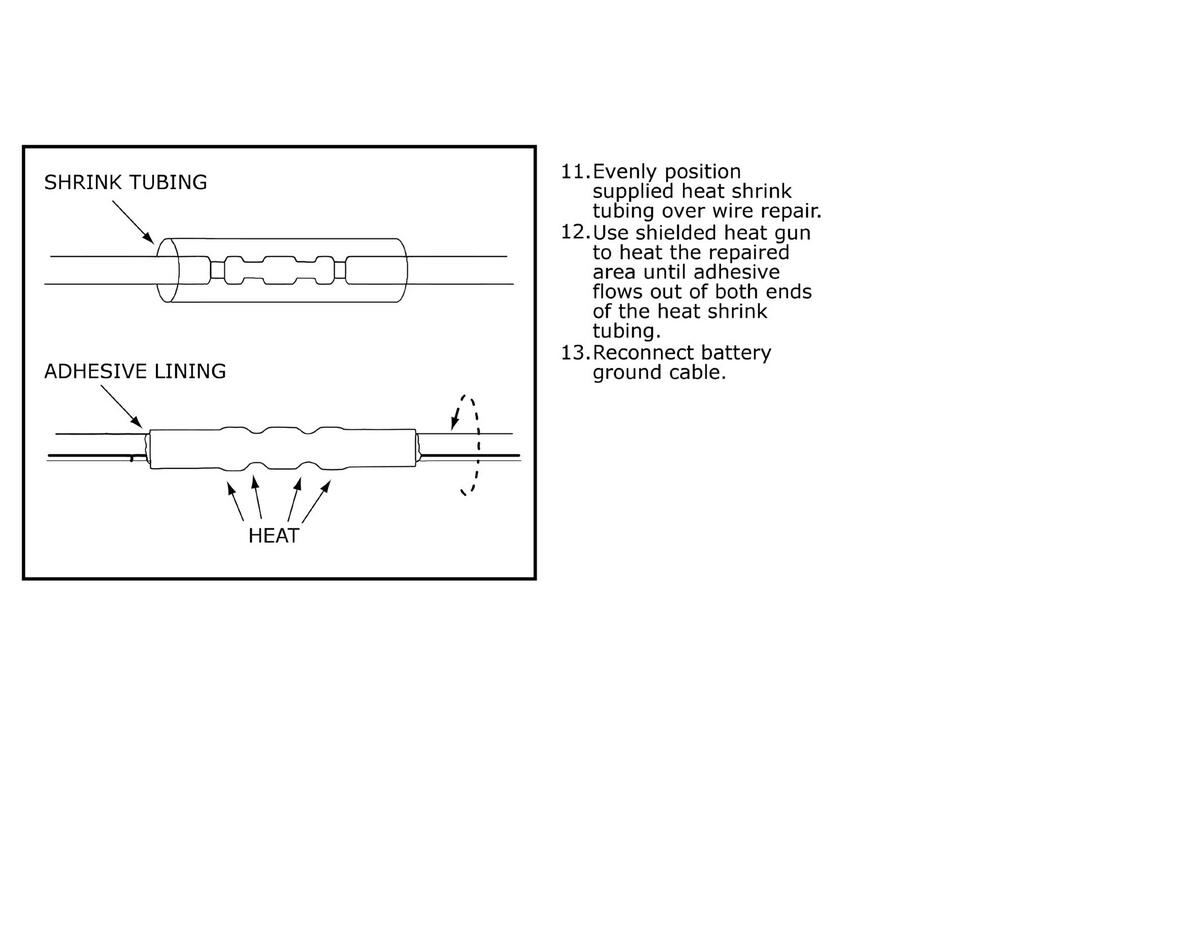

GFDWR260232Courtesy of FORD MOTOR COMPANY

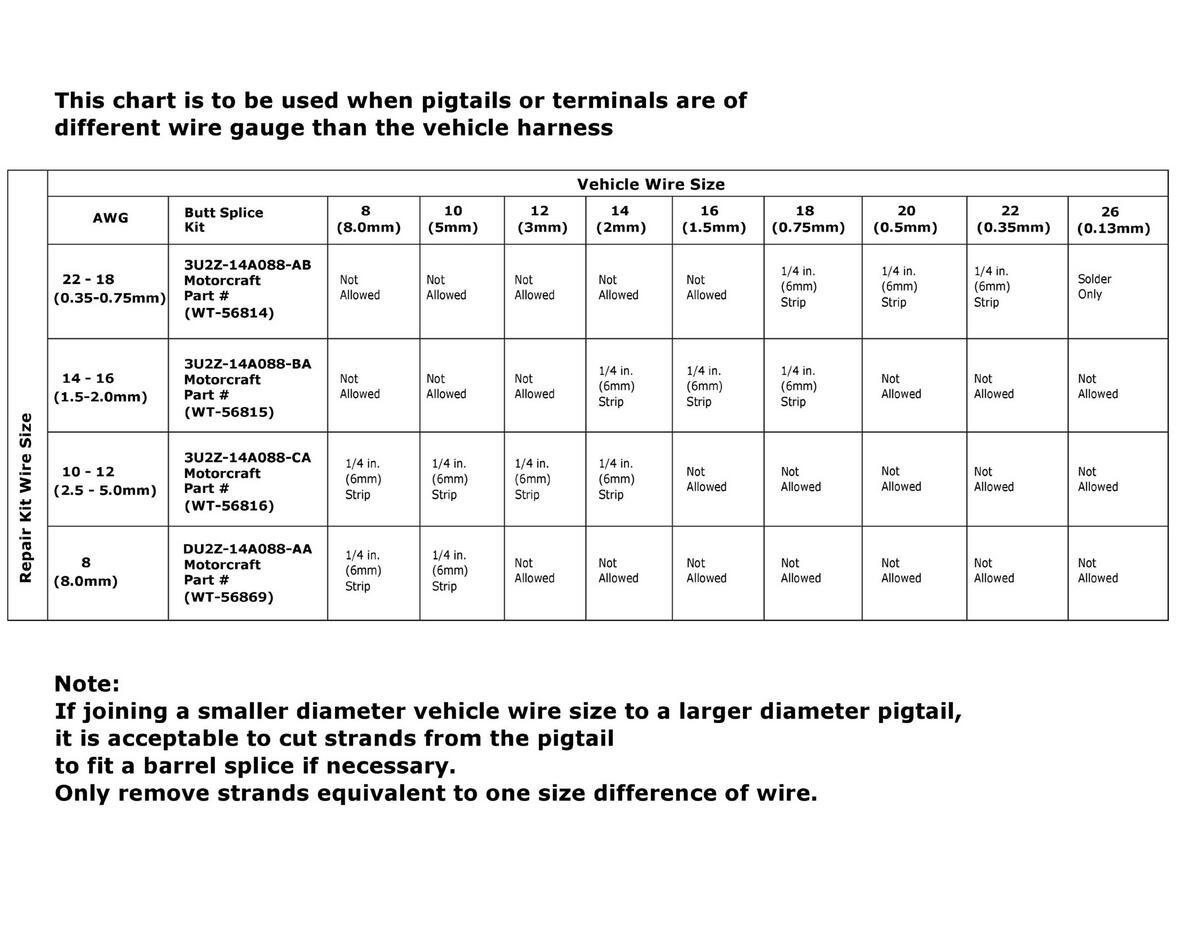

GFDWR260219Courtesy of FORD MOTOR COMPANY

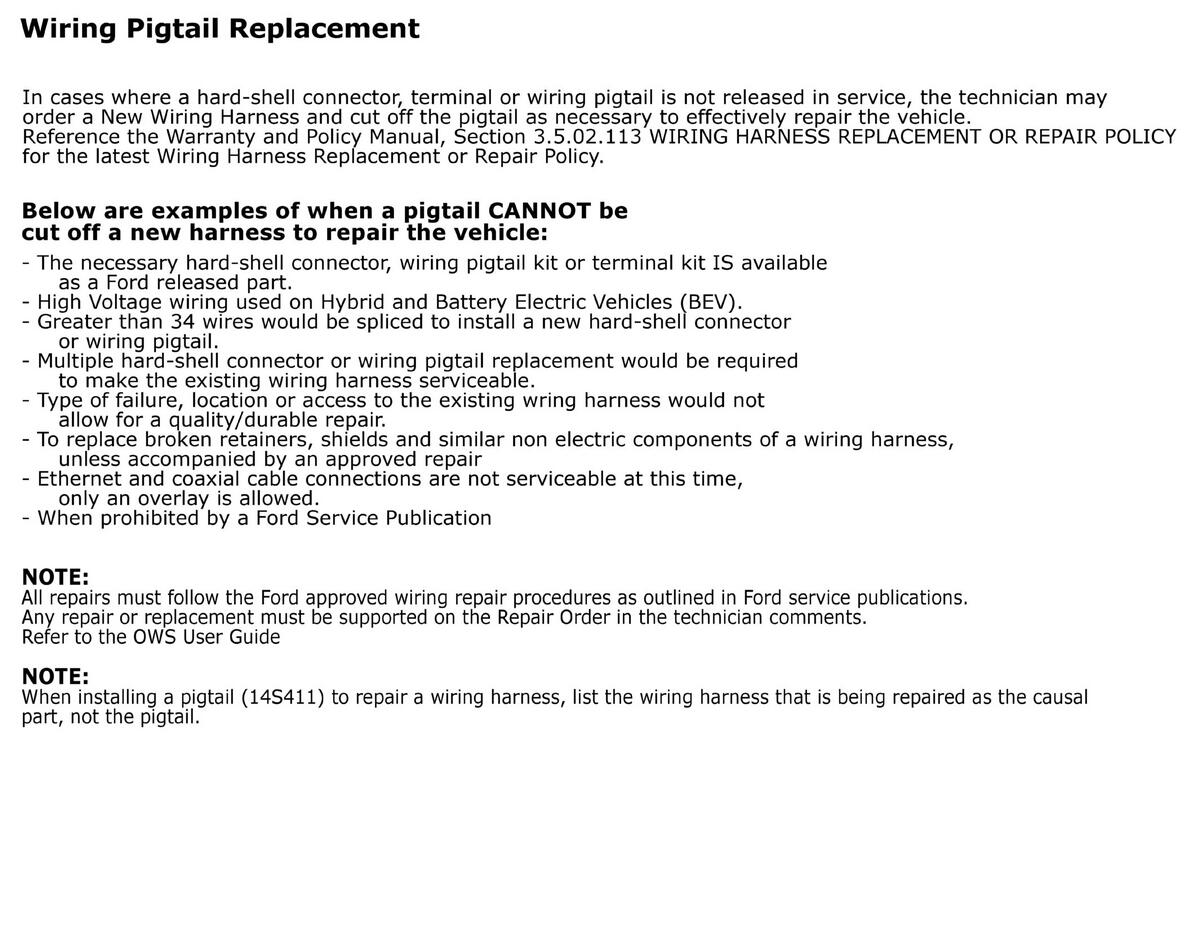

GFDWR260220Courtesy of FORD MOTOR COMPANY

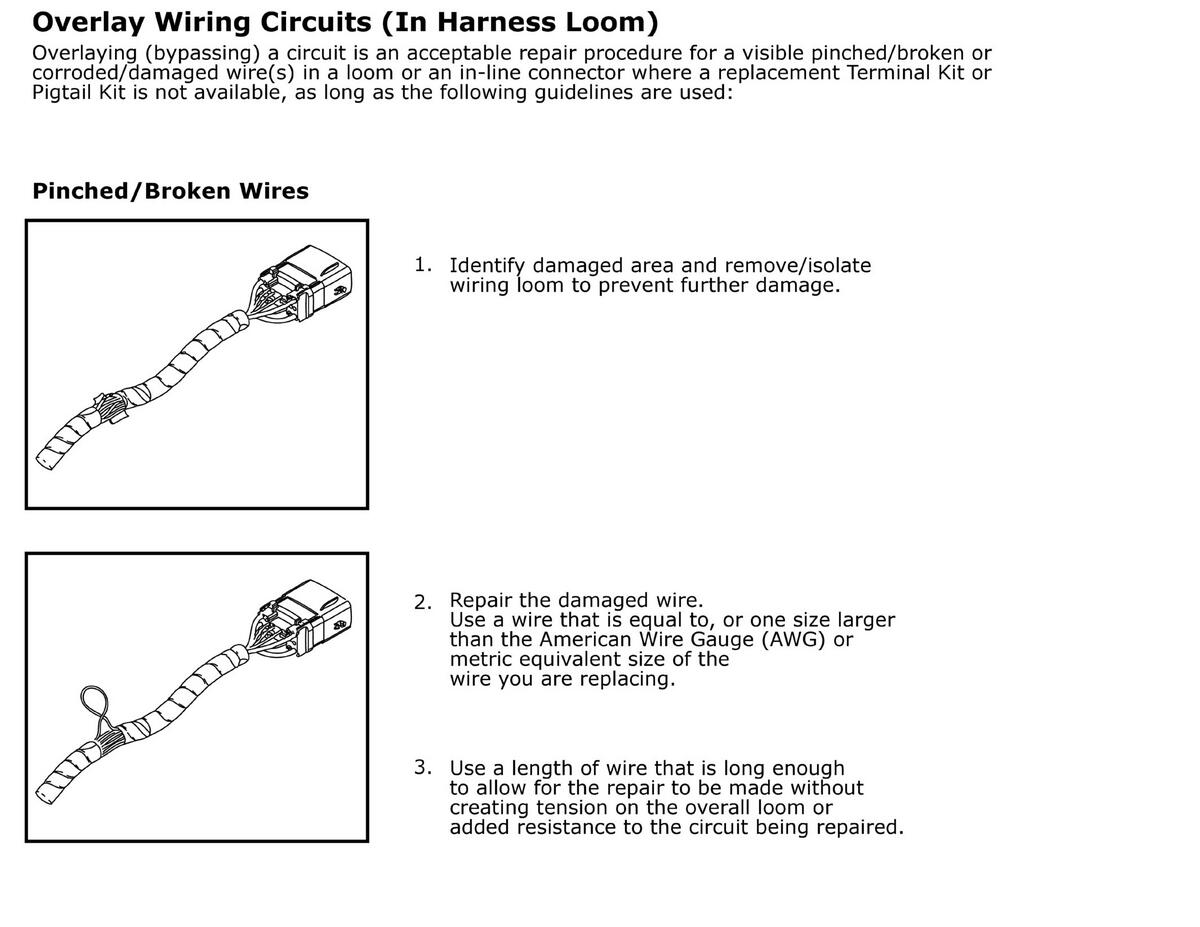

GFDWR260221Courtesy of FORD MOTOR COMPANY

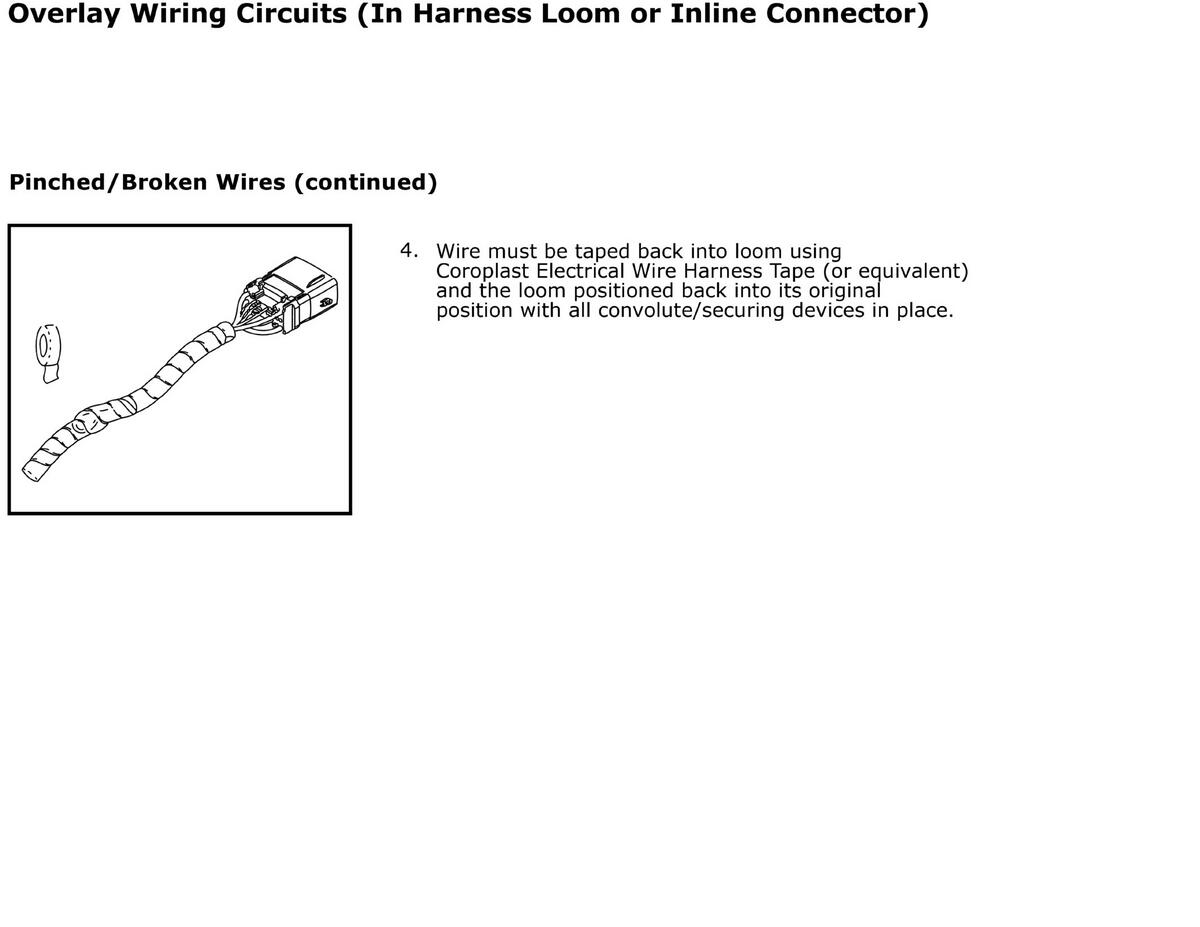

GFDWR260222Courtesy of FORD MOTOR COMPANY

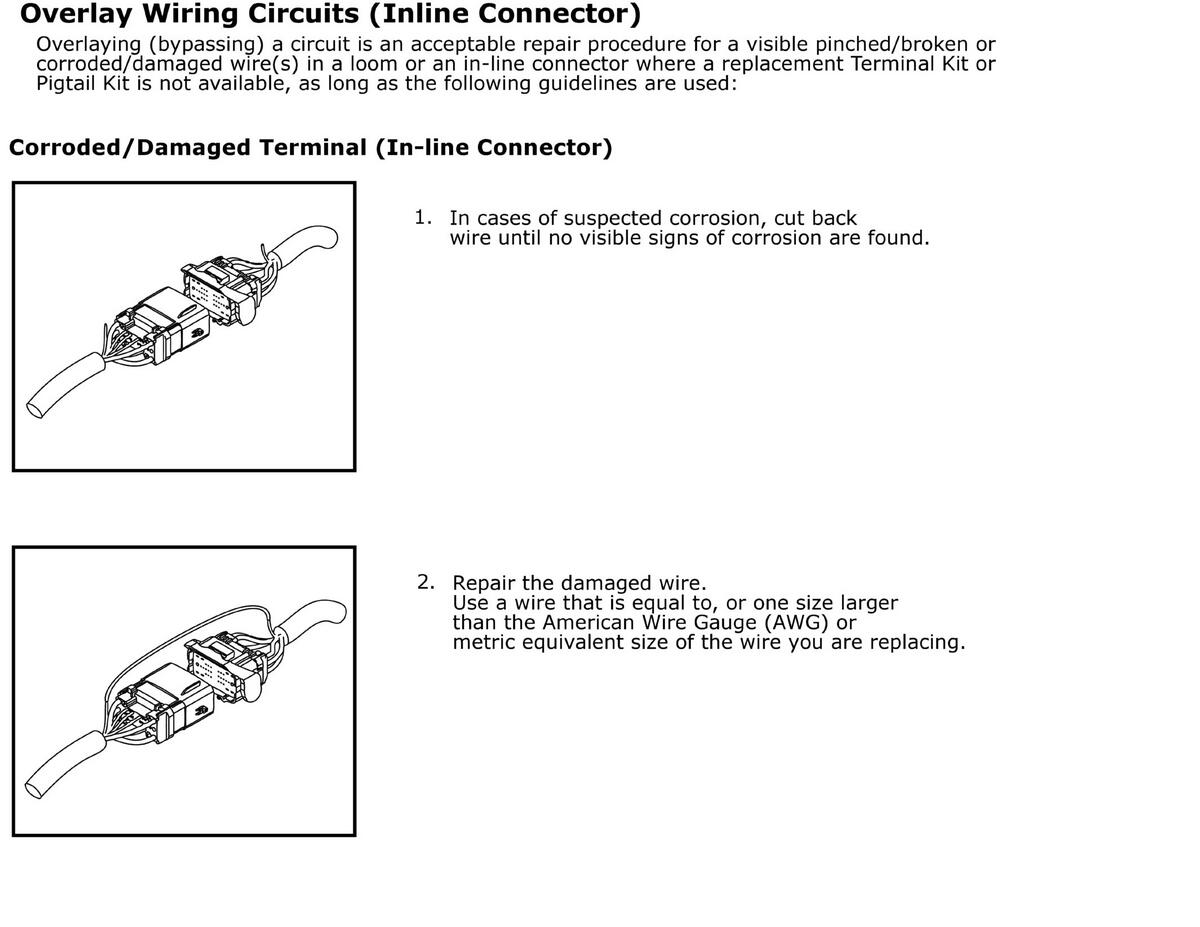

GFDWR260223Courtesy of FORD MOTOR COMPANY

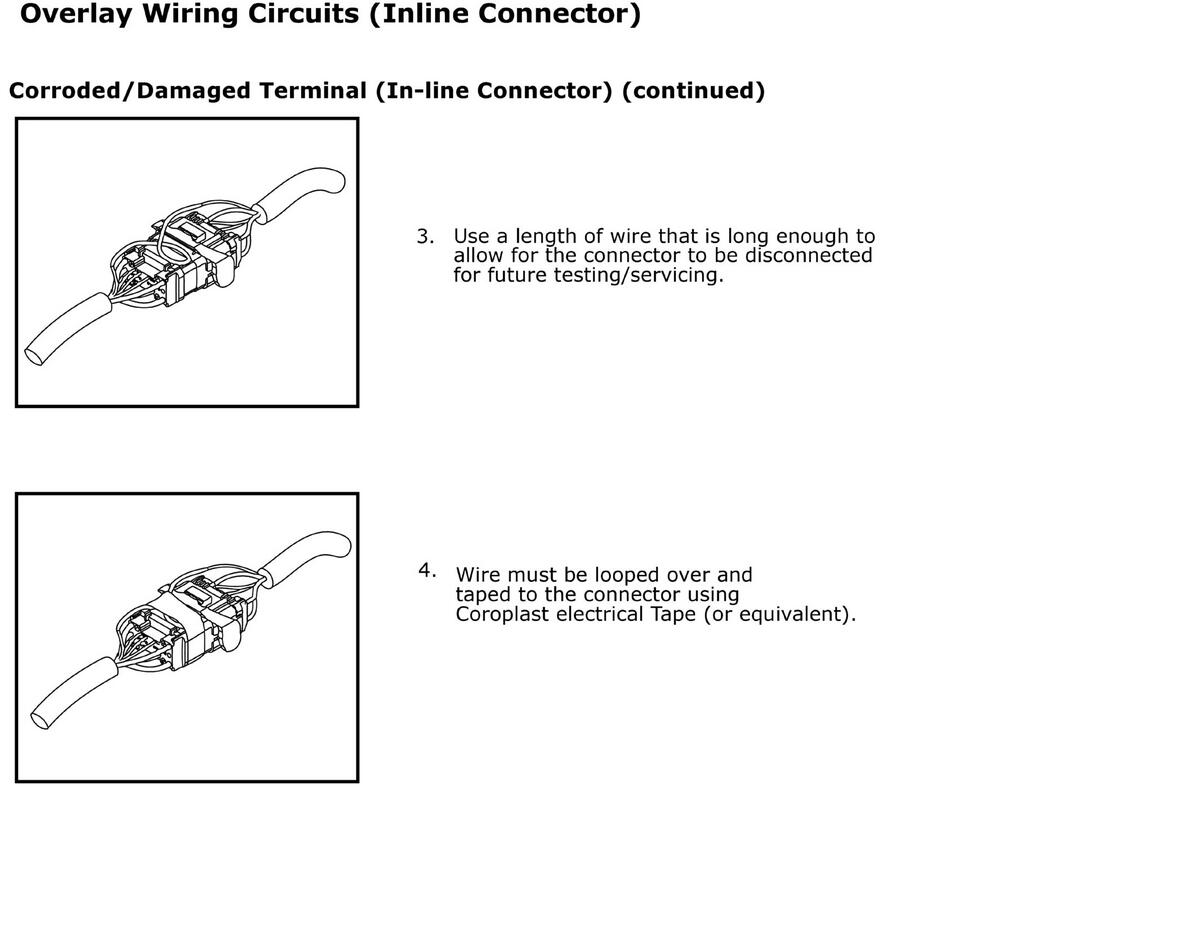

GFDWR260224Courtesy of FORD MOTOR COMPANY
