Ethernet Module Communications Network - Component Location

GFD875890Courtesy of FORD MOTOR COMPANY
Item Description
1 IPMA Ethernet cable routing
GFD875891Courtesy of FORD MOTOR COMPANY
Item Description
1 APIM Ethernet cable routing

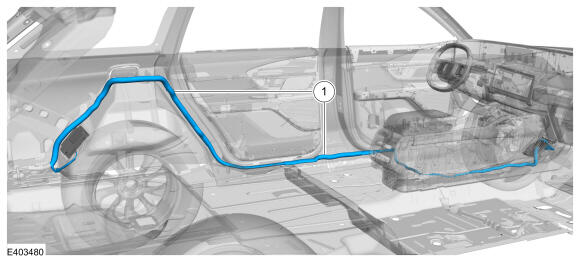

GFD875892Courtesy of FORD MOTOR COMPANY
Item Description
1 TCU Ethernet cable routing
