Transfer Case Draining and Filling

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Activation

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING .
2. If equipped.

   Torque: 28 Nm

   Courtesy of FORD MOTOR COMPANY

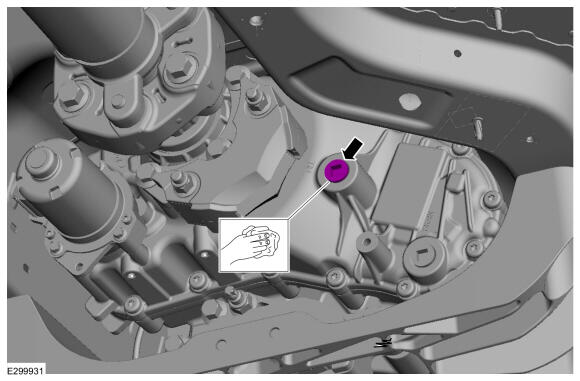

3. 1. Remove the drain plug and drain the fluid.
   2. Clean the drain plug and the area around drain plug.
   3. Install the drain plug.

      Torque: 16 Nm

Courtesy of FORD MOTOR COMPANY

Filling

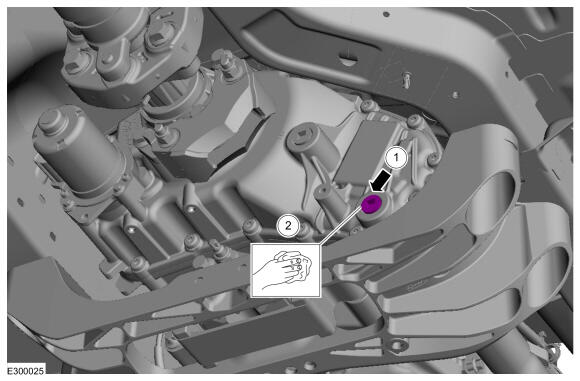

1. 1. Clean the fill plug and the area around fill plug. Remove the fill plug.
   2. Fill the transfer case fluid. Refer to: Specifications .
   3. Install the fill plug.

      Torque: 16 Nm

Courtesy of FORD MOTOR COMPANY
