Front Wheel Speed Sensor: Installation
-
NOTE: Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material or damage to the sensor may occur.

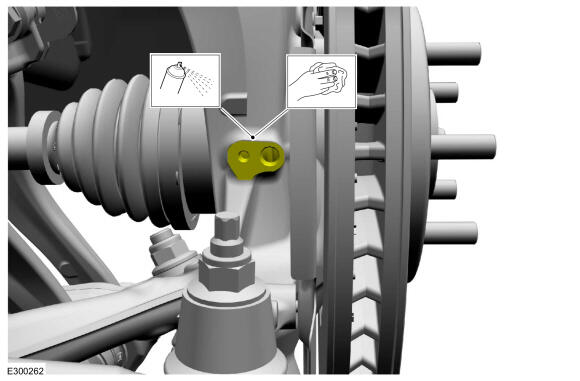

Clean and inspect the sensor housing cavity.
Material: Brake Cleaner
- To install, reverse the removal procedure.
- After a new wheel speed sensor has been installed, drive the vehicle at speeds between 20 km/h (12 mph) and 40 km/h (24 mph) to clear the ABS module wheel speed sensor DTC.
