Gear Shift Module (GSM): Installation

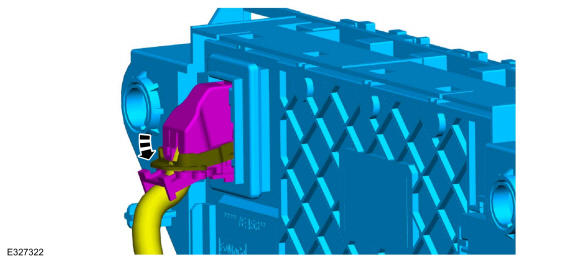

- Connect the GSM electrical connector.

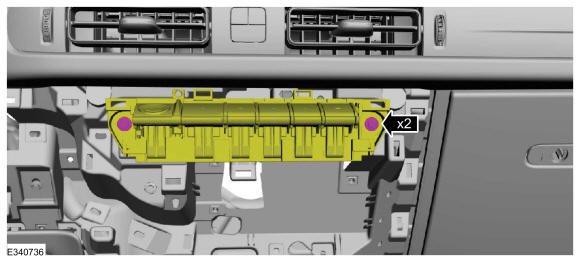

- Install the GSM and the screws.

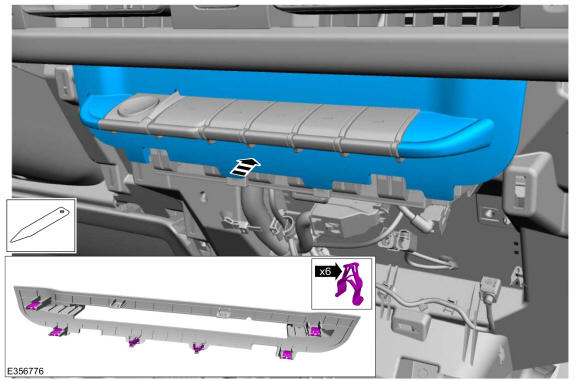

- Install the GSM finish panel.

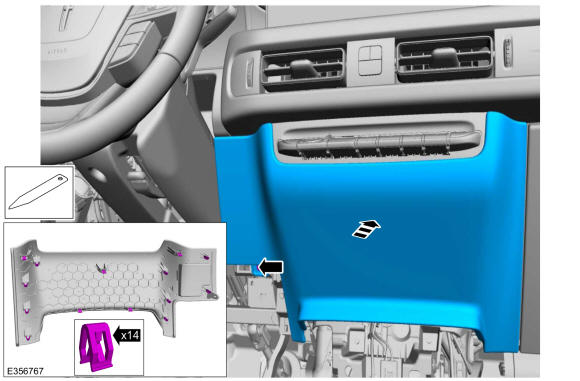

- Install the trim panel and the screw.
- Install the floor console. Refer to: Floor Console .
- Install the driver knee air bag. Refer to: Driver Knee Airbag .
- If a new GSM was installed, verify the calibration is at the latest level. Refer to: Module Programming .
