Gateway Module A (GWM): Removal
WARNING: This page is about a different car, the 2022 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Using a diagnostic scan tool, begin the PMI process for the GWM following the on-screen instructions.
- Remove the subwoofer and amplifier unit. Refer to: Subwoofer and Amplifier Unit .

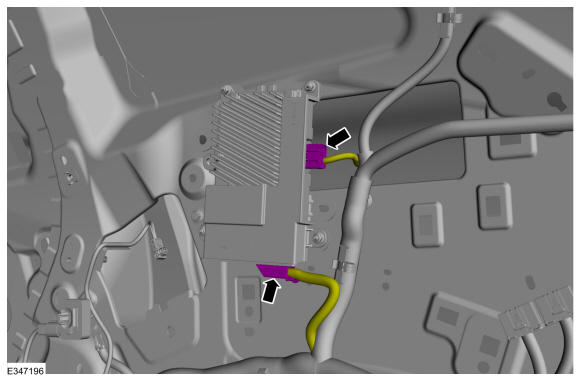

- Disconnect the electrical connectors.

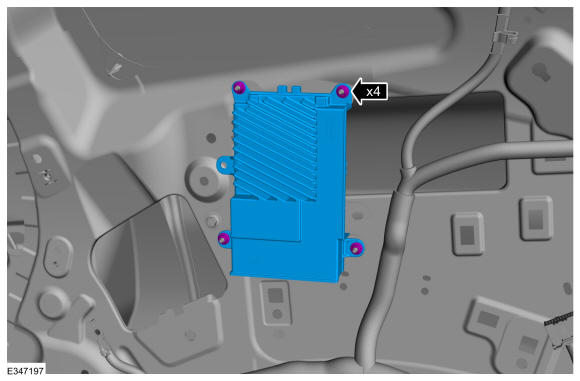

- Remove the nuts and the GWM.
Torque: 22 lb.in (2.5 Nm)
