Module Communications Network

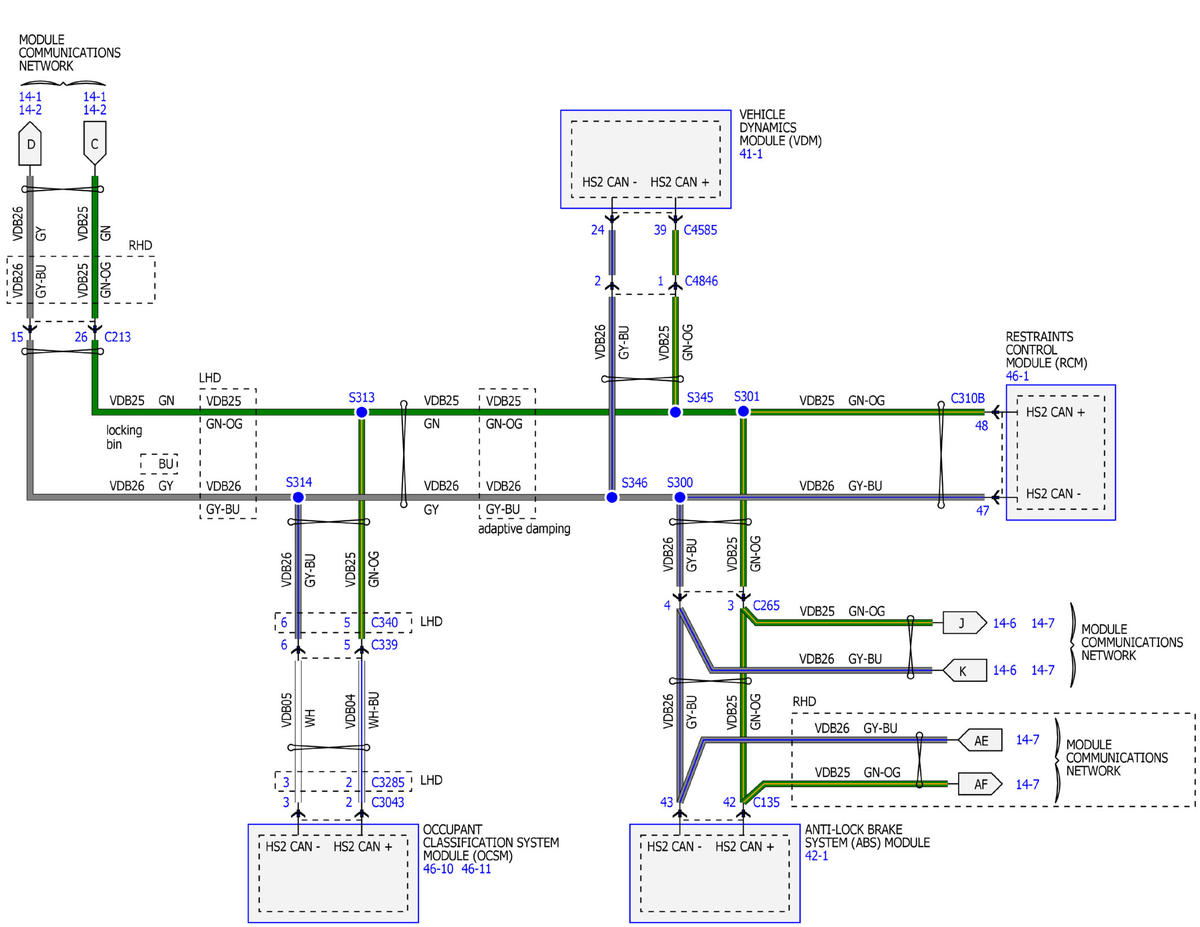

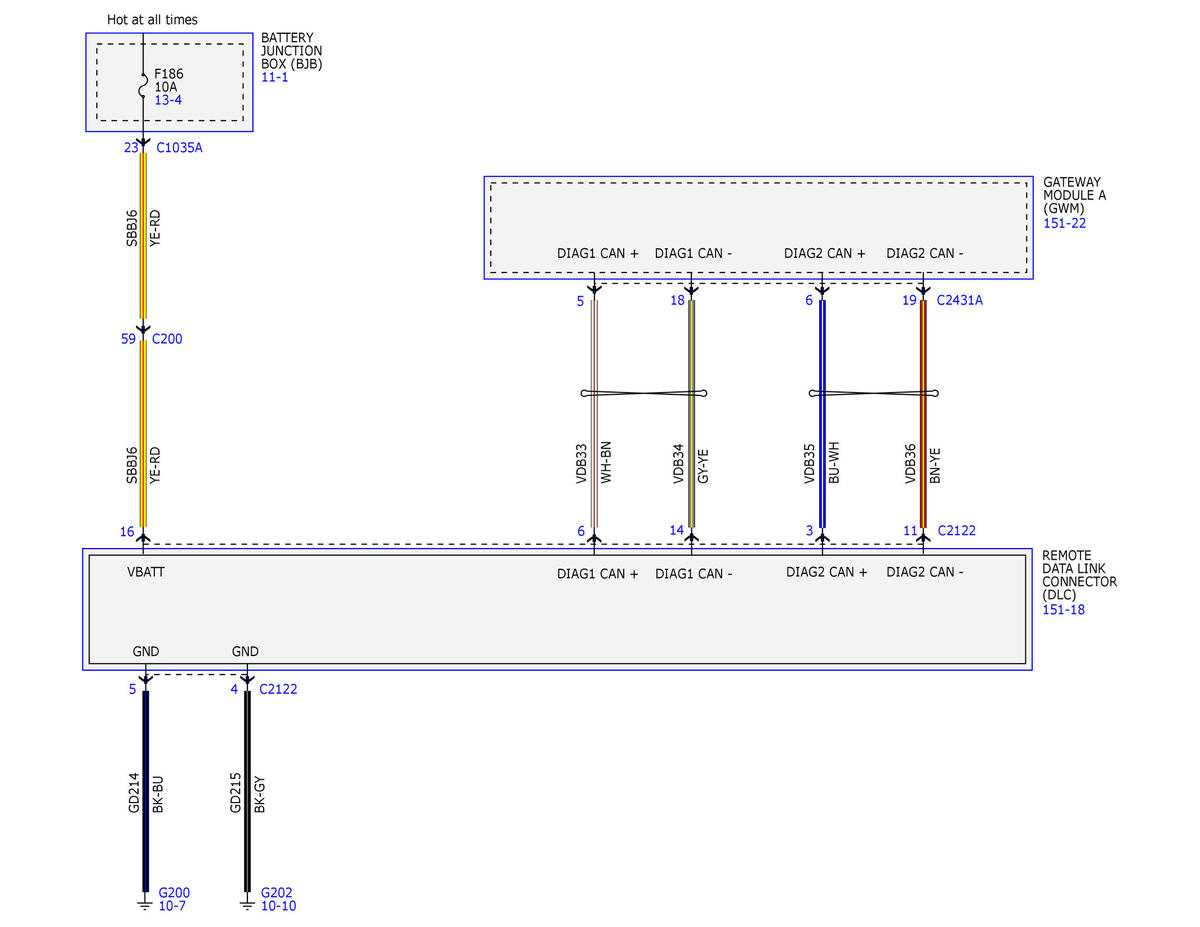

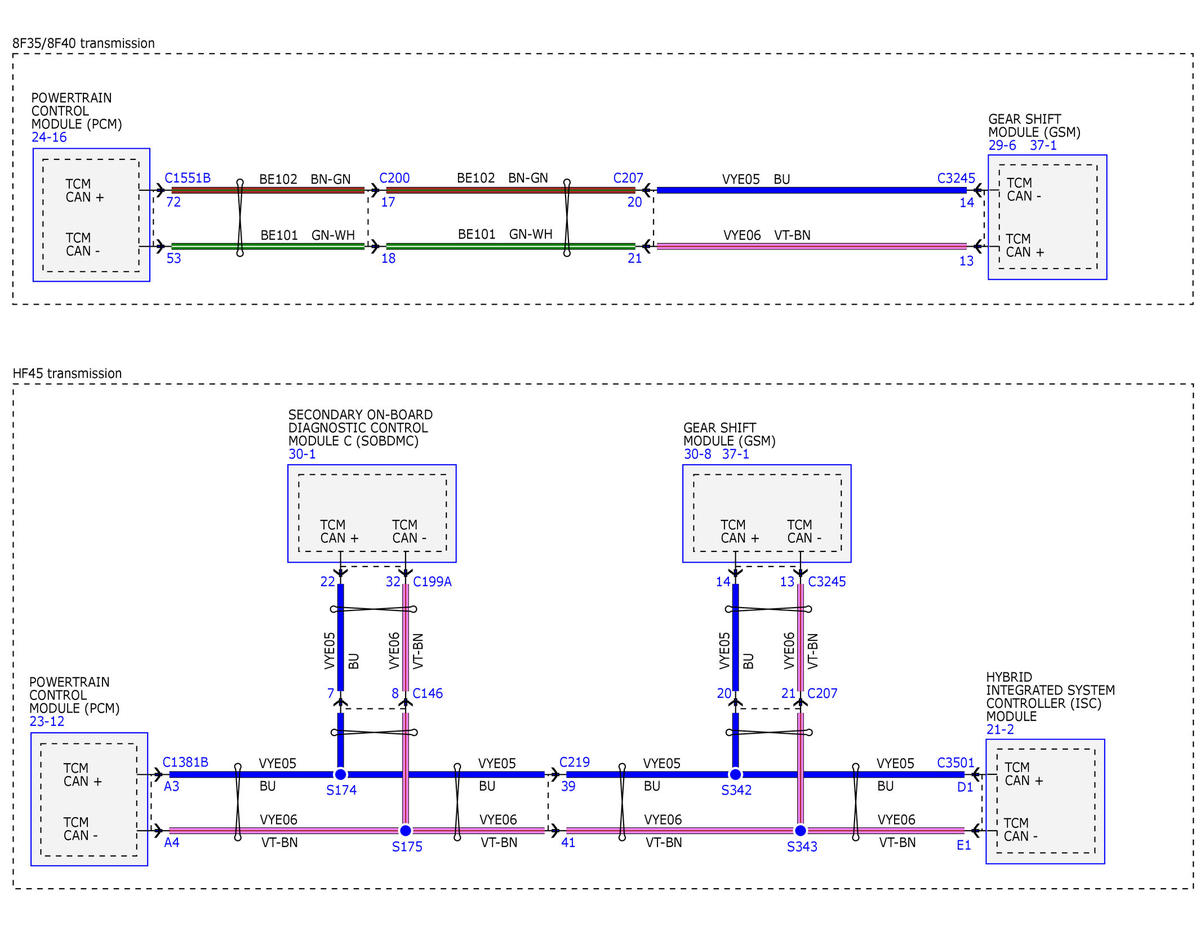

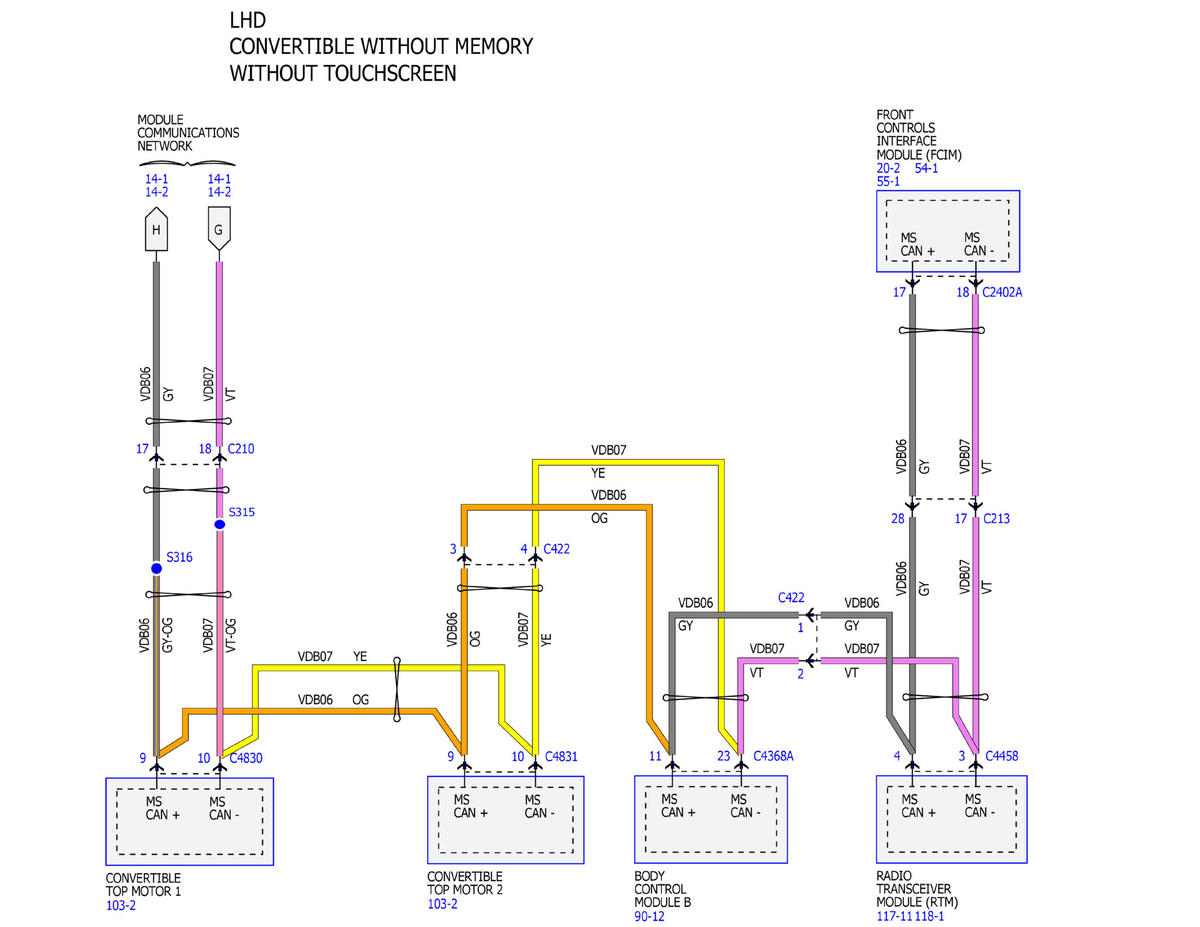

Fig 1: Module Communications Network Wiring Diagrams (1 Of 19)

Courtesy of FORD MOTOR COMPANY

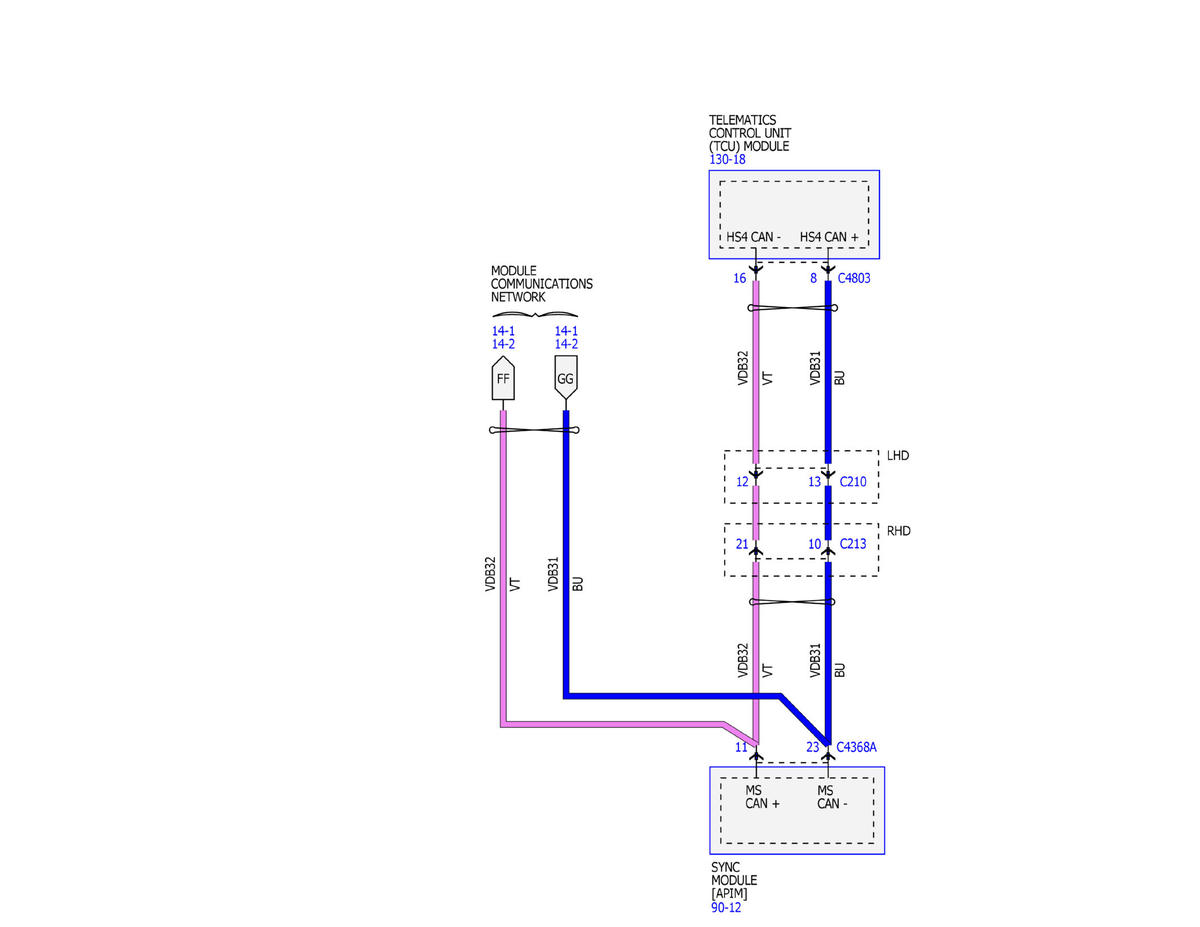

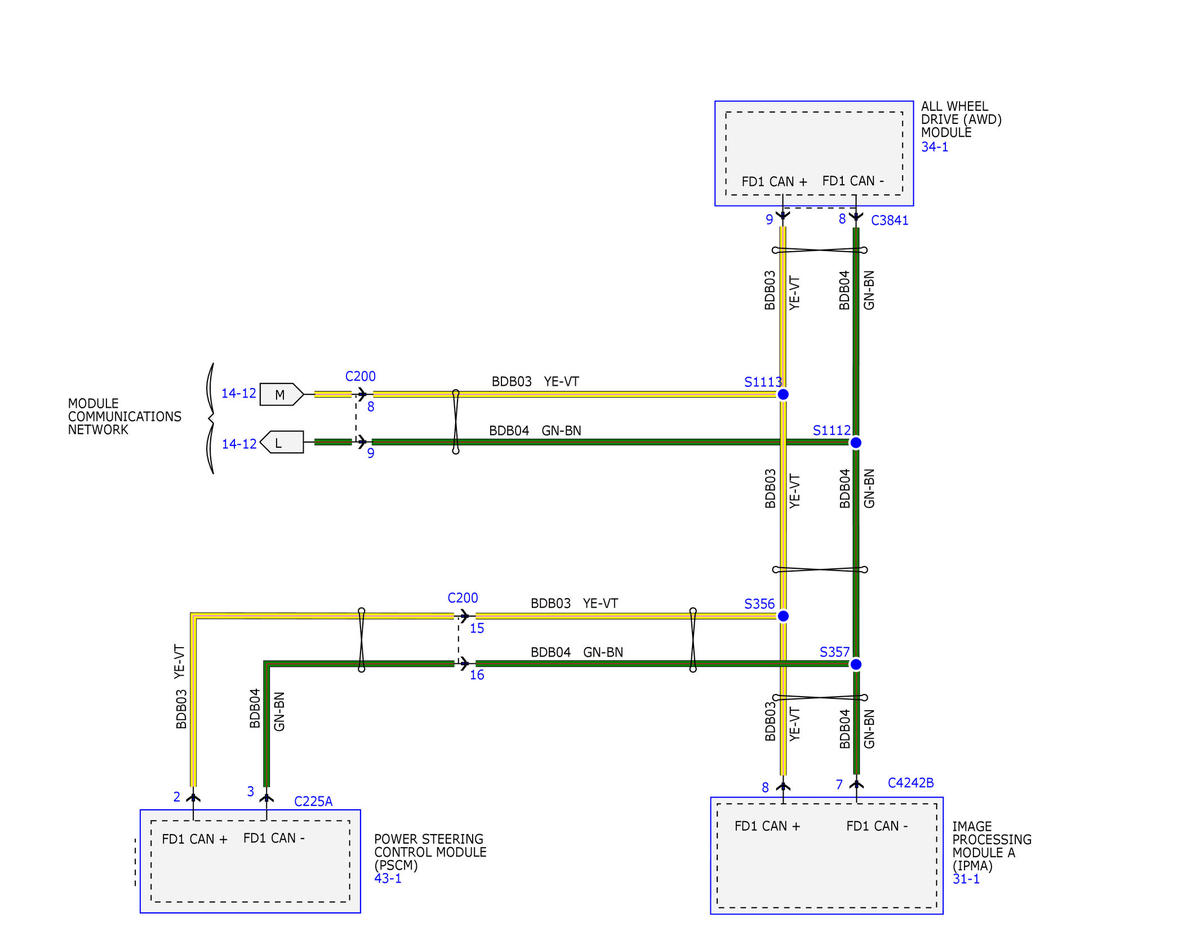

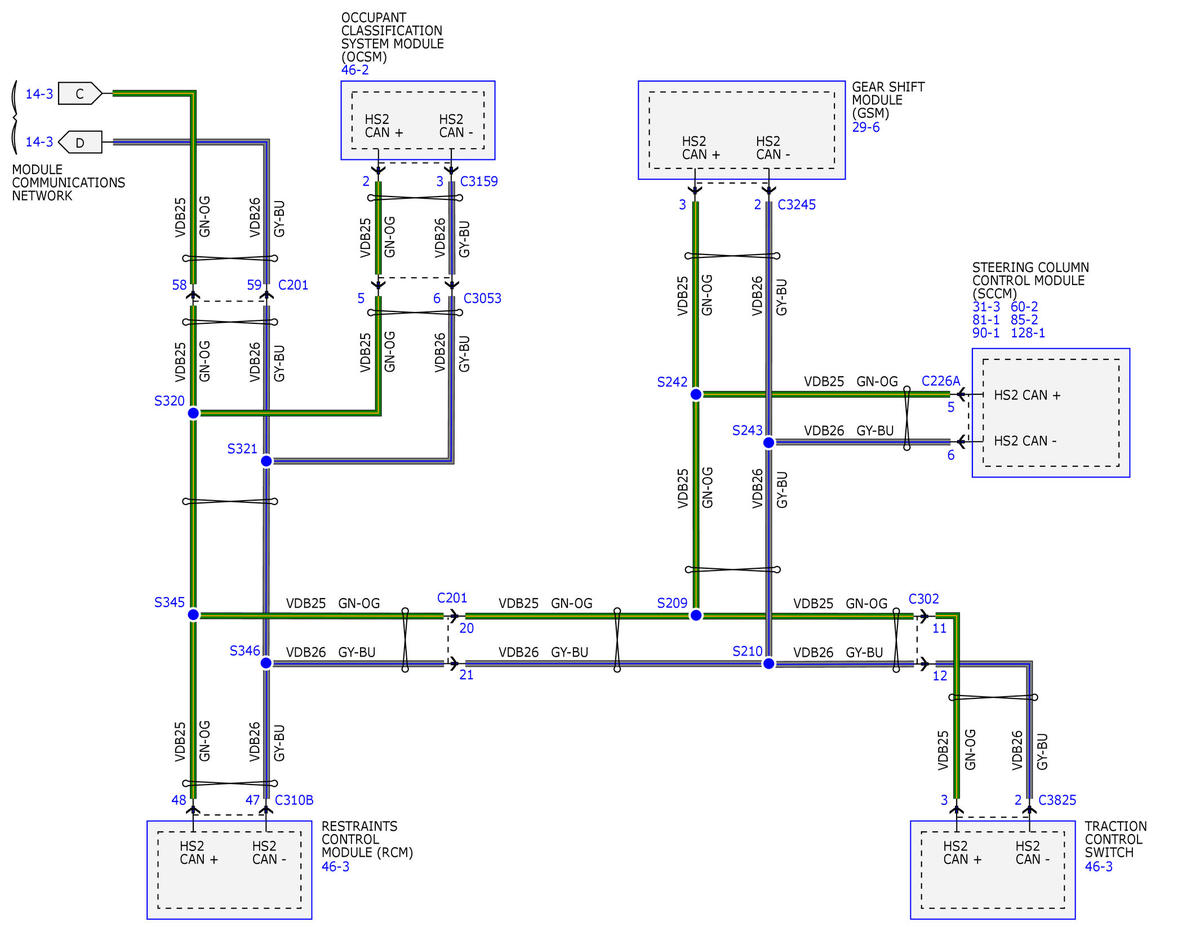

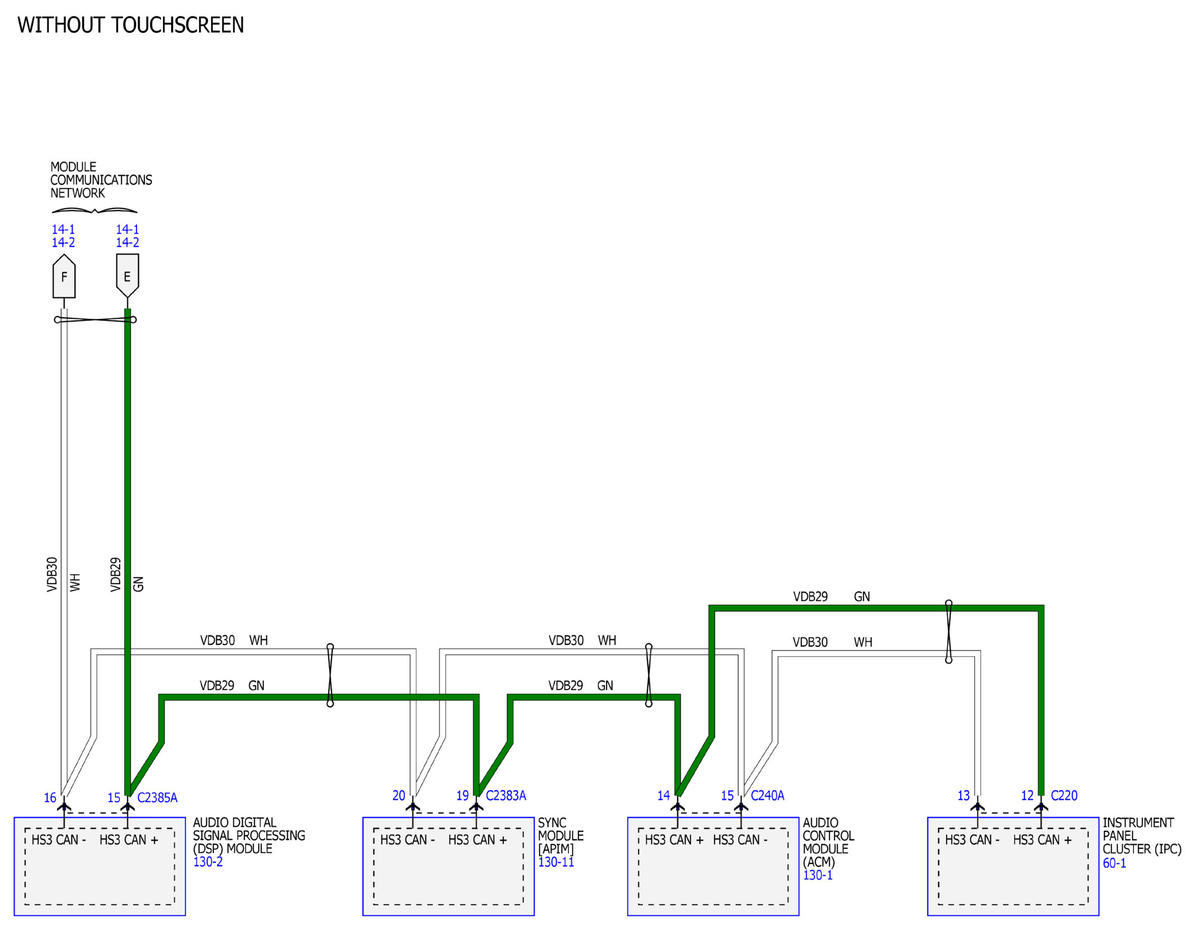

Fig 2: Module Communications Network Wiring Diagrams (2 Of 19)

Courtesy of FORD MOTOR COMPANY

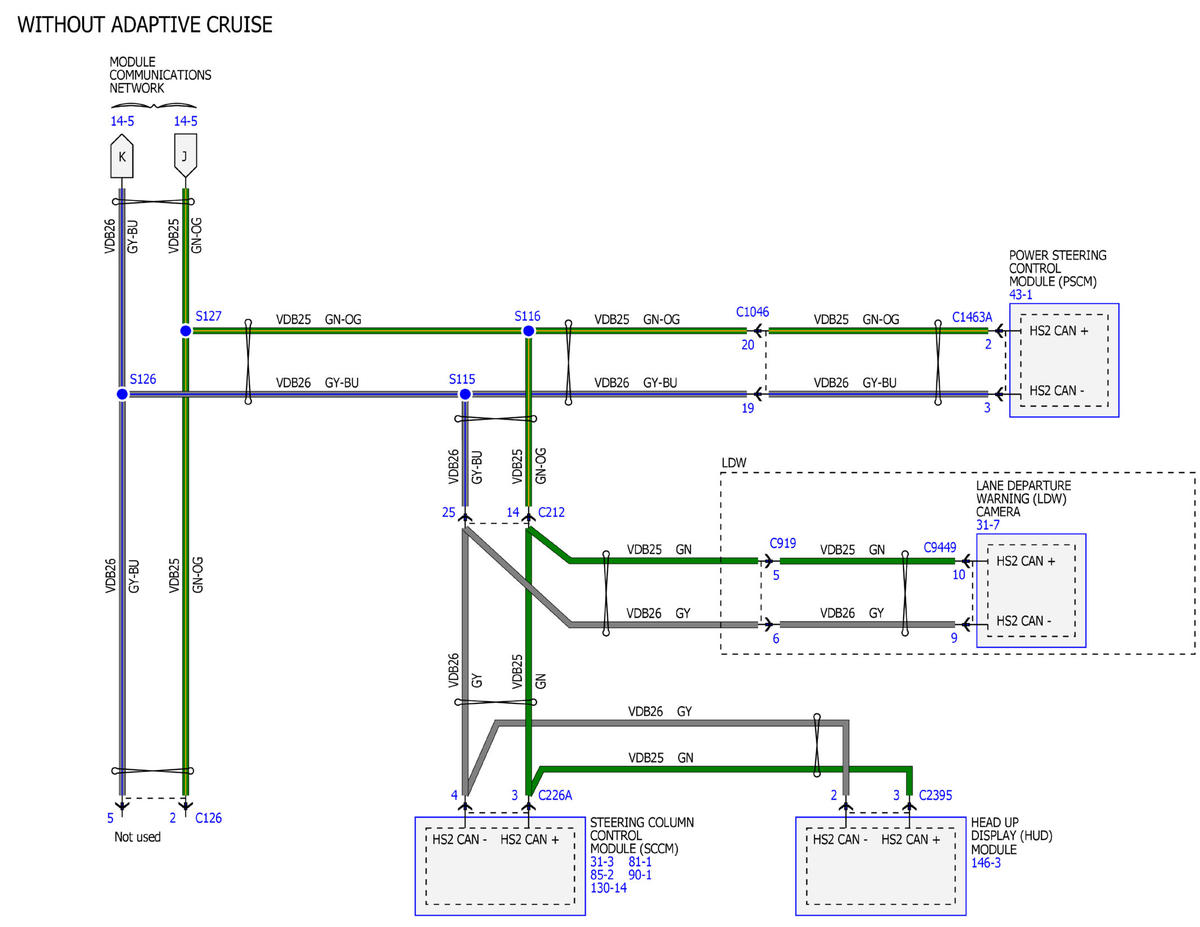

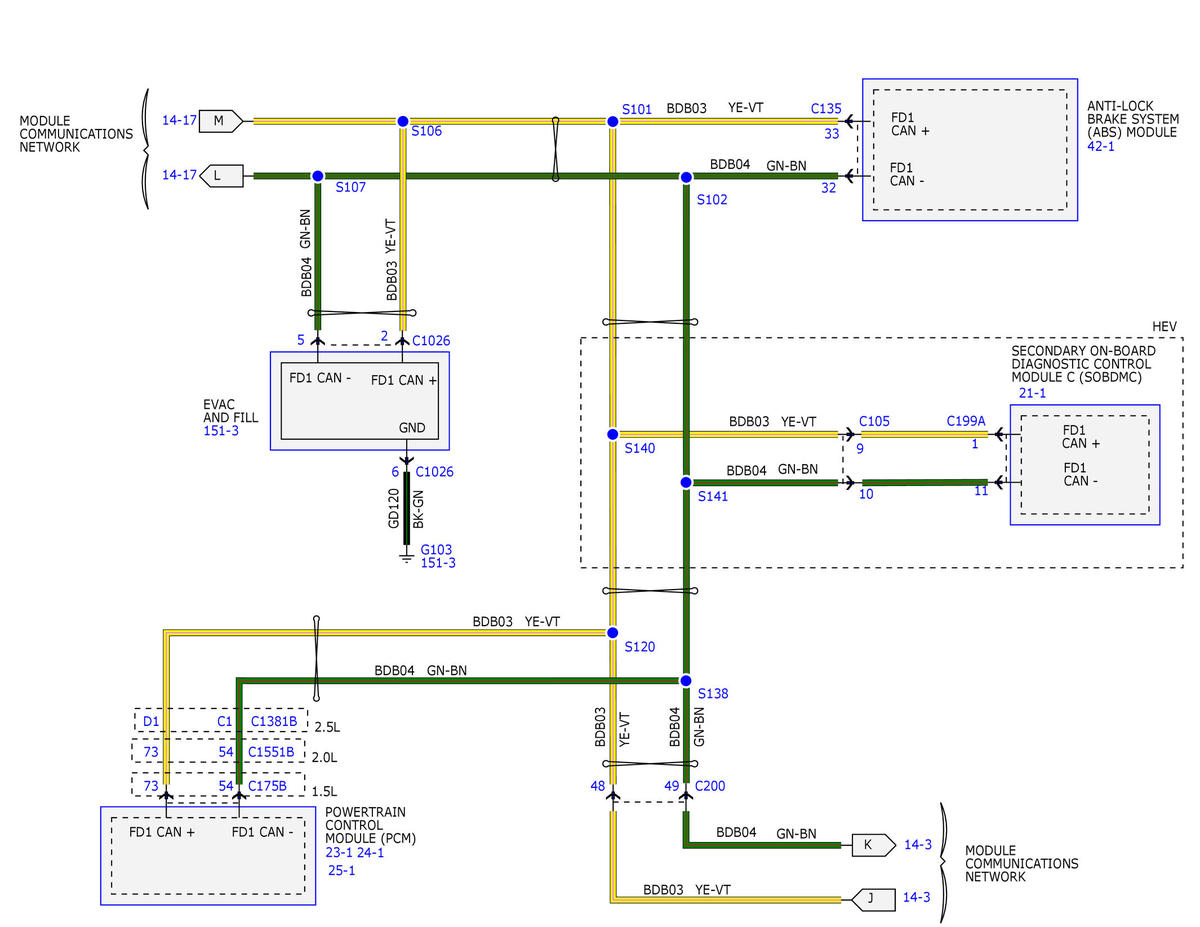

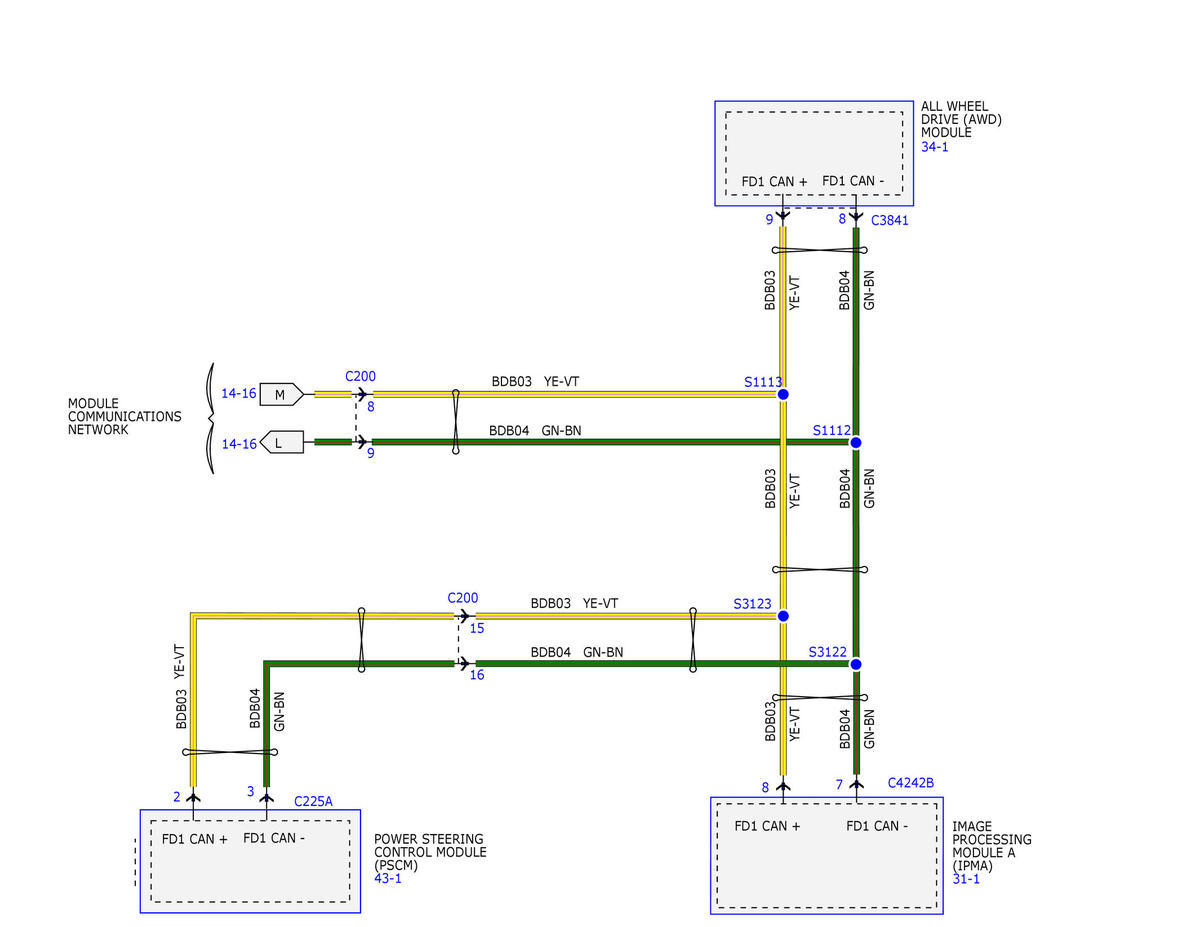

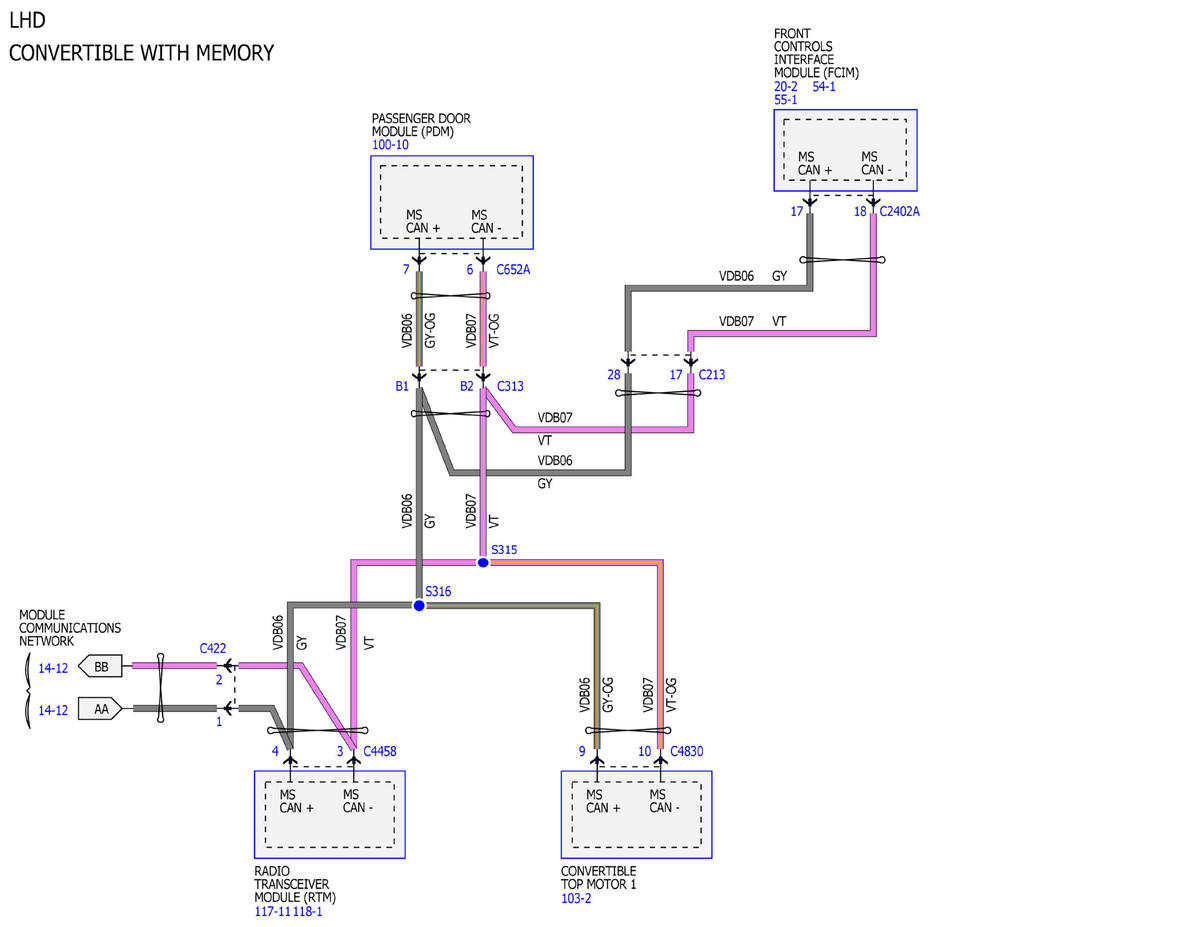

Fig 3: Module Communications Network Wiring Diagrams (3 Of 19)

Courtesy of FORD MOTOR COMPANY

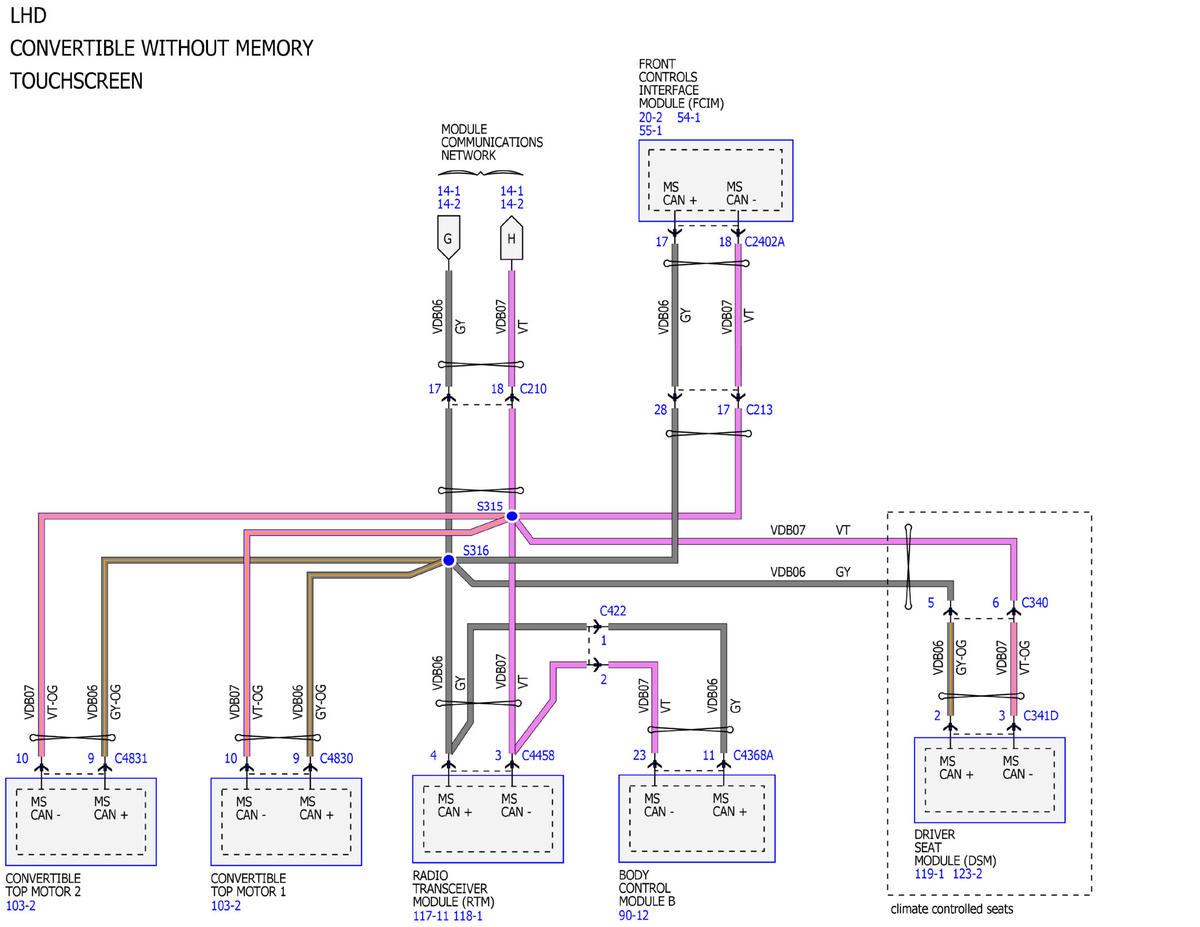

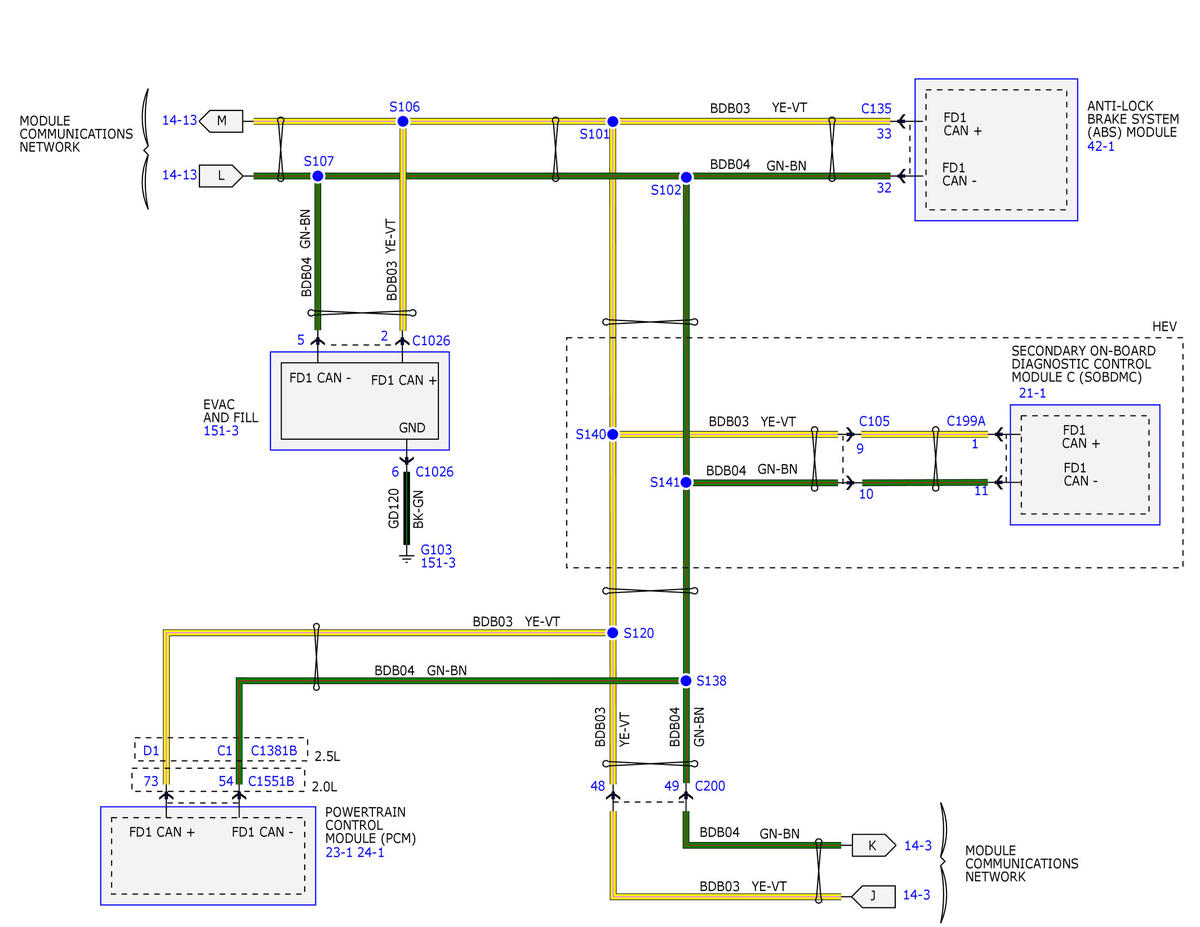

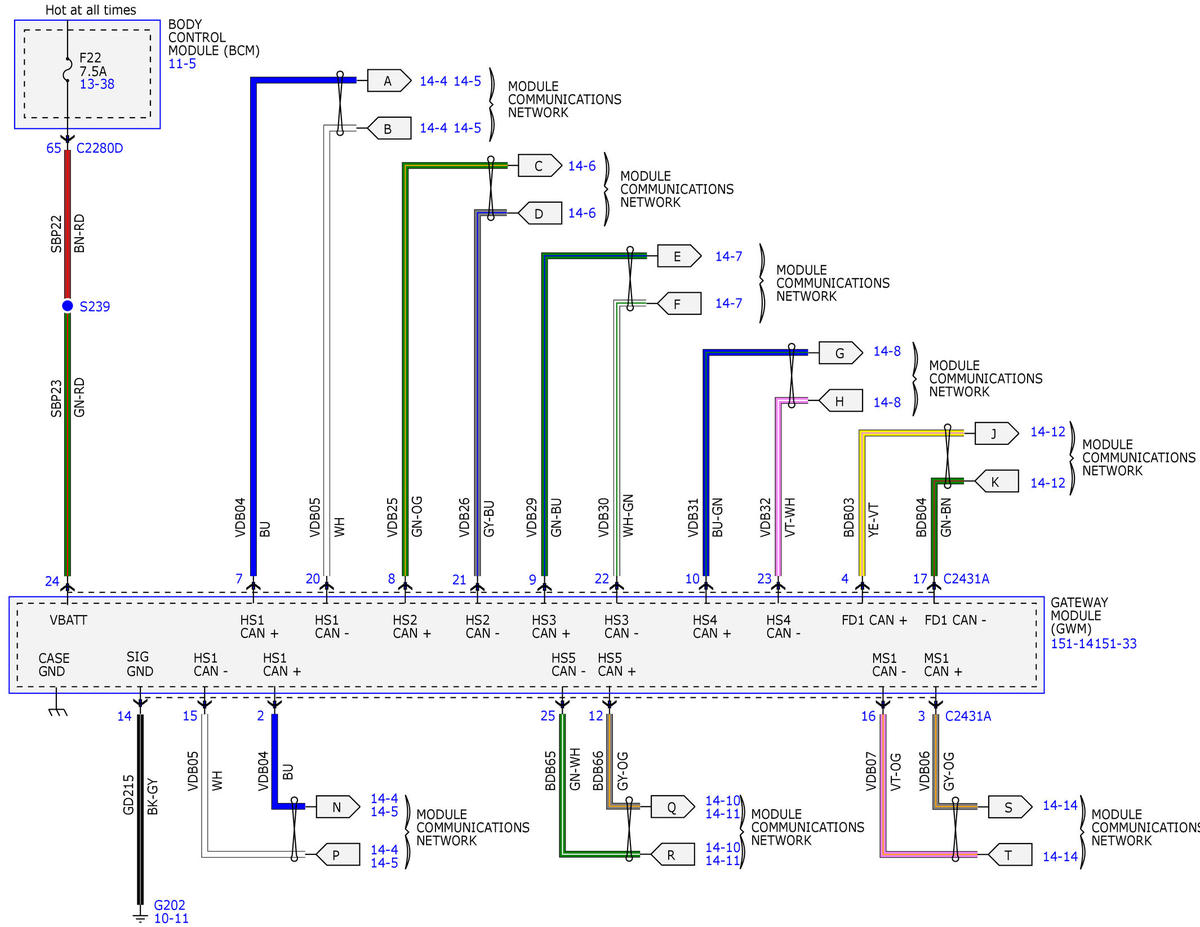

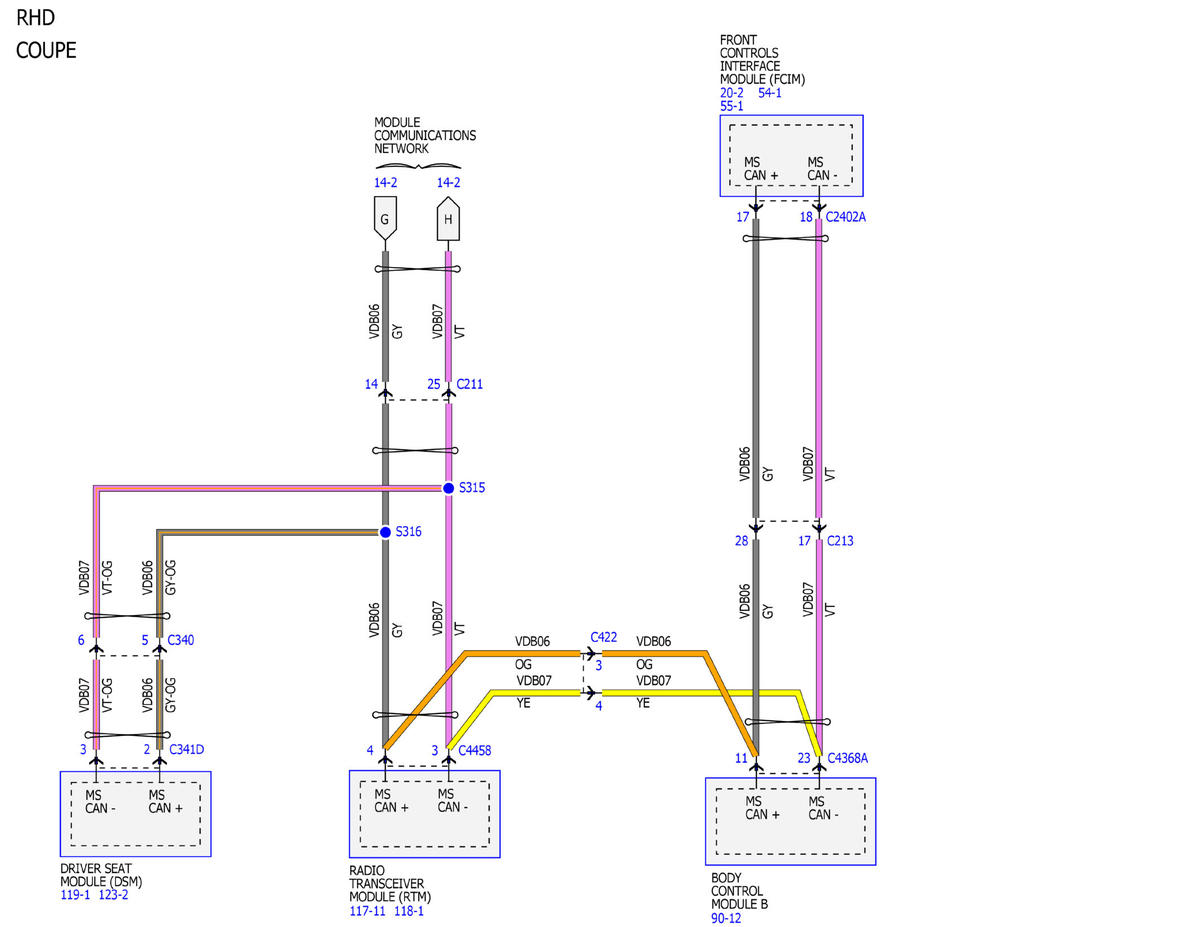

Fig 4: Module Communications Network Wiring Diagrams (4 Of 19)

Courtesy of FORD MOTOR COMPANY

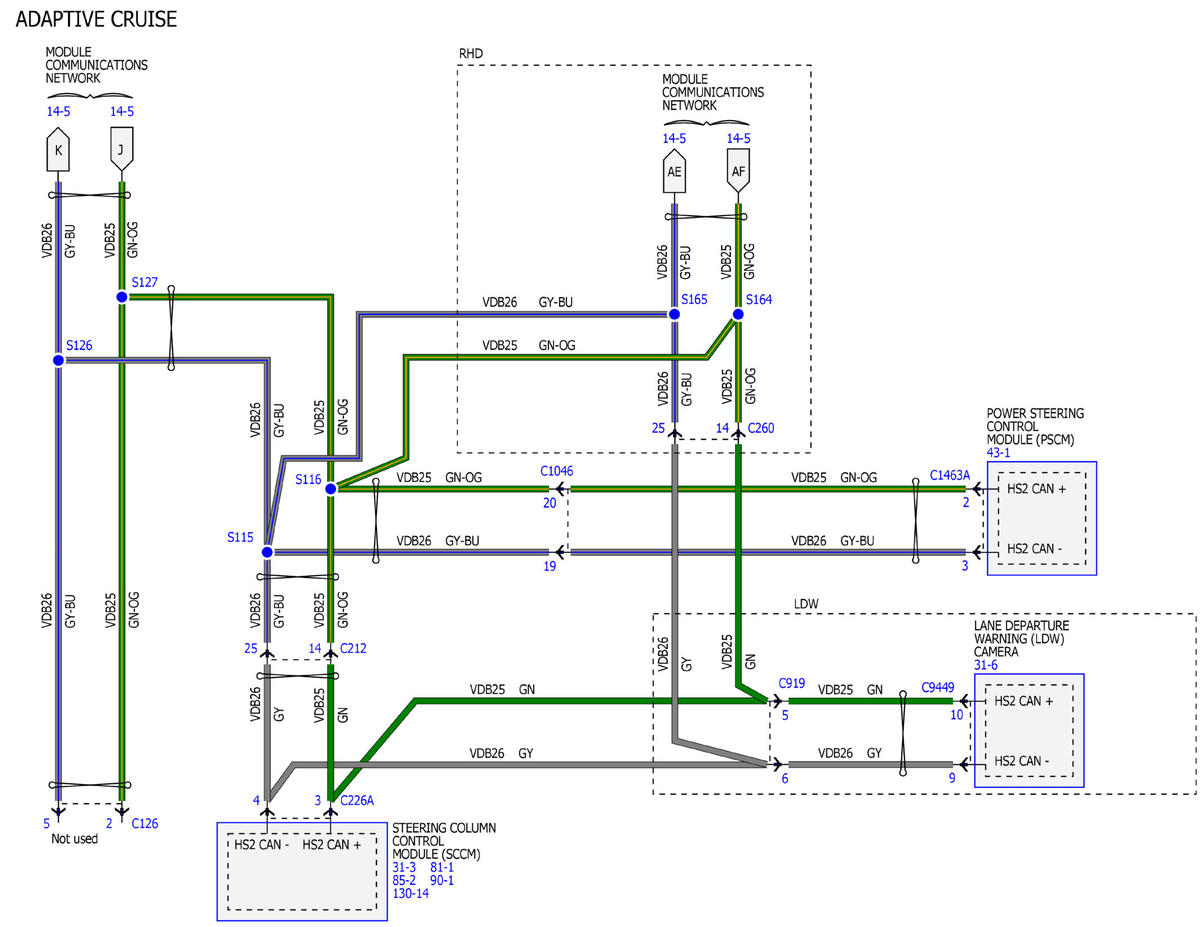

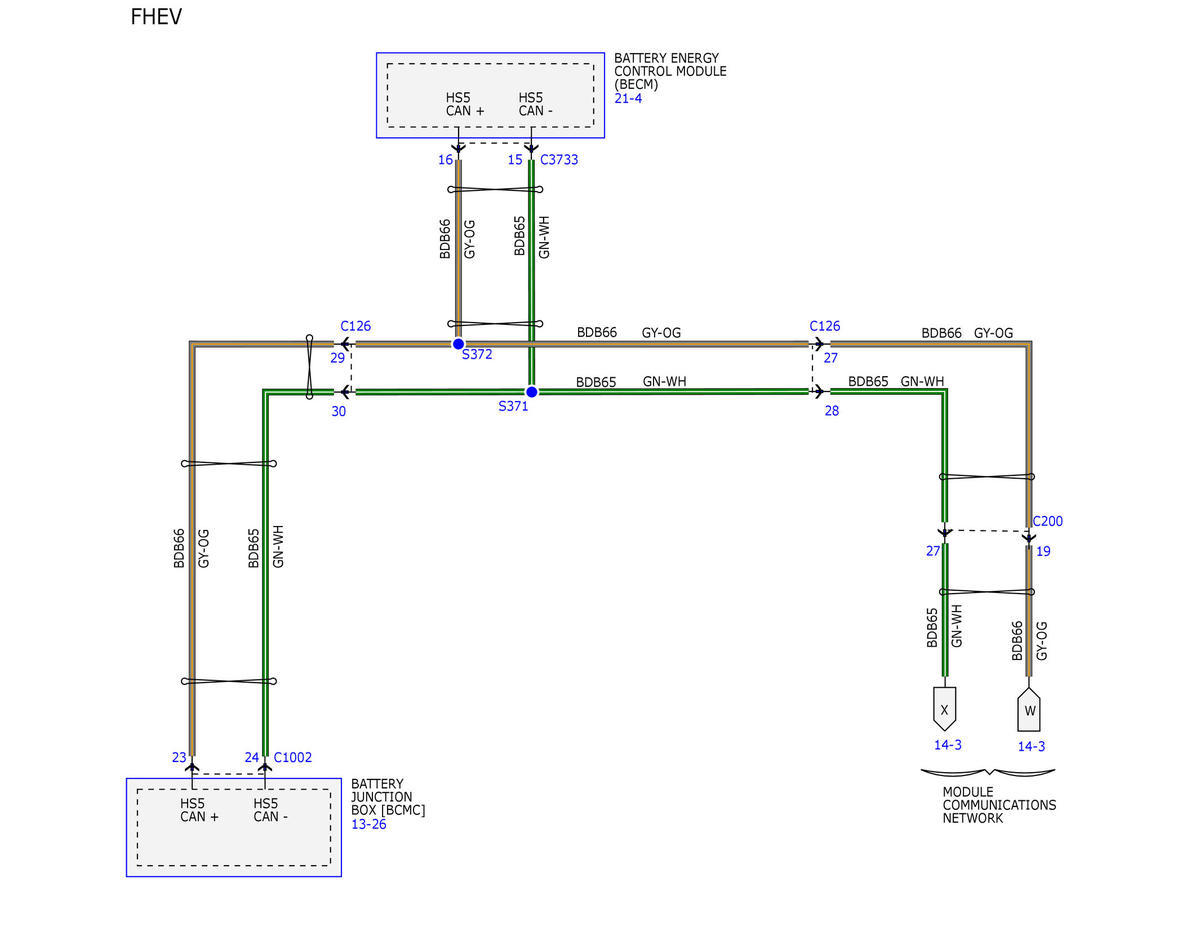

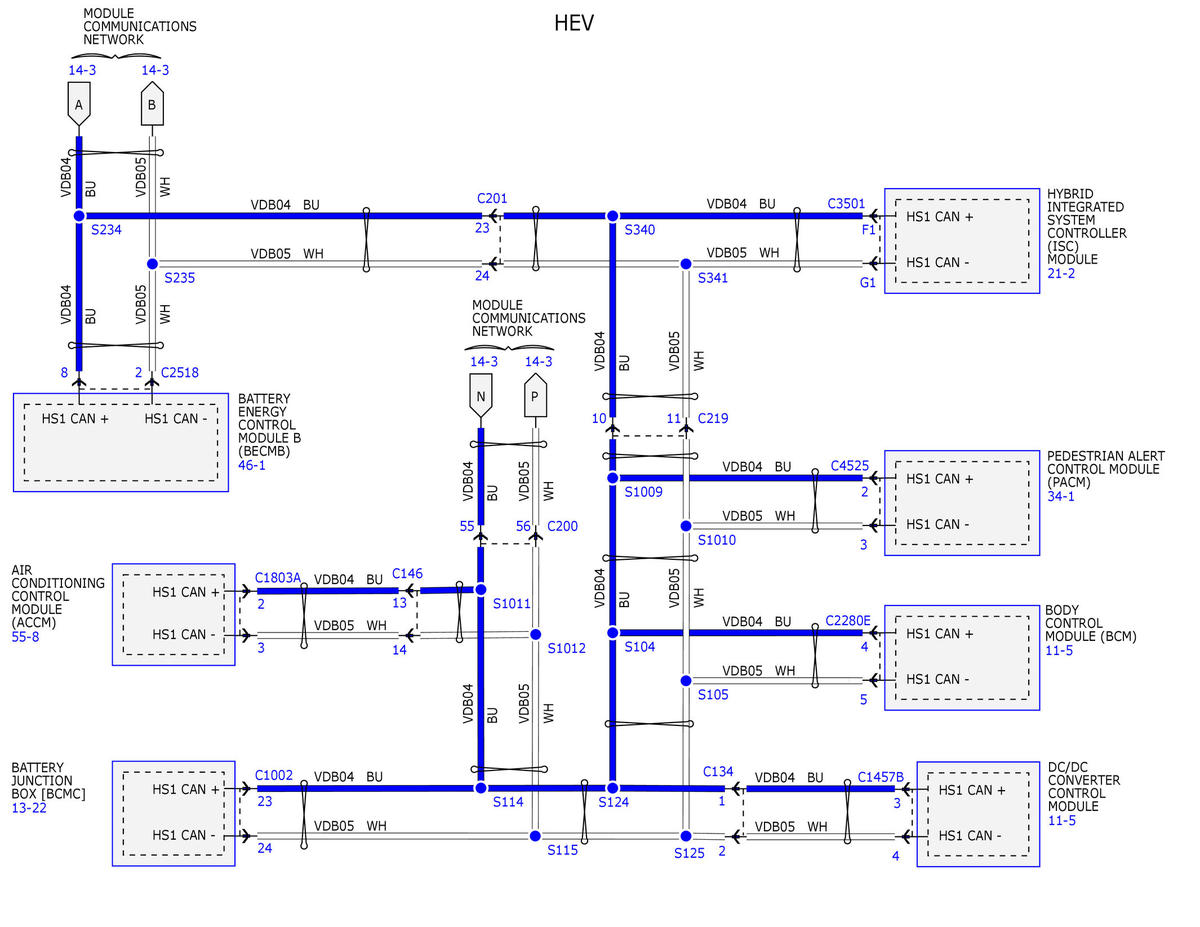

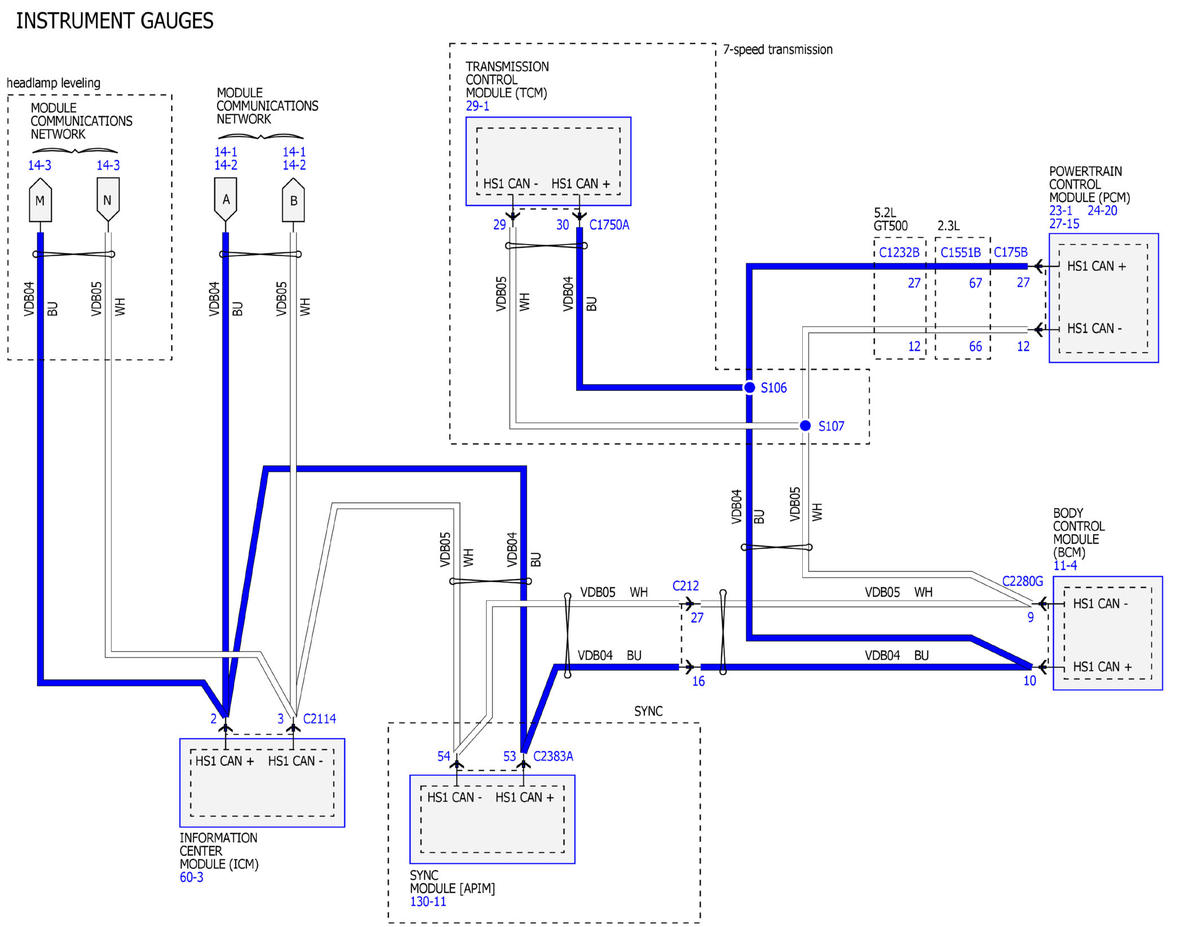

Fig 5: Module Communications Network Wiring Diagrams (5 Of 19)

Courtesy of FORD MOTOR COMPANY

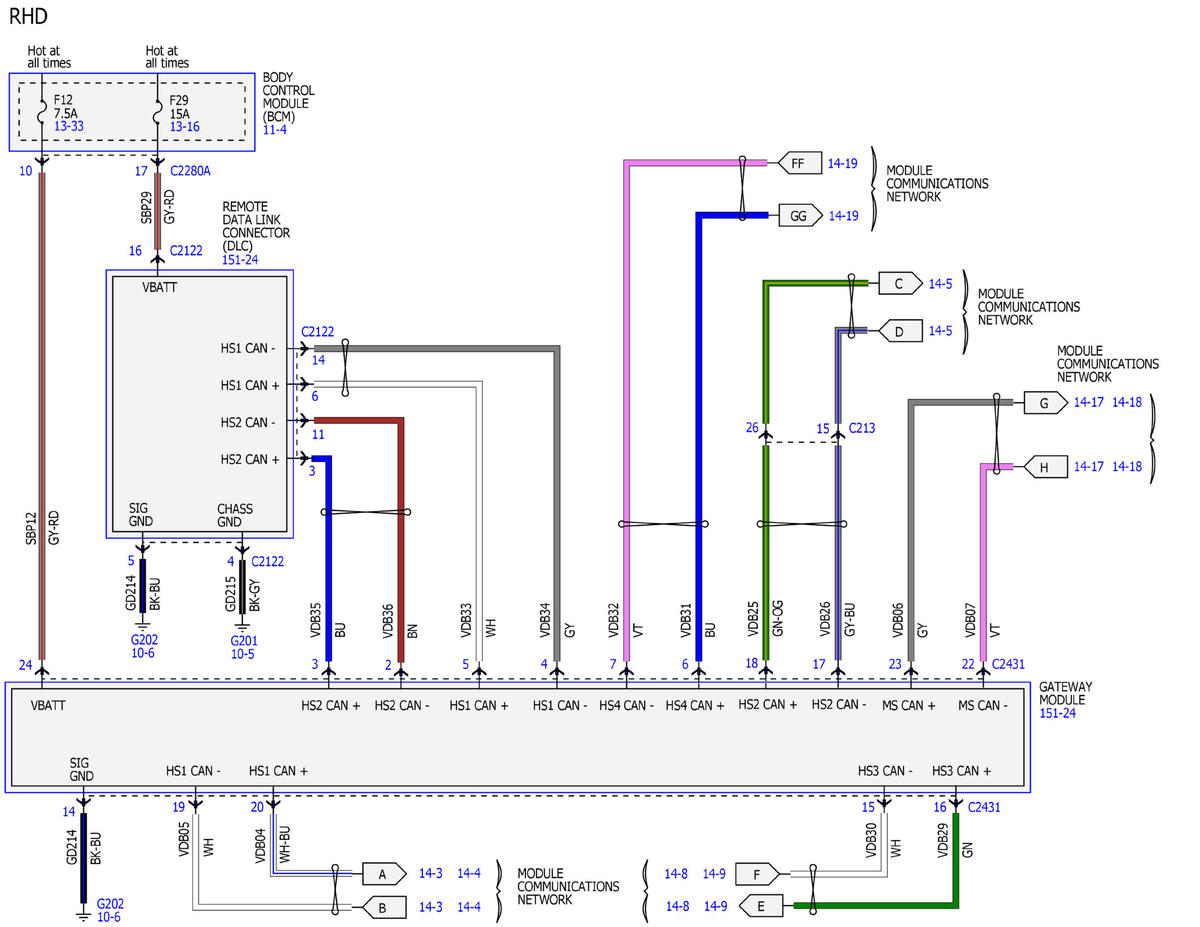

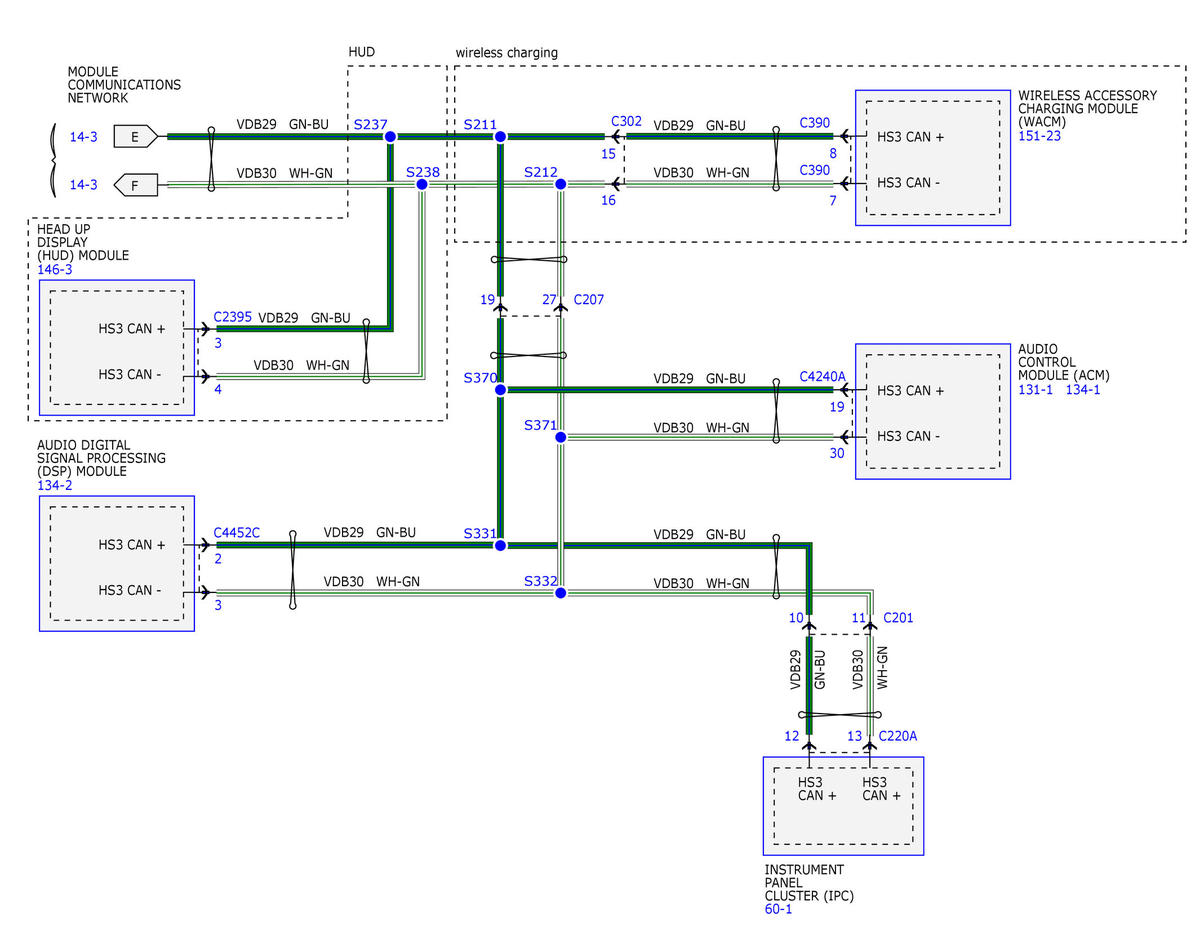

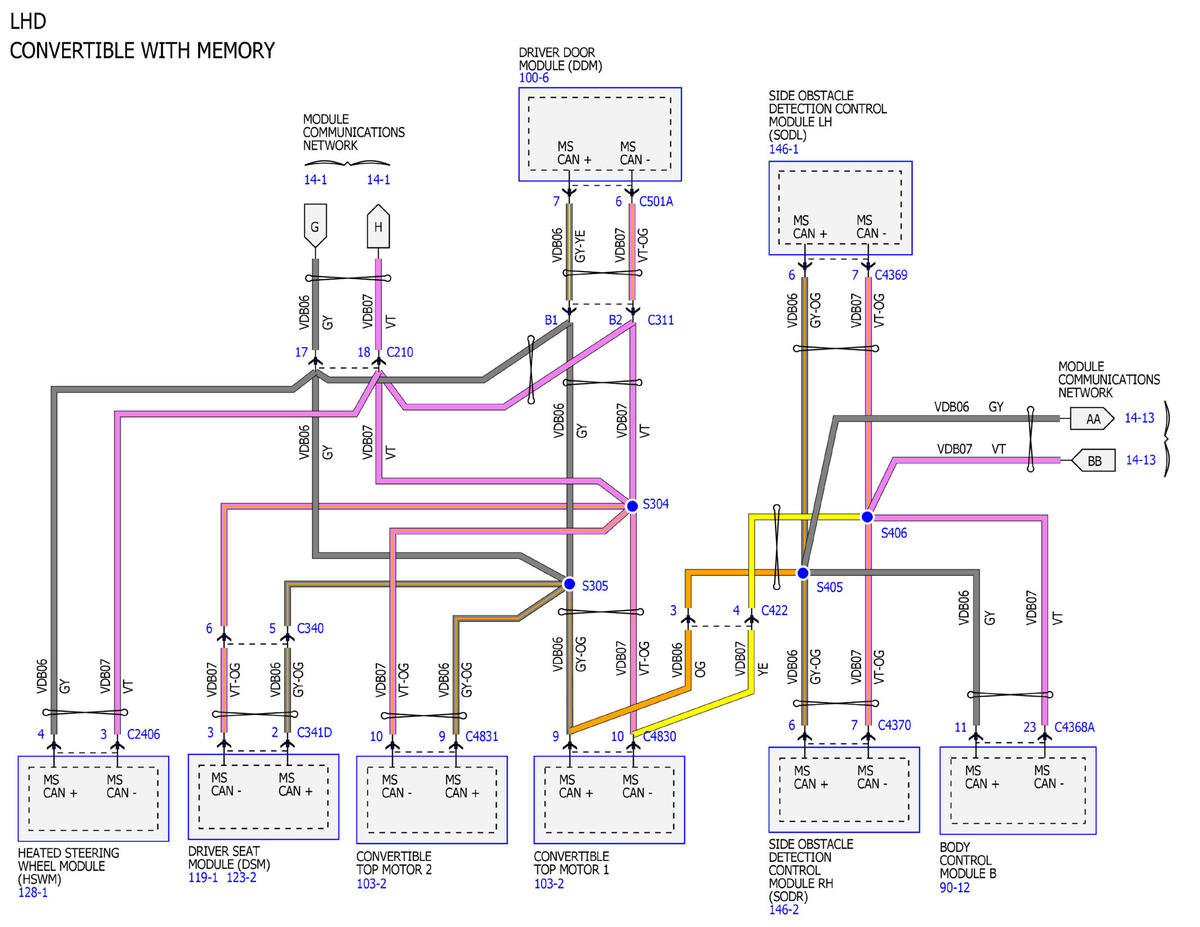

Fig 6: Module Communications Network Wiring Diagrams (6 Of 19)

Courtesy of FORD MOTOR COMPANY

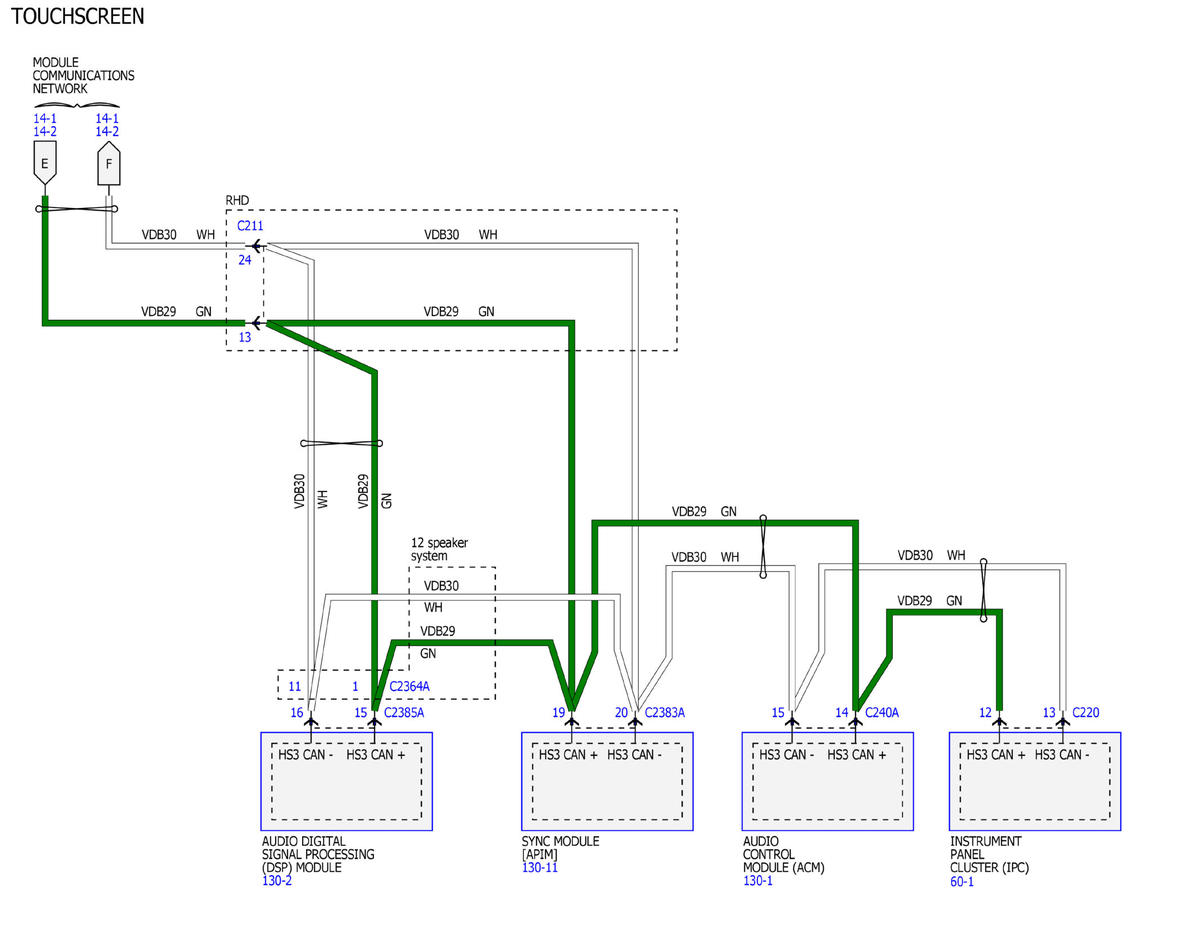

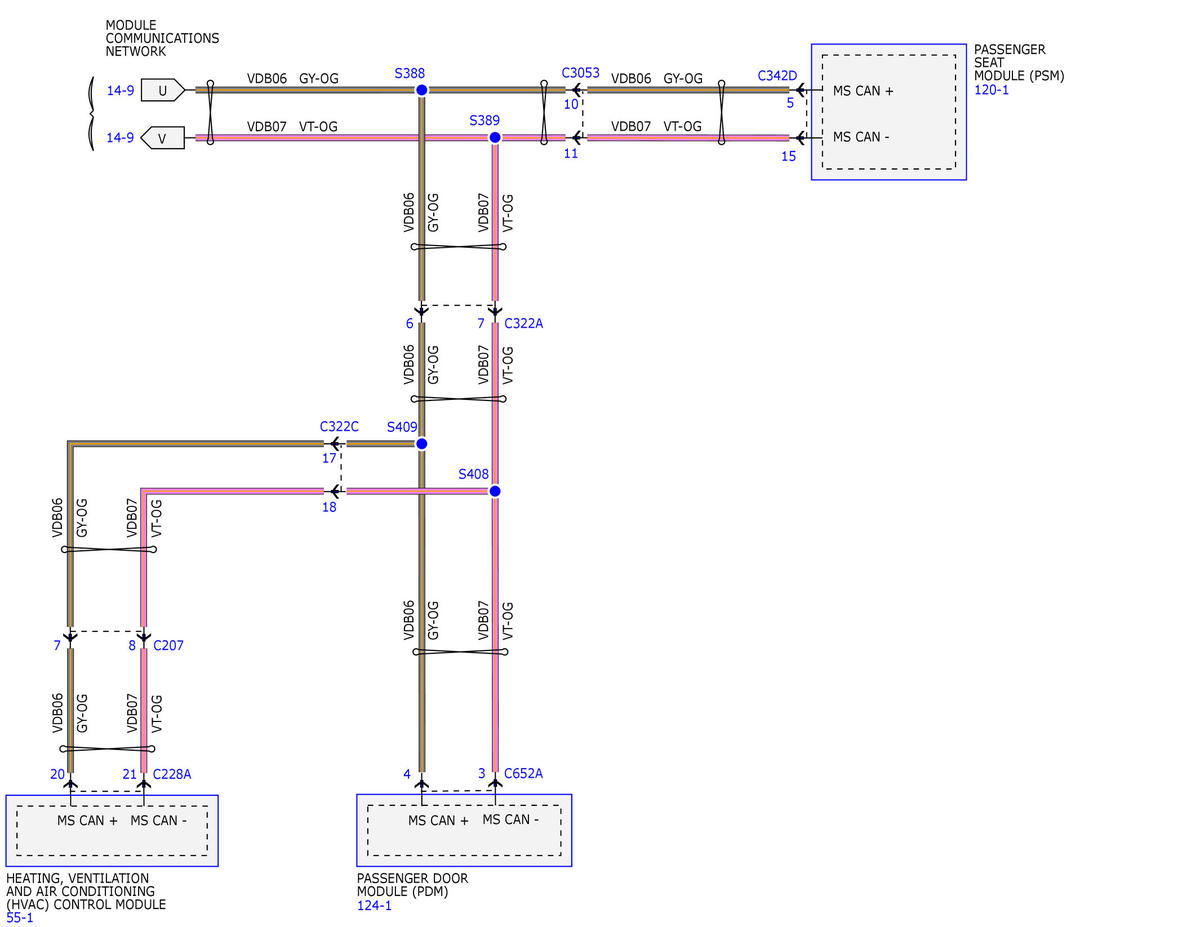

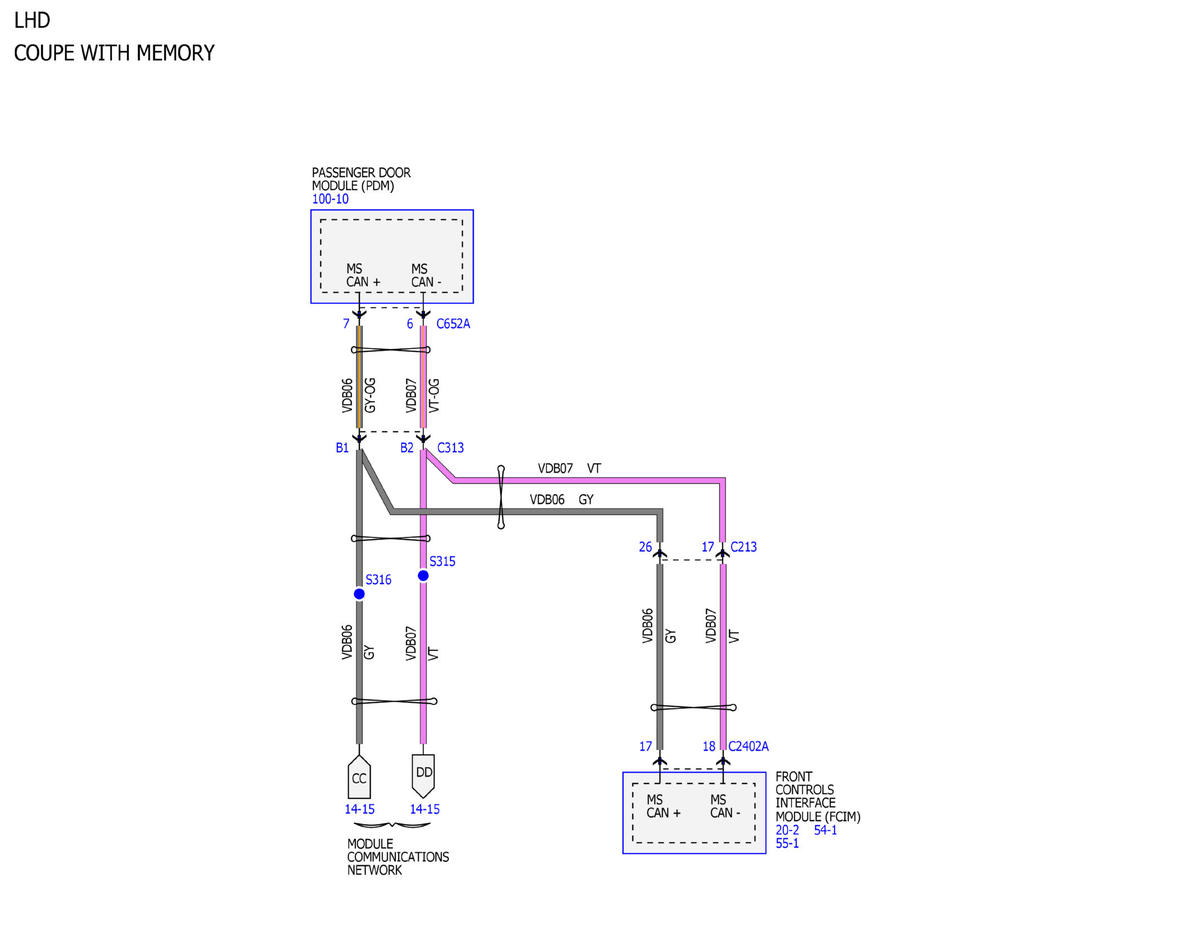

Fig 7: Module Communications Network Wiring Diagrams (7 Of 19)

Courtesy of FORD MOTOR COMPANY

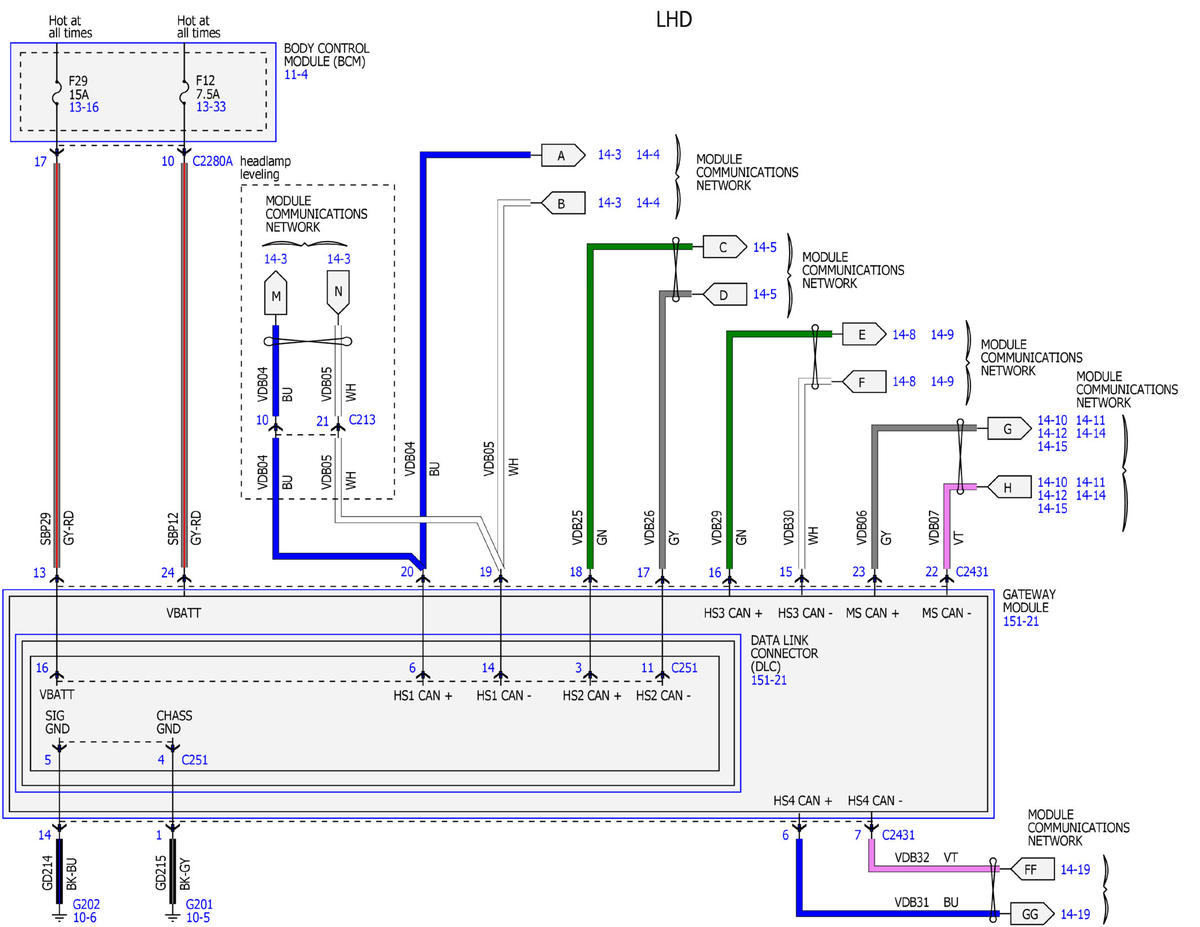

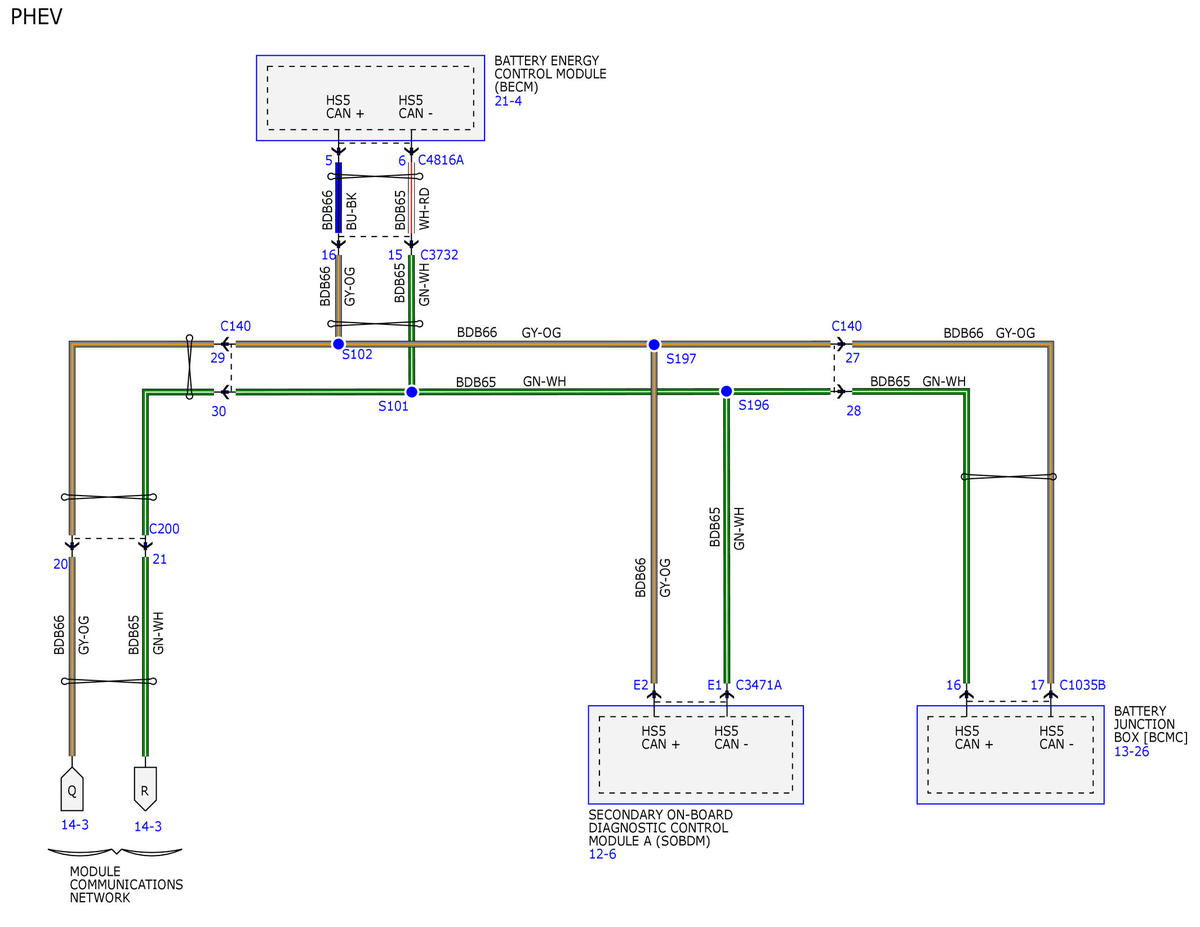

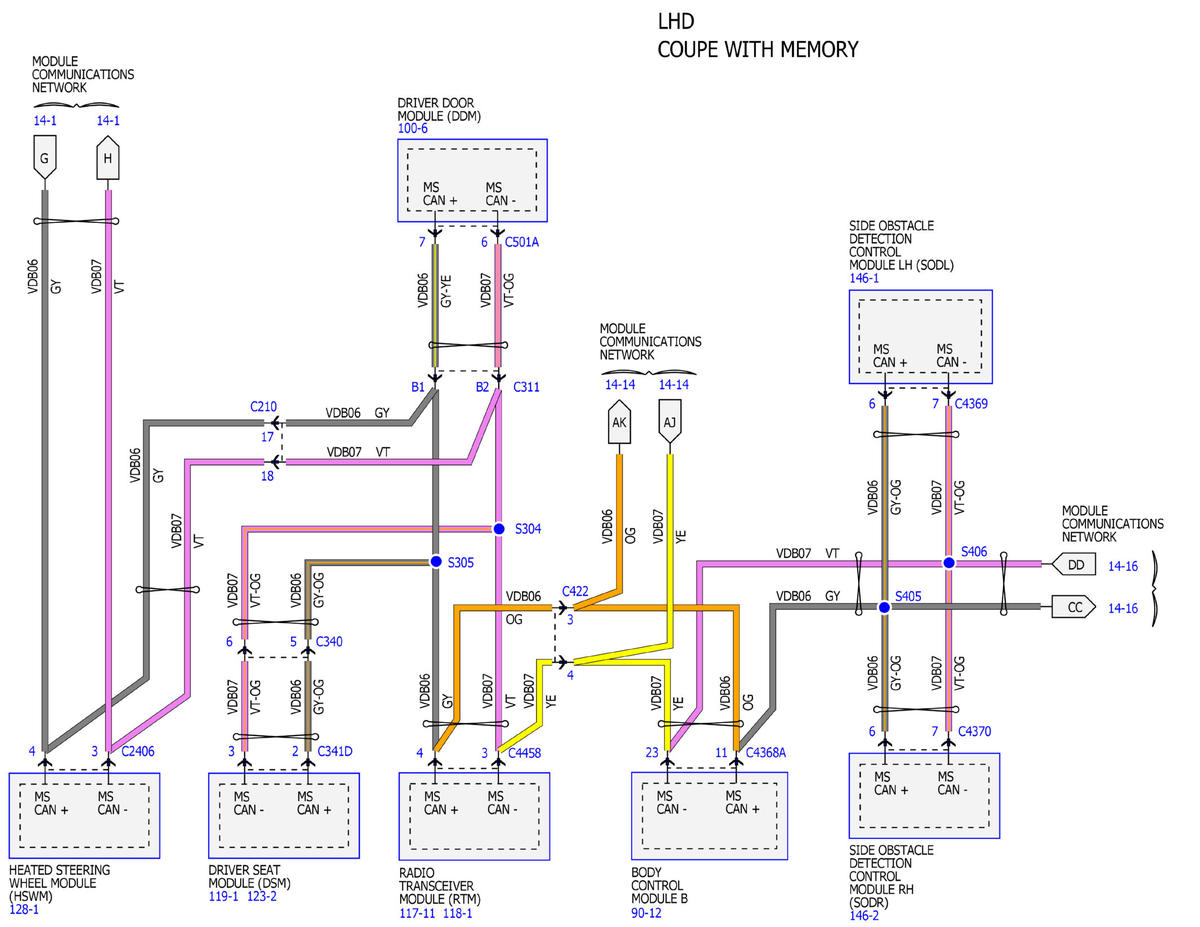

Fig 8: Module Communications Network Wiring Diagrams (8 Of 19)

Courtesy of FORD MOTOR COMPANY

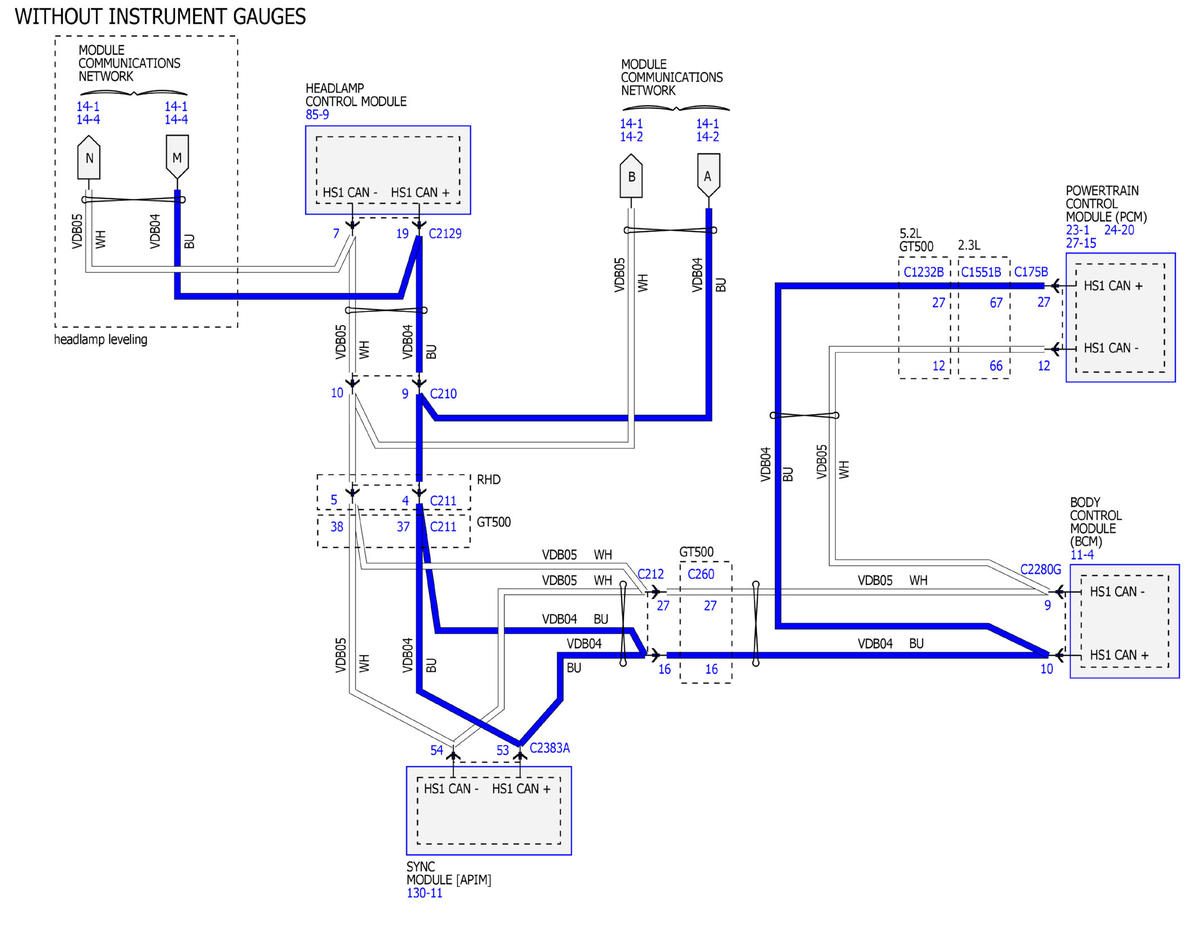

Fig 9: Module Communications Network Wiring Diagrams (9 Of 19)

Courtesy of FORD MOTOR COMPANY

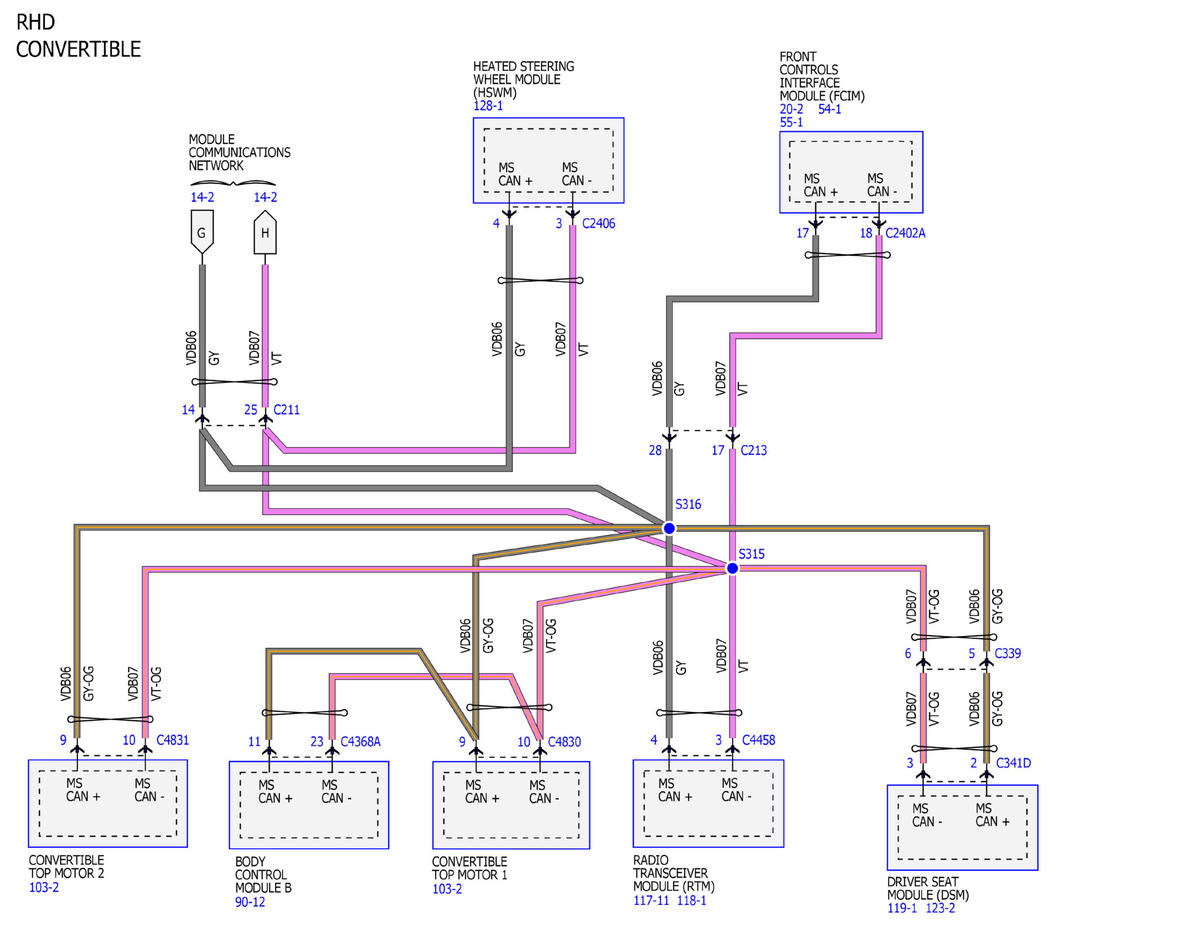

Fig 10: Module Communications Network Wiring Diagrams (10 Of 19)

Courtesy of FORD MOTOR COMPANY

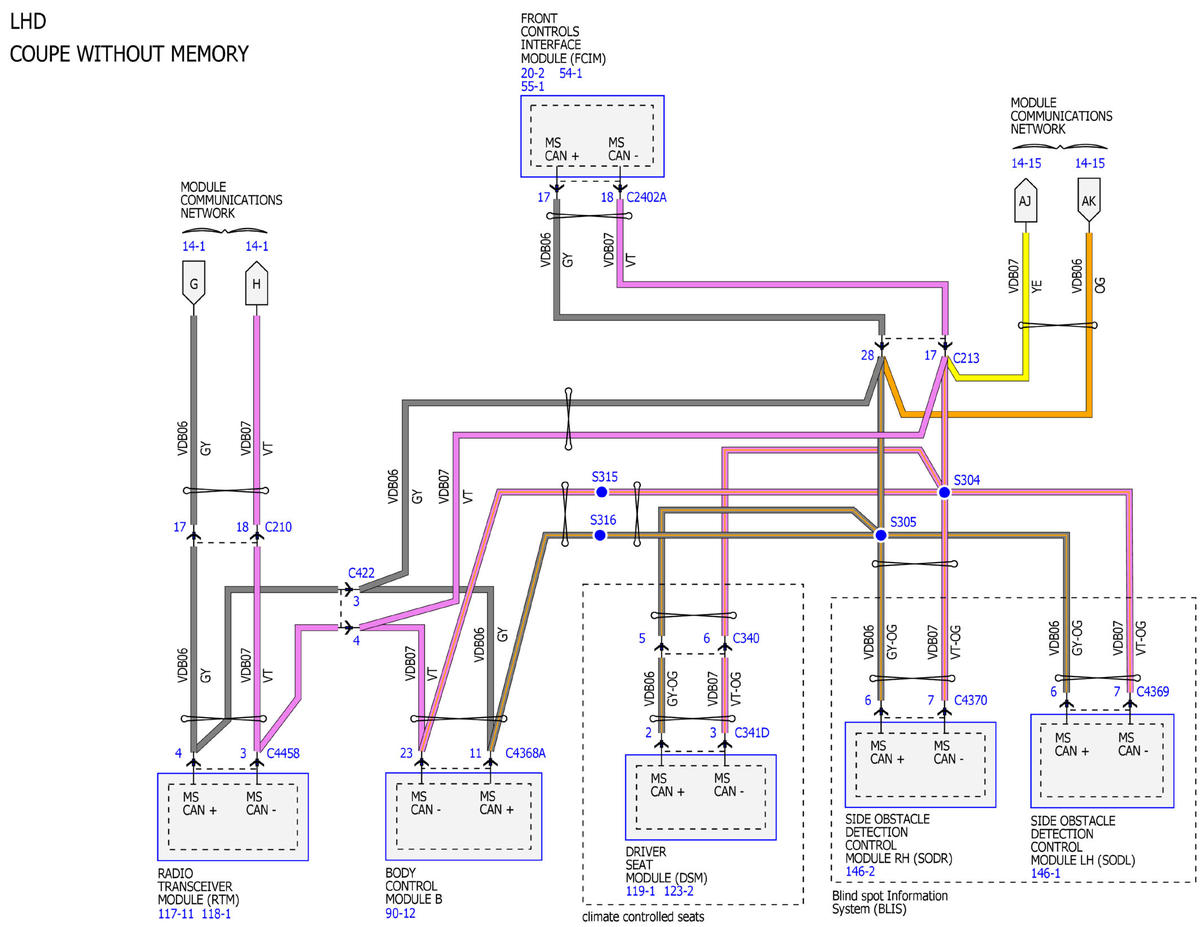

Fig 11: Module Communications Network Wiring Diagrams (11 Of 19)

Courtesy of FORD MOTOR COMPANY

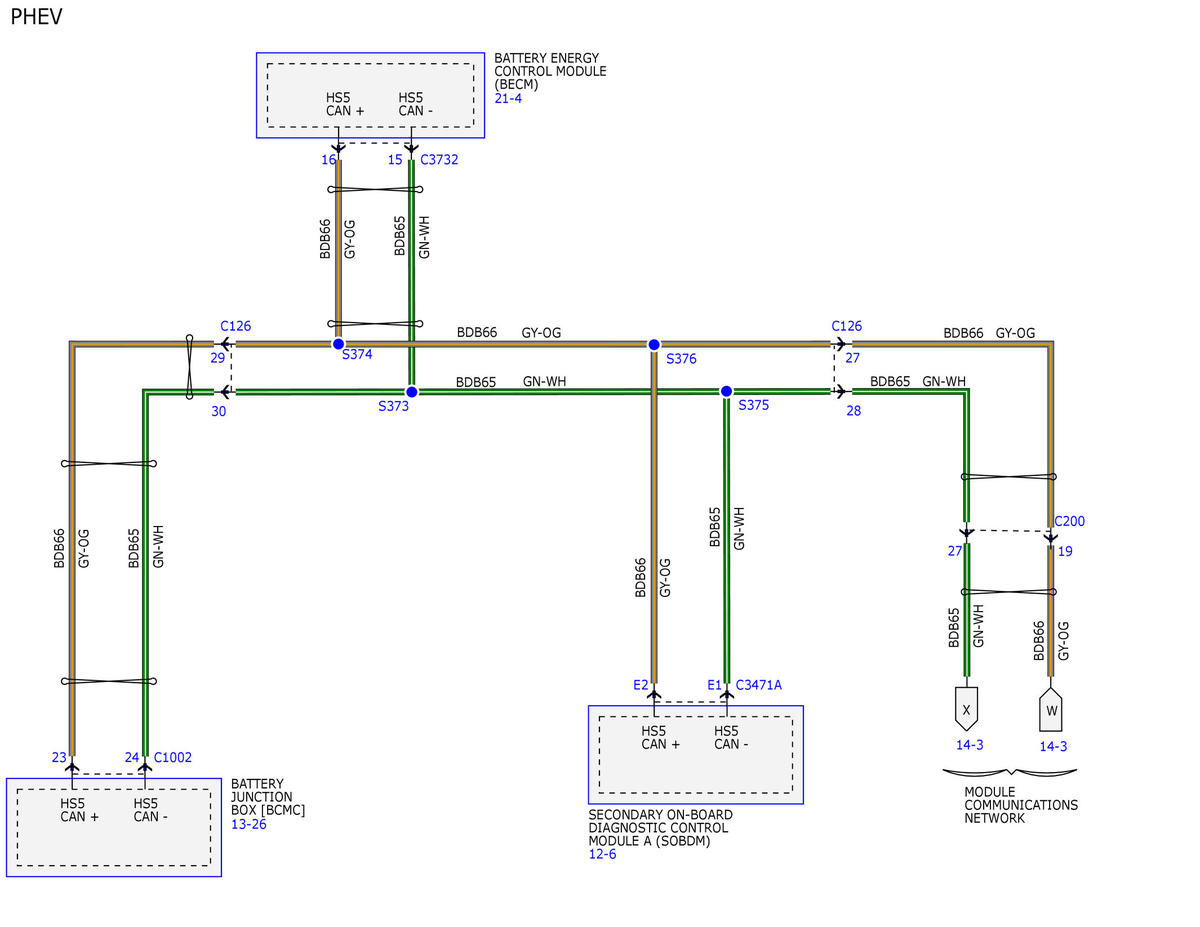

Fig 12: Module Communications Network Wiring Diagrams (12 Of 19)

Courtesy of FORD MOTOR COMPANY

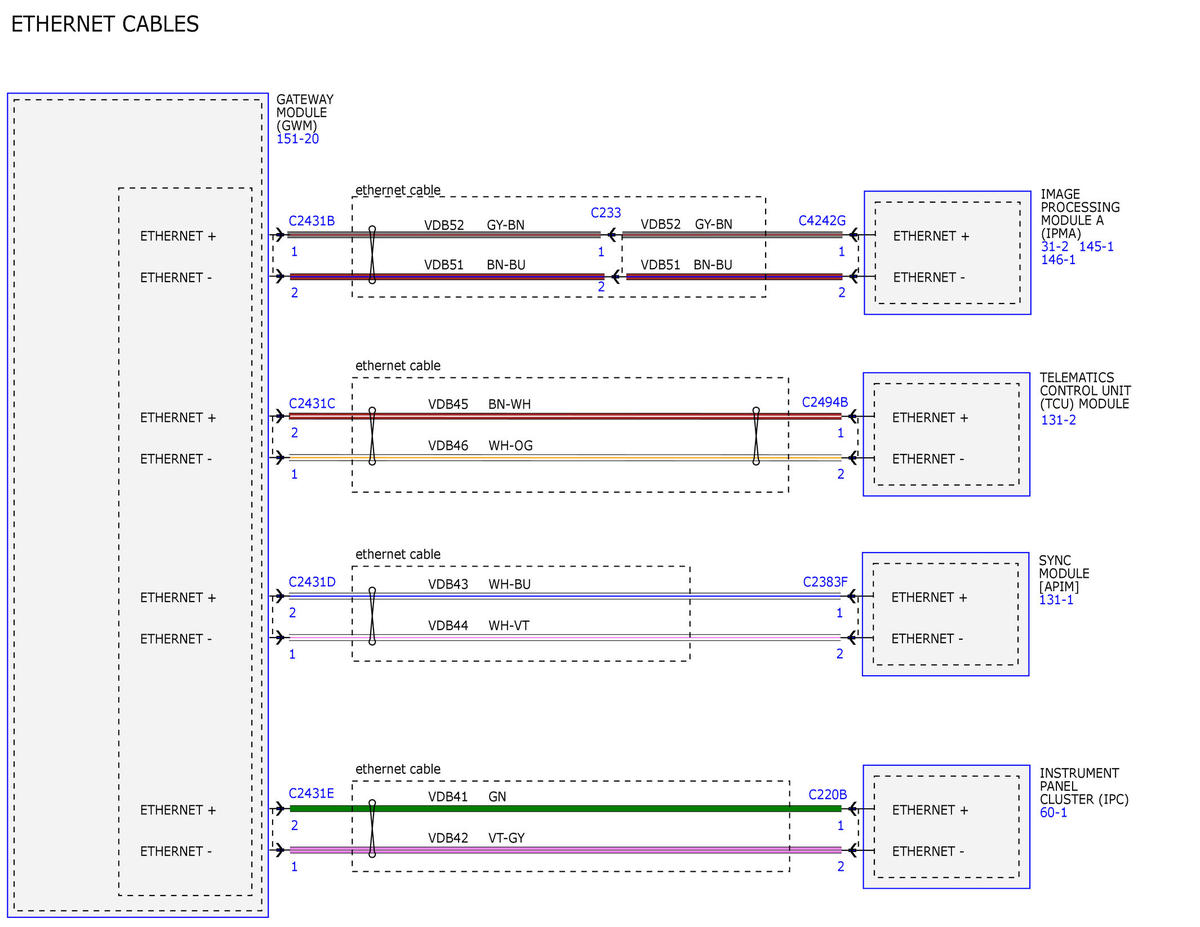

Fig 13: Module Communications Network Wiring Diagrams (13 Of 19)

Courtesy of FORD MOTOR COMPANY

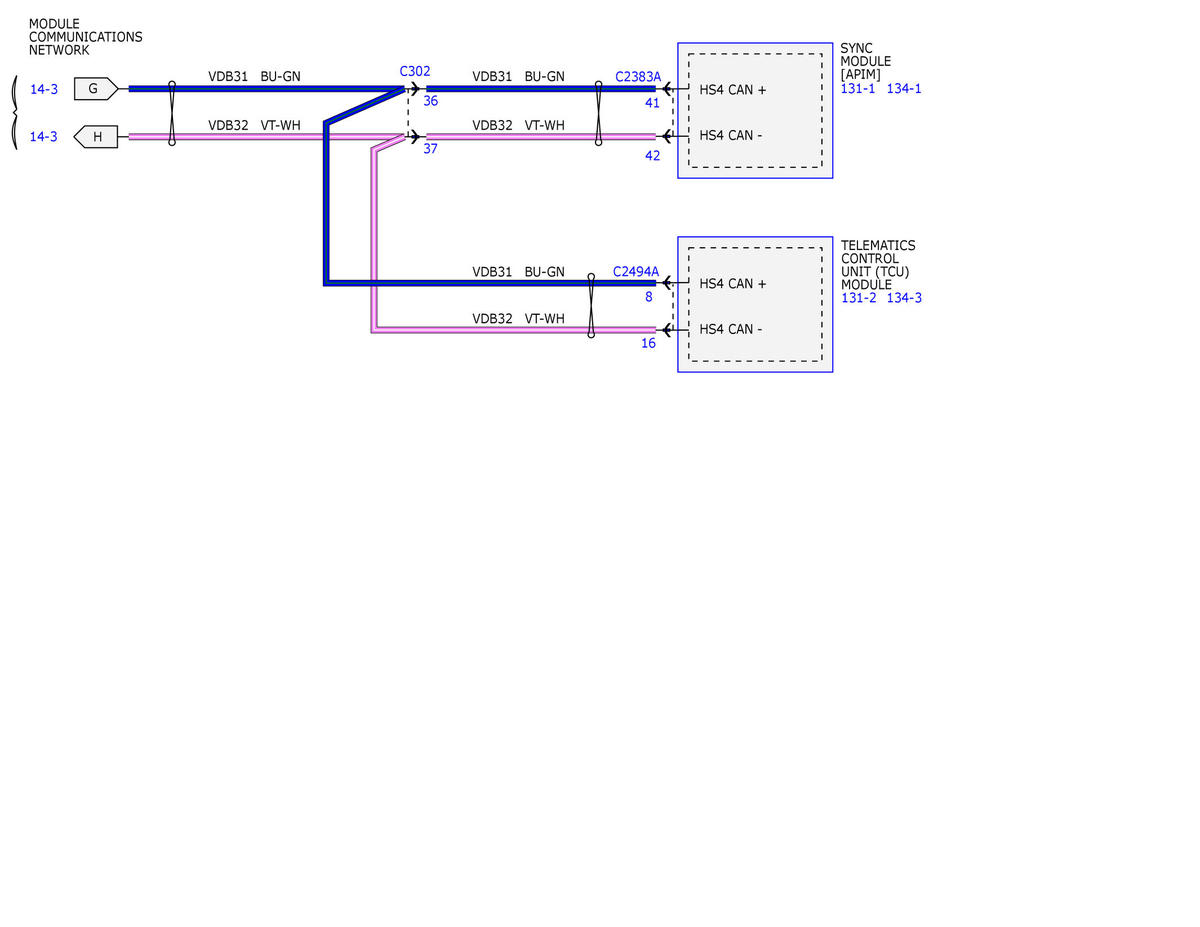

Fig 14: Module Communications Network Wiring Diagrams (14 Of 19)

Courtesy of FORD MOTOR COMPANY

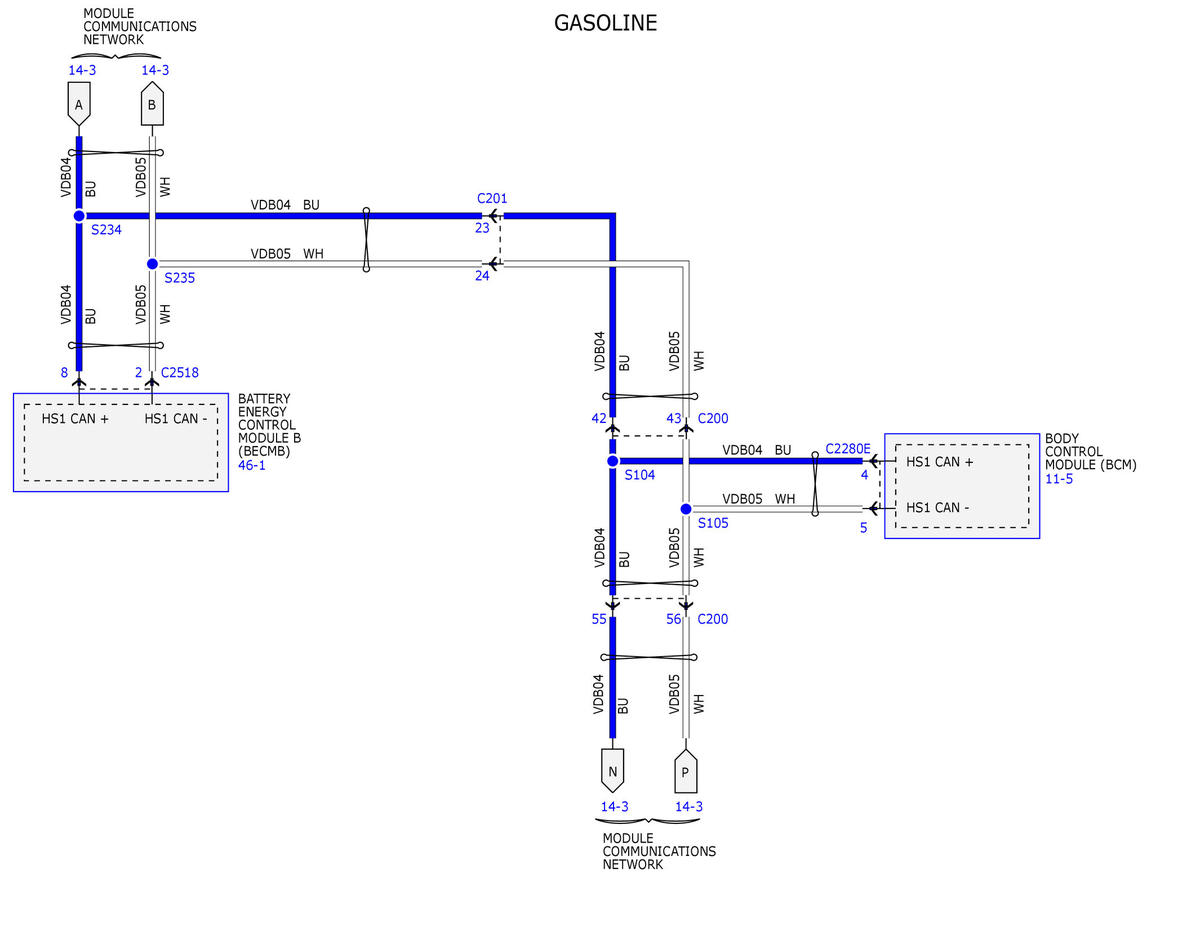

Fig 15: Module Communications Network Wiring Diagrams (15 Of 19)

Courtesy of FORD MOTOR COMPANY

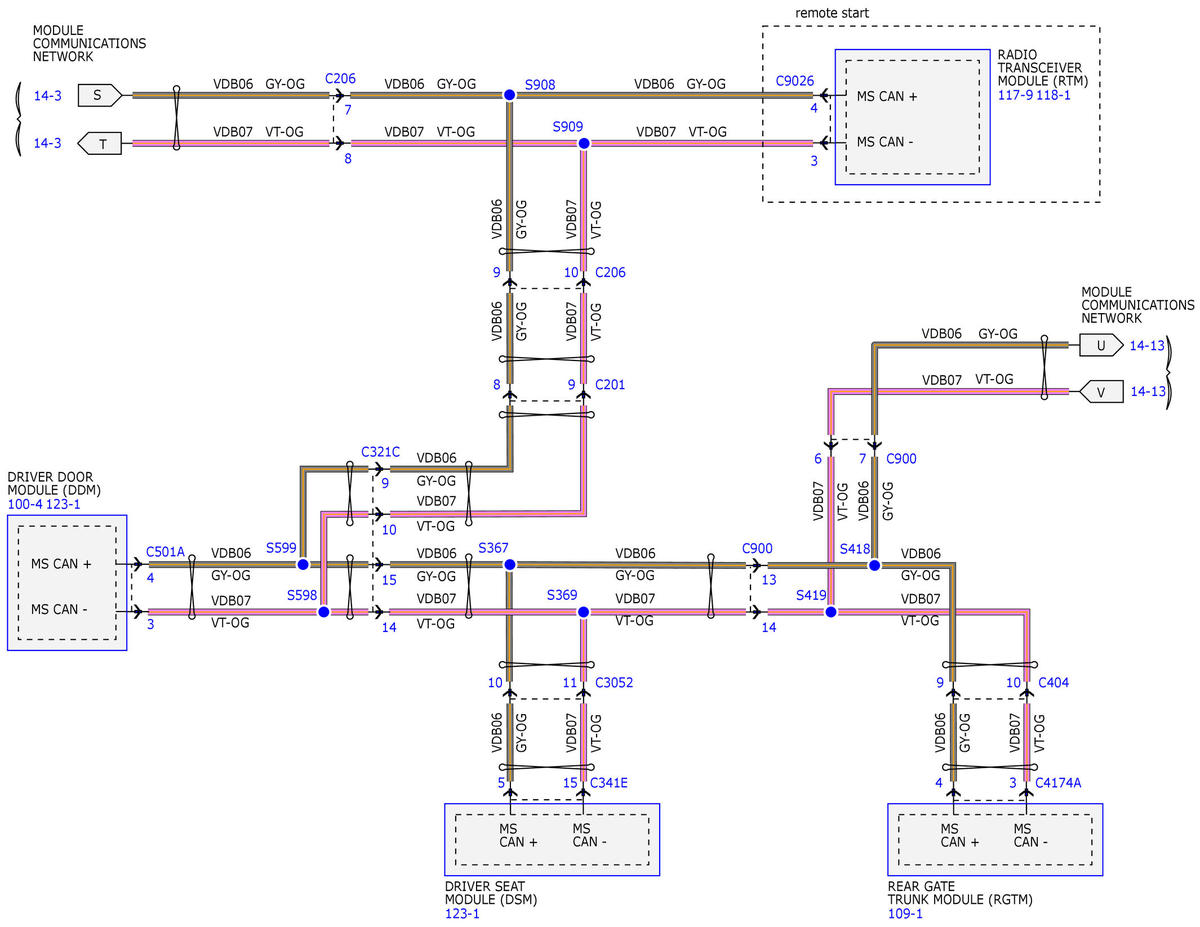

Fig 16: Module Communications Network Wiring Diagrams (16 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 17: Module Communications Network Wiring Diagrams (17 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 18: Module Communications Network Wiring Diagrams (18 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 19: Module Communications Network Wiring Diagrams (19 Of 19)

Courtesy of FORD MOTOR COMPANY
