Steering Column: Removal

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Precise tolerances are required when manufacturing a steering column. Never install a repaired, rebuilt, aftermarket, or remanufactured steering column. Always install a new steering column. Failure to follow this direction can result in steering column failure.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
NOTE: This step is only necessary when installing a new component.

Remove the SCCM. Refer to: Steering Column Control Module (SCCM) .
NOTE: This step is only necessary when installing a new component.

Remove the steering column shrouds. Refer to: Steering Column Shrouds .
NOTE: Make sure that the steering wheel does not rotate or damage to the clockspring may occur.

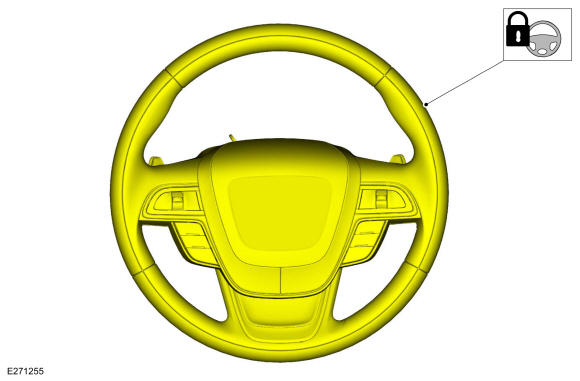

Secure the steering wheel.

Courtesy of FORD MOTOR COMPANY
Position aside the LH steering column opening panel.

Courtesy of FORD MOTOR COMPANY
Remove the driver knee airbag nut.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with power adjustable steering column

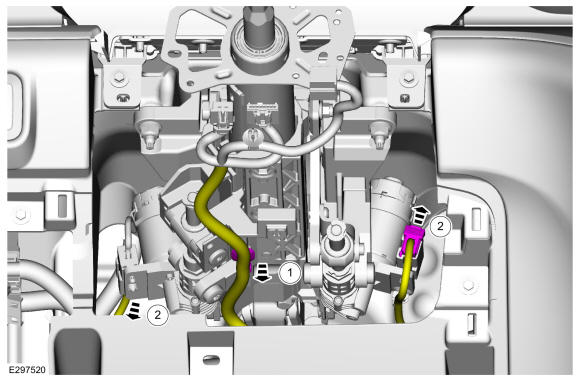

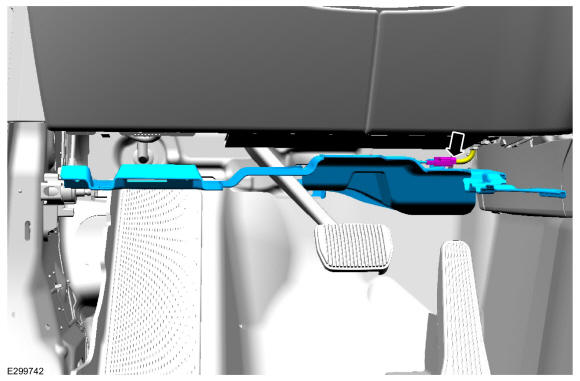

1. Release the wiring harness retainers.
2. Disconnect the steering column tilt motor and telescopic motor electrical connectors.
Courtesy of FORD MOTOR COMPANY

All vehicles
Remove the retainers and drop the driver side insulator panel down from the instrument panel.

Courtesy of FORD MOTOR COMPANY
Disconnect the interior lamp electrical connector and remove the LH insulation panel.

Courtesy of FORD MOTOR COMPANY

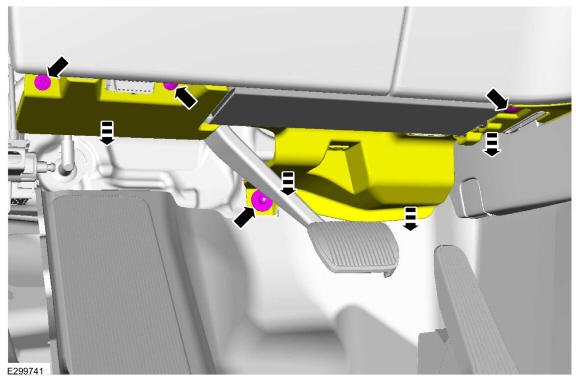

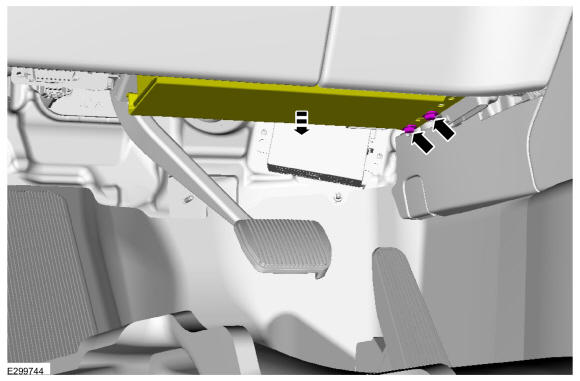

Remove the bolts and position the driver knee airbag out from the instrument panel.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

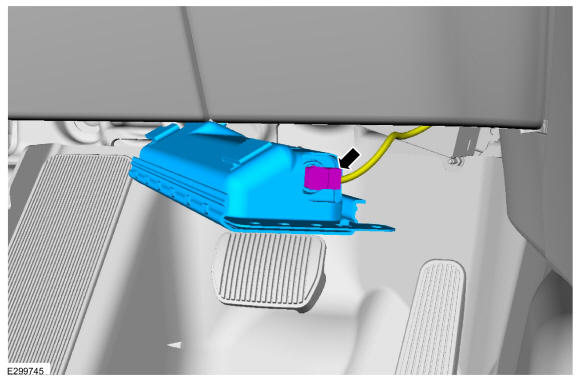

Disconnect and remove the driver knee airbag.

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

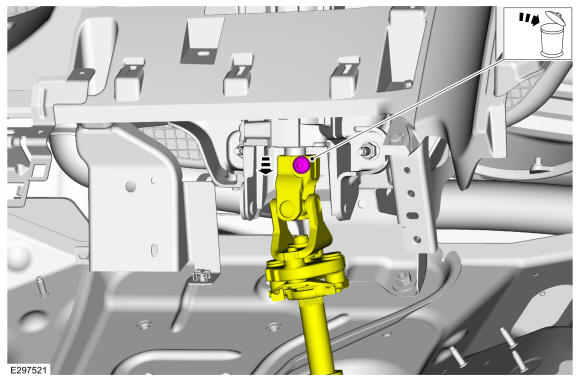

Remove and discard the steering column shaft bolt and separate the steering column shaft from the steering column.

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

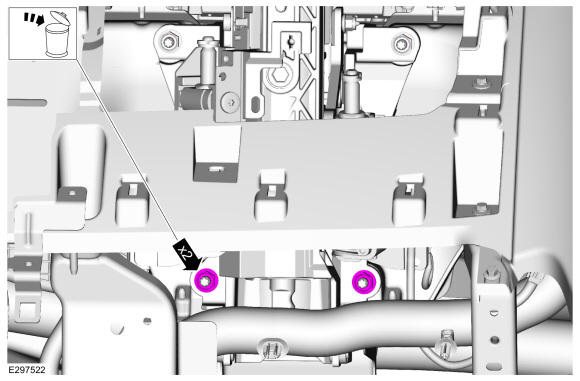

Remove and discard the rear steering column mounting nuts.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Power adjustable column shown, others similar.

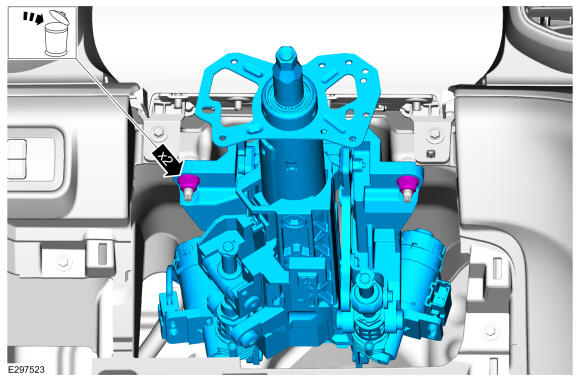

Remove and discard the forward steering column mounting nuts and remove the steering column.
