Module Communications Network

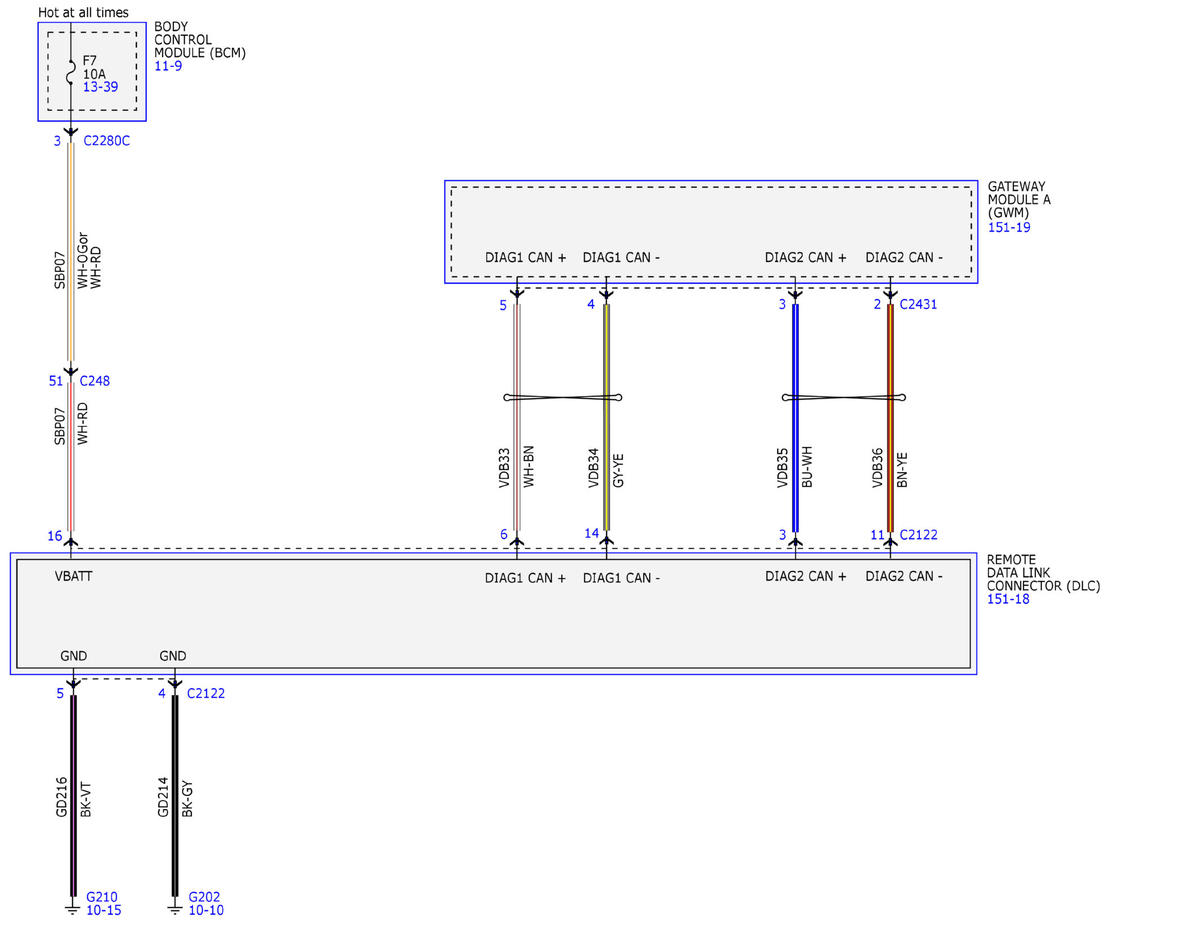

Fig 1: Module Communications Network - Wiring Diagrams (1 Of 29)

GFDWR218709

Courtesy of FORD MOTOR COMPANY

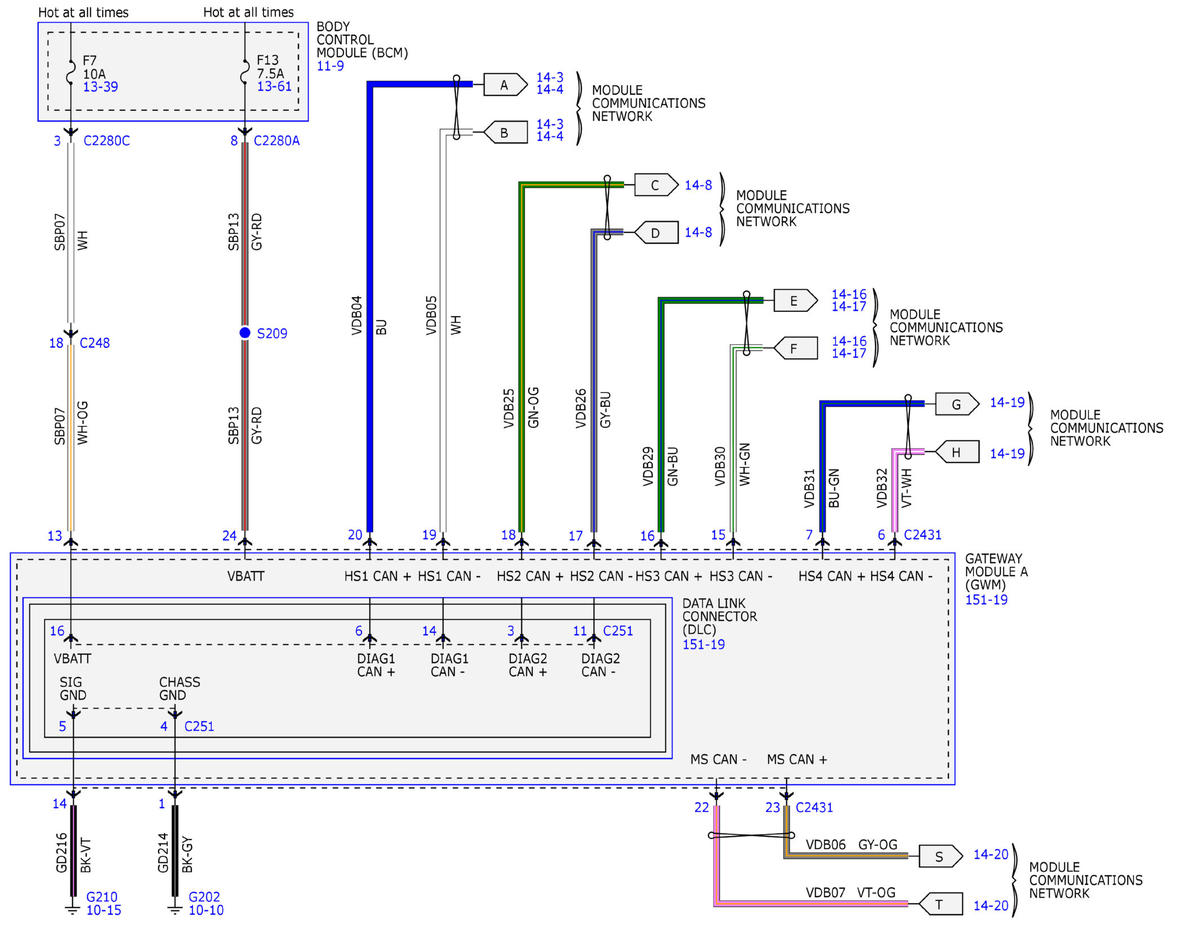

Fig 2: Module Communications Network - Wiring Diagrams (2 Of 29)

GFDWR218720

Courtesy of FORD MOTOR COMPANY

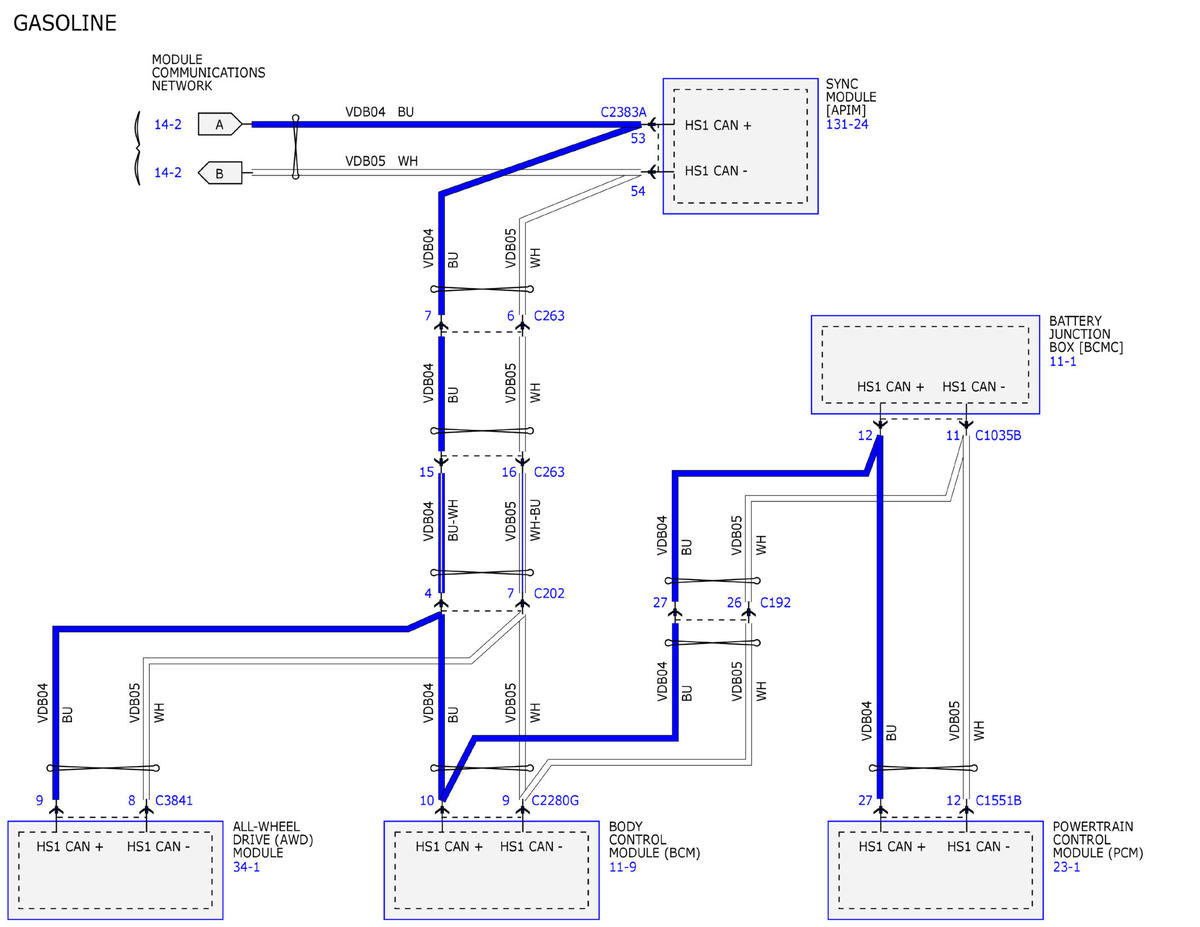

Fig 3: Module Communications Network - Wiring Diagrams (3 Of 29)

GFDWR218731

Courtesy of FORD MOTOR COMPANY

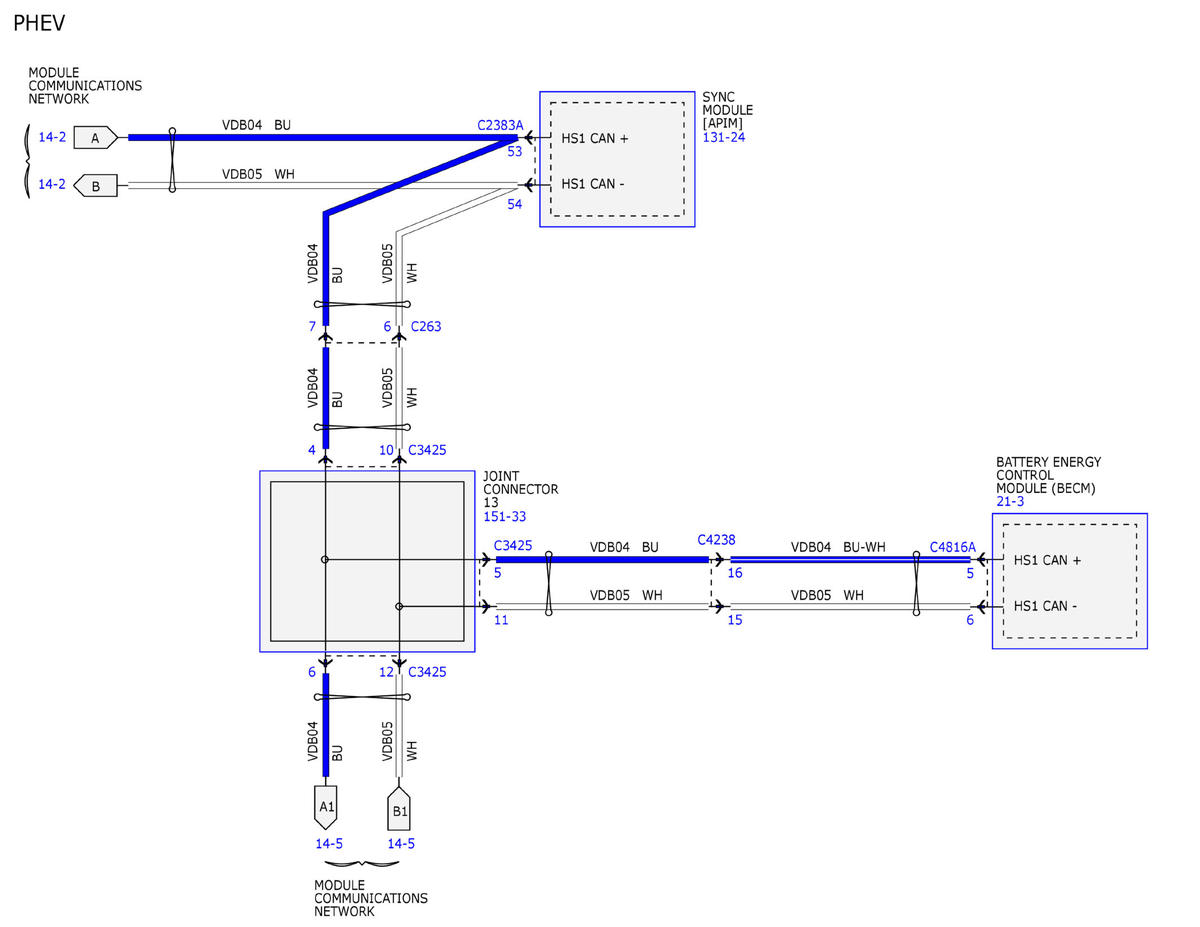

Fig 4: Module Communications Network - Wiring Diagrams (4 Of 29)

GFDWR218732

Courtesy of FORD MOTOR COMPANY

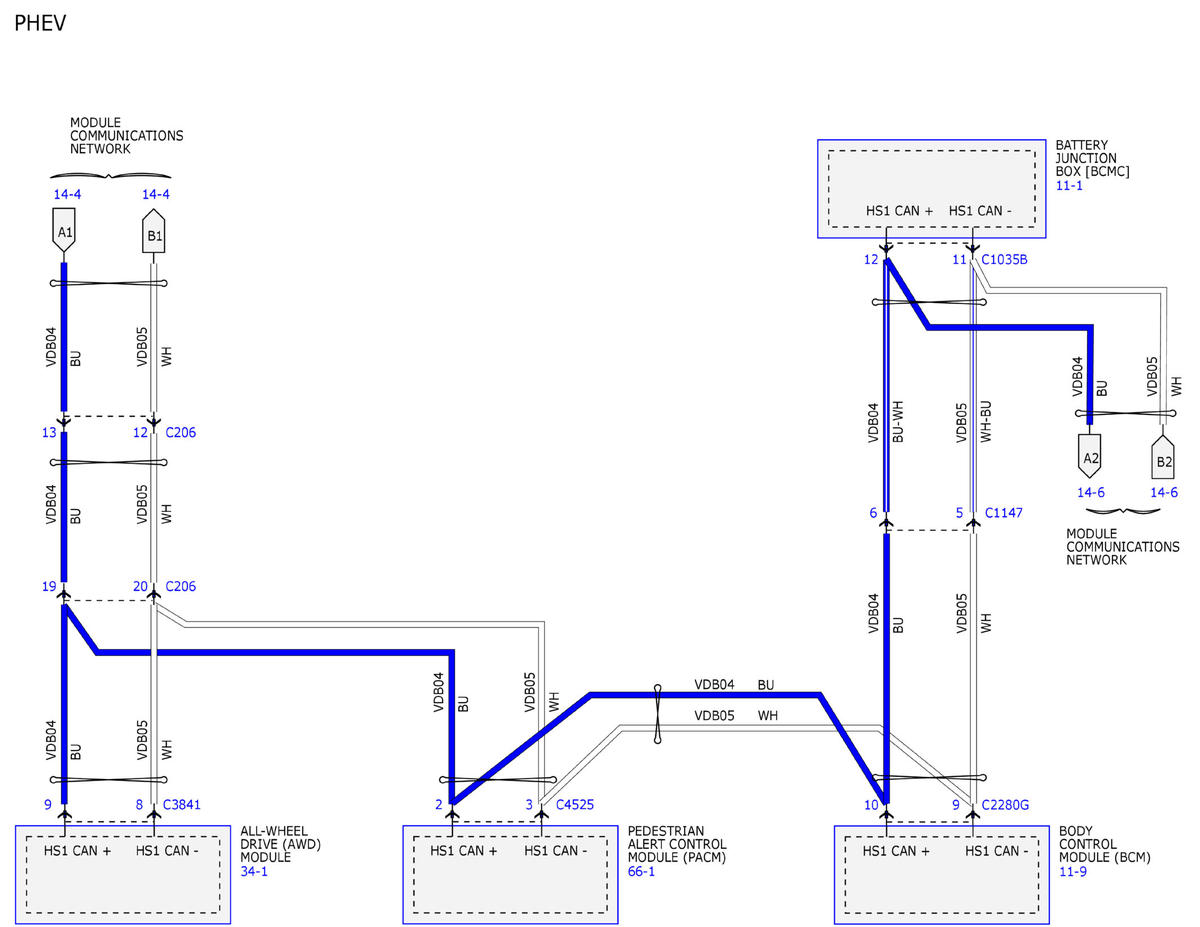

Fig 5: Module Communications Network - Wiring Diagrams (5 Of 29)

GFDWR218733

Courtesy of FORD MOTOR COMPANY

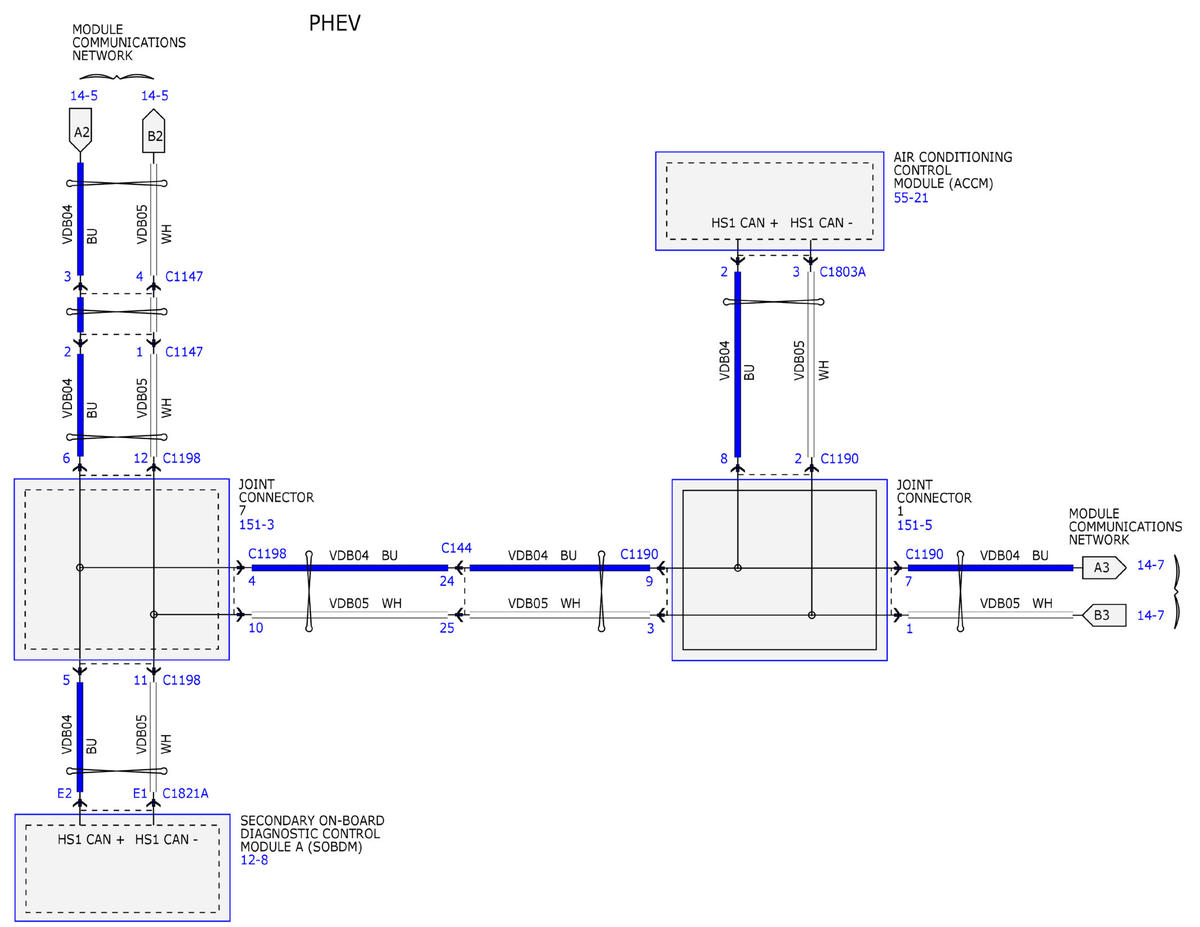

Fig 6: Module Communications Network - Wiring Diagrams (6 Of 29)

GFDWR218734

Courtesy of FORD MOTOR COMPANY

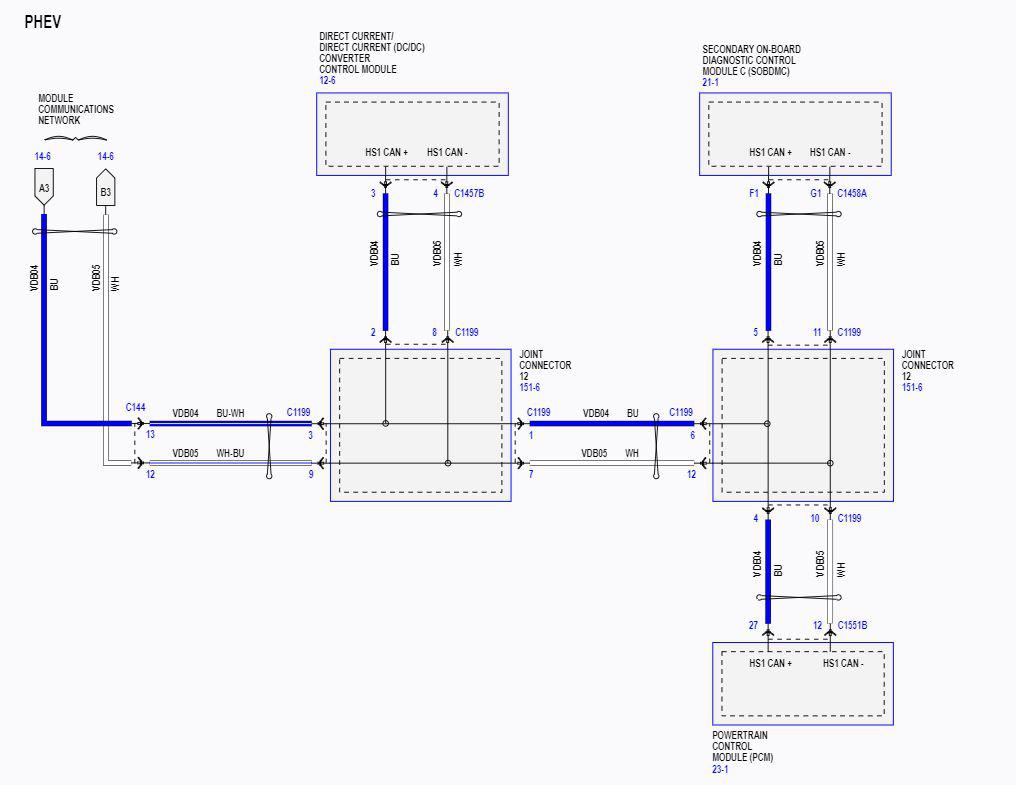

Fig 7: Module Communications Network - Wiring Diagrams (7 Of 29)

GFDWR218735

Courtesy of FORD MOTOR COMPANY

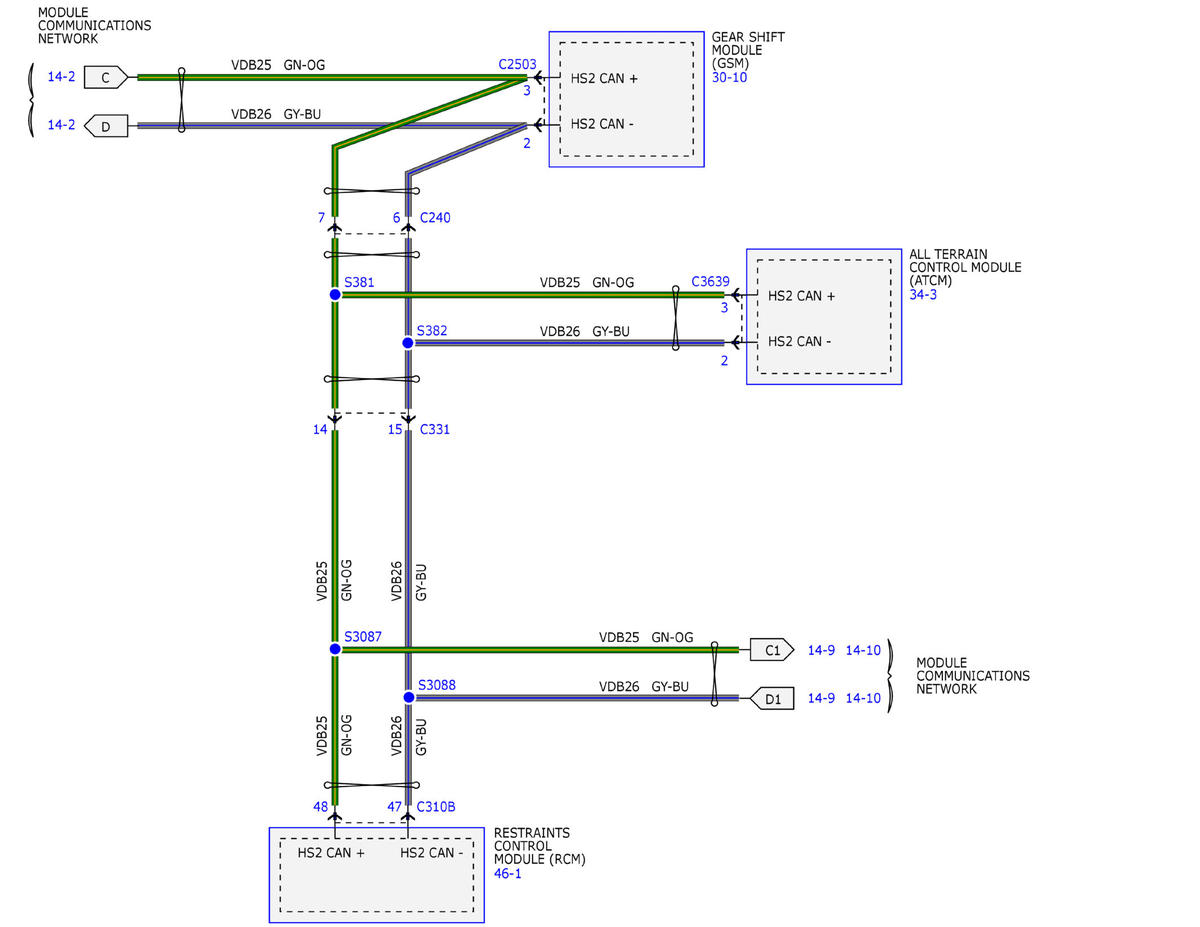

Fig 8: Module Communications Network - Wiring Diagrams (8 Of 29)

GFDWR218736

Courtesy of FORD MOTOR COMPANY

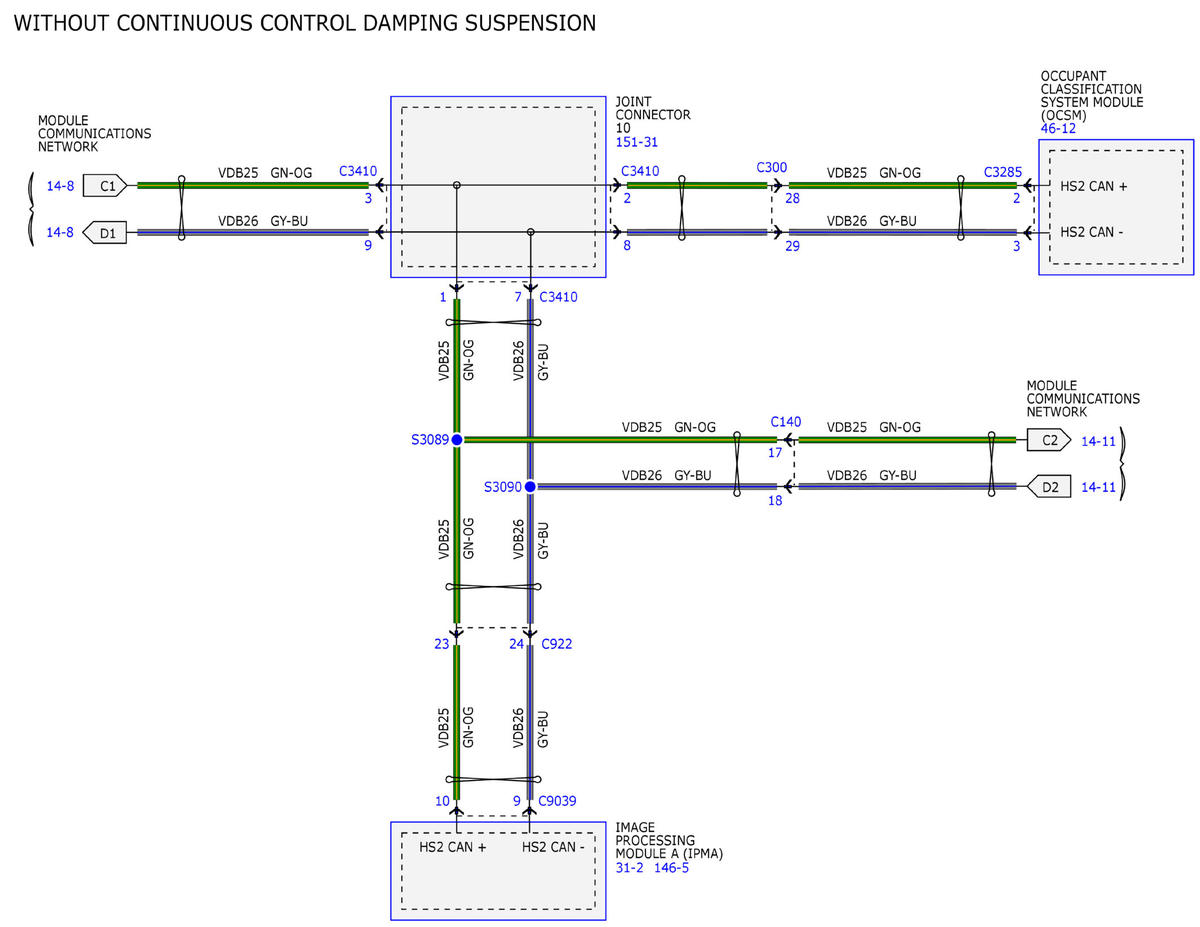

Fig 9: Module Communications Network - Wiring Diagrams (9 Of 29)

GFDWR218737

Courtesy of FORD MOTOR COMPANY

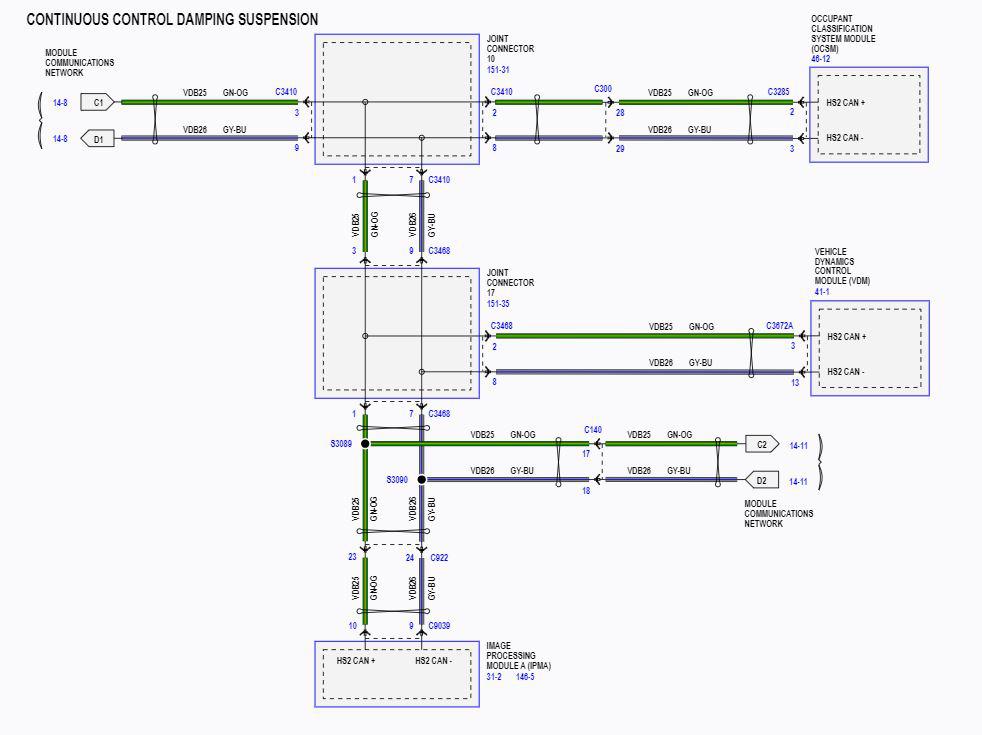

Fig 10: Module Communications Network - Wiring Diagrams (10 Of 29)

GFDWR218710

Courtesy of FORD MOTOR COMPANY

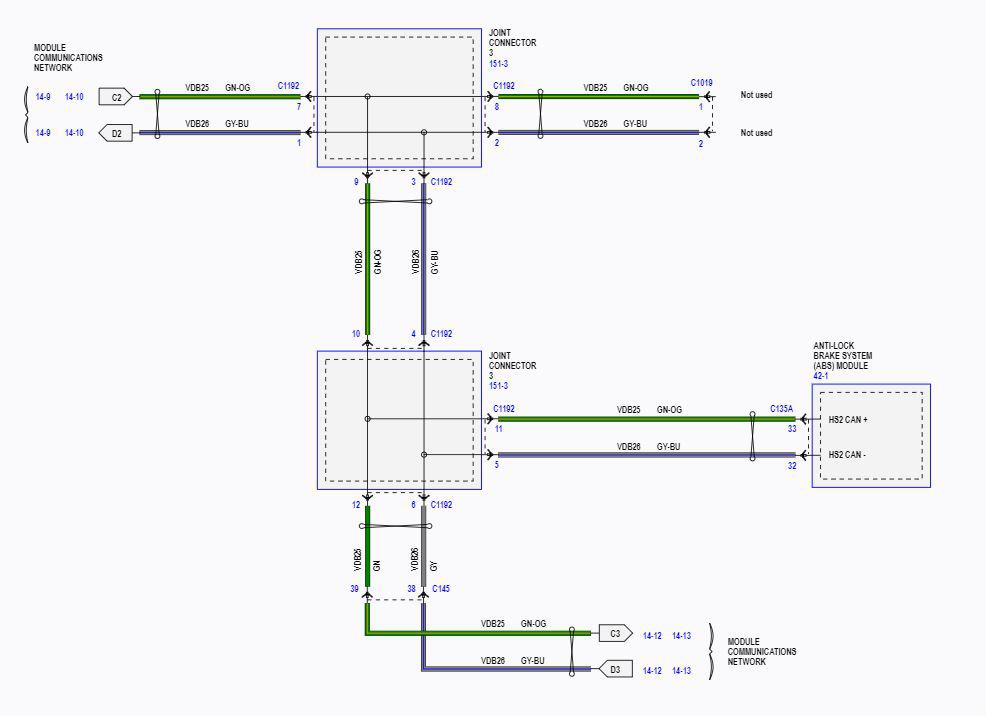

Fig 11: Module Communications Network - Wiring Diagrams (11 Of 29)

GFDWR218711

Courtesy of FORD MOTOR COMPANY

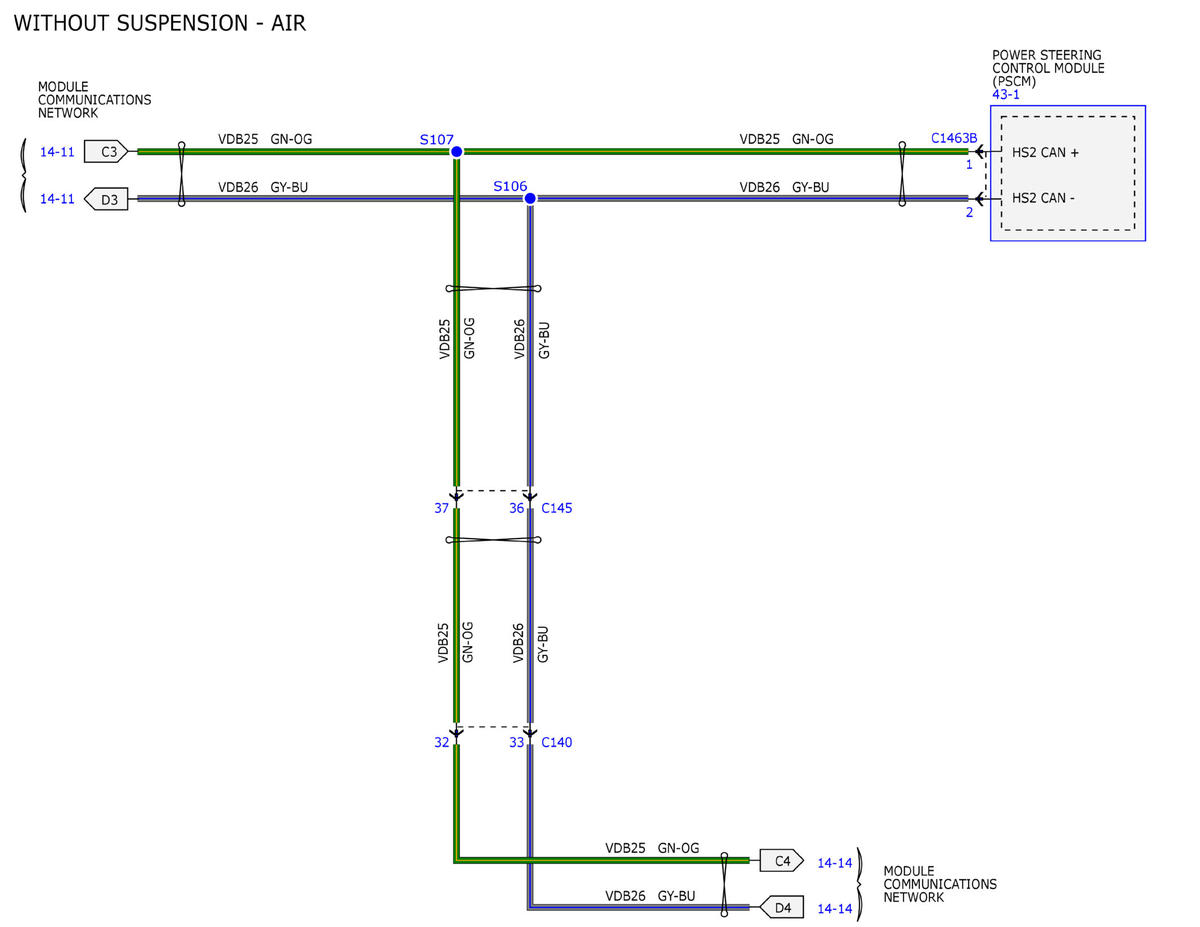

Fig 12: Module Communications Network - Wiring Diagrams (12 Of 29)

GFDWR218712

Courtesy of FORD MOTOR COMPANY

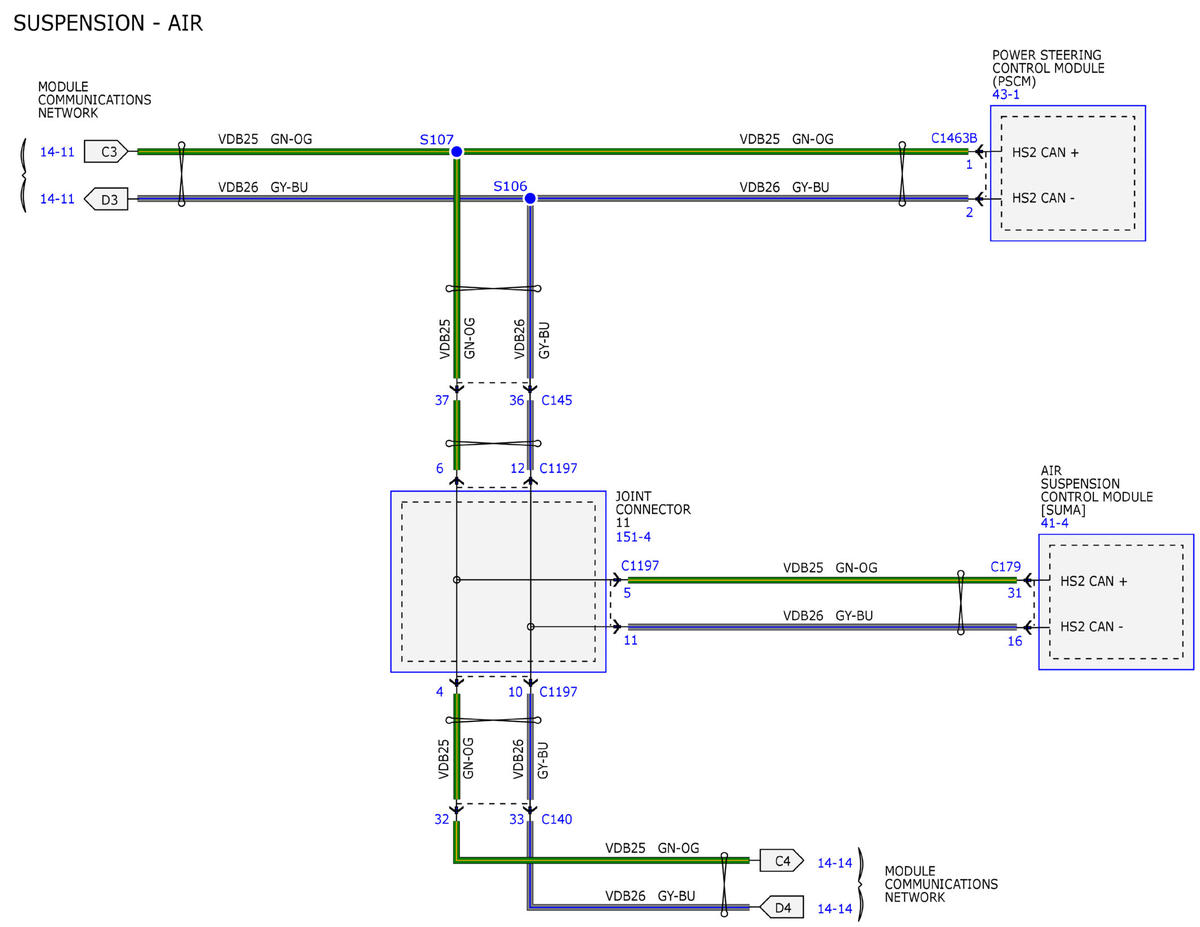

Fig 13: Module Communications Network - Wiring Diagrams (13 Of 29)

GFDWR218713

Courtesy of FORD MOTOR COMPANY

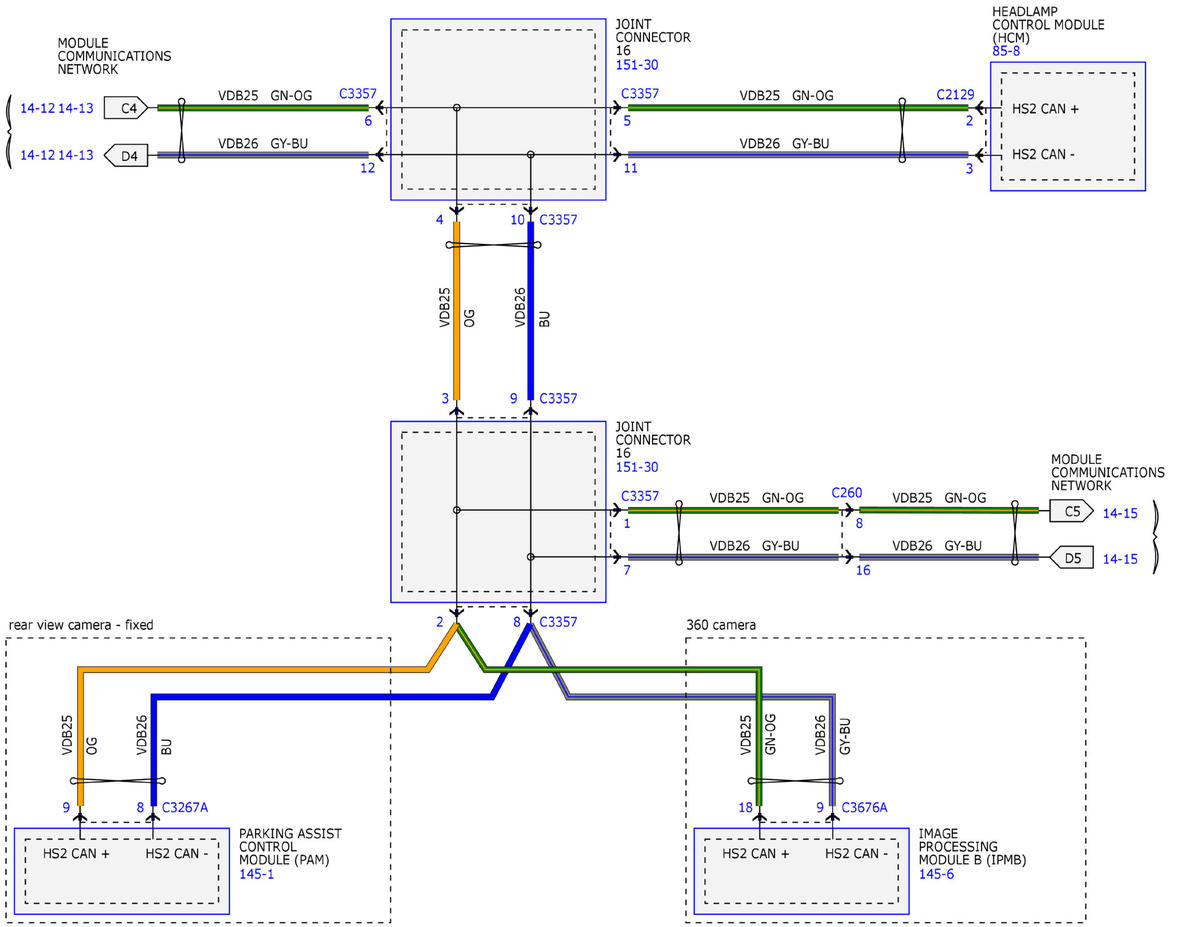

Fig 14: Module Communications Network - Wiring Diagrams (14 Of 29)

GFDWR218714

Courtesy of FORD MOTOR COMPANY

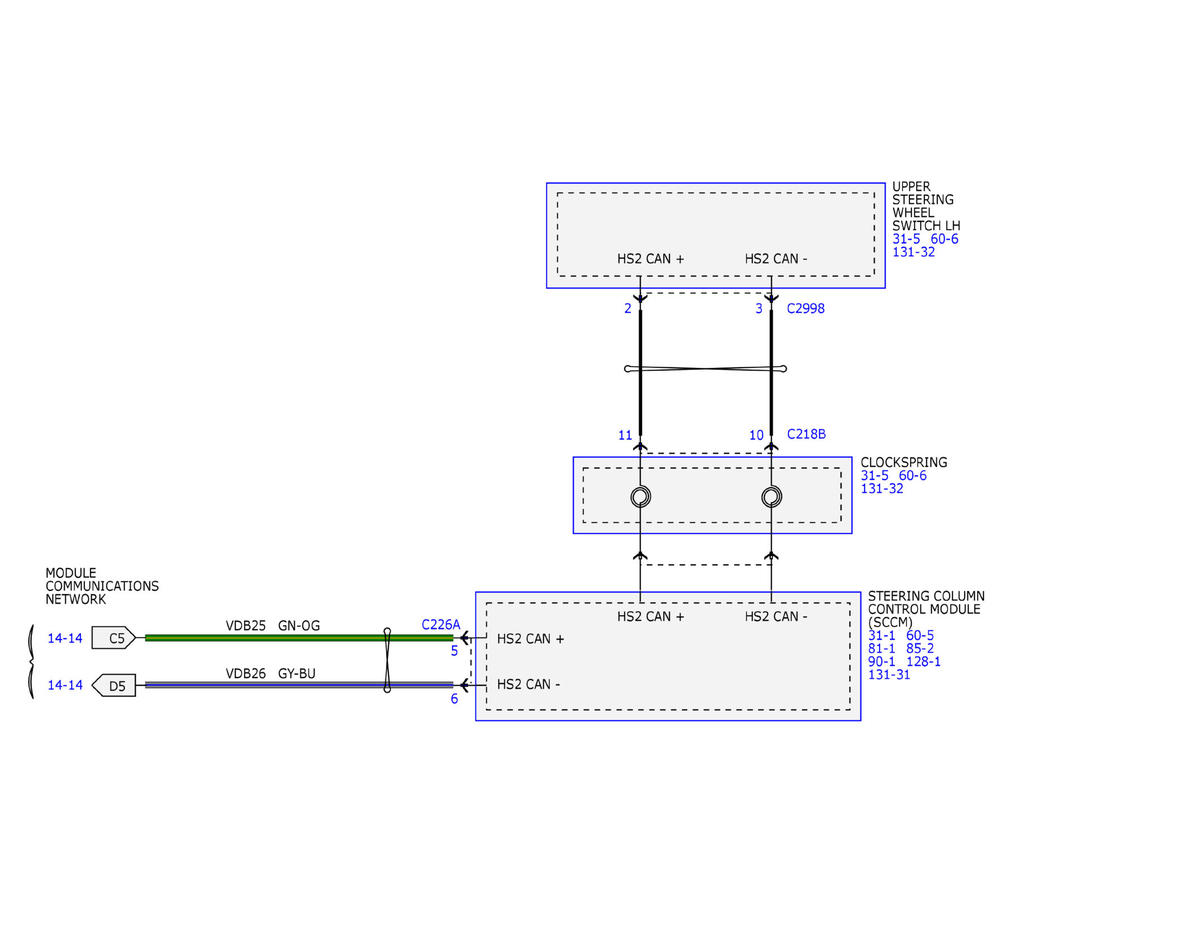

Fig 15: Module Communications Network - Wiring Diagrams (15 Of 29)

GFDWR218715

Courtesy of FORD MOTOR COMPANY

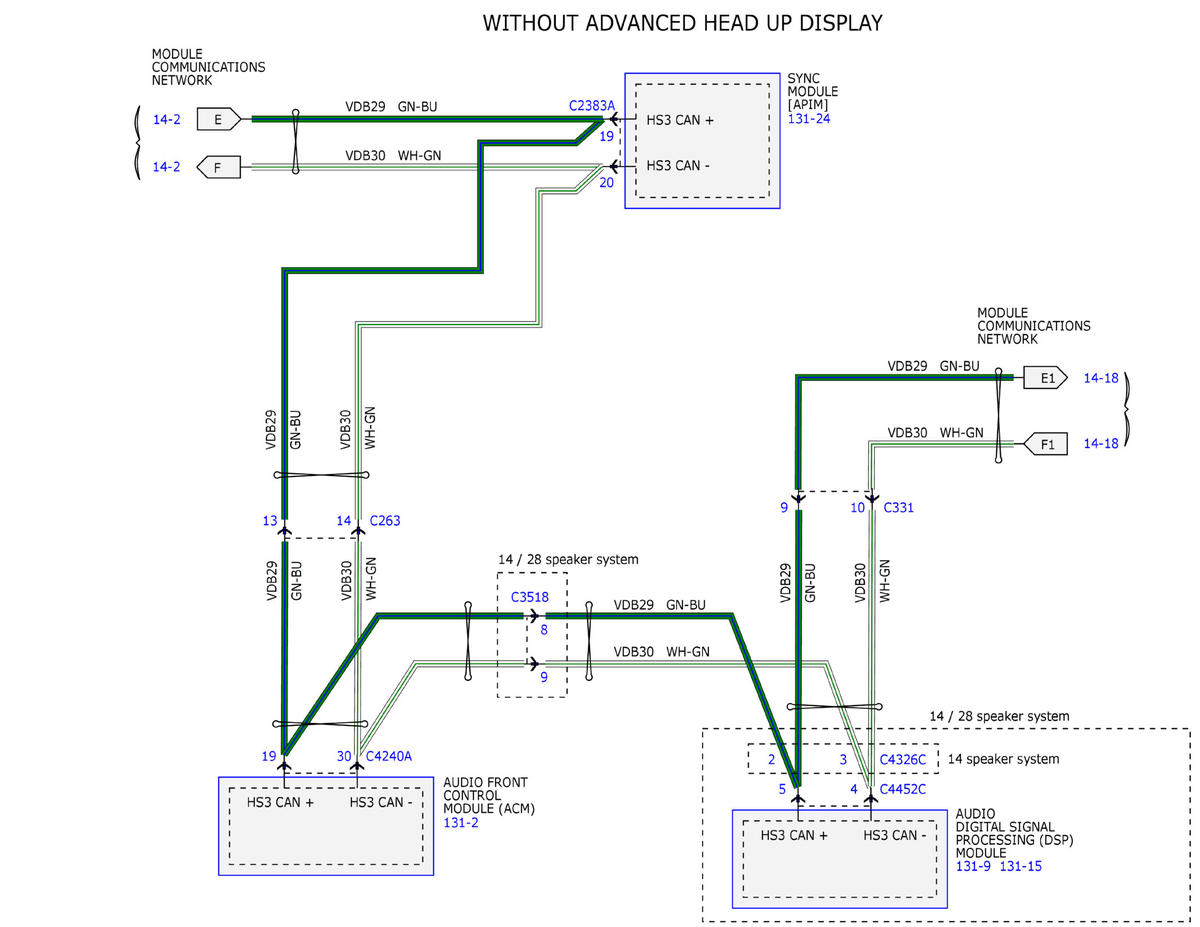

Fig 16: Module Communications Network - Wiring Diagrams (16 Of 29)

GFDWR218716

Courtesy of FORD MOTOR COMPANY

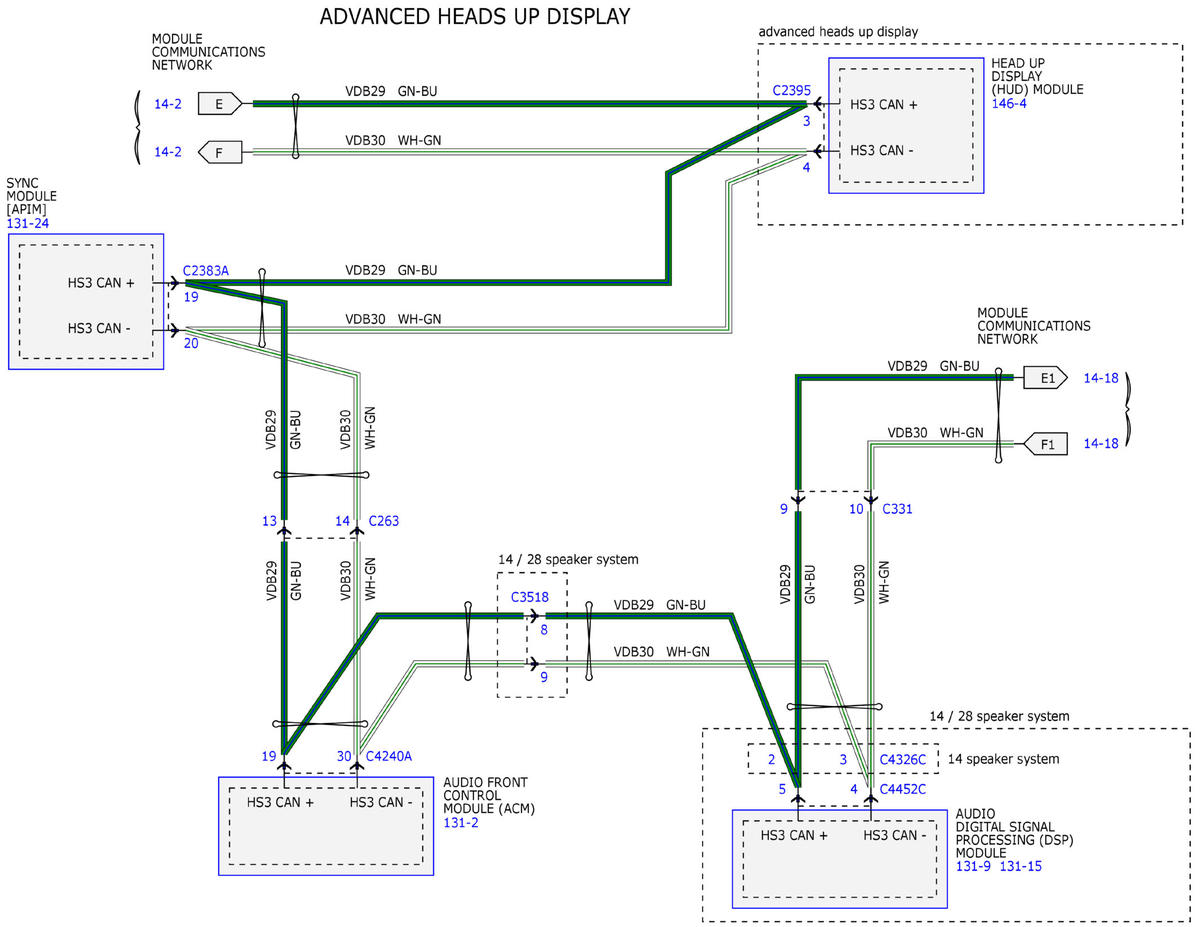

Fig 17: Module Communications Network - Wiring Diagrams (17 Of 29)

GFDWR218717

Courtesy of FORD MOTOR COMPANY

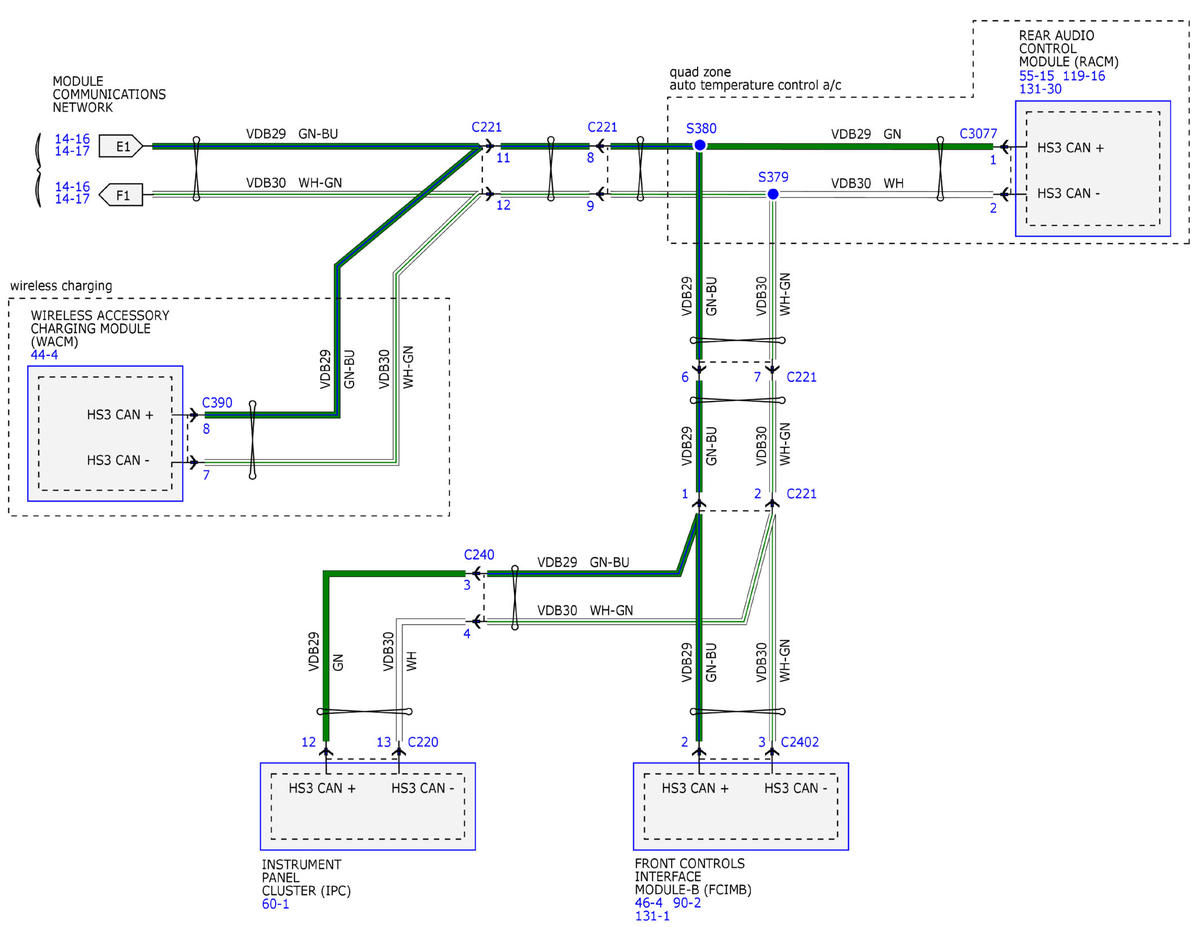

Fig 18: Module Communications Network - Wiring Diagrams (18 Of 29)

GFDWR218718

Courtesy of FORD MOTOR COMPANY

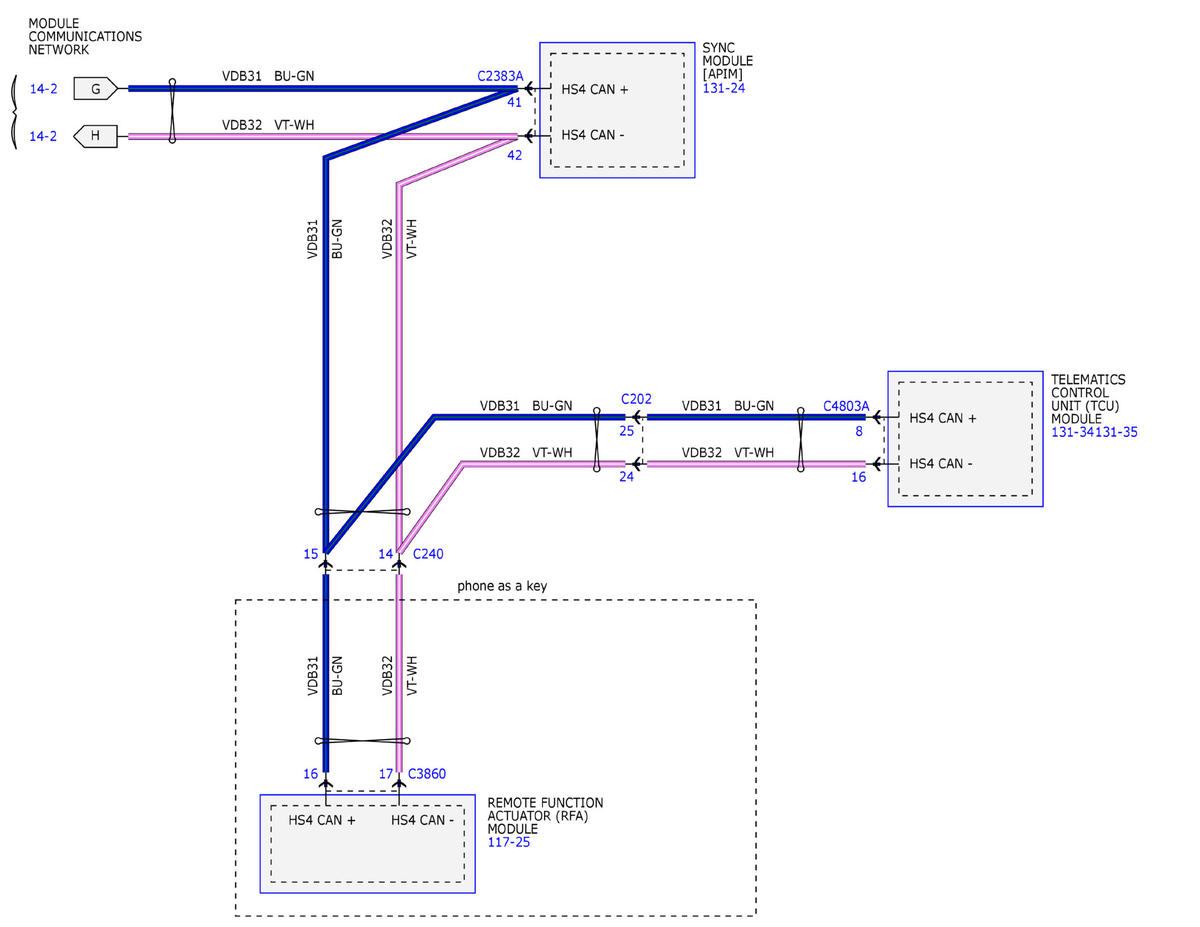

Fig 19: Module Communications Network - Wiring Diagrams (19 Of 29)

GFDWR218719

Courtesy of FORD MOTOR COMPANY

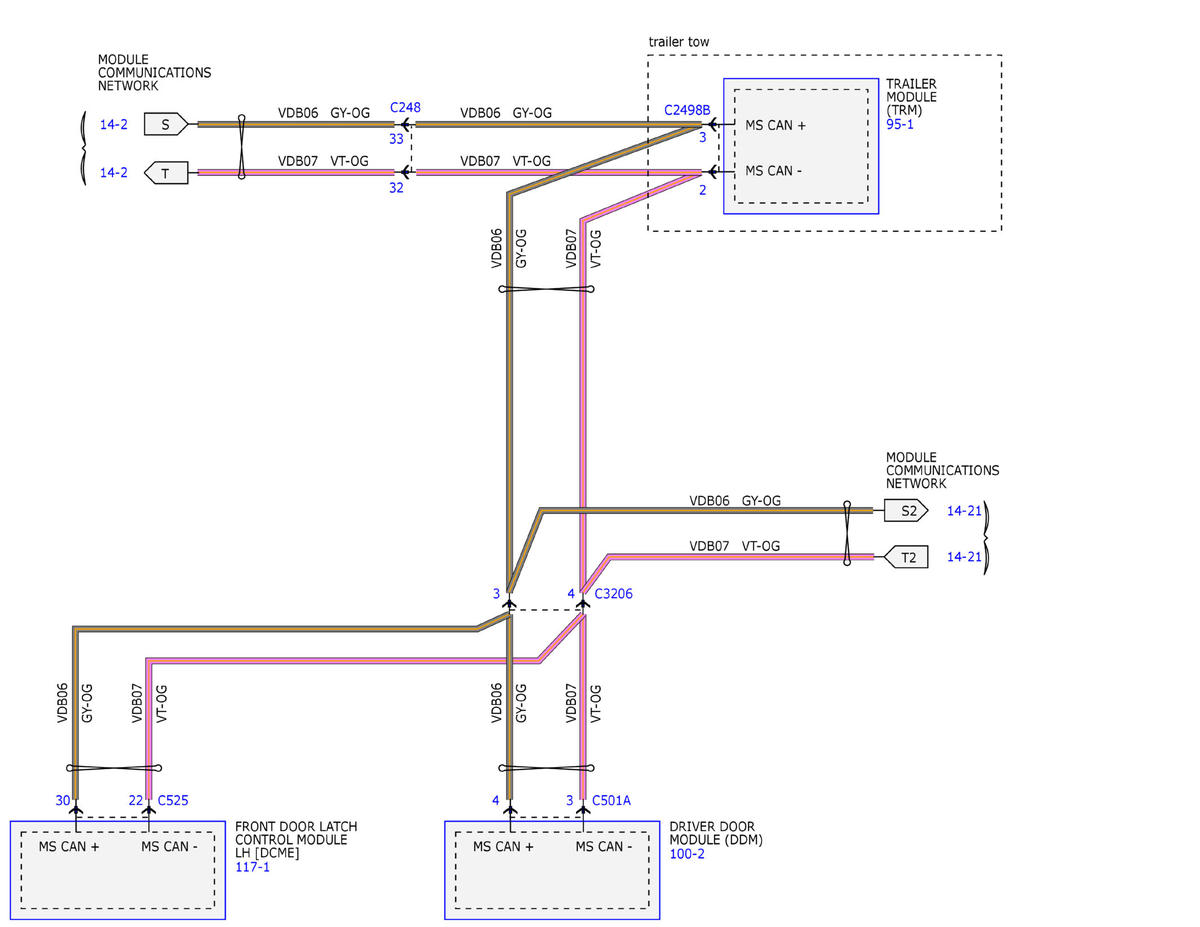

Fig 20: Module Communications Network - Wiring Diagrams (20 Of 29)

GFDWR218721

Courtesy of FORD MOTOR COMPANY

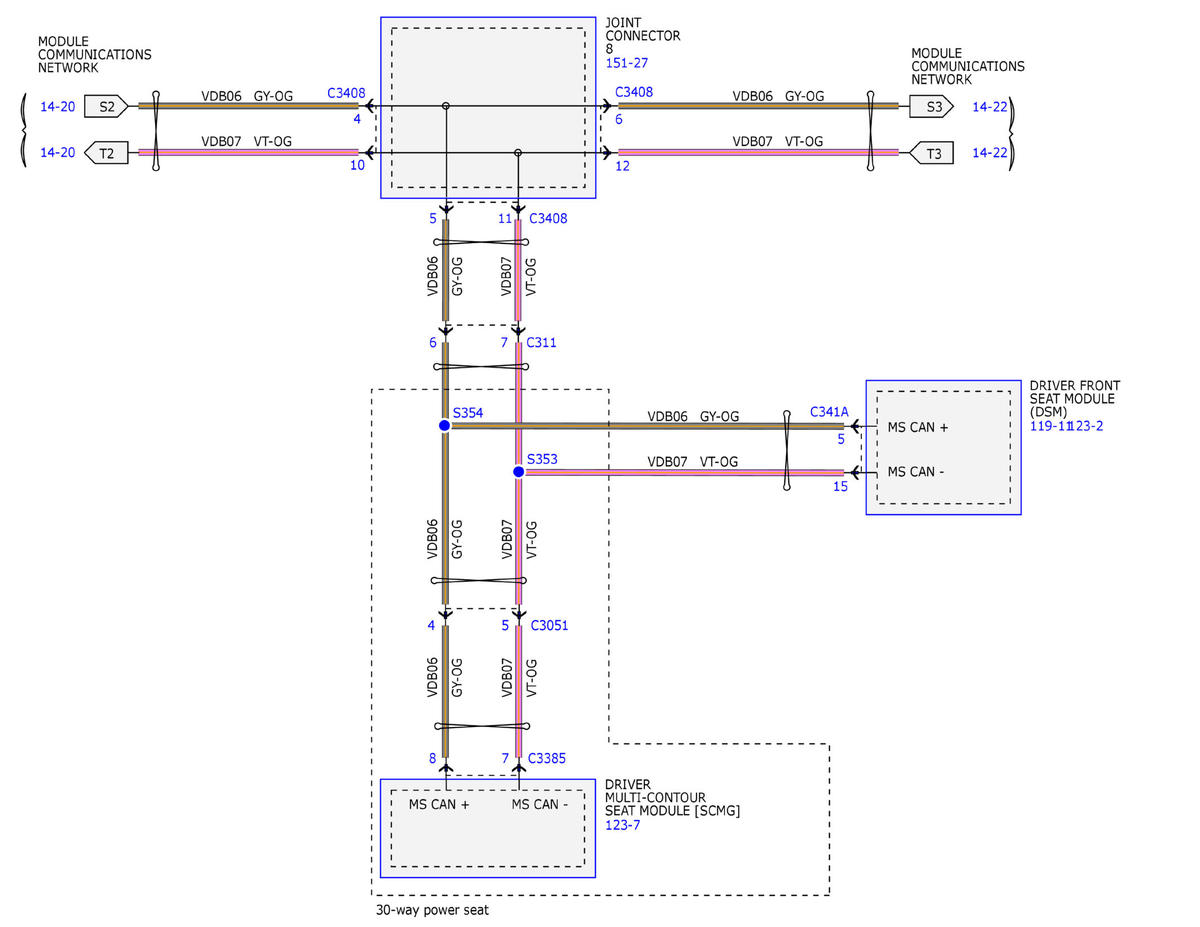

Fig 21: Module Communications Network - Wiring Diagrams (21 Of 29)

GFDWR218722

Courtesy of FORD MOTOR COMPANY

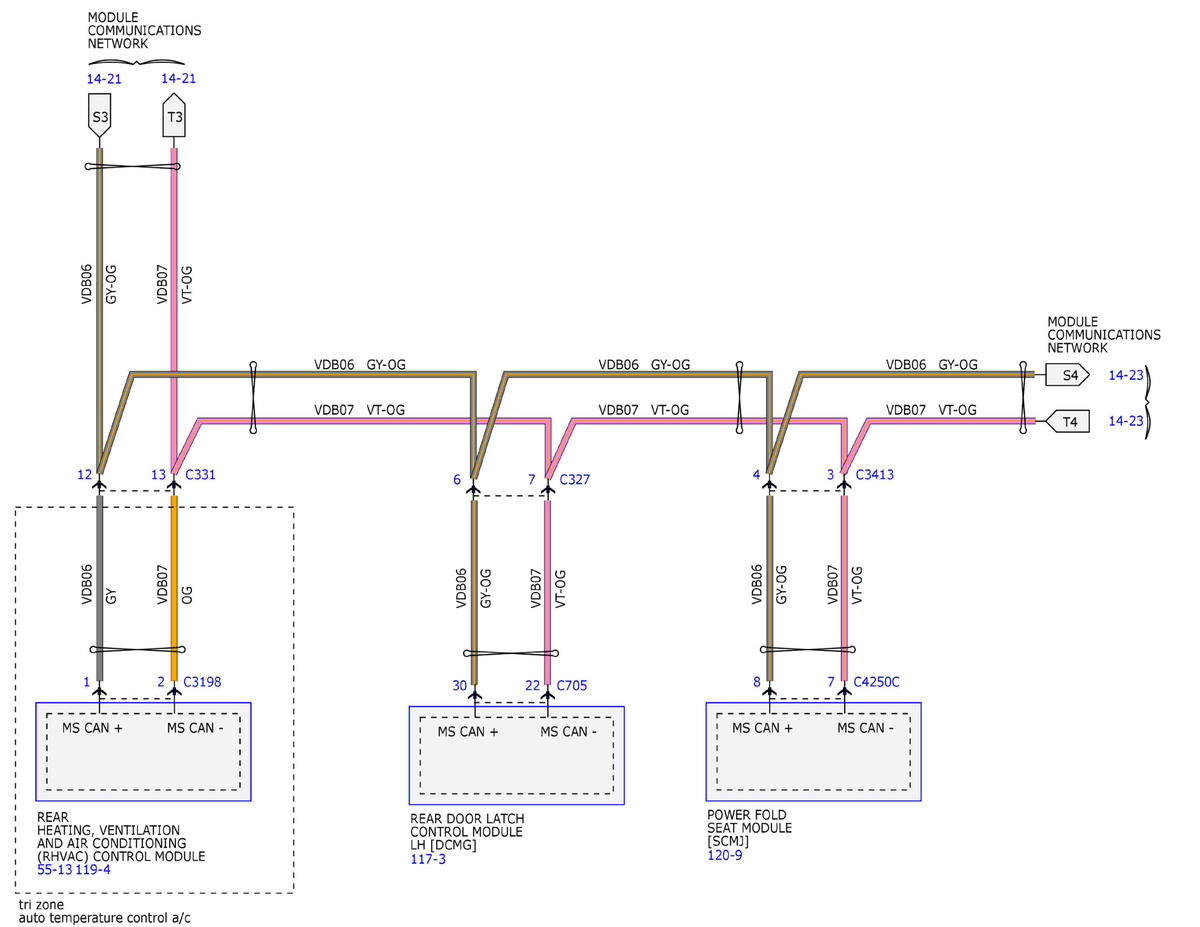

Fig 22: Module Communications Network - Wiring Diagrams (22 Of 29)

GFDWR218723

Courtesy of FORD MOTOR COMPANY

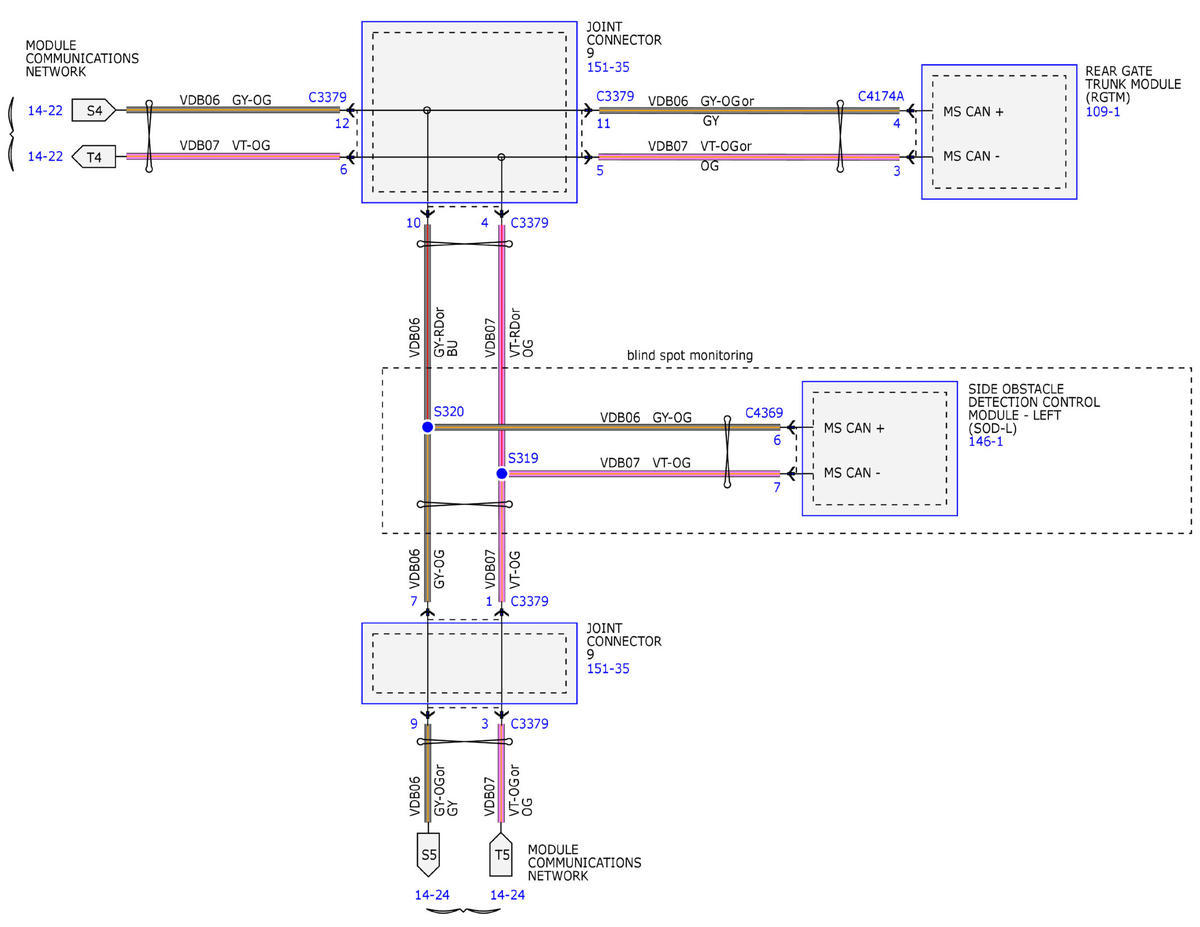

Fig 23: Module Communications Network - Wiring Diagrams (23 Of 29)

GFDWR218724

Courtesy of FORD MOTOR COMPANY

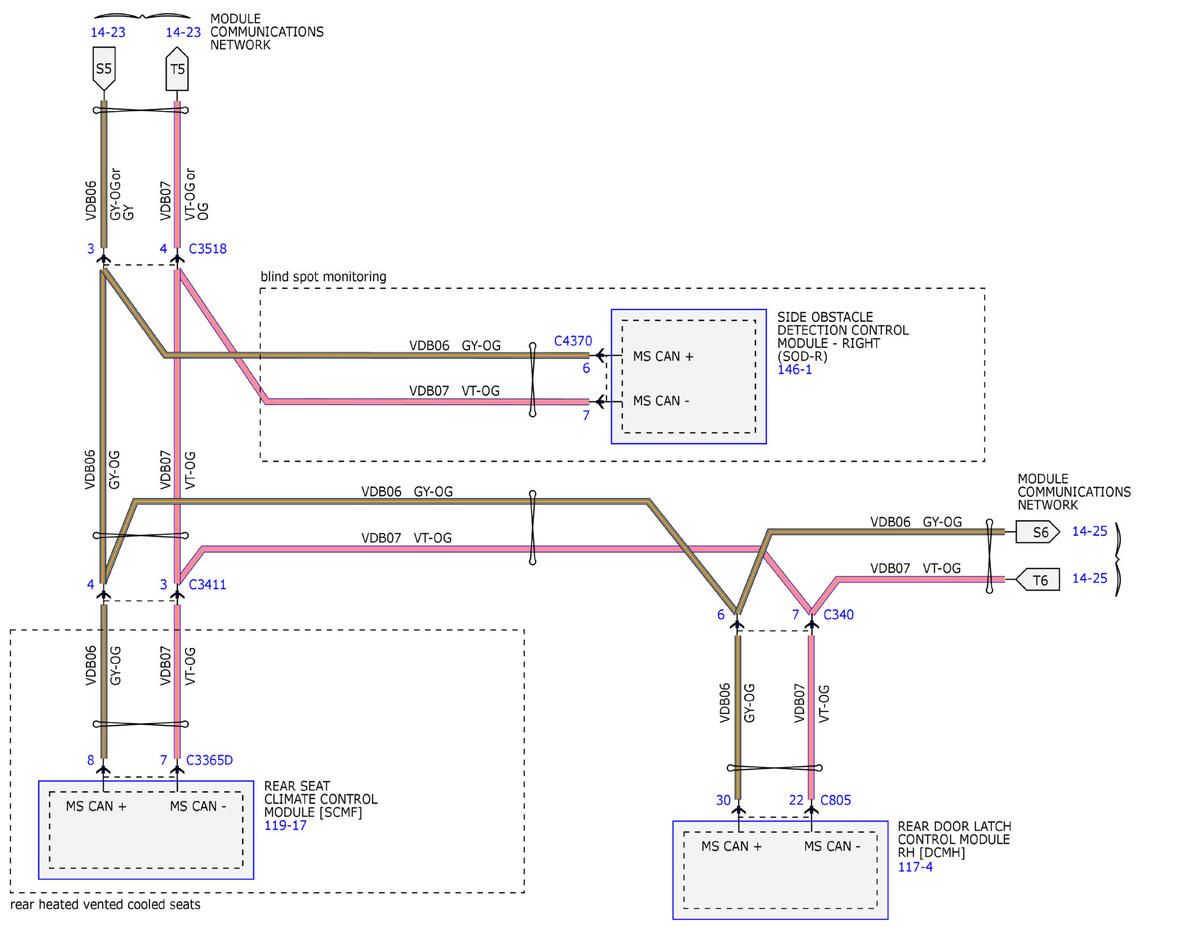

Fig 24: Module Communications Network - Wiring Diagrams (24 Of 29)

GFDWR218725

Courtesy of FORD MOTOR COMPANY

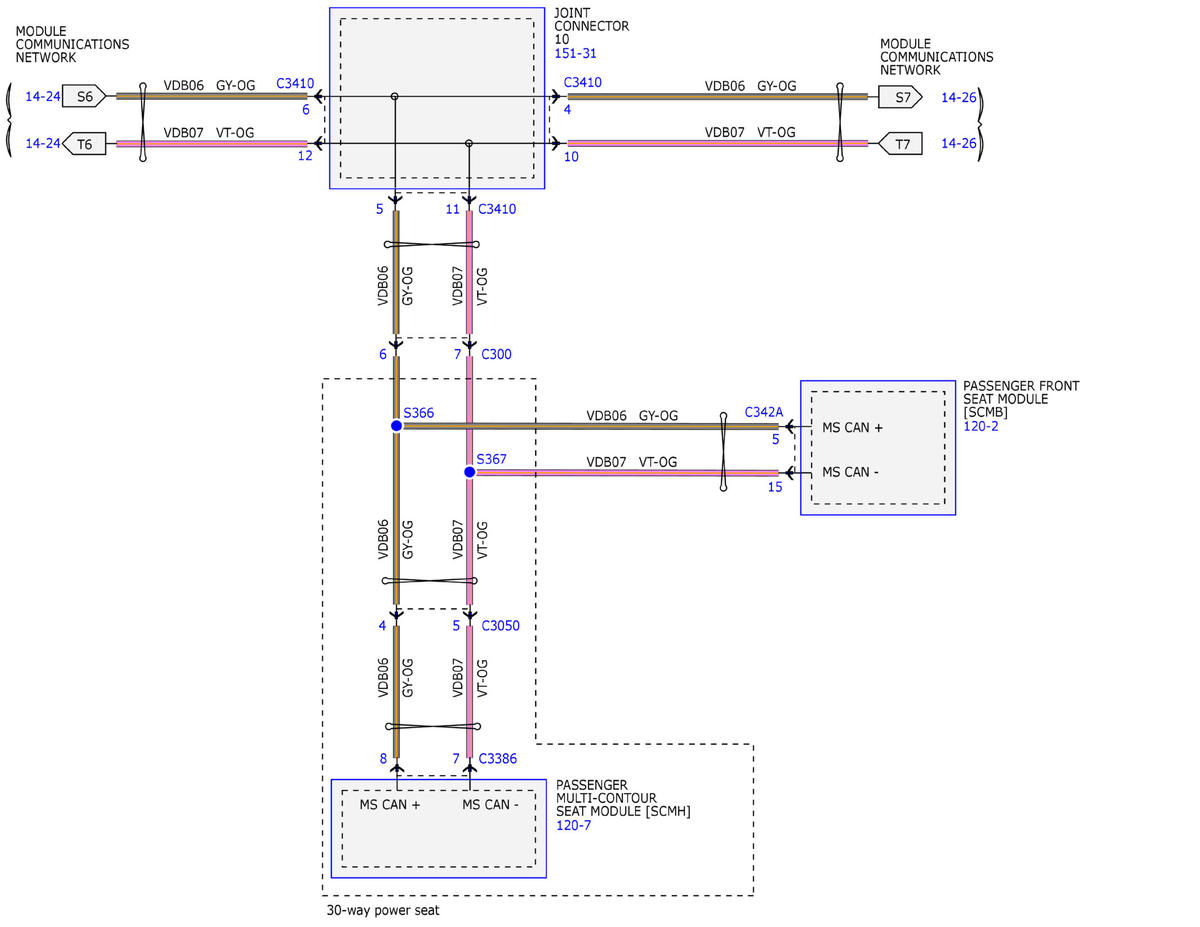

Fig 25: Module Communications Network - Wiring Diagrams (25 Of 29)

GFDWR218726

Courtesy of FORD MOTOR COMPANY

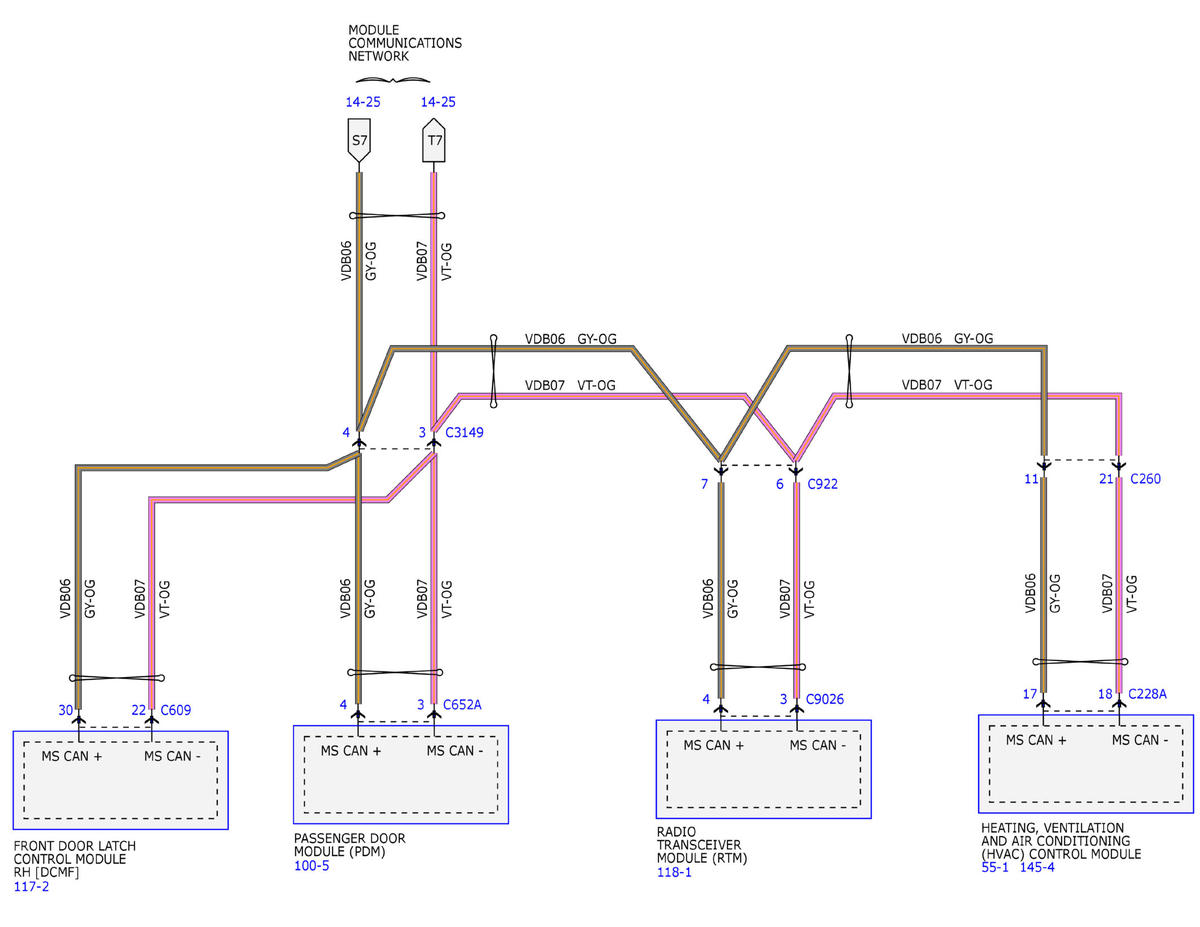

Fig 26: Module Communications Network - Wiring Diagrams (26 Of 29)

GFDWR218727

Courtesy of FORD MOTOR COMPANY

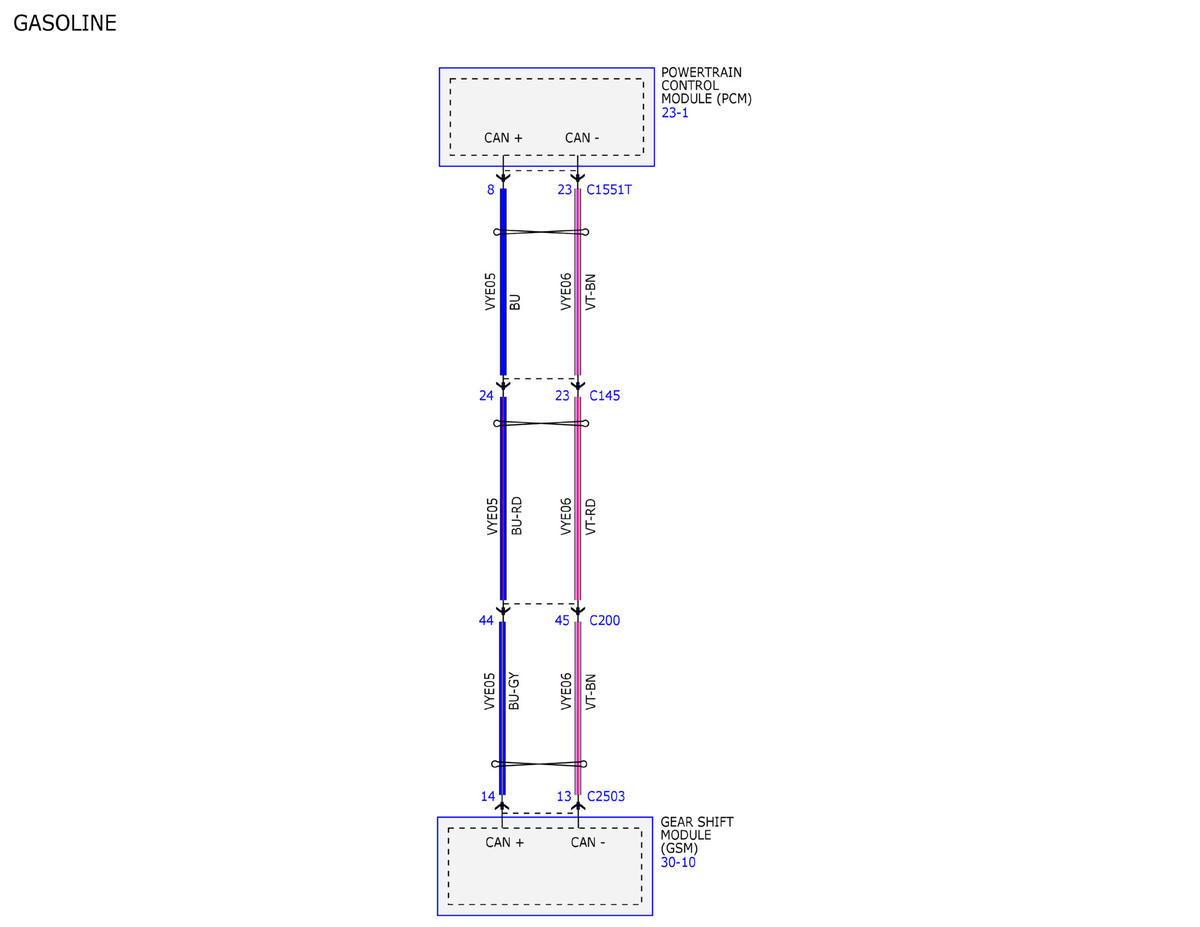

Fig 27: Module Communications Network - Wiring Diagrams (27 Of 29)

GFDWR218728

Courtesy of FORD MOTOR COMPANY

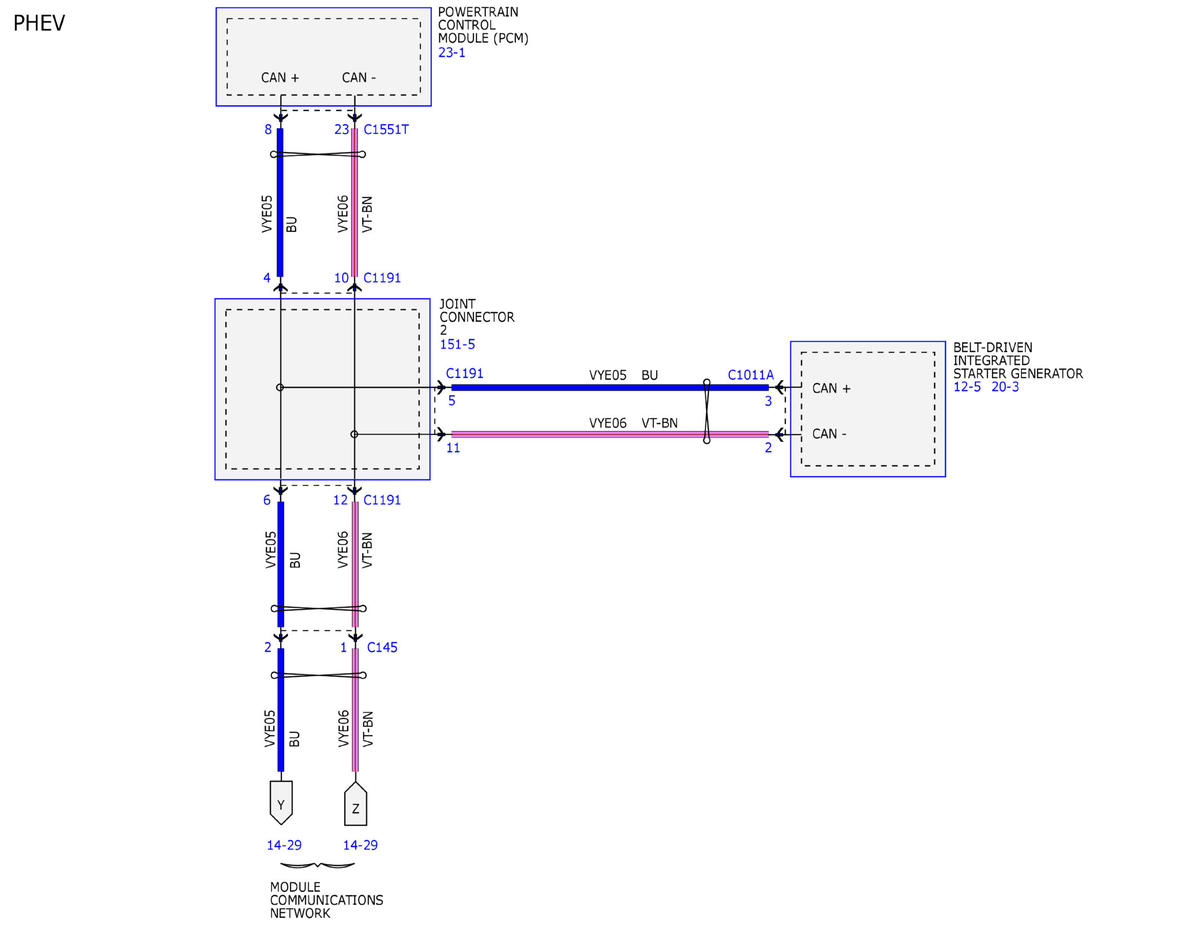

Fig 28: Module Communications Network - Wiring Diagrams (28 Of 29)

GFDWR218729

Courtesy of FORD MOTOR COMPANY

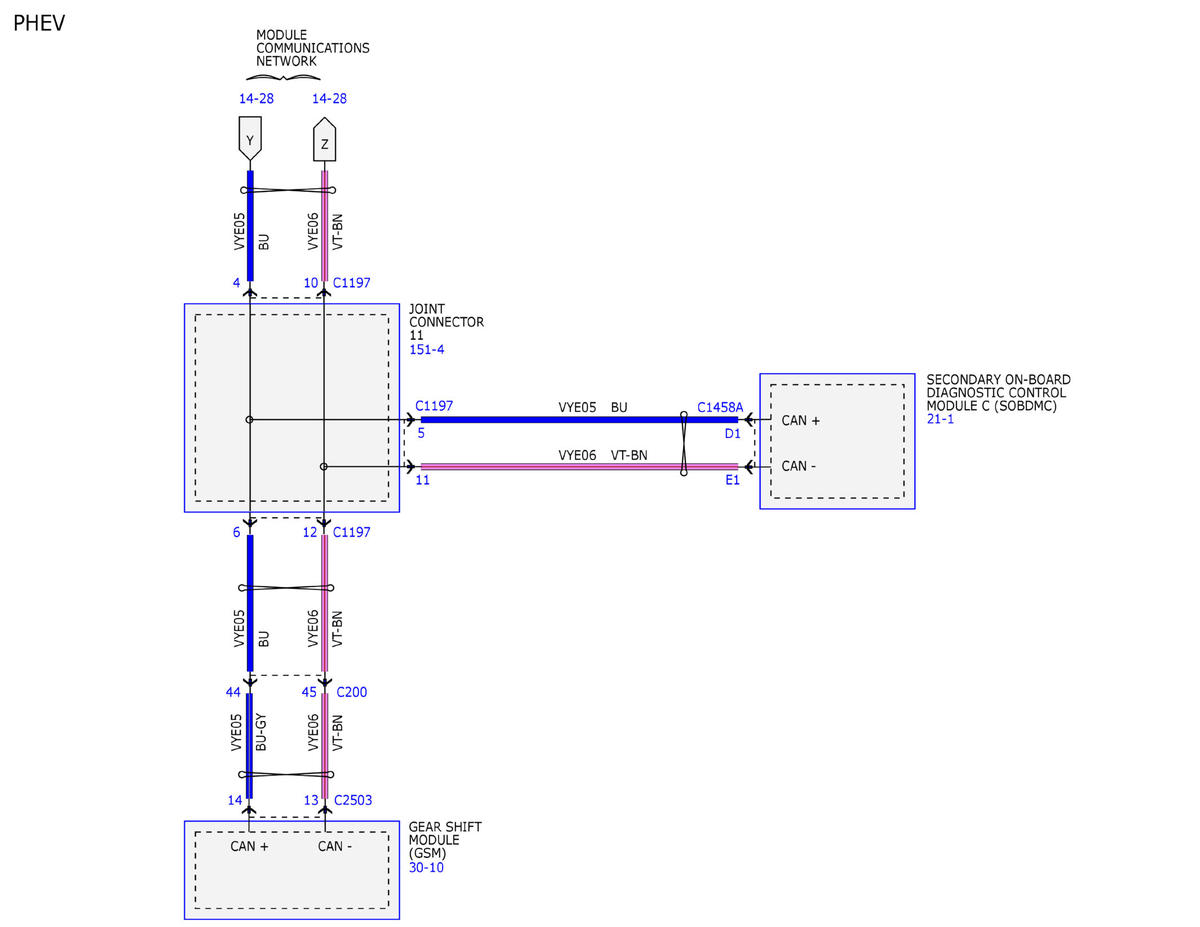

Fig 29: Module Communications Network - Wiring Diagrams (29 Of 29)

GFDWR218730

Courtesy of FORD MOTOR COMPANY
