Steering Column Telescopic Motor: Installation

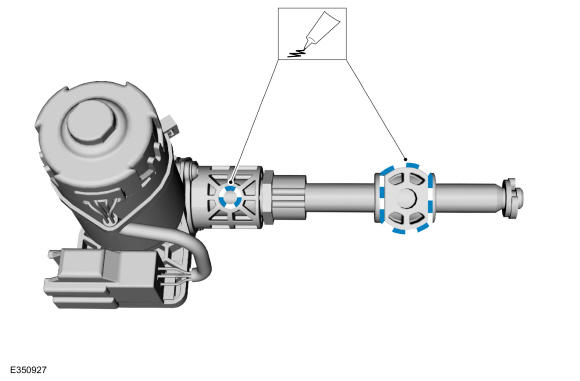

On both sides.Apply grease (supplied with the new motor) to the trunnion nut axles and the telescopic motor lead-screw housing holes.

Courtesy of FORD MOTOR COMPANY
Rotate the trunnion nut until the correct length is achieved to align the lead-screw housing with the threaded holes in the support arm.

Courtesy of FORD MOTOR COMPANY

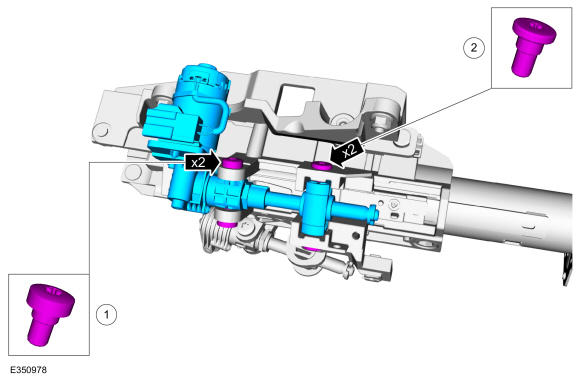

Install the telescopic motor.
1. Position the telescopic motor and install the telescopic motor retainers.
  Torque: 124 lb.in (14 Nm)
2. Install the trunnion retainers.
  Torque: 124 lb.in (14 Nm)
Courtesy of FORD MOTOR COMPANY
Install the steering column. Refer to: Steering Column .
If equipped with memory steering column, use the steering column control switch and set the telescopic motor soft stops as follows.
1. Move the column outward until it reaches the end of travel.
2. Move the column in the same direction until it reaches the end of travel again.
3. Move the column inward until it reaches the end of travel.
4. Move the column in the same direction until it reaches the end of travel again.
