Electronic Engine Controls - Component Location

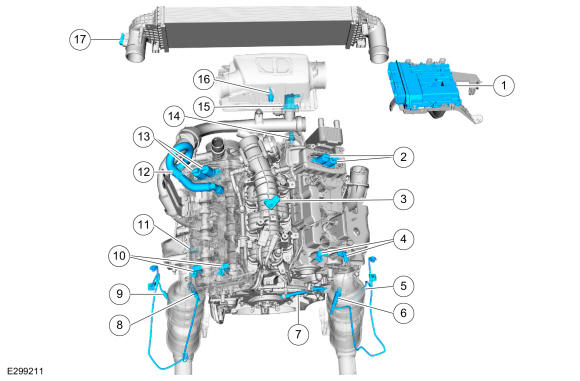

Electronic Engine Controls- Top and Rear
| Item | Description |
|---|---|
| 1 | PCM |
| 2 | RHVCT oil control solenoids |
| 3 | MAPT sensor |
| 4 | RHCMP sensors |
| 5 | RH Catalyst Monitor sensor |
| 6 | RHHO2S sensor |
| 7 | CKP sensor |
| 8 | LHHO2S sensor |
| 9 | LH Catalyst Monitor sensor |
| 10 | LHCMP sensors |
| 11 | CHT 2 (CHT2) sensor |
| 12 | Crankcase Pressure sensor |
| 13 | LHVCT oil control solenoids |
| 14 | EOP sensor |
| 15 | Turbocharger Bypass Valve |
| 16 | IAT sensor |
| 17 | Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) sensor |

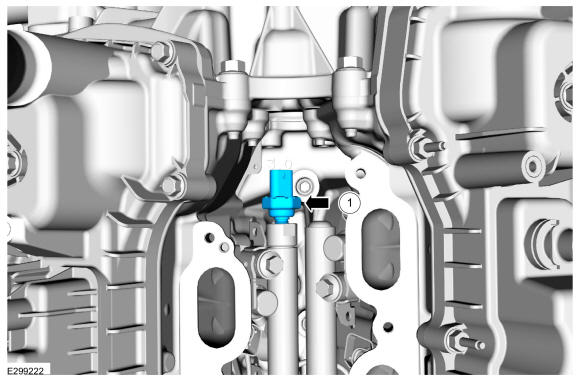

Electronic Engine Controls- Top
| Item | Description |
|---|---|
| 1 | FRP and Temperature sensor |

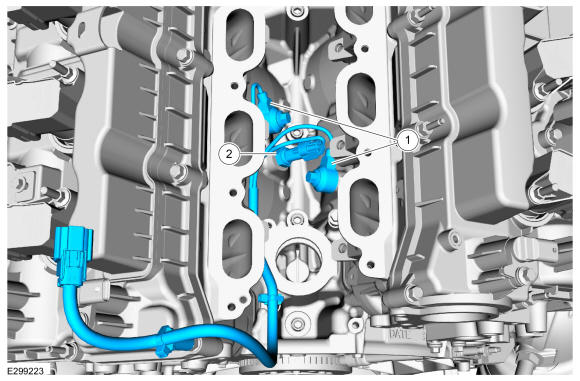

Electronic Engine Controls - Top
| Item | Description |
|---|---|
| 1 | KS sensors |
| 2 | ECT sensor |

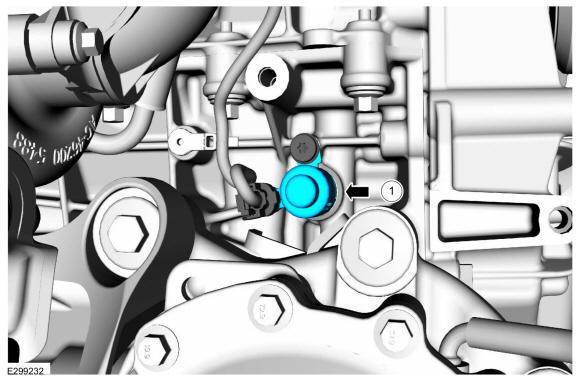

Electronic Engine Controls- Side
| Item | Description |
|---|---|
| 1 | Oil Pressure Control Solenoid |

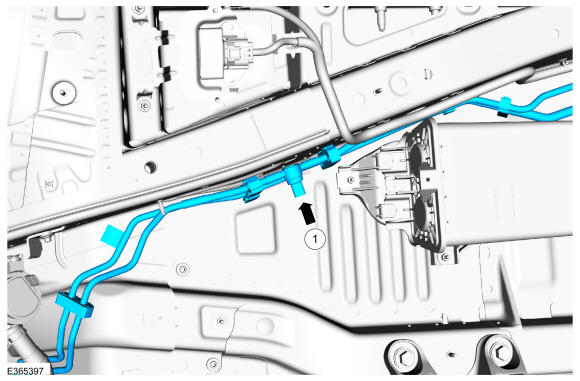

Electronic Engine Controls
| Item | Description |
|---|---|
| 1 | Fuel low pressure sensor |
