Power Steering Controls
Power Steering Controls

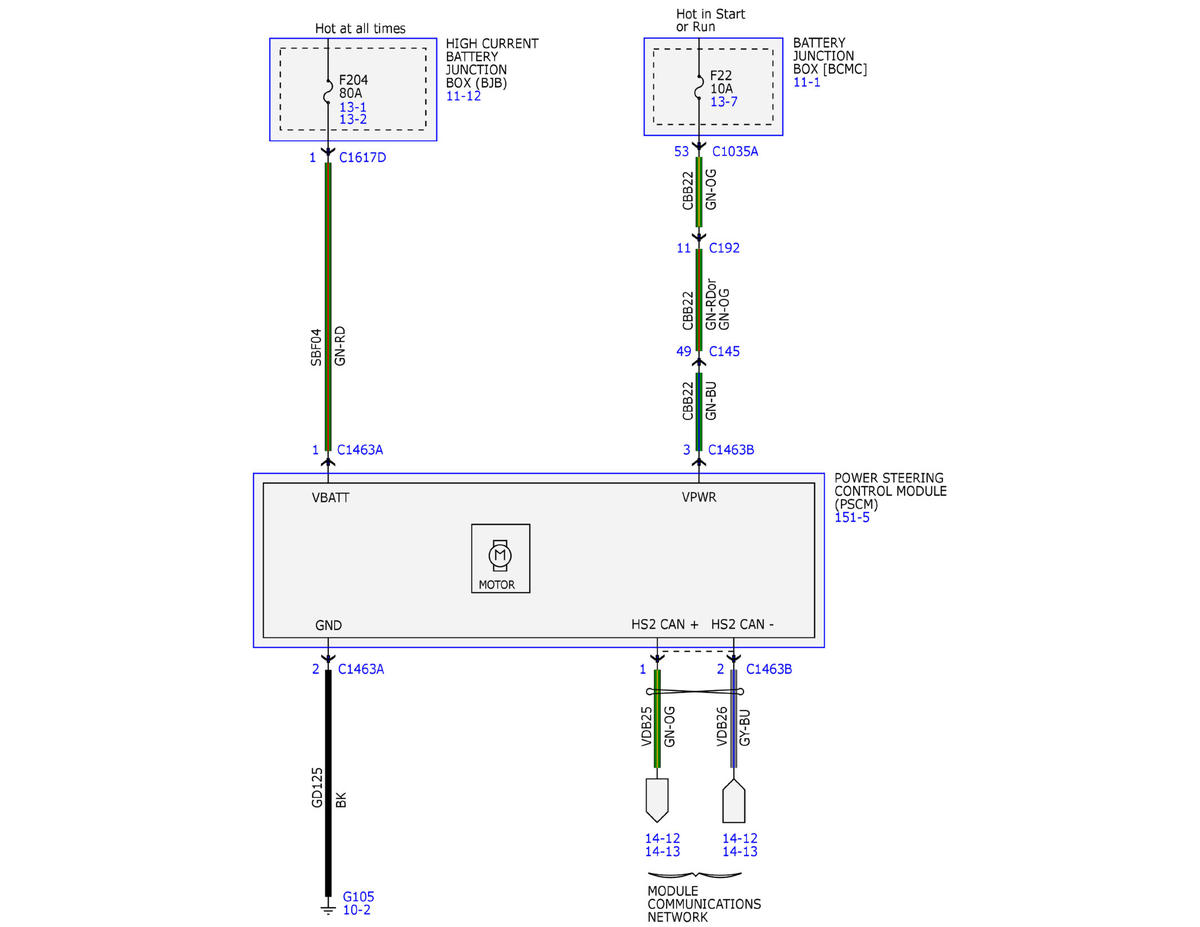

Fig 1: Power Steering Controls - Wiring Diagrams (1 Of 1)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
